That Quiet Canopy Is Slowly Cooking Your Diesel Generator

The noise citation was taped to the site fence on a Thursday morning. White paper, red stamp, a number nobody wanted to look at twice. The building manager called me before I’d finished my coffee. “They say our generator is over the limit. But it only runs on Tuesdays.” Tuesdays. Every Tuesday at 6:45 in the morning, the standby set fired up for its weekly exercise, and every Tuesday the neighbors on the fifth floor learned what 90 decibels feels like before sunrise.

That’s how most enclosure retrofit projects start. Not with an engineering study. With a fine.

So the owner does the natural thing: order a sound-attenuated canopy for the open generator, bolt it on, and assume the problem is solved. I’ve watched this play out a dozen times. And here is the part the canopy salespeople skip — a cheap enclosure on a loud generator doesn’t just fail to solve the noise problem. Done wrong, it cooks the engine it’s supposed to protect.

Mistake 1: Treating the noise limit like a suggestion

Most cities have noise ordinances with actual numbers in them. Residential areas usually land around 50 to 55 dB(A) in the daytime and 40 to 45 dB(A) at night, measured at the property line — those are the ballpark figures I see across municipal codes, not a quote from any single city’s law book.

Now compare: an open-frame diesel set in the 200 to 500 kVA range runs somewhere around 85 to 95 dB(A) at seven meters. A proper sound-attenuated unit brings that down to roughly 65 to 75 dB(A) at the same distance. Remember, the decibel scale is logarithmic. A 10 dB(A) drop sounds about half as loud to a human ear. A 3 dB(A) difference doubles the sound energy. These are not small numbers. They’re the difference between a generator and a violation.

The mistake owners make is thinking the regulation only applies when the generator is “really running” — during an outage. It doesn’t. Your weekly exercise at dawn counts. Your load-bank test counts. The inspector who shows up counts every start, and the fine for the second complaint is always bigger than the first one. I watched a small logistics depot collect three citations in five weeks before they admitted the $40,000 generator they were proud of was, legally, an unlicensed noise source.

Mistake 2: Buying the box for its decibel number

Once the citation lands, owners shop for canopies the way they shop for generators — by the headline number. One vendor quotes 68 dB(A), another quotes 65, and the 65 wins the order.

Here’s the thing. That number is measured under lab conditions, doors closed, maintenance hatches sealed, with the louver openings the vendor sized. What the number doesn’t tell you is how much air that box actually moves. And a diesel generator is basically an air pump with a business model. For every kilowatt of electrical output, the engine throws away roughly two more as heat, and most of that heat leaves through the radiator and the exhaust. Choke the airflow and the coolant temperature starts climbing.

I got called to a retrofit that had exactly this problem. A 400 kVA set, a brand-new “68 dB(A)” enclosure, and a coolant temperature that climbed past 100°C every time the set ran longer than twenty minutes. The vendor had sized the intake louvers to keep the noise number low, not to feed the radiator. The box was so airtight that the engine was breathing its own hot discharge air — the discharge plenum leaked back into the intake side, a short circuit you couldn’t see until you stuck a thermometer in both streams.

We measured a 15-degree rise in inlet air temperature against ambient. On a hot day, that alone pushes you toward the derate zone. The set didn’t fail during the ten-minute weekly exercise. It failed at minute forty of the first real outage after the retrofit, on high coolant temperature, with the building dark. The fix cost more than the canopy.

My rule of thumb — crude, but it’s never burned me: the free area of the intake openings should be at least one and a half times the radiator’s discharge area. If a vendor can’t show you that number, the decibel number on the brochure is fiction.

Mistake 3: The silencer up top is quietly raising back pressure

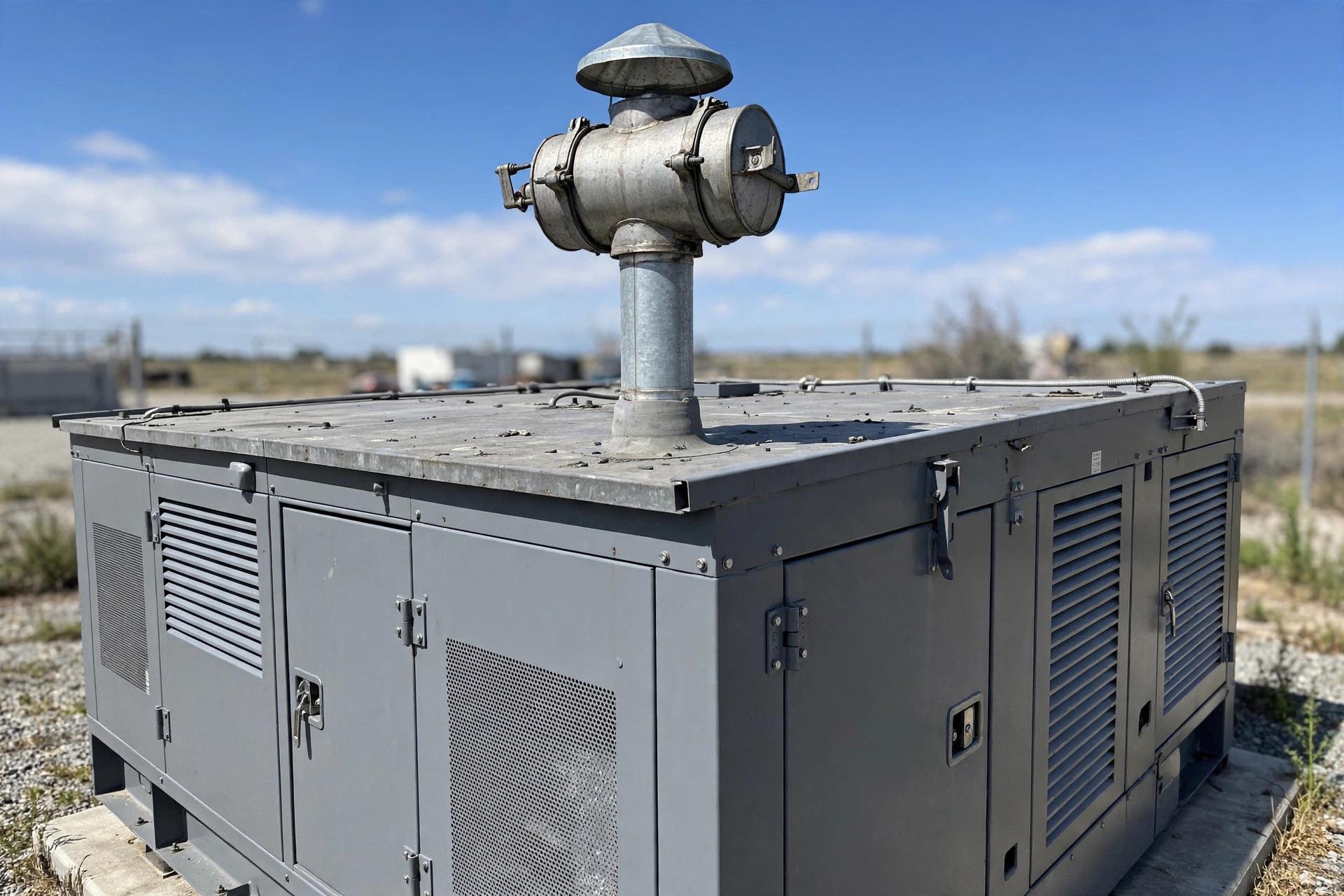

Exhaust noise is the loudest single source on most sets, so the retrofit spec always includes a better silencer — usually a big hospital-grade muffler bolted to the canopy roof. Looks professional. Sounds quieter.

But every silencer is also a restriction. Engine makers publish a maximum allowable exhaust back pressure — exceed it and you get higher exhaust gas temperatures, turbocharger damage, and lost power. I’ve seen retrofit silencers add so much restriction that the engine’s own protection derated the set, and nobody connected the two because the silencer was “just plumbing.”

Then there’s the rain cap. The little flapper on top of the stack. In a proper design it’s a detail. In a cheap retrofit it’s a hazard: rain gets in during the months the set sits idle, pools in the silencer, and the first start of the season sprays rusty water and back-pressure surges through the exhaust. I once watched a set belch a liter of rust soup across a freshly painted canopy roof on its first start after the rainy season. The owner thought the paint was defective. The paint was fine. The drainage wasn’t.

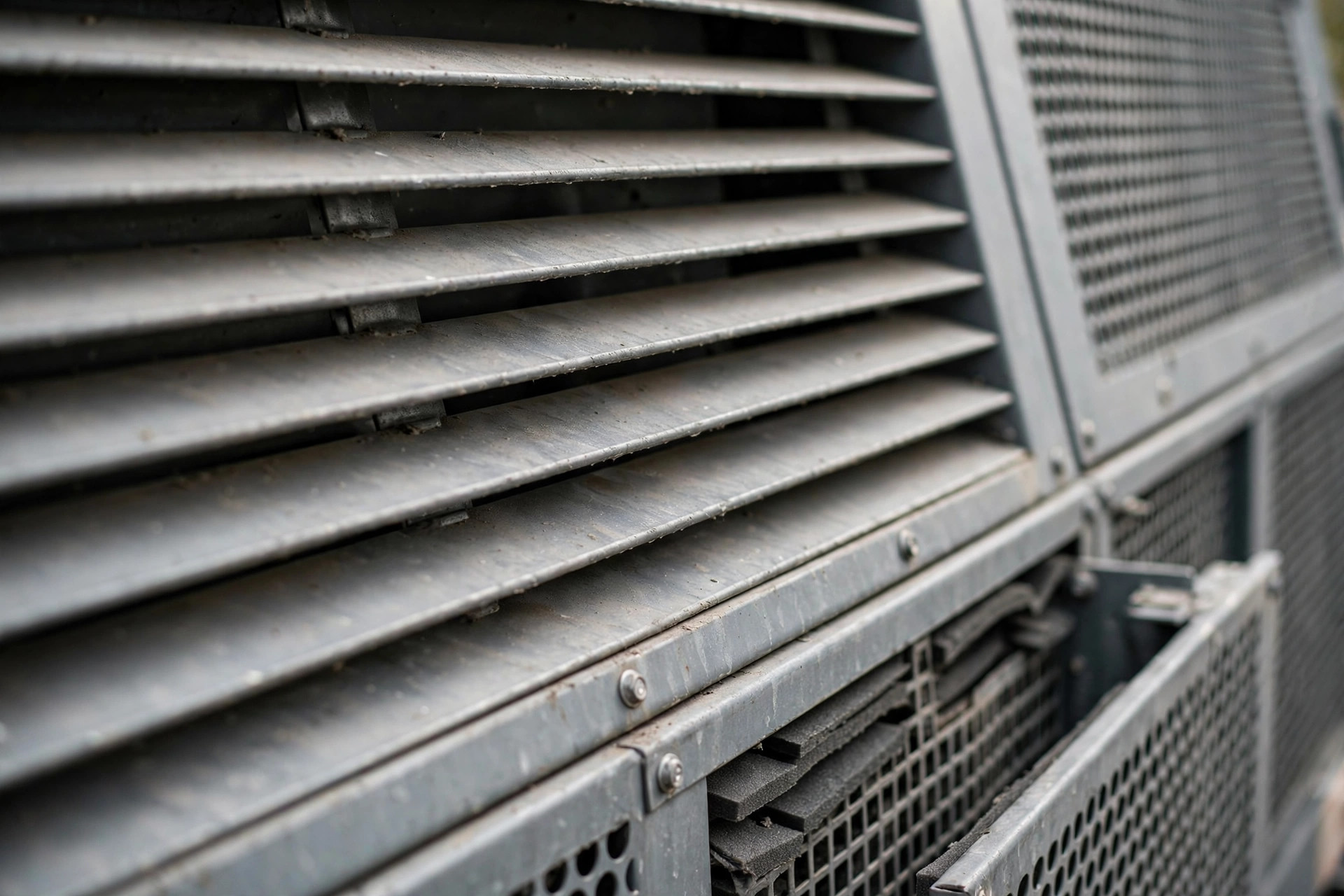

Mistake 4: Forgetting that an enclosure is an air circuit, not a box

A sound-attenuated enclosure has two jobs, and they fight each other. Keep noise in. Let air through. The noise side wants thick panels, baffled openings, minimal holes. The engine side wants huge amounts of cooling and combustion air. Every good canopy is a negotiated settlement between those two.

The mistake is treating the enclosure as a box with a generator inside. It’s actually an air circuit: intake louvers, baffled duct to the radiator, radiator, discharge plenum, exhaust stack, plus a separate path for combustion air to the engine air filter. Break any link and the whole circuit degrades. The most common break I find is hot discharge air recirculating into the intake — the set rebreathing its own heat, exactly like the 400 kVA case above.

The second most common is the acoustic louver added later. Somebody retrofits extra “quiet” louvers over the original intake, or the maintenance crew leaves the temporary plywood covers on after a paint job. Airflow drops a third. The set runs fine for its weekly exercise and dies on the first long outage — the same pattern every time. An enclosure is only as good as its worst airflow day.

If you remember one technical detail from this article, make it this: intake air temperature is the cheapest health monitor an enclosed set has. A thermometer in the intake stream, checked against ambient once a season, catches more enclosure problems than any vibration analyzer.

Mistake 5: Operating the enclosure like it isn’t there

Here’s the saddest mistake of all, because the retrofit was done right and then the humans defeated it. A sound-attenuated enclosure only works with the doors closed and the louvers clear. And every week, in the real world, somebody opens it up.

The maintenance tech props the canopy doors open during a service because it’s dark and hot inside. The doors stay open because nobody closes them. The weekly exercise runs with the doors open. The noise the owner paid good money to contain is now leaving through a four-foot opening, and the city inspector doesn’t care why the doors were open.

Or the exercise timer. After the retrofit, the set is finally quiet enough that nobody notices it running — so nobody remembers it runs at 6:45 a.m. The complaints that started the whole project quietly resume. Move the exercise to mid-morning, put a door-close checklist on the inside of the access door, and make the exercise time a line item in the building log. Boring. Effective. Nobody does it until the second citation.

So: retrofit the old set, or replace it with a factory canopy unit?

Honest answer: it depends on what you’re starting with.

A well-designed retrofit — engineered airflow, a silencer matched to the engine’s back-pressure limit, acoustic doors with real seals — costs real money. On a small set, the retrofit quote sometimes lands within striking distance of selling the open set and buying a factory-built sound-attenuated unit, where the manufacturer already did the airflow homework and the whole thing carries one warranty instead of two.

My teacher — an old hand who’s forgotten more about generators than I’ll ever know — says never retrofit, always replace. He’s not entirely wrong. A factory canopy was designed around its airflow from day one, and the cheap retrofit market is full of boxes that were designed around a price.

But I’ll disagree with him in print, the way I do over tea: if the engine has good years left, the footprint allows a properly sized enclosure, and you pay for the engineering instead of the brochure number, a retrofit works fine. The failure mode is never “retrofit.” The failure mode is always “cheap retrofit.” Pay for the airflow. The decibels will take care of themselves.

And move that Tuesday exercise to 9 a.m. Your neighbors will thank you, and the inspector won’t have to.

Before you sign the retrofit quote, three numbers to get in writing:

• The guaranteed sound level at the property line, not at one meter in a lab — with the distance and conditions stated.
• The intake louver free area relative to the radiator discharge area, and the maximum allowable ambient temperature the set is rated for inside the enclosure.
• The exhaust back pressure of the proposed silencer system versus the engine maker’s limit — in writing, from the silencer vendor, not “it’ll be fine.”
