The call came in mid-July, from a plant manager in Shaoxing. His 800 kVA standby set — the one backing a textile mill — kept derating itself every afternoon. By 3 p.m. it would sag to about 70% load; by 4, it shut down entirely. The thermometer on the room wall read 51°C. Outside it was 38.
Nothing was wrong with the engine. It was being cooked alive inside a room that somebody had designed without remembering the one fact that matters: a diesel generator is a heat machine that happens to make electricity on the side. Maybe a third of the fuel’s energy becomes power. The rest becomes heat — and almost all of that heat has to leave through the air.
I’ve been laying out generator rooms for twelve years, and the same three questions come up every single time — so here they are, answered the way I’d answer them over coffee.
More than you think. Way more.
A diesel engine breathes for two reasons. Combustion air — the air it actually burns — is the small one. Ballpark figure I use: on the order of a tenth of a cubic meter per second for every hundred kilowatts of engine power. Rough, but it keeps you honest.
The big one is cooling air. The radiator has to move enough air to carry away the engine’s rejected heat, and that number is several times larger than the combustion air. An 800 kVA set pushes well over a thousand cubic meters of air a minute through its radiator. A small windstorm. Every minute. All day.
Here’s the rule I actually design to: keep the temperature rise from outside to inside under 10°C. If it’s 35 outside, the air hitting the radiator should be under 45. Most manufacturers spec maximum ambient somewhere between 40 and 50°C — but that number assumes the air arriving at the set is genuine outside air. Not air the radiator already cooked and the room looped back around. An engine that keeps warning you about temperature is usually complaining about the room, not itself.
Face velocity across the radiator matters too. Keep it under about seven meters per second — faster and you’re just burning fan power for nothing. The ductwork from radiator to wall should be as short and straight as physics allows, and the discharge opening needs to be at least the full radiator area — I like 25% bigger, because restrictions add up in ways the spreadsheet never catches.
One thing the catalogs skip: the alternator makes heat too. Around five percent of rated power turns into warm air off the alternator housing. On a big set that’s tens of kilowatts just baking the room. It all has to go out with everything else. If you sized the room for the engine’s rated load but forgot the alternator, congratulations — you sized for 95% of the heat.
Short version? Your room is breathing its own exhaust.

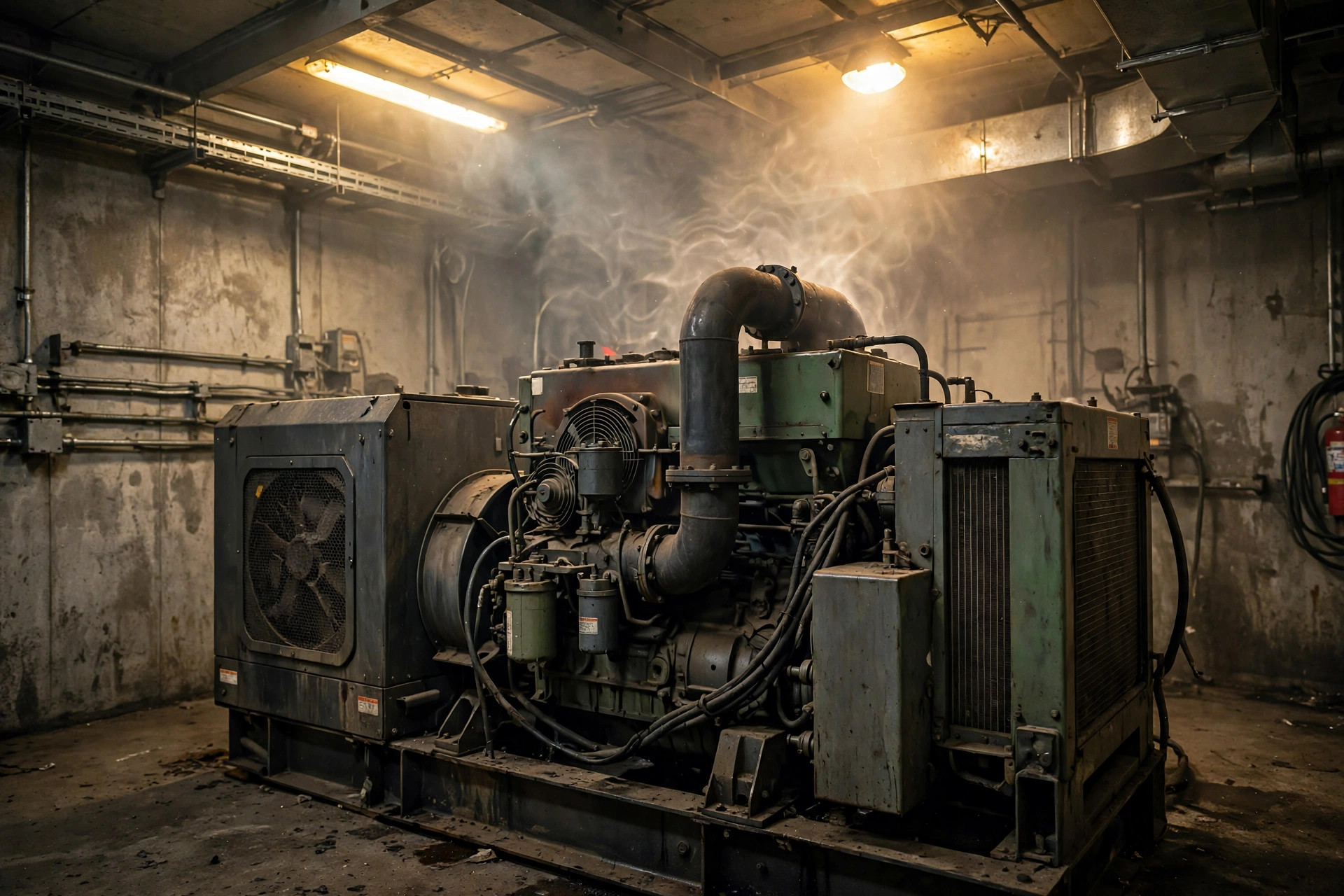

This is the single most common ventilation failure I find, and I’ve found it in brand-new installations. Hot air leaves the radiator, drifts up and across the room, and gets sucked right back into the radiator inlet. Every pass makes the air hotter. It’s a feedback loop, and the generator is sitting in the middle of it.
I walked into a warehouse in Ningbo three years ago. New set, new room, overheating within an hour of the first full-load run. The builder had put the discharge louver and the intake louver on the same wall, six meters apart. Six meters of open air between them — and the hot discharge was simply curving back into the intake like water finding a drain. We moved one louver to the opposite wall. Zero new equipment: one afternoon of sheet-metal work, and the problem was gone.
Dampers do this too. I’ve found intake dampers installed backwards more than once — opening when the set stops, slamming shut when it starts. The exact opposite of what you want. And gravity dampers in dusty sites pack up with grime until they’re decorative. Check with your hand. Hot air should be hitting your palm at the discharge louver. If the discharge is barely warm while the room is roasting, the hot air is going somewhere else. Usually straight back in.

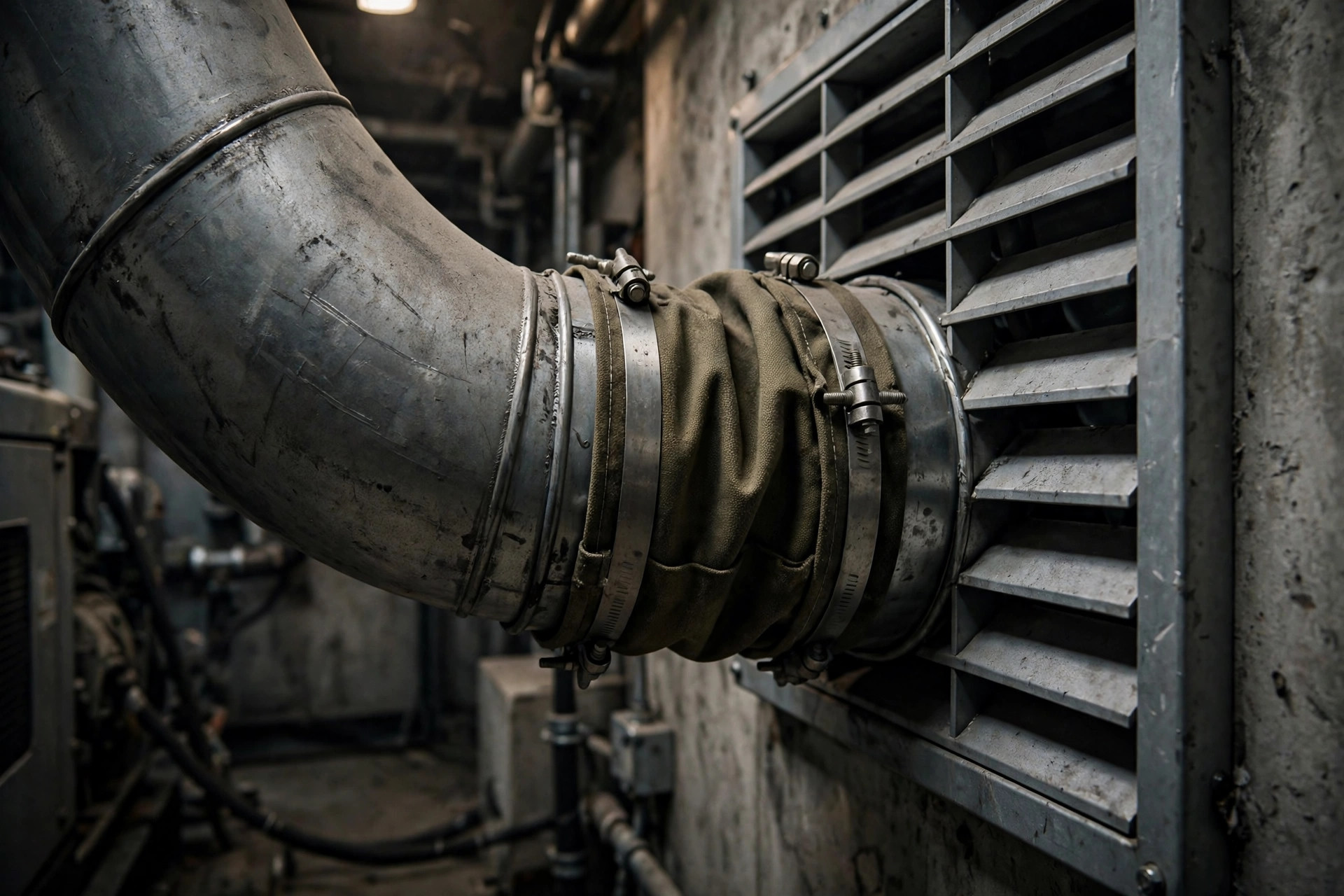

Honestly? The fix is almost never a bigger fan. It’s geometry. Radiator outlet ducted directly to the outside wall with a flexible canvas boot — sealed, no gaps — so the hot air has exactly one path out and can’t wander. Intake low on the opposite wall. Discharge high. Hot air rises. Use that. It’s free.
Sometimes. For a small standby set in a mild climate, louvers plus the engine’s own radiator fan is genuinely fine. The radiator fan is a powered fan — it just came with the engine. Natural inlet louvers, ducted discharge, no extra equipment to fail at 2 a.m. I like simple systems for standby duty — fewer parts, fewer surprises. But here’s where I’d push back.
My old mentor swears powered supply fans are mandatory on anything above 500 kVA. We’ve argued about this for years. He’s got two decades on me and he’s seen rooms I haven’t. My position: the radiator fan already does the work, and big powered intake fans mostly create negative pressure that drags dust, rain, and eventually the weatherstripping off the door into the room.
Where I agree with him is hot climates and tight rooms. Ambient above 40°C, or a set buried in a basement with long duct runs — then you can’t move enough air passively. You need powered exhaust, sized to the radiator’s airflow, with intake openings bigger than you think so the room doesn’t pull a vacuum. A starved room does something ugly: it raises the engine’s intake restriction, and the engine derates to protect itself. You paid for 800 kVA and got 600. Because the room is choking.
One rule that ends most arguments: combustion air and cooling air are different jobs. In cold climates, ducting the engine’s combustion air straight from outside is good practice — clean, dense air for the cylinders. But the radiator still needs its own path. Don’t “solve” ventilation by punching one hole in the wall and calling it a day. I’ve seen that hole: the engine breathed fine, and the room still hit 50°C. A tower basement I worked in had exactly this — combustion solved, cooling forgotten.
And if you’re choosing between an enclosed canopy and an open set for an indoor room, remember the canopy’s built-in airflow path is already engineered. Strip it off and put the open set in a room, and you’re now the ventilation engineer. Budget for it.
Ventilation is the cheapest insurance in the whole generator project. Sheet metal and common sense. It decides whether your six-figure machine runs at full rating or spends its life derating in its own heat.
Next time somebody quotes you a room: show me where the hot air goes. If they point at a louver the size of a bathroom window — keep your money.
