It was 2:40 in the morning when my phone rang. A restaurant owner I knew had bought a perfectly good 80 kVA diesel set from us the year before, and now his walk-in freezers were full of seafood and the whole street was dark. “The generator’s running,” he said. “I can hear it out back. But my place is still dark.”
His place was still dark because his generator was wired through a manual transfer switch, and the switch was standing right there in his electrical room, handle down, exactly where someone had left it. The generator had done its job in eight seconds. Getting the power into the building was going to take a forty-minute drive across town in the middle of a storm.
That’s the transfer switch for you. The cheapest piece of switchgear in the whole backup system, and the one that decides whether any of it matters. Automatic or manual — pick wrong and you’ve bought a very expensive humming box that keeps your parking lot warm while the building goes dark.
A transfer switch sits between your building, the utility grid, and the generator. Grid dies, switch moves the building’s loads over to the generator. Grid comes back, it switches back. That’s it.
The difference between automatic and manual is who — or what — throws that switch. An ATS watches the grid itself. Voltage drops below a set point, the controller waits a few seconds to make sure it’s a real outage, tells the generator to start, and once the voltage and frequency are stable, it moves the load over. All of it in seconds. Nobody has to be awake. Nobody has to be there.

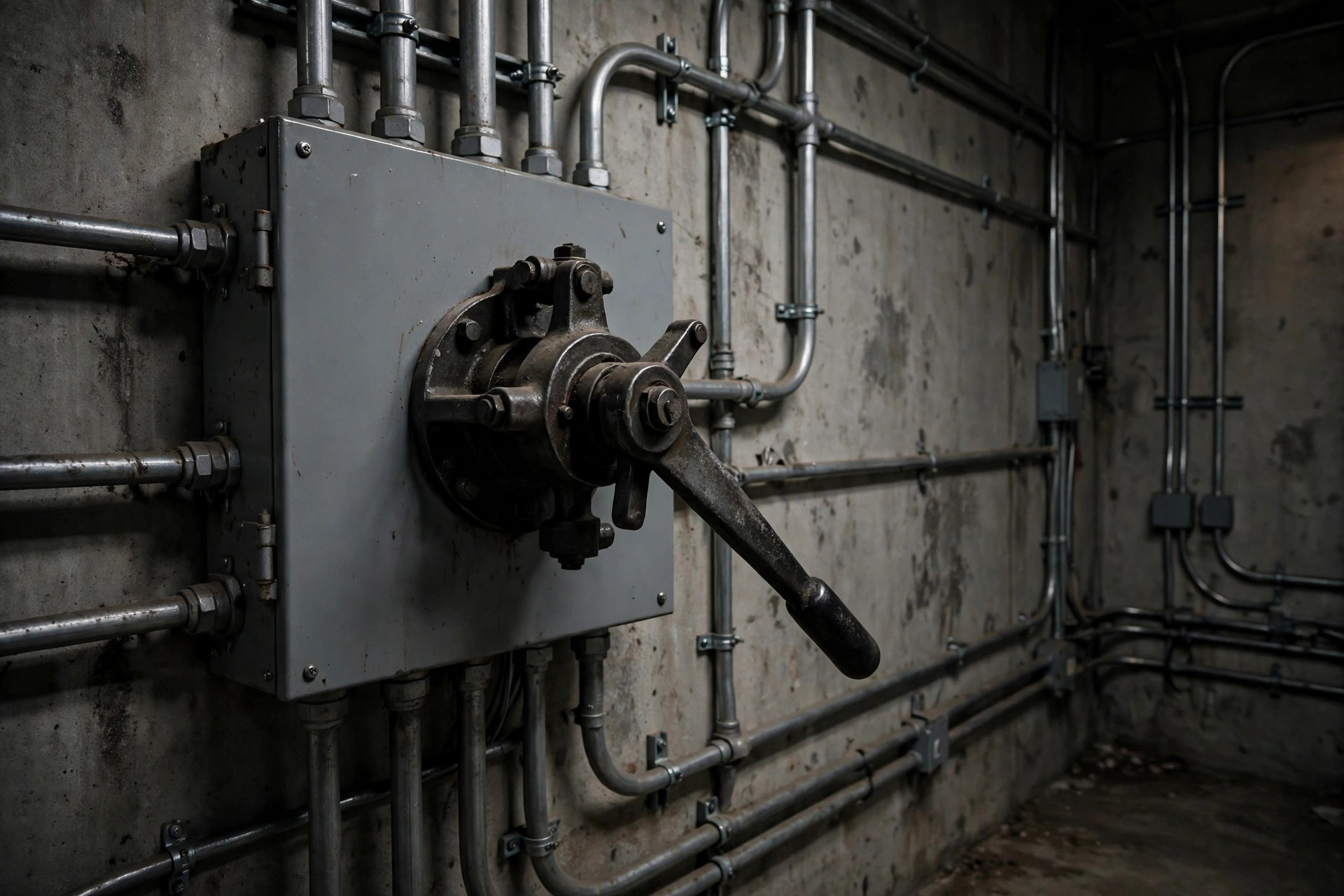

A manual switch does the same job with a big handle and a human. The human notices the outage, starts the generator (or it auto-starts and waits), walks to the switch, and throws it. Simple. Cheap. And completely dependent on a person being available, awake, nearby, and willing to drive somewhere at 2:40 in the morning.
Let’s talk money first, because that’s where most people start. A manual transfer switch for a small commercial setup — say 200 amps — costs a few hundred dollars. Call it $300 to $800, rough numbers. An ATS for the same job runs $1,500 to $3,000. Step up to a 400-amp three-phase ATS for a real commercial building and you’re looking at $5,000 to $12,000 or more, depending on whether it’s service-entrance rated and how much switchgear it replaces.
So the ATS costs five to ten times the manual switch. That’s the part everybody quotes.
Here’s the part nobody quotes. The ATS also deletes a trip across town in the rain. It deletes the hour the freezers spend warming up while the owner finds his keys. It deletes the “I thought YOU were going to the site” conversation between two managers. At a small cold storage I worked on, one avoided spoilage incident paid for the ATS upgrade three times over. The math only looks bad if you price the switch and forget to price the outage.
That said — and I’ll say it plainly — a manual switch is not a bad product. It’s a specific product. It wins in specific situations, and when it wins, it wins clearly.
First: places where a qualified person is already on site when the power fails. A farm where the owner lives next door. A small workshop where the night shift is running anyway. If somebody competent is ten steps from the switch around the clock, the “drive across town” argument evaporates. One of the cleanest backup setups I’ve seen was a dairy farm — 60 kVA set, manual switch, owner sleeping fifty meters away. The grid failed at 4 a.m., he was up in his boots in three minutes, milk coolers never noticed. No ATS on earth would have done it better.
Second: portable generator duty. If you’re wheeling a towable set to the site and plugging in a cam-lock cable anyway, you’re already there. The manual switch fits the workflow. Paying for an ATS on a portable setup is like buying cruise control for a forklift.
Third: honest budget jobs with simple loads, and here’s the part the ATS salesmen don’t like — a manual switch has fewer parts to fail. No control board. No voltage-sensing relays. No exercise timer. A chunk of copper, a handle, and some interlocks. When nothing is powered and everything is manual, there is simply less to go wrong electrically. Old-school electricians who swear by manual switches are not stupid. They’re optimizing for a different risk.
Unattended sites. Full stop.
Cell towers on mountaintops. Remote pumping stations. Unmanned cold storage. Nobody is driving out there at 2 a.m., and even in daylight the response time is measured in hours, not seconds. I worked on a telecom site where the “plan” for outages was a technician with a key and a pickup truck, forty-five minutes away on a good day. The first real outage taught everyone what I already knew: by the time he arrived, the battery backup had been dead for an hour and the generator had been sitting there, started and ready, waiting for a handle nobody could reach.
Anything with a legal transfer-time requirement. Hospitals, elevators in some jurisdictions, fire pumps in certain configurations — when the rule says power must return within ten seconds, a manual switch is not a cheaper option. It’s a non-compliant one. The ATS exists for exactly these jobs.
And anything where every minute of outage costs real money. Data centers. Food processing. Anything refrigerated at scale. The ATS’s transfer happens in seconds, before anyone has even woken up. That speed is the entire product.
People ask me which one is “more reliable.” Wrong question. They fail differently.

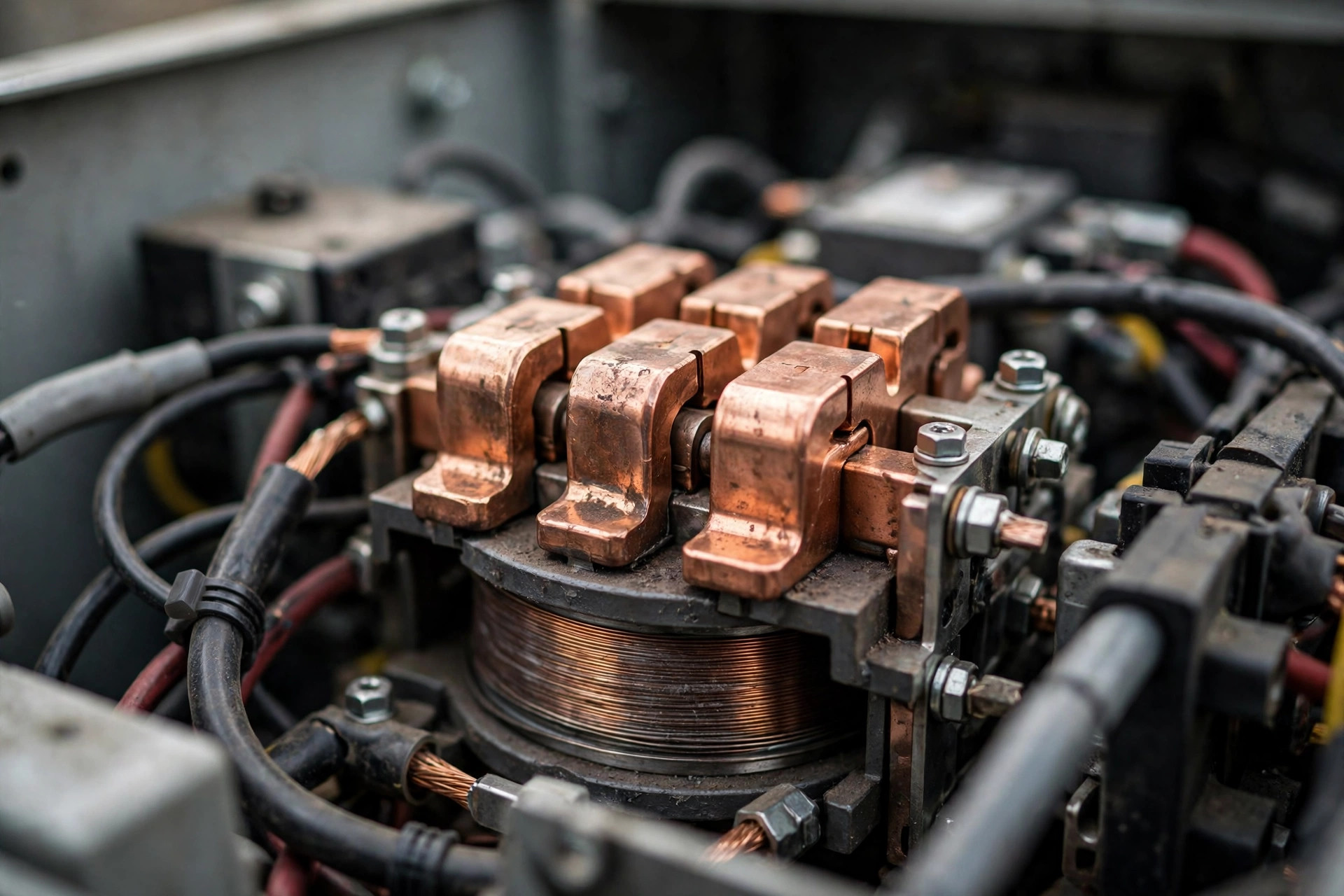

An ATS fails electrically. Contacts pit and weld. The exercise timer drifts and nobody notices. The voltage-sensing relay loses calibration and starts transferring on every little grid flicker — I saw one site that transferred forty times in a month because the sensing board had drifted out of spec, and each transfer wore the contacts a little more. ATS maintenance is real maintenance: exercise the switch under load periodically, check the sensing setpoints, look at the contacts. Skip it and you’ve bought the most expensive switch that doesn’t switch.
A manual switch fails humanly. The handle gets stiff from years of never being moved. The labels fade until nobody knows which position is which. The padlock on the panel — installed for safety, obviously — and the key is on a ring hanging in a manager’s kitchen twenty kilometers away. I’ve seen that one twice. Twice! The generator was perfect. The switch was perfect. The system failed because a key lived in the wrong drawer.
So when someone asks me “which is more reliable,” my honest answer: the ATS’s failure modes are in the manual, and the manual switch’s failure modes are in your org chart.
After twelve years of these conversations, it comes down to three questions. Answer them honestly and the answer picks itself.
One: will a qualified person be on site, awake and able to act, within the time the loads can wait? If yes — a farm, a manned workshop — manual is defensible. If no, stop reading and get the ATS.
Two: how fast must power come back? Seconds — life safety, cold chain, data — that’s automatic territory. Minutes to hours — a site where the outage is an inconvenience, not a disaster — manual can work.
Three: what does an hour of outage actually cost? Be honest about this one, not optimistic. Include the spoiled product, the lost shift, the callback, the reputation. If one bad outage costs more than the ATS price difference, the “savings” of the manual switch were imaginary all along.
Here’s the thing, though. Most buyers I meet underestimate the third answer by a factor of five. They price the switch and they price the generator, and they price the outage at zero — because the outage hasn’t happened yet. Then it happens at 2:40 in the morning, the generator hums beautifully out back, and somebody is standing in a dark electrical room realizing the cheapest component in the whole system is the one that just failed them.
The restaurant owner got his ATS six weeks later. He hasn’t needed it since. Which is exactly the point — the best transfer switch is the one you forget you own. The manual one, you remember every time. Usually at the worst possible hour.
