Who Throws the Switch When the Grid Dies

Three in the morning, hotel outside the city, thunderstorm sitting right on top of us. The lights went out — and stayed out. Down in the generator room the 500 kVA set was running beautifully. Purring. Doing its one job.

Upstairs, forty floors of guests had no power.

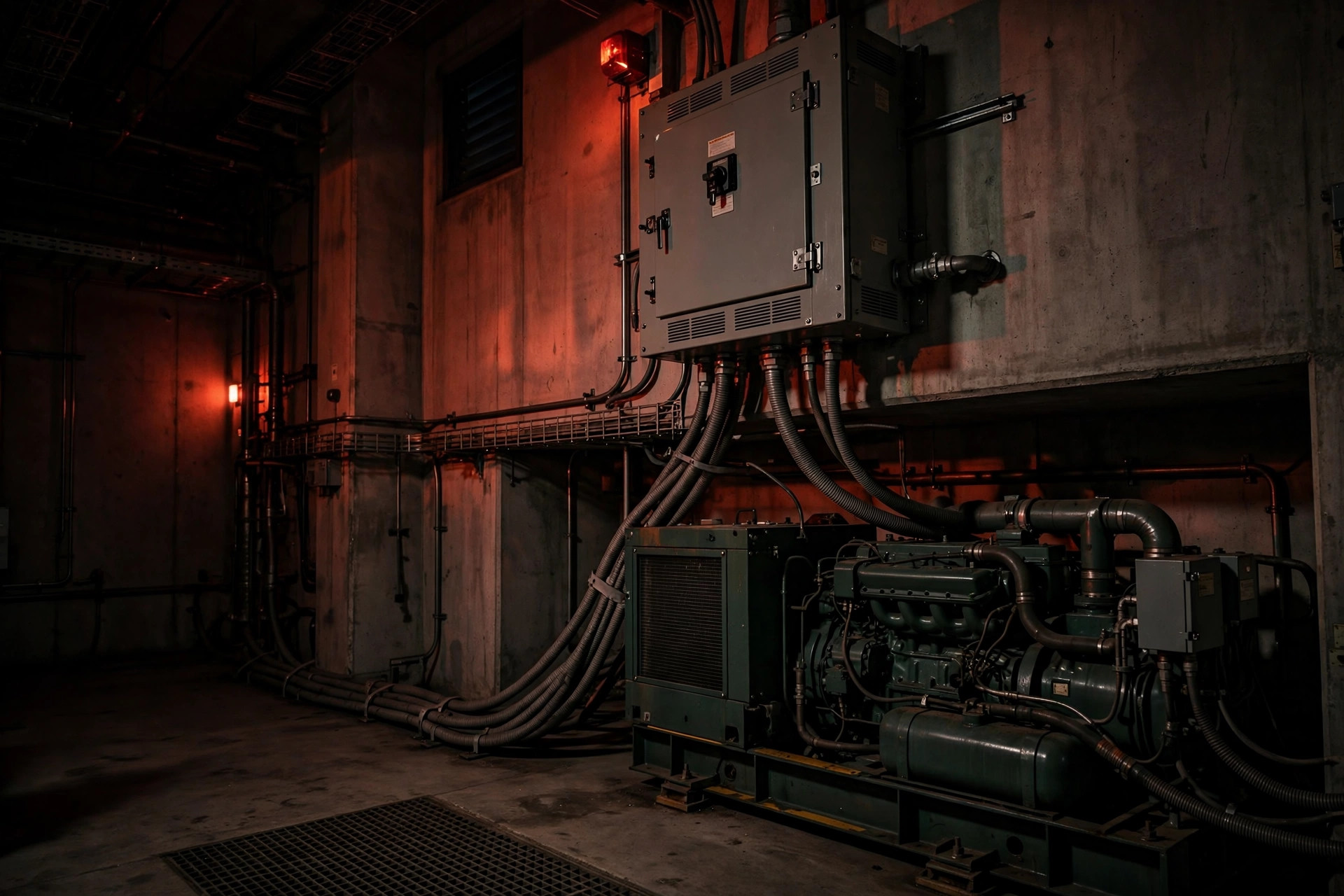

I got the call at 3:40. When I arrived, the chief engineer pointed at the generator — “it’s running, so why is the building dark?” — and I pointed at the gray cabinet on the wall beside it. The automatic transfer switch. It had never moved the building over to the generator. The generator was feeding nothing but the concrete floor it stood on.

That night is why I tell customers this: the generator gets the glory, but the ATS does the work. If you own standby power, here are the three questions people actually ask me about that box on the wall.

“Can’t someone just walk down there and flip a switch by hand?”

Sure. At 2 p.m. on a Tuesday, with the building manager in his office. The problem is outages don’t check the clock.

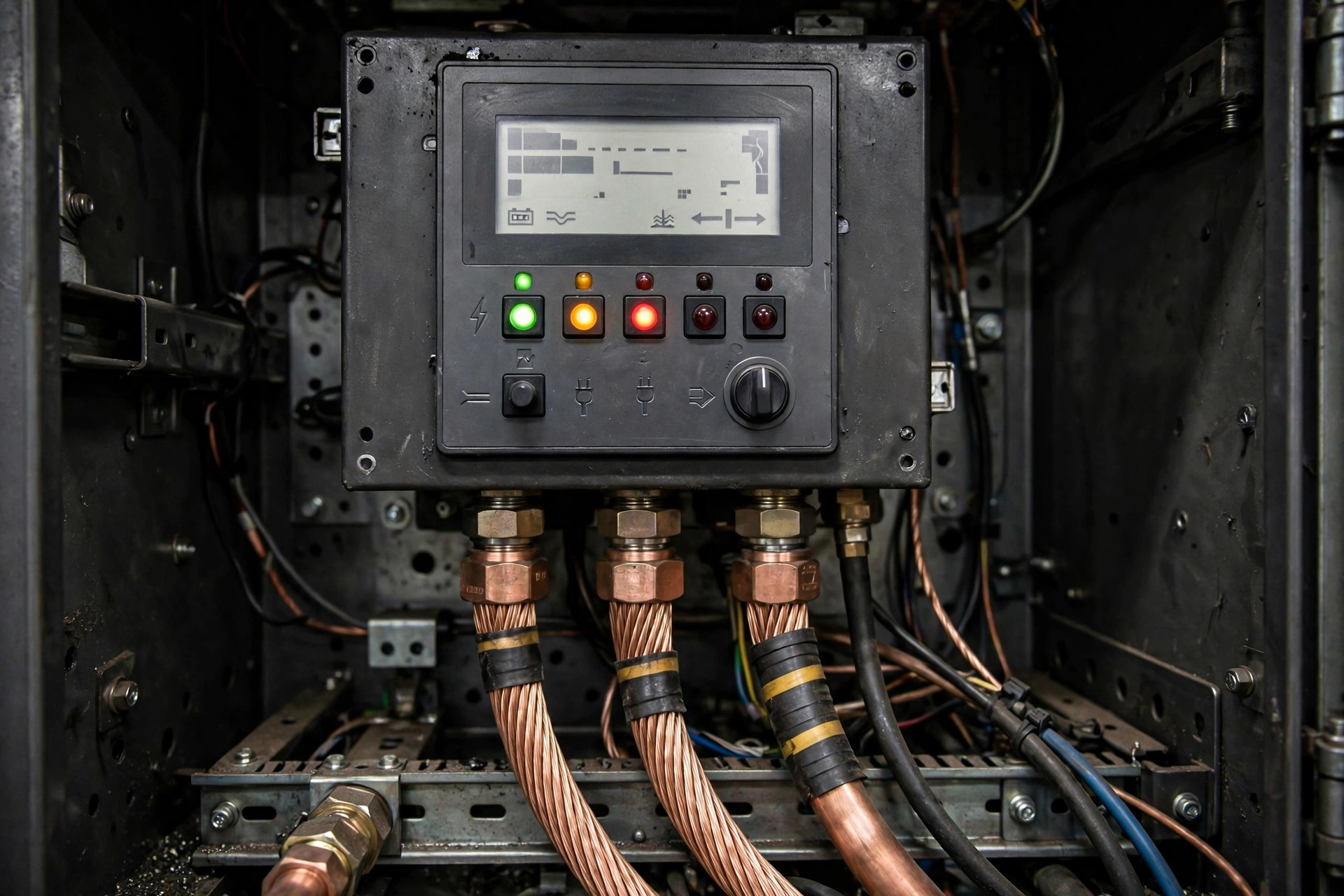

An automatic transfer switch watches the utility feed around the clock — voltage, and on better units frequency too. When it decides the grid is really gone (not just blinking; there’s an intentional delay so a one-second dip doesn’t start your generator every time a substation hiccups), it sends the start signal to the genset. The engine cranks, comes up to speed, the controller confirms voltage and frequency are stable, and only then does the ATS move the building’s load from the dead utility onto the generator. Thirty seconds, give or take.

Then it keeps watching. When the utility comes back and holds steady for a few minutes — that’s the “retransfer delay,” another guard against a grid that’s flickering back and forth — the ATS moves the load back to the utility. Then it lets the generator cool down unloaded for a few minutes before shutting it off. That cooldown run matters; engines that slam to a stop from full load cook their turbos. I’ve seen the scars.

Could a person do all that by hand? A manual transfer switch exists for exactly that. And if you’re standing right there, fine. But the hotel story is the honest answer. Outages happen at 3 a.m. People sleep. And “someone should have gone down there” is not a backup power strategy.

Here’s the thing most brochures won’t say: the ATS is the part of your system that decides, every second, whether your building is about to go dark. The generator is just muscle. This box is the judgment.

“Open transition, closed transition — do I actually need to care?”

Yes. This one bites people.

An open-transition ATS breaks from the utility before it makes to the generator. Break, then make. There’s a moment — fifty milliseconds, maybe a touch more — when your building is connected to nothing. For most loads that blink is nothing. Motors ride through it. Lights flicker and come back. But anything with a sensitive processor — certain medical equipment, some industrial drives, older UPS units with hair-trigger bypass settings — can drop out, reboot, or throw faults during that dead moment.

A closed-transition ATS does the opposite. It makes to the generator before it breaks from the utility, so there’s no dead moment at all. Sounds better, right? It is — and it costs more, needs the generator to synchronize with the utility (same voltage, same frequency, same phase, like two dancers stepping in together), and — this is the part that ruins schedules — your utility has to approve it. You’re paralleling with their grid for a few seconds. Utilities are not quick about permission. I had a customer who demanded closed transition for an office building; the utility’s approval took eight months. Eight months of a finished installation sitting there, waiting for a signature.

My honest take: most buyers pay for closed transition they don’t need. If you’re running freezers, elevators, and pumps, open transition is fine and always has been. If you’re a hospital, a data hall, or a factory where a 50-millisecond blink shuts down a production line worth a day’s revenue, then yes — pay for closed transition, and start the utility paperwork the day you order the switch, not the day it arrives. Look at what hospitals actually demand from backup power if you want to see why they fall in the second group.

The old-timers and I disagree on one detail here, and I’ll admit it. My mentor swears closed transition is never worth the utility hassle for anything under a megawatt. I think he’s mostly right — except for that one data center retrofit where open transition would have dropped the servers. “Mostly right” is about as far as I’ll go with him.

“Why does this one cabinet cost what it costs — and what actually goes wrong with it?”

Because it’s sized like the generator, not like a light switch. A 200-amp building service needs a 200-amp ATS, and those contactors have to handle motor starting inrush — five, six times running current, slamming through the contacts. The copper in that box is real. So is the engineering in the controller.

What goes wrong? After twelve years, I’ve got a greatest-hits list.

Ants. I’m not joking. In warm climates, ants move into electrical cabinets because they’re dry and warm, and they bridge the little gaps between live parts. I’ve opened ATS cabinets that were more ant colony than switchgear. The fix was a new cabinet with better gasketing and a customer who now seals every conduit entry like he’s caulking a boat. If you’re installing in the tropics or the American South or Southeast Asia, ask about the enclosure rating. Don’t find out the ant way.

Then there’s the sensing problem. The ATS decides when to transfer based on small sensing wires watching the utility. Label them wrong — or let a hurried electrician land them on the wrong lugs — and the switch transfers on the wrong event, or never transfers at all. That’s what happened at the hotel, by the way. Not ants. A sensing fault nobody caught at commissioning, because commissioning a transfer switch properly means simulating an outage, not just flipping to “test” on the controller. “Test” tells you the controller is alive. It doesn’t tell you the sensing is wired right.

And the one that makes me the angriest: bypass switches left in bypass. On larger installations there’s a bypass/isolation feature so you can service the ATS without killing the building. Somebody puts it in bypass during maintenance, forgets, walks away — and the next outage, the ATS does nothing, because the load was never routed back through it. A backup system that someone manually disconnected is just furniture.

Honestly? The cabinet itself is the cheapest part of the ATS conversation. The expensive part is commissioning it properly — a real outage simulation, sensing verification, transfer time measured with a meter, not assumed. Buyers argue over the quote line for the switch and then skip the half-day of commissioning that decides whether the thing works. I’ve stopped letting customers skip it on my projects. Argue with me if you want; the hotel manager at 3 a.m. would back me up.

The line I’d put on a sticker

If you remember one thing: your generator is a motor that makes electricity, and your ATS is the brain that decides where your building’s electricity comes from. The brain is smaller. It’s cheaper. And when it fails, the big expensive motor runs all night feeding an empty room while the guests sit in the dark.

Next time your lights come back twelve seconds after an outage, don’t thank the generator. Thank the gray cabinet on the wall. It did the thinking. And if you’re sizing backup power for your own facility, size the generator right — then make sure the switch that commands it is sized, specified, and commissioned just as carefully. The pair only works when both halves show up.
