The smell hit me before the tour even started. Hot paint, cutting oil, and that sharp diesel tang that gets into your clothes and stays there for a day. I’d walked plenty of factory floors by then, but this one was different — the sales manager didn’t want to show me the showroom first. He walked me straight past it, out the back door, to where the steel comes in.
“Everyone photographs the finished sets,” he said. “Nobody photographs the welds.”
He had a point. I’ve spent twelve years standing next to these machines at customer sites — commissioning them, fixing them, explaining to owners why a five-year-old genset was already tired. And I kept tracing the same failures back to mornings like this one, on floors like this one, where a decision somebody made at 9 a.m. decided whether a machine lived fifteen years or seven. So here’s the tour the way I wish someone had given me back when I started: following one diesel generator from bare steel to the load bank room, and stopping at the spots that actually matter.
It starts with a flat piece of steel. Not glamorous, but here’s the thing — everything else in that machine trusts the frame. The engine’s bolted to it, the alternator’s bolted to it, and if those two aren’t sitting in perfect line, the coupling between them wears sideways. Vibration. Bearing damage. A machine that shakes itself to an early grave.
So the first real workstation is welding and machining the base frame. I watched a guy run a dial indicator across a finished frame’s mounting faces — checking flatness in hundredths of a millimeter. He rejected one right in front of me. Sent it back. No drama, no discussion.
That’s what I look for now on every factory visit. Not the certificate on the wall. The reject pile. A factory that never rejects anything either has impossible luck or no inspection at all. Ask where the rejected frames go. If the guide hesitates, you’ve learned something.

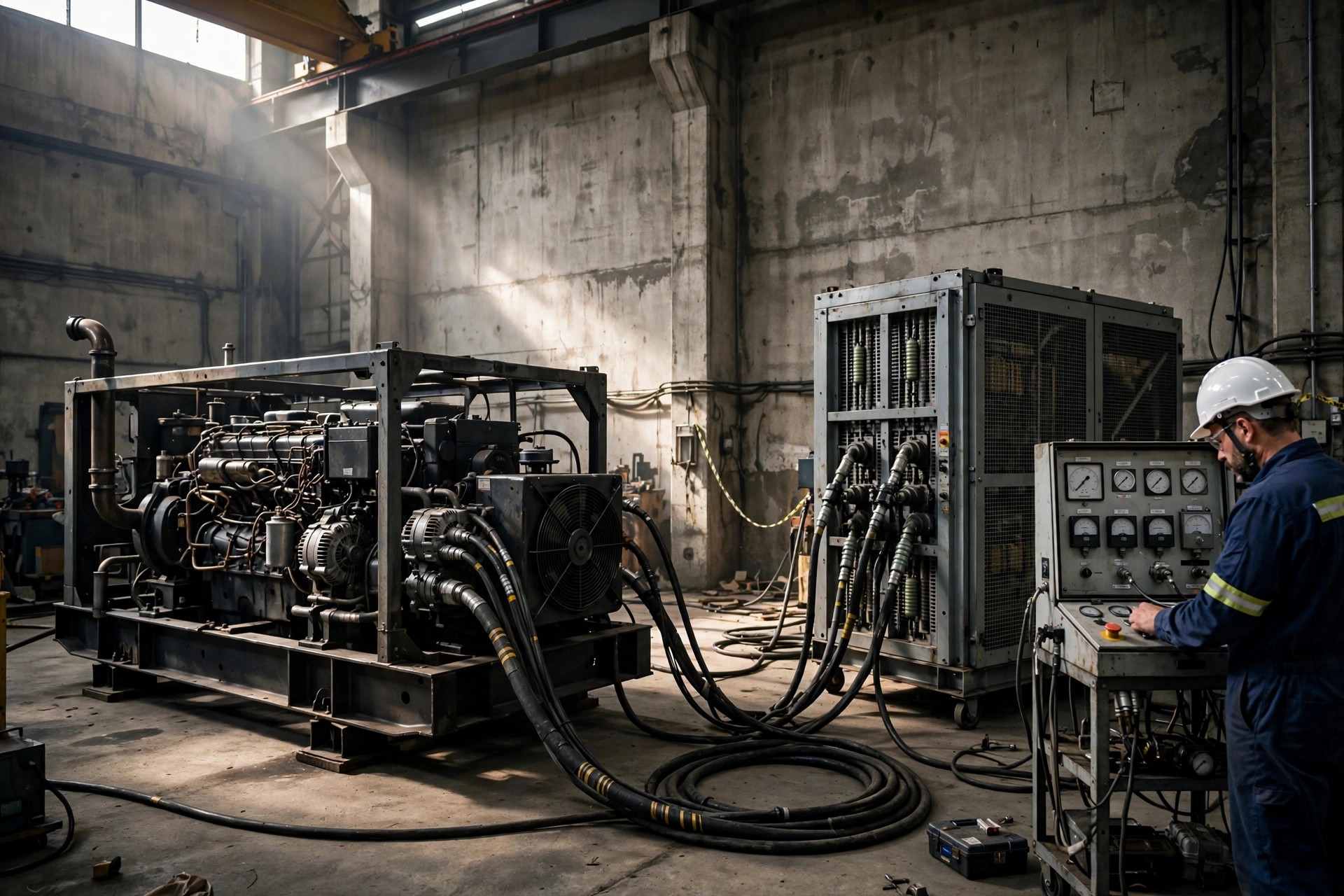

A freshly assembled genset rolls into the test bay. The load bank run is the first time the machine meets a real, heavy load.
The engine arrives as a finished block — Cummins, Weichai, whatever the order specifies — and the alternator arrives separately. Getting them onto the same frame and into line is the most argued-about step in the building. Honestly? It deserves the argument.
There’s an old-timer at this factory — must be sixty, hands like sandpaper — who does final alignment checks. He showed me his routine: dial indicator on the coupling, rotate the shaft by hand, read the runout. His limit was 0.05 millimeters. “Above that, the rubber in the coupling cooks,” he told me, and I believed him, because I’ve replaced enough cooked couplings at customer sites to know exactly what that failure looks like: black dust, vibration alarms, a Saturday call-out.
A younger tech nearby told me some factories skip the hand rotation and trust the bolt holes to line things up. They mostly get away with it. Mostly. That word does a lot of heavy lifting in this industry.
Nobody buys a generator for its wiring. But open the control cabinet of a well-built set and a badly built one side by side, and you can feel the difference before you touch anything.
On the good one, every wire is labeled, bundled, and routed with slack where it needs slack. The ATS control lines run separate from the power cables — keeps the noise out. The controller — a Deep Sea or ComAp unit in this case — sits at a height where you can actually read it without crouching.
The bad ones? I’ve opened cabinets at customer sites where wires draped across hot surfaces, connectors strain where they shouldn’t, and the labeling was — I’m being generous — aspirational. Two years later those owners pay for fault-finding by the hour. The factory saves maybe thirty minutes per machine on wiring. The math never works out for the buyer.
My rule of thumb now: if they won’t let you open a random finished cabinet and look inside, walk. The wiring is the one place a manufacturer can’t fake in photographs.
Paint feels cosmetic until you’ve seen what a cheap coating does in a coastal installation — three years and the canopy’s rusting from the inside out. The factory I visited ran a proper pretreatment line: degrease, phosphating, powder coat. The manager pointed at a finished canopy and invited me to check the door gaps with my fingers.
Five millimeters, all the way around. Consistent.
Sounds fussy. But a canopy door that doesn’t seal is a noise leak — and on a silent-type set rated at 75 dBA, one bad door seal can blow the whole rating. I make it a game now: close every door on the display units, listen for the latch click, feel for air gaps. Takes twenty seconds. Tells you how the place handles tolerances everywhere else.
Everything before this is preparation. The load bank room is the exam.
They roll the finished set into a concrete test bay, hook it to a resistive load bank, and run it through a stepped test: 0%, 25%, 50%, 75%, 100% — and usually a 110% overload step, held for an hour per ISO 8528. The technician watches voltage regulation, frequency stability, oil pressure, coolant temperature. A thermal camera sweeps the exhaust manifold and the alternator windings, looking for hot spots that say “something’s wrong in here.”
I stood behind the glass and watched a 500 kVA set take full load. The governor caught the step without hunting — frequency dipped and came straight back. The tech nodded to himself. Small nod. That’s the nod you want to see.
Here’s the uncomfortable question I ask every factory now: can I see a failed test report? Every line has them — a set that wouldn’t hold voltage, an alternator that ran hot. What matters is what happened next. Did it go back for rework with a paper trail, or did it ship anyway with a “probably fine”? The factory I was standing in kept failed-test logs on file and showed me one from the previous week without flinching. That’s the factory I’d buy from.

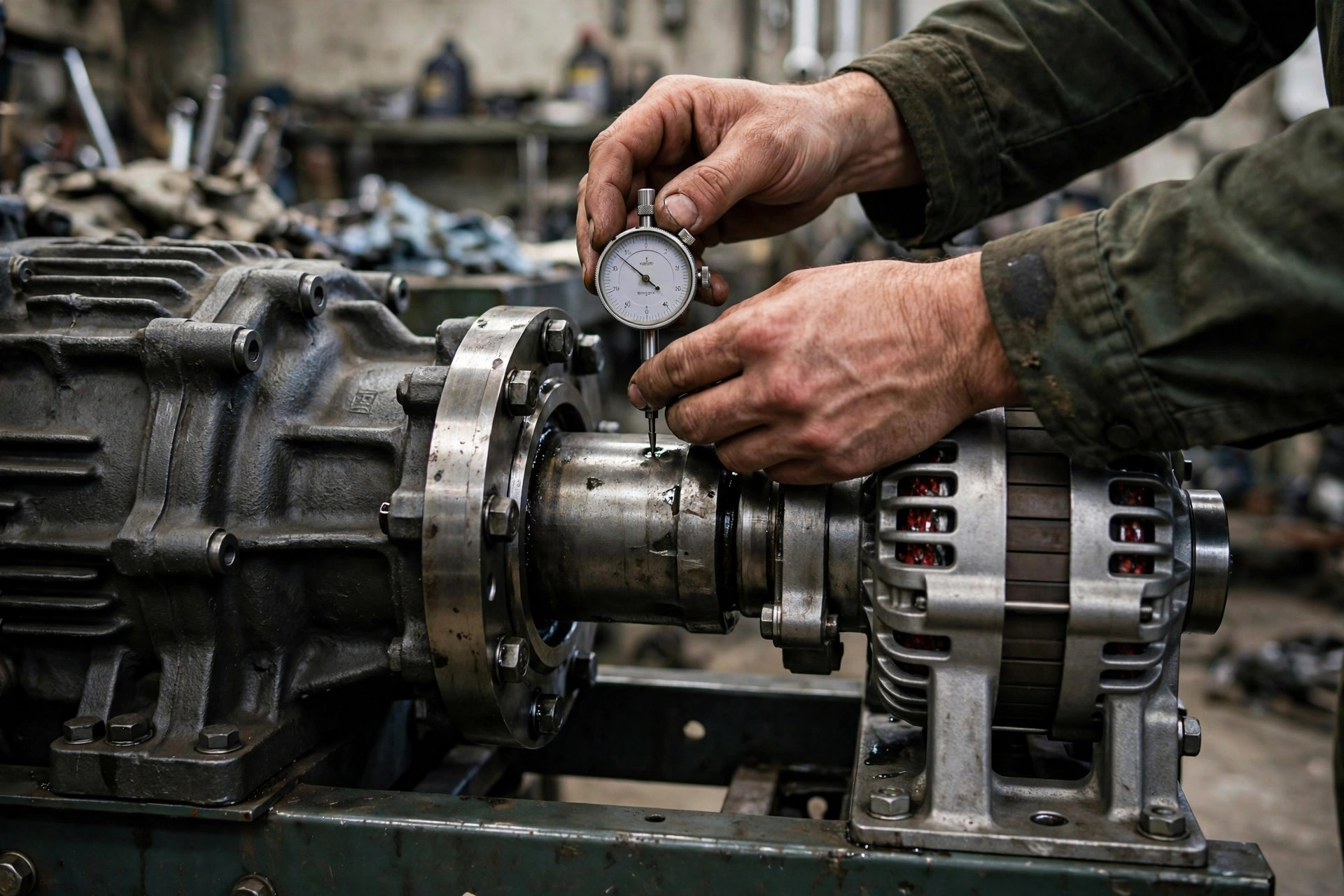

Final alignment check on the engine-alternator coupling. A few hundredths of a millimeter here decides years of bearing life.
A proper factory hands you a test dossier with the machine: the stepped load results, insulation resistance readings, the noise test numbers if it’s a silent set. This isn’t a favor — for prime power and critical standby applications it’s standard practice, and any serious manufacturer expects you to ask.
I’ve learned to bring three requests to every factory visit now. One: open a random finished control cabinet. Two: show me a failed load-bank report and what happened after. Three: let me watch a set take the 100% step.
Twelve years ago I bought on price and brochures. The brochure never told me about the old-timer with the dial indicator, or the rejected frame, or the small nod behind the glass. Those are the things that keep a diesel generator set alive at your site long after the sales manager has moved on.
If this tour made you want to kick some tires yourself, start with what I check before picking a diesel generator manufacturer — and make sure you’re asking the factory to build the right-sized set in the first place. Go see the floor. Your machine’s whole life is decided there.
