Three weeks ago a new customer walked around our demo unit like it was a used car. Tapped the canopy. Kicked the base frame. Then he pointed at the whole thing and said: “So really, I’m buying a big diesel engine with some wires, right?”
I laughed. Then I spent twenty minutes taking his assumption apart. Here’s the version I’d give you over coffee.
Nope. And that misunderstanding costs people real money.
The engine is the muscle — the prime mover, in trade speak. It burns diesel, spins a crankshaft at 1500 rpm (or 1800, if you’re selling into a 60 Hz market), and hands raw mechanical power to everything downstream. Names you’ll hear on the valve covers: Cummins, Weichai, Yuchai, Shangchai, MTU. The engine decides the machine’s lifespan more than any other single part.
I’ve got a customer running a 400 kVA prime-power set on a quarry site — dust, heat, twelve hours a day — and that engine has crossed 28,000 hours on its original block. Same engine family in a different installation died at 9,000 hours because someone ran it at 15% load for two years straight and glazed the cylinders. That’s wet stacking: unburned fuel slicking the cylinder walls, carbon packing into the exhaust, the engine aging like it chain-smokes. Sizing matters more than brand worship. I wrote the full sizing walkthrough here, and the 80% rule in it would have saved that engine.
But here’s the thing. The engine is maybe 40% of the machine by cost — and it accounts for far less than half of my midnight callouts. The rest? Keep reading.
Good question. Most buyers never ask it.

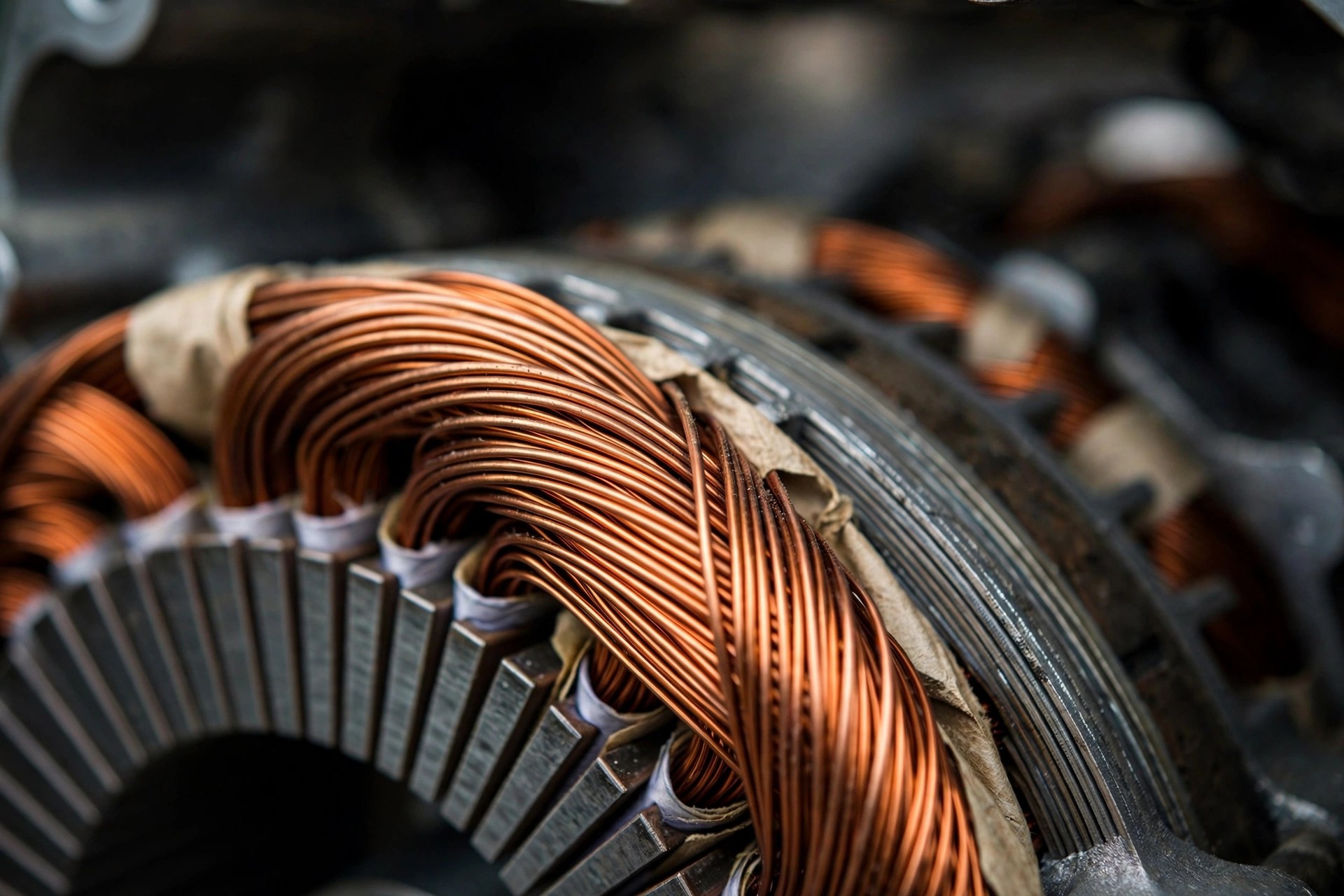

The electricity comes from the alternator — a big steel-and-copper cylinder bolted to the back of the engine, spinning the same shaft. No fuel, no combustion, no drama. It’s the quietest, most boring part of the machine. And it’s the part that decides whether your lights flicker when the elevator motor kicks in.
What matters inside it: copper windings (cheap rewound units with aluminum windings exist, and they sag under motor starting loads — ask before you buy), insulation class H (it survives heat that would cook lesser windings), and the AVR — automatic voltage regulator — which holds your output within about ±1% as loads slam on and off. Half a sentence of physics: the AVR watches the output voltage and tweaks the alternator’s magnetic field a hundred times a second. That’s it. That’s the magic.
One more alternator detail worth knowing: excitation. Self-excited sets are cheaper; PMG (permanent magnet generator) excitation rides through short circuits and big motor starts far better. If your site has large motors or non-linear loads — UPS rooms, VFDs, that sort of thing — PMG is worth the small premium. I specify it on anything feeding a data hall or a hospital. It’s a small line item that prevents a special kind of headache.
Last year a logistics park called me about “dirty power” — their scanners rebooted every time the big conveyor motors started. The engine was fine. The alternator was undersized for the motor inrush, and the AVR couldn’t hold the dip. We upsized the alternator frame — same engine, bigger copper — and the reboots stopped. Lesson I repeat at every site visit: when someone quotes you a genset, ask which alternator frame is bolted behind the engine, not just which engine. Two machines can share an engine and behave like completely different animals.

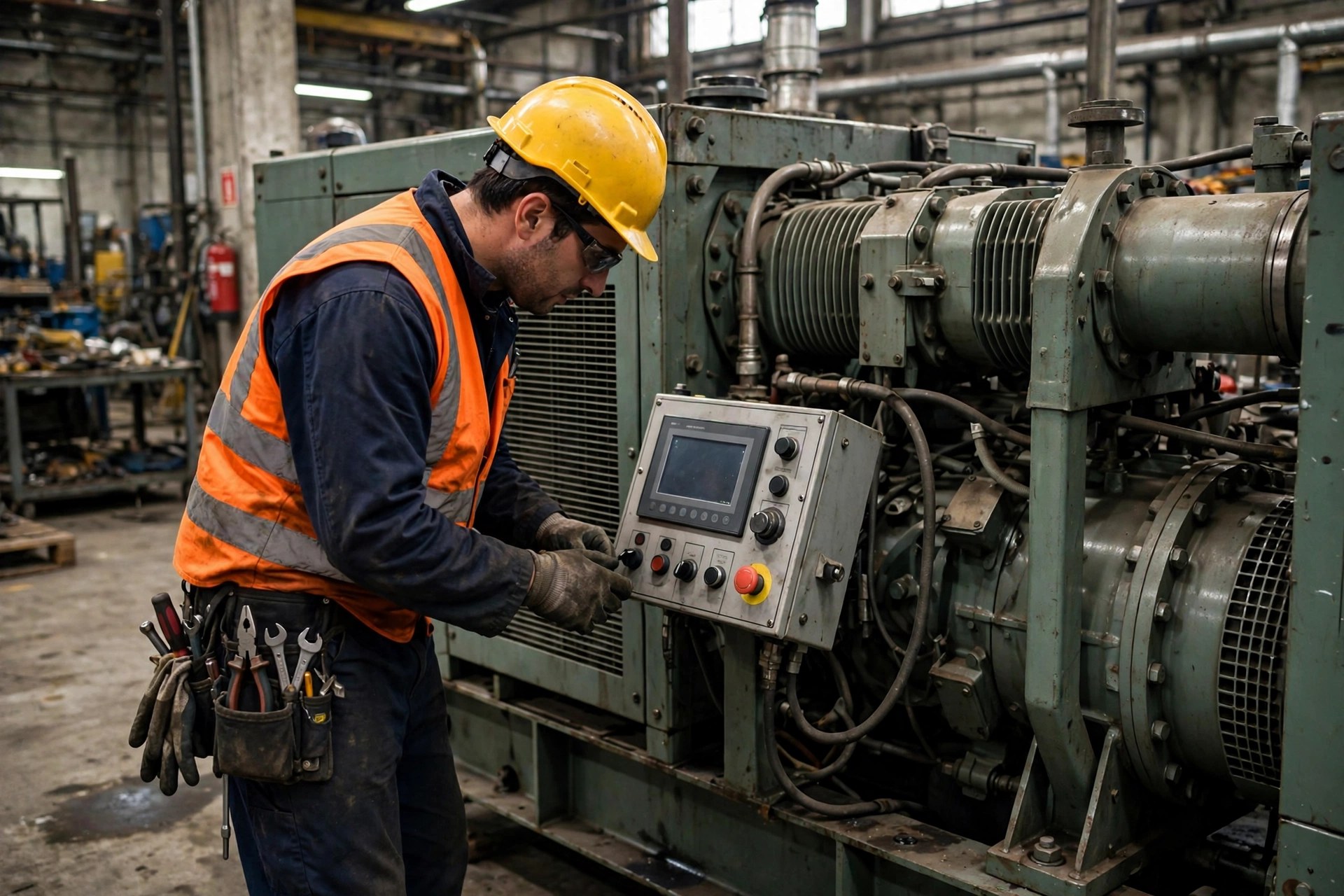

The controller is the brain. It starts the engine, watches oil pressure and coolant temperature, shuts everything down before damage happens, and on automatic sets it talks to the ATS — the automatic transfer switch that moves your building between grid and generator without you lifting a finger.
Brand names you’ll see: Deep Sea (DSE), ComAp, SmartGen. They all do roughly the same job. What separates a good installation from a bad one is how the controller is set up — and maintained.
Nine times out of ten, it’s the controller or the battery pulling me out of bed at midnight. A customer in a food warehouse lost a full night of refrigeration because a $30 sealed battery in the control cabinet had quietly died — the engine was perfect, the alternator was perfect, the brain just couldn’t wake up. I told that story in full here, and it still annoys me.
Another one, funnier: a site where the controller’s auto-start tested flawlessly for months, then failed during the first real outage. Why? The installer had left the controller in manual mode after the last service visit. Nobody checked. A $40,000 machine, defeated by a menu setting. Now I tell every customer: after any service, run one full automatic test before the technician leaves. Takes ten minutes. Saves careers.
A grumpy old commissioning engineer I know disagrees with me about controllers. He says the fancier the panel, the more ways it finds to confuse people — he’d rather have three analog gauges and a big red button. Honestly? He’s half right. Complexity you don’t use is just future failure with a touchscreen.
The base frame is the skeleton — and everything that isn’t engine, alternator, or controller lives on it. Radiator. Day tank. Battery box. Exhaust silencer. The air filter the size of a wastebasket. The unglamorous half of the machine.
And honestly? This fourth group causes about half the failures I’ve ever driven out to fix. Cracked radiator hoses. A fuel line sucking air at a loose fitting. Exhaust backpressure because someone ran the pipe with too many elbows. A battery charger that silently died six months ago. None of it shows up in the brochure photos. All of it shows up at 2 AM.
Quick anatomy, one breath: engine makes spin, alternator makes electricity, controller makes decisions, frame holds the plumbing that keeps the first three alive. Neglect any one of the four and the other three can’t save you.
You asked at the start. Fair — here’s my honest ranking from twelve years of callouts.
Batteries, first. Then fuel-system gremlins. Then controller settings and sensors. The engine itself? Almost never — unless someone starved it of oil or ran it at 20% load for years. Alternators die last. They’re basically copper and steel with no moving parts except the shaft.
The takeaway nobody puts in the quote: when you’re comparing two gensets, stop staring at the engine brand plate. Ask about the alternator frame size, the controller brand, and who maintains the batteries and filters. That’s where your machine’s real life gets decided — in the boring parts, at the boring hours, when nobody’s watching.
That customer who kicked the frame? He bought the set. Last month the grid dropped during a storm and his warehouse never blinked. He sent me a photo of the controller screen, all green. “Not just an engine with wires,” he wrote. I keep that message. It’s better than any testimonial.
If you’re staring at a quote and wondering what you’re actually paying for, send it over — I’ve read enough of them to spot the missing line in about thirty seconds. And if the ratings printed on that quote look like alphabet soup, start with the nameplate.
