The phone rang at 2:40 on a Tuesday morning. A cold-storage warehouse outside the city, a 500 kVA standby set, a high coolant temperature alarm — and the controller had already shut the machine down to save itself. I drove out expecting the usual: low coolant, a split hose, maybe a dead fan belt.
What I found was a radiator filled to the neck. Hoses intact. Fan belt fine. Not a puddle anywhere on the floor. Nothing to top up, nothing to tighten, nothing to find. That is the worst kind of call — the kind where the machine is lying to you and you don’t know it yet.
Three hours later I was standing in that generator room holding the culprit, and it weighed about as much as a shot glass. The radiator cap.
Here’s the thing most people get wrong about that little cap: it isn’t there to keep dirt out. It’s a pressure relief valve with a job description. A standard 15 psi cap holds the cooling system about one bar above atmospheric pressure, and that buys you roughly 20°C of extra headroom before the coolant boils. With a healthy cap, your 50/50 glycol mix stays liquid well past 120°C. With a dead one, it starts boiling at 100 — same as a kettle.
There’s a second valve hiding in there too, and nobody thinks about it until it fails. When the engine shuts down and the coolant contracts, a little vacuum valve in the center of the cap is supposed to let air back into the system. If that valve sticks shut, the cooling system pulls a vacuum on itself. Hoses go flat. The water pump starves on the next start. Air gets dragged past seals that were never meant to see air.
I wrote a longer piece on coolant system maintenance a while back. This is the fifteen-dollar footnote to that article, and it deserves its own.
Back to that warehouse. The gauge had pegged past 102°C and the set had boiled over — steam everywhere, coolant all over the skid. My first move was the thermostat. Wrong. Pulled it, tested it in a pot of hot water on a camp stove like I’ve done a hundred times, and it opened right on spec. So I flushed the system, refilled it, bled the air, and ran the set up under load again.
It boiled over a second time. Same temperature. Same steam.

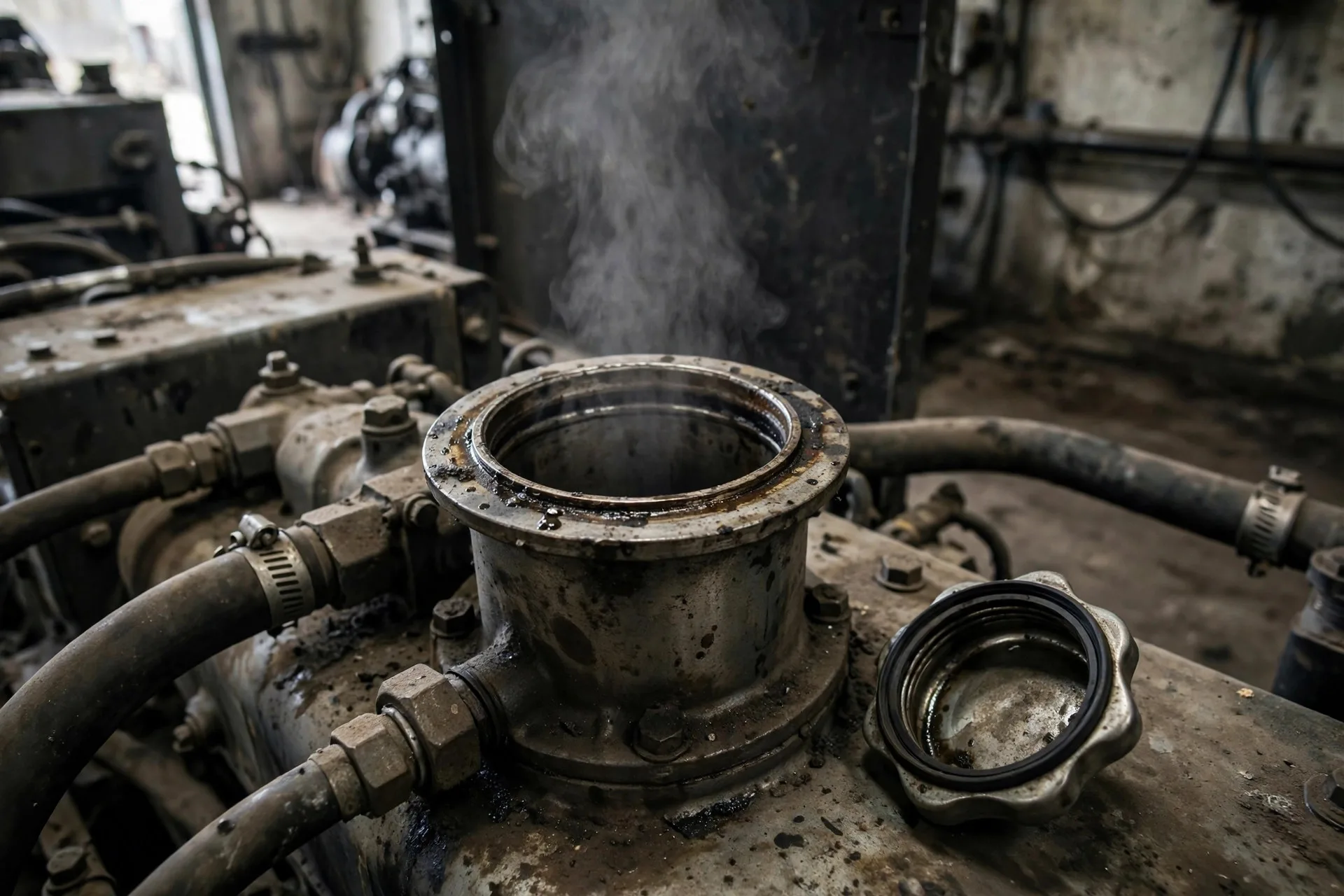

That’s when I finally did the thing I should have done first. I pulled the cap, looked at the spring, and pressed it with my thumb. It moved like a screen door spring — soft, tired, no fight in it at all. A pressure tester confirmed what my thumb already knew: the cap was cracking open at maybe 4 psi instead of 15. The system never pressurized. The coolant did exactly what physics said it would do at 102°C with no pressure on it. It boiled.
A new cap cost me fifteen dollars at a truck parts counter that opened at seven. The embarrassment cost more. I’d spent three hours and two flushes chasing ghosts because I skipped the cheapest part on the machine.
An old-timer I used to work with had a saying: a cap’s a cap, if it fits it sits. He meant don’t overthink it, and for most of my early years I nodded along. He’d been starting diesels since before I was born. Who was I to argue?
I’m arguing now. After that warehouse night, I started pressure-testing caps as a matter of habit, the way you’d check oil before a long run. Rough count from my own jobs since then: about one in five caps on sets older than eight years can’t hold their rated pressure anymore. Not catastrophically — they don’t explode or anything dramatic. They just quietly open early, vent a little steam you never see, and let the coolant boil ten or fifteen degrees sooner than it should.
He still says I’m fussy about it. Fine. Fussy is cheaper than a liner job.
First, the spring gets tired. Heat cycles do that. The cap starts relieving at 8 or 10 psi instead of 15, and from the outside everything looks normal. The tell is a boilover with a full radiator and a temperature gauge reading just past 100°C. If your “overheating” always happens right around the boiling point of water at atmospheric pressure, the system isn’t pressurized. Full stop. I’ve seen this misdiagnosed as a head gasket more than once, and a head gasket quote is a very expensive way to avoid buying a cap.
Second, the vacuum valve sticks. This one’s sneaky because the damage shows up on the next start, not during the failure. Coolant contracts as it cools, nobody lets air back in, and the lower radiator hose gets sucked flat like a deflated balloon. I saw it on a 250 kVA set at a telecom shelter — the hose looked fine from the top, but underneath it had collapsed completely. The pump cavitated, the engine ran hot, and the operator was convinced the water pump was dying. New pump wouldn’t have fixed a thing.
Third, the seal hardens. The rubber gasket under the cap goes stiff with age and heat, and pressure seeps past it slowly. You never see a drip because it evaporates off the hot filler neck. What you get instead is the famous mystery: the coolant level drops a little every month, no puddle, no steam, no explanation. Look close at the filler neck and you’ll usually find a faint white crust — dried coolant salts marking the escape route. That crust is the cap’s confession.
A system that keeps running at the edge of boiling also punishes the cylinder liners. Boiling coolant collapses the protective film that DCA additives work so hard to maintain, and liner cavitation loves nothing more than vapor bubbles. A fifteen-dollar cap protecting a five-figure engine rebuild. Do the math.
Cold engine, cap off. Press the center of the cap with your thumb — the spring should push back hard, not sigh. Wiggle the little vacuum valve in the middle; it should move freely and snap back. Look at the rubber seal for cracks or a permanent flat spot where it sat on the neck. Check the filler neck itself for nicks or corrosion where the seal lands, because a perfect cap on a chewed-up neck still won’t hold.

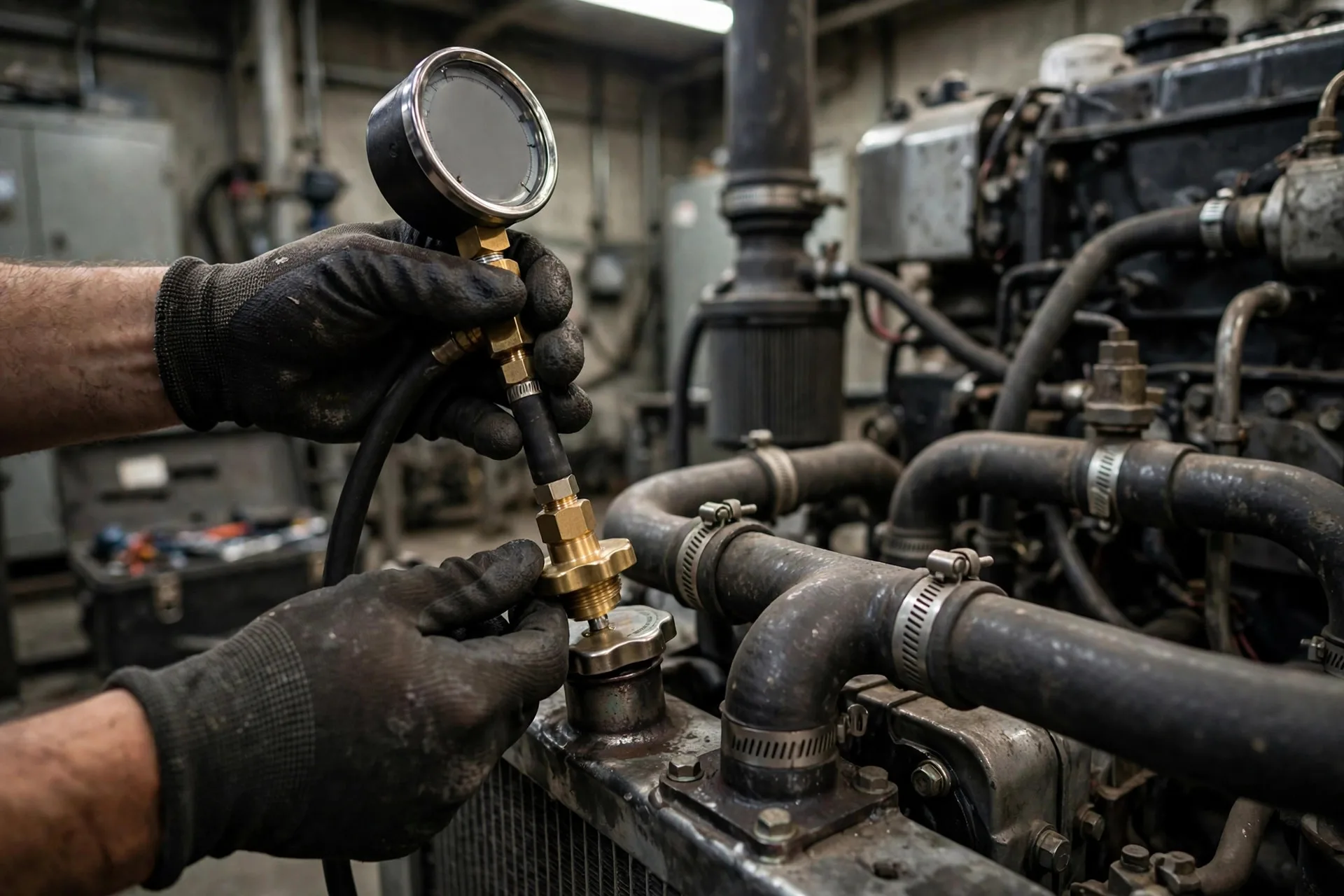

Then the real test: a cooling system pressure tester with a cap adapter. Pump it to the rated pressure stamped on the cap — usually 13 or 15 psi — and watch it for two minutes. If it drops more than a couple of psi, the cap is done. Replace it. Don’t clean it, don’t stretch the spring, don’t “get another season out of it.” The whole job, diagnosis included, takes five minutes and costs less than the fuel I burned driving to that warehouse at 2:40 in the morning.
If you’re building a proper routine around this stuff, the maintenance checklist I keep coming back to has the cap test sitting right next to the coolant level check, where it belongs.
That’s the rule I took away from that Tuesday night, and it’s saved real money since. Boilover with a full radiator? Check the cap. Mystery coolant loss with no puddle? Check the cap. Overheating that always starts right around 100°C? Check the cap. Three symptoms, one fifteen-dollar suspect, five minutes to rule it out.
There’s a longer discussion of overheating causes if your problem survives the cap test — thermostats, radiators, and airflow all get their turn. But start cheap. Start with the part that weighs as much as a shot glass.
I keep a spare cap in my toolbox now, same rating as the sets I service most. The old-timer laughs every time he sees it. Then again, he wasn’t the one standing in a cold-storage generator room at five in the morning, holding a dead spring and doing the math on three wasted hours. If your set is due for a look, talk to us before the gauge climbs — we’ll bring the pressure tester.
