The call came at 2:47 in the morning. A toolpusher on a workover rig, seventy kilometers from the nearest paved road. His diesel generator had tripped twice. Every time the mud pumps spooled up, the set went down on undervoltage, and the drill string was sitting in the hole, getting heavier by the minute.
He didn’t have a technical problem. He had a specification problem. That set was bought off a load list — a tidy column of kilowatts — and load lists have never met a drawworks. Oil and gas sites are where paper specs go to die, because almost nothing on a well pad behaves like a normal load.
Three questions come up every time someone in oil and gas asks me about backup power. They’re the right questions. Two of them have answers most buyers don’t want to hear.
Sometimes. If you bought the alternator for the job and not just the engine.

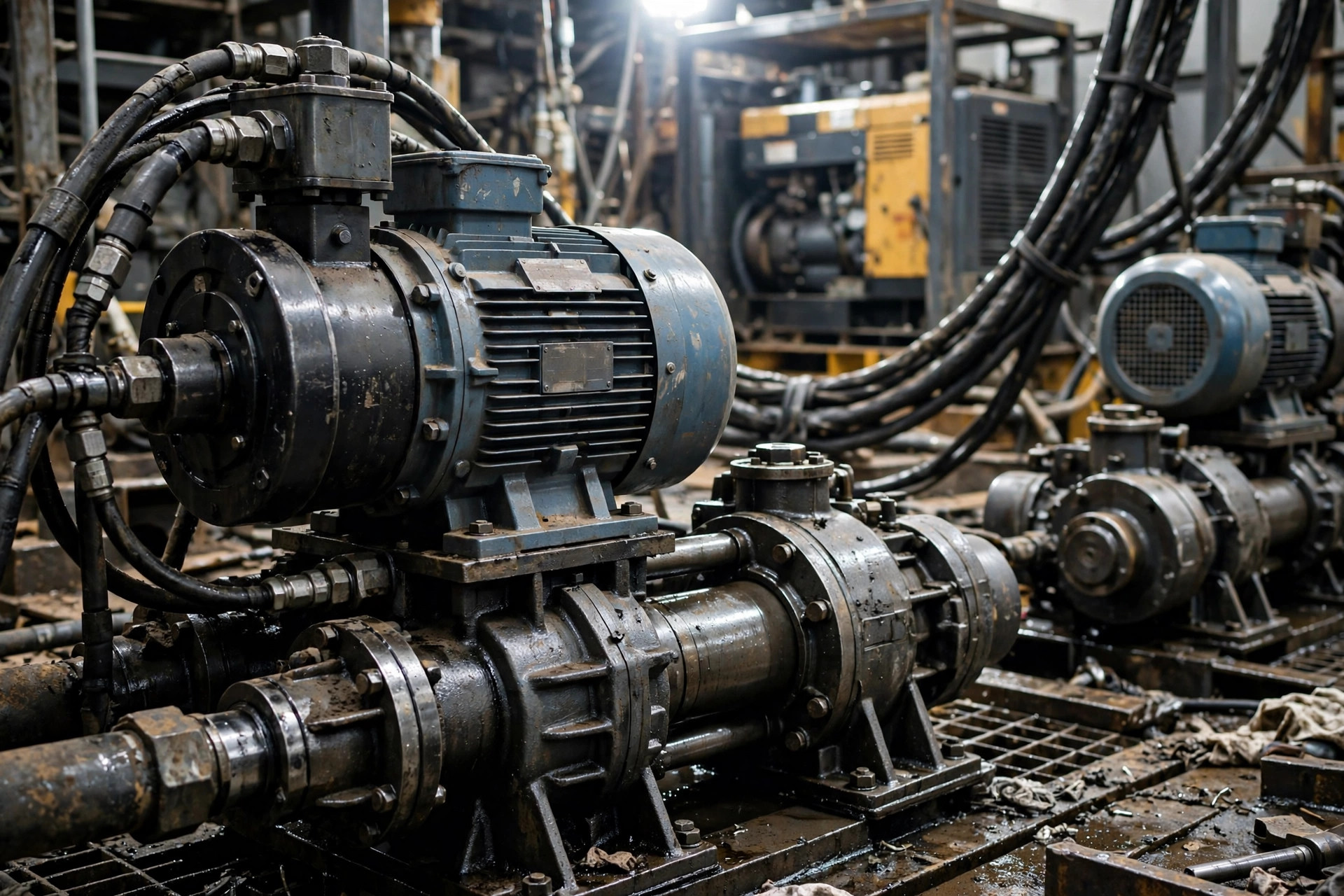

A rig’s electrical profile looks nothing like a factory’s. The big loads are motors — drawworks, top drive, two or three triplex mud pumps — and they don’t ramp up politely. A 1,000 hp motor started direct-on-line can pull five to six times its running current. For the half second that inrush lasts, your generator isn’t feeding a motor. It’s feeding a short circuit.
That’s the number most quotes get wrong. A 500 kVA set is a 400 kW engine at 0.8 power factor, and motors couldn’t care less about the engine’s kilowatts. They care about kVA — how much current the alternator can deliver without the voltage collapsing. I dug into the kVA-versus-kW trap in another piece, and nowhere does it bite harder than on a rig floor.
On a job I worked, the set passed every factory test at steady load. First morning on the pad, two mud pump motors tried to start within seconds of each other. Voltage sagged past 25 percent, the undervoltage relay tripped, and the whole pad went dark. The engine was fine. The alternator had been sized for the running load on a spreadsheet, not the starting kVA on a rig.
The fix wasn’t a bigger engine. It was an alternator with enough subtransient kVA for the worst starting event — two pumps plus everything already running. There’s a motor-starting piece that covers the math; the field version is one question. Ask the supplier what voltage dip they guarantee when your biggest motor starts at full load. If the answer is a shrug, walk away.
And don’t forget the recovery. Steady-state specs are for brochures. What matters is how fast the governor and the AVR get the set back — two seconds of sag versus eight is the difference between drilling and tripping. I watched an older mechanical-governor set hunt for ten seconds after a block load came on, and every relay on the pad was holding its breath. Block loading is how rigs energize equipment, and the generator’s transient response is the real specification.
Fair question. The gas comes out of the ground, it’s free, and flaring it is getting harder to permit anyway. So why does almost every rig I visit still keep a diesel tank next to the fuel gas skid?
Because wellhead gas is a promise that keeps breaking itself. The pressure swings. The BTU content wanders. A slug of condensate comes through the separator and your fuel supply turns into the wrong chemistry with a fire hazard attached. A gas engine tuned for clean pipeline gas will derate, misfire, or quit — and it quits at the worst moment, because that’s when the well is producing hardest and the gas is dirtiest.
This is where dual-fuel earns its keep. At full load it substitutes roughly 70 percent of the diesel with gas, using a small diesel pilot for ignition. When the gas pressure collapses, it falls back to pure diesel by itself — no operator heroics required. I compared the two honestly in the dual-fuel piece. The short version: diesel is the promise, gas is the discount.
On a pad I worked, a dedicated gas engine choked when a liquid slug hit the fuel line. The dual-fuel set on the next pad hiccuped, dropped the gas, ran on diesel for twenty minutes, and the drill crew never noticed. That’s the difference between fuel you depend on and fuel you enjoy.
Then do the logistics math honestly. If scrubbing, compressing, and regulating that gas costs more than trucking diesel to the pad, run straight diesel. I’ve seen both decisions be right. The wrong decision is assuming free gas means cheap power. It also means a second skill set on the pad — the rig electrician knows the diesel set inside out, and a temperamental gas train needs a different technician, different spares, and a different phone number to call at 2 a.m.
People assume generators die on well sites because the duty is brutal. It’s not the duty. It’s everything around it.
A standby-rated set running a rig is doing prime-power work, twenty-four hours a day, for months. Prime and standby are different ratings on the same machine, and a well pad eats standby-rated sets alive. If the set runs more than a few hundred hours a year — and a drilling program always does — it needs a prime or continuous rating. Full stop.
Then there’s the environment. Dust packs the radiator until jacket water temperature climbs fifteen degrees before anyone looks at the gauges. Vibration cracks fuel lines that were perfect in the factory. And at forty-five degrees in the shade, or fifteen hundred meters up, that 1 MW nameplate shrinks — check the derate curves for temperature and altitude before you sign, not after.

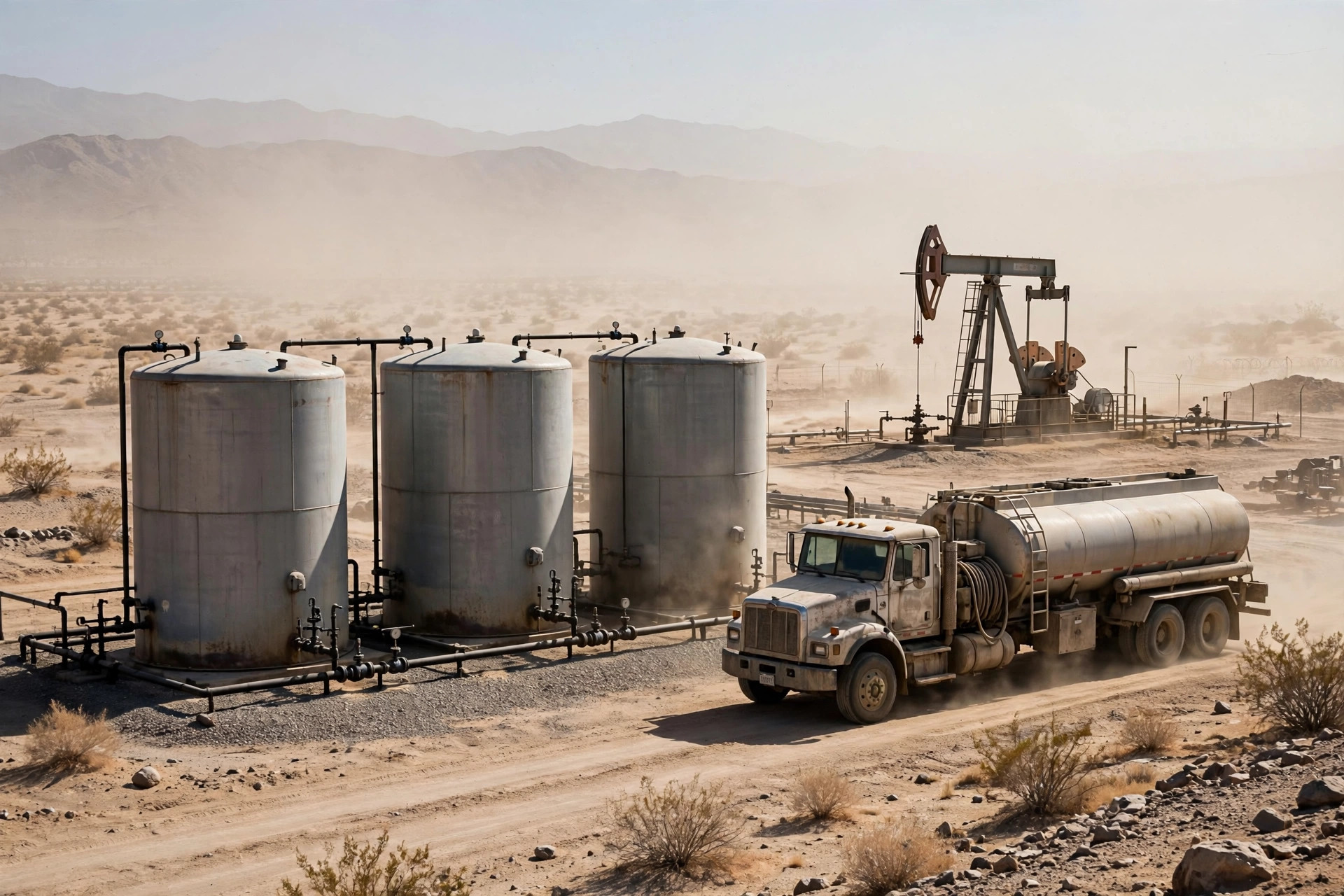

The one that gets me, every time, is fuel. Diesel sits in drums in the sun for weeks, grows water and bugs, and the day tank float sticks. A thirty-cent part starved an engine at three in the morning during a frac job I was on, and the nearest mechanic was six hours away. Fuel storage isn’t a footnote out there. It’s the whole maintenance program.
So spec for the worst morning, not the average afternoon. Prime rating. An alternator that survives your biggest motor start. Fuel filtration and a day tank somebody actually drains. And if you’re tempted to run on field gas, bring the diesel anyway — as the promise, not the plan B.
The generator is the cheapest machine on the pad that can stop every other machine on it. Treat it that way and it does what diesel generators do best. It stays boring.
