The call came at 10:40 on a Tuesday night. A contractor I’d sold a 500 kVA set to six months earlier, his voice flat in the way voices get when something expensive just broke.
“It’s smoking,” he said. “White smoke. Mechanic says the pistons are scored.”
That machine was rated 500 kVA standby. He’d been running it eighteen hours a day, six days a week, powering a crushing plant while the grid connection crawled through paperwork. Standby rating. Prime duty. About eighteen months of engine life, burned through in six.
I tell you this story because it’s the most expensive misunderstanding in the generator business — and almost nobody explains it at the quoting stage.
Nearly every diesel generator carries two power ratings on its nameplate. Prime power (PRP) is what the set can deliver for unlimited hours a year under varying load. Standby power (ESP) is the maximum it can push out during a utility outage — typically capped around 200 hours a year, no overload allowed, at an average load factor near 70%.
The standby number is always the bigger one. On a typical 500 kVA-class machine, prime might read 400 kVA while standby reads 440. Guess which number lands on the quote. Guess which one the brochure prints in the biggest type.
Here’s what the big type doesn’t say: the engine didn’t get any stronger. Standby is a duty rating, not a power rating. It means the machine can survive short bursts at that output. It does not mean: park it there forever.
One more number worth knowing before we go on: the kVA on the quote isn’t the kW you’ll actually get. At the standard 0.8 power factor, a 500 kVA set delivers 400 kW of real power. I’ve watched buyers compare a “400 kW” quote against a “500 kVA” quote and conclude the second machine is bigger. Same machine. Different ruler. Always convert before you compare.
Diesel engines live and die by heat and hours. At standby duty, the manufacturer assumes the set sleeps most of its life, then works hard for a few hours when the grid fails. Stretch that to sixteen hours a day and the wear math changes completely. Oil shears down faster. Cylinder temperatures never get their cool-down. Components specced for intermittent duty start aging at continuous-duty speed.
The engine doesn’t explode on day one. That’s what makes this mistake so sneaky. It just dies young — at 5,000 hours instead of 15,000 — quietly, expensively, and almost always with the warranty already void.
Because here’s the clause that ends arguments: run a standby-rated set as prime power and most manufacturers will void the warranty. I sat in on one of those meetings once. The buyer was furious. The manufacturer’s engineer just opened the hour-meter log — 3,800 hours in fourteen months on a standby-rated unit — pointed at the duty definition in ISO 8528, and declined the claim. The rebuild cost the buyer roughly forty percent of a new set. All because the three letters ESP never got discussed at the quoting table.
Honestly, I blame the quoting process as much as the buyer. If a quote says “500 kVA” with no ESP or PRP next to it, that quote is unfinished.
Now the flip side, which surprises people. If your set will run 150 hours a year as pure emergency backup, buying a prime-rated machine is also a mistake. A quieter one, but a mistake.
You pay more upfront for heavy-duty capability you’ll never touch. Worse, an oversized prime set loafing along at 25% load for its entire life will wet-stack — unburned fuel glazing the cylinder walls, carbon packing into the exhaust, black weep at the stack. I know a commercial building running a 1 MW prime set that never sees more than 200 kW. Eight years old, runs like it’s twenty. The owner figured bigger meant safer. Bigger meant lazier. And lazy kills diesels just as dead as overwork does.
There’s actually a third rating, by the way — COP, continuous power — for loads that never vary, like a pump running flat-out around the clock. Most buyers never need it. But its existence proves the point: the industry keeps a separate rating for every duty, because duty is what kills engines, not the logo on the enclosure.
An old-timer I drink tea with disagrees with my fix. He says: buy the standby set, maintain it like a religion, and it’ll outlive us both. I say: match the rating to the duty — prime for workers, standby for sleepers — or pay the difference later. We argue about it every few months. He’s right about maintenance. I’m right about physics. The rating has to match the job; no rating forgives the wrong one.
Before you sign anything, do this. Takes a minute.

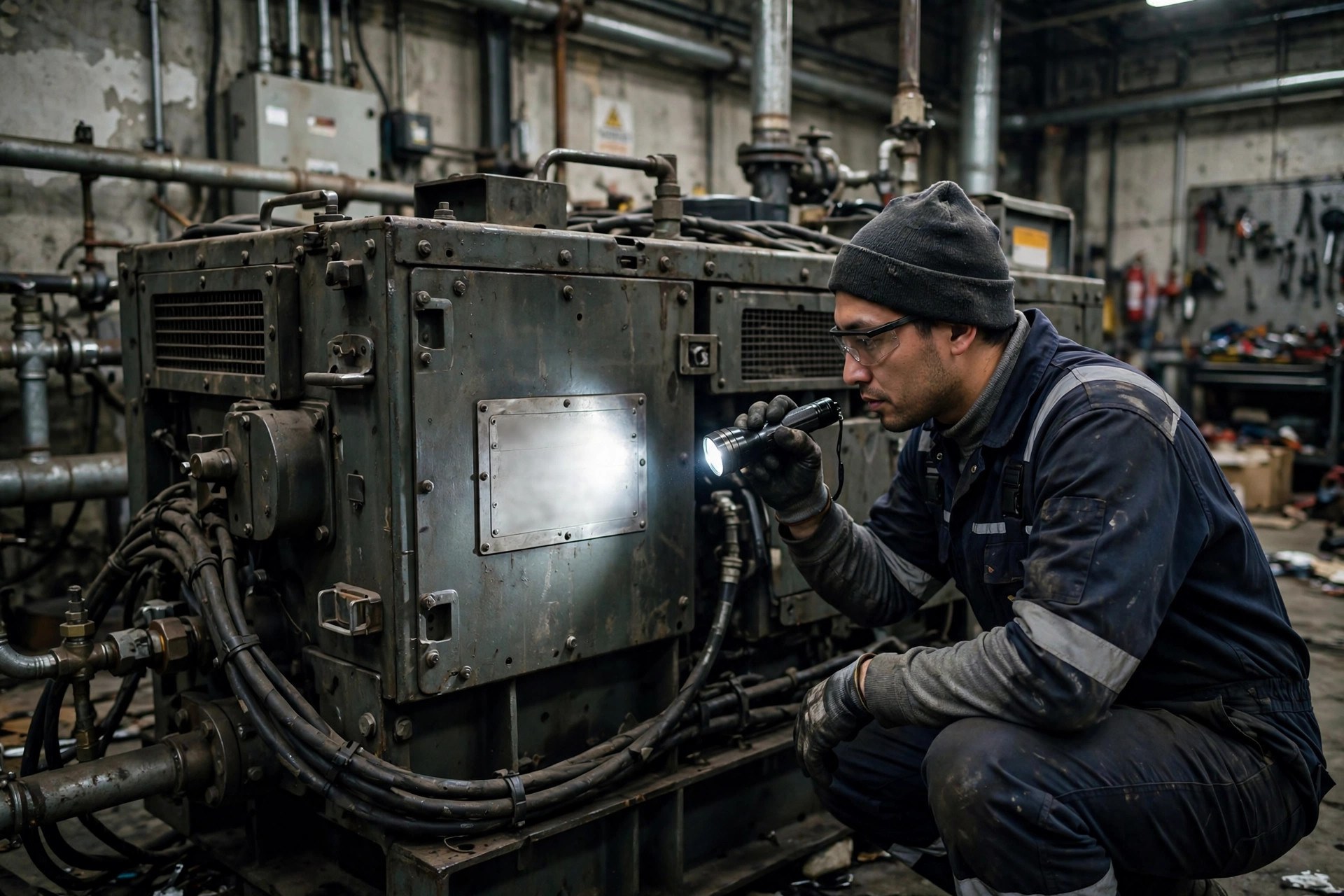

First, find both numbers on the plate. If only one rating is shown, ask why. Second, confirm the standard: the datasheet — not the brochure, the datasheet — should reference ISO 8528 and define ESP, PRP, and COP in plain terms. Third, ask about the 10% overload clause. Prime-rated sets generally allow 10% overload for one hour in twelve. Standby sets allow none. That single line tells you how the manufacturer truly thinks about the machine.
Fourth, and this is the step buyers skip: ask for the derating table. Output falls with altitude and heat. A set rated 500 kVA at sea level on a cool day is not a 500 kVA set on a hot plateau. The exact curve varies by engine — which is precisely why you want their table, not a rule of thumb from the internet. Get the numbers for your site conditions, in writing, before money moves.

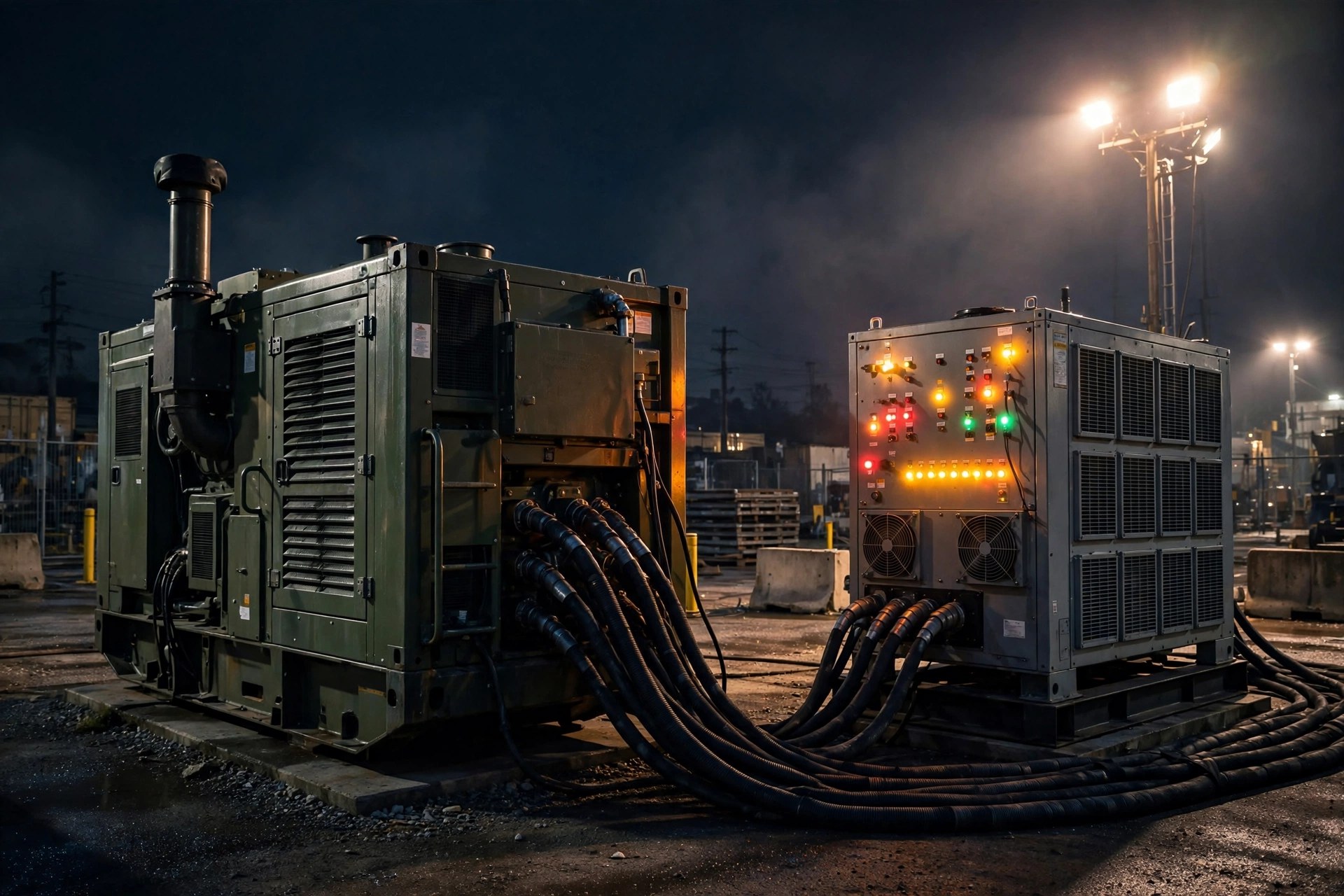

And if the purchase is big enough to keep you awake at night, pay for a load bank test at acceptance. A few hours on a resistive load bank — watching temperatures stabilize, checking fuel burn against the datasheet — tells you more than a hundred pages of marketing. It’s the only honest way to prove a rating before you trust the machine with your site.
Sizing and rating are two halves of the same decision. I wrote earlier about how to size a generator without wasting thousands — read that first if you haven’t, then come back and check the rating. And if you’re still choosing between fuel types, my diesel-vs-gas-vs-solar breakdown covers the other half of the argument. Get the size right and the rating right, and the machine just works. For years. That’s the whole secret.
So next time someone quotes you a “500 kVA generator,” ask one question: prime or standby? Then watch their face. The good suppliers answer instantly. The rest change the subject — and honestly, that’s all the information you need. If you want a second opinion on a quote, talk to us before you sign.
