Minus fourteen degrees. Tuesday, 6:40 in the morning. A containerized 500 kVA set at a logistics park outside town, the kind of site where the generator only exists for the freezer warehouse and nobody thinks about it until the grid blinks.
The grid blinked at 6:12. The set started clean — I heard it catch on the first crank from the parking lot. It took the load, ran smooth for ten minutes, and then the trouble started. At about sixty percent load the frequency began to sag. Not a lot. Enough to notice if you’ve watched gauges as long as I have. Then the exhaust went from clean to a lazy black haze, and the sag got worse.

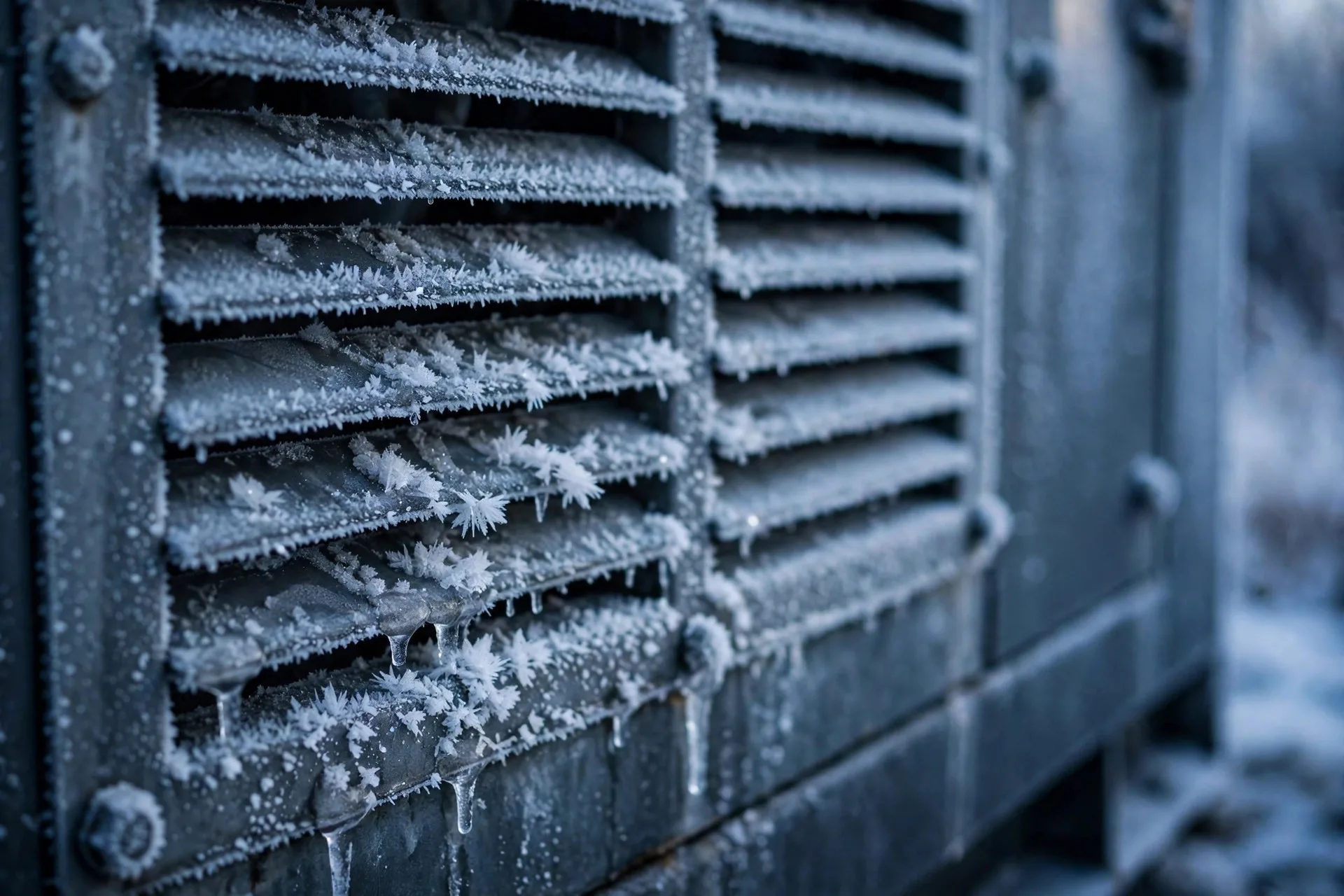

Fuel? Full tank, polished last autumn. Engine? It had just passed its annual service. I walked around the container with a flashlight and found it in about ninety seconds: the intake louvers on the windward side were glazed shut with ice, and a snowdrift had piled against the lower half. The engine was trying to breathe through a wall.
Here’s the thing most generator rooms get wrong. Your set needs two completely different kinds of air, and almost everyone only plans for one.
A diesel engine is an air pump that happens to make electricity. Before a single drop of fuel can burn, the cylinders have to inhale — and they inhale a shocking amount. Ballpark math: roughly a tenth of a cubic meter of air per minute for every kilowatt of engine output. A 400 kW machine pulls something like thirty-five cubic meters a minute. That’s a small bedroom’s worth of air, every sixty seconds, for as long as it runs.
That’s combustion air. It has nothing to do with the other airflow everyone designs for: the cooling air the radiator fan drags through the room to dump heat. Cooling air volumes are enormous — ten, twenty times the combustion volume — so the ventilation design always revolves around heat. Louvers get sized for the radiator. Ducts get sized for the radiator. And the engine’s own breathing? Assumed. “There’s plenty of air in the room.”
There isn’t, necessarily. And when there isn’t, the engine tells you in a language most people misread: it derates, it smokes, it hunts, it sometimes just quits — and every one of those symptoms looks like a fuel problem or an engine problem. I’ve watched techs change fuel filters three times chasing an air problem. I’ve done it myself, once, years ago. Never again.
These are the five ways I’ve seen generator rooms starve an engine. Every one of them looked like something else until someone traced the air path.
This is the most common one, and the laziest. No dedicated combustion-air opening at all — just faith that doors, cable penetrations, and construction gaps will leak enough air to feed the engine. In a 1980s blockwork plant room, honestly, that sometimes worked. Buildings leaked like sieves.
Modern enclosures don’t. A containerized set or a tight new plant room can be remarkably airtight, and a running engine is a powerful vacuum pump. Starve it and the room goes negative — doors slam shut on their own, weatherstripping whistles, and in cold climates the negative pressure starts pulling flue gas back down the exhaust stack. I once watched a site where the personnel door needed two hands to open while the set was running. That’s not a door problem. That’s the engine gasping.
The fix is boring, which is why it gets skipped: a dedicated combustion-air inlet, sized on purpose, that doesn’t depend on anyone leaving a door ajar. An old-timer I worked with for years disagreed with me on this until the day he retired. His position: “Just leave the louver doors open, kid, it’s always worked.” Sure — until the one night the doors are closed, the wind is wrong, and the freezer warehouse is full.

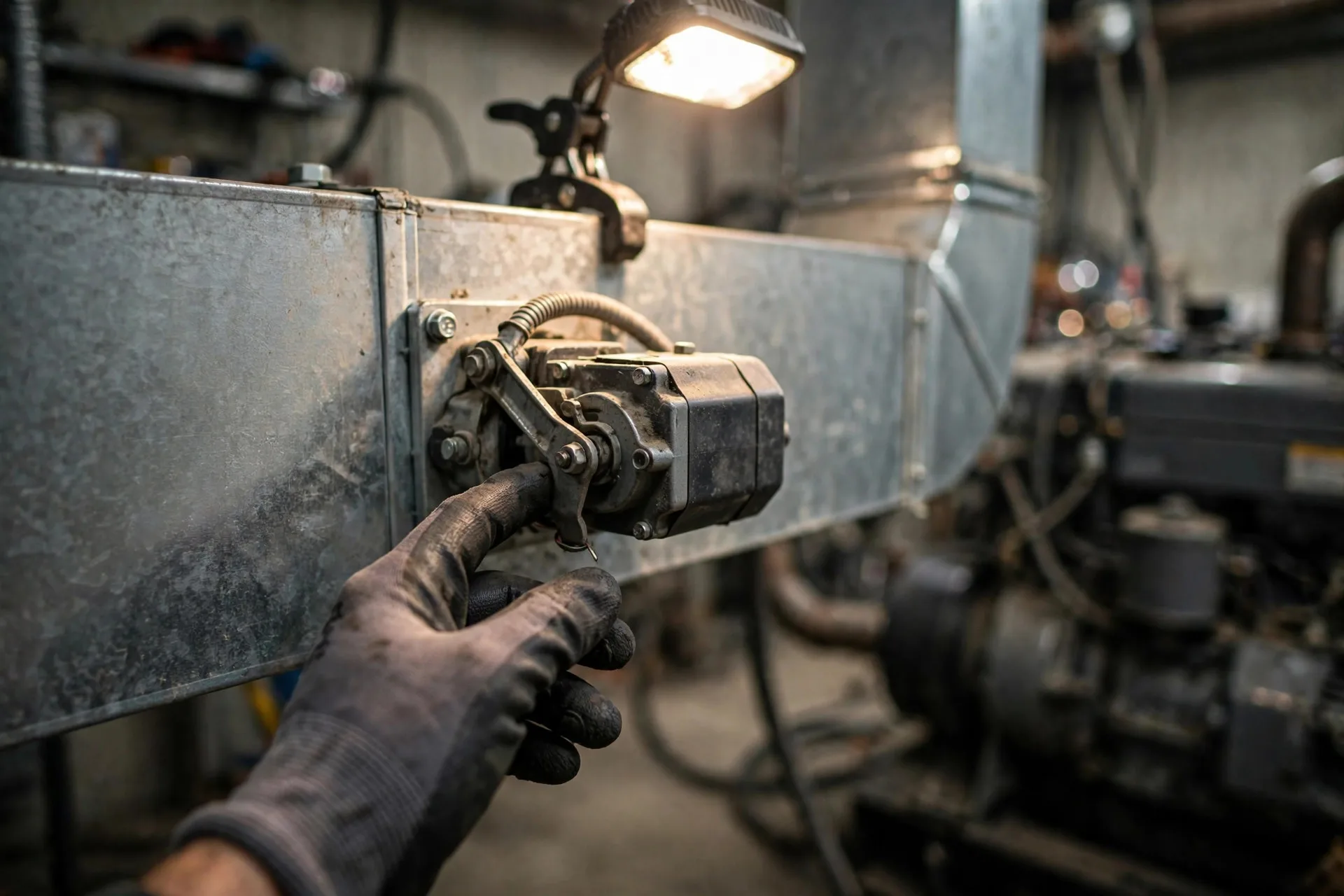

Motorized intake dampers are fine pieces of equipment. They keep weather and birds out when the set is idle, they open on start signal, everybody’s happy. Unless somebody wires the actuator to fail closed on loss of power — which is the default on a surprising number of installations, because “fail closed” sounds safe.
Think about what that means. The utility fails. The generator gets its start signal. The damper actuator, which draws its control power from the utility side, sits there dead. Shut. The engine cranks into a sealed box, fires, runs for maybe twenty seconds on the air trapped in the room, and dies. Then it tries again. And again. The controller logs it as a failed start, the tech gets dispatched for a “crank-no-run,” and nobody looks at the damper because the damper “worked fine in the monthly test.”
Oh, it worked in the test. The test ran at 10 a.m. with the technician standing there, doors open, holding the damper linkage with a zip tie because the actuator had been sticky since spring. I am not inventing this. I removed the zip tie myself.
Intake dampers on a standby set should fail open — spring-return actuators, or gravity louvers that need no power at all. If your damper needs electricity to admit air, you’ve built a machine that can’t start in exactly the situation it was bought for. Walk up to yours and ask the uncomfortable question: when the power’s out, what holds this open?
A louver rated one meter by one meter does not give you one square meter of air. The blades, the frame, the bird screen — they eat roughly half of it. Free area on a typical weather louver runs forty to sixty percent, and that’s when it’s clean. Add a dust screen in a quarry or a desert site and you’re lower. Add winter frost and you’re guessing.
So the arithmetic that matters is free area, not frame size, and airspeed through that free area. Keep the velocity low — a few meters per second at most — and the pressure drop stays trivial. Push it high with an undersized louver and the engine starts paying for every breath. At full load, with a turbocharger already working hard, even a small inlet restriction shows up as lost power and hotter exhaust. It’s the same physics as a clogged air filter, just wearing a different costume. (We covered filter restriction in the maintenance checklist piece — the louver is the filter nobody changes.)
Short version: size the opening for the air, not the wall. If someone sized your intake louver from the architectural drawings instead of the engine’s airflow data, assume it’s wrong until proven otherwise.
This one is my favorite, because the installation looks so tidy. Intake louver on one end of the container, exhaust stack on the same end, six feet apart, because the pipe run was shorter and the contractor saved a day. Prevailing wind does the rest: a good fraction of the exhaust gets folded straight back into the intake.
Hot, oxygen-depleted, soot-laden air. The engine derates — it has to, there’s less oxygen per breath — exhaust temperature climbs, which makes the recirculated air hotter, which derates it further. A slow thermal spiral. On a rooftop plant room I worked on, the set “mysteriously” lost about fifteen percent of its rated output every August. Not in January. Just August, when the wind came off the river and the roof was baking. We extended the stack two meters and offset it from the intake. The missing fifteen percent came back like it had never left.
Same story with radiator discharge. If the hot air blasting off the radiator has a short path back to the intake louver, the engine drinks pre-heated air all summer. Separation and prevailing wind aren’t architectural afterthoughts; they’re part of the airflow design. Stand outside your plant room on a windy day and watch where the exhaust actually goes. You might be surprised.
Every cold climate has its version. November arrives, someone screws plywood — or cardboard, I’ve seen cardboard — over half the intake louvers to “keep the room warm.” Reasonable impulse. The engine starts easier when the room isn’t minus twenty, and nobody wants to heat the outdoors.
Then July arrives and the plywood is still there. The set runs its monthly exercise against a half-blocked intake, nobody notices because exercise is unloaded and an unloaded engine barely breathes, and the first real outage of summer turns into a derate event. I peeled a sheet of plywood off a louver in June once and found a wasp nest behind it. The wasps had been there longer than the maintenance contract.
I’m not against seasonal blanking — done deliberately, with a removal date and somebody’s name on it, it’s legitimate. What I’m against is the anonymous kind: no label, no date, no owner, installed by someone who left the company in February. If your site blanks louvers for winter, the blanking goes on a checklist with a spring removal line, or it doesn’t go on at all. And while you’re at it, check for ice. Louvers don’t have to be boarded to be blocked; a freezing-rain night does the job free of charge, as my minus-fourteen Tuesday demonstrated.
If you take one habit from this, make it this: once a year, stand at the engine and trace its air backward. Where does each breath come from? Through which louver, past which damper, around which corner? Put your hand in the airstream at full load if you can do it safely. Feel for the restriction.
Five minutes, no tools:
Engines are honest machines. When one is suffocating, it says so — in sagging frequency, in black smoke, in power that isn’t there on the hottest or coldest day. Most of the time the problem isn’t inside the engine at all. It’s in the wall, in the damper, in the six feet between the exhaust stack and the intake louver that somebody decided was “close enough.” Trace the air. It’s always the air.
