Your Tank Is Full. Your Generator Is Starving. Blame the Fuel Pump.

The phone rang at 1:50 on a Tuesday morning. A 400 kVA set on a night-shift site had shed half its load and wouldn’t pick it back up. First question I asked: fuel in the tank? “Full,” the foreman said, annoyed I’d even asked. Second question: when were the filters changed? “Last month.” Third: “Then it’s the pump.” He went quiet. Because in twelve years of field work, I have watched more generators starve with full tanks than I can count — and the pump is the part nobody names until everything else has been blamed.

Everybody checks the tank. Nobody checks the pump.

Here’s the thing most owners get wrong. There isn’t one fuel pump on a diesel generator. There are two, doing two completely different jobs, and they fail in completely different ways.

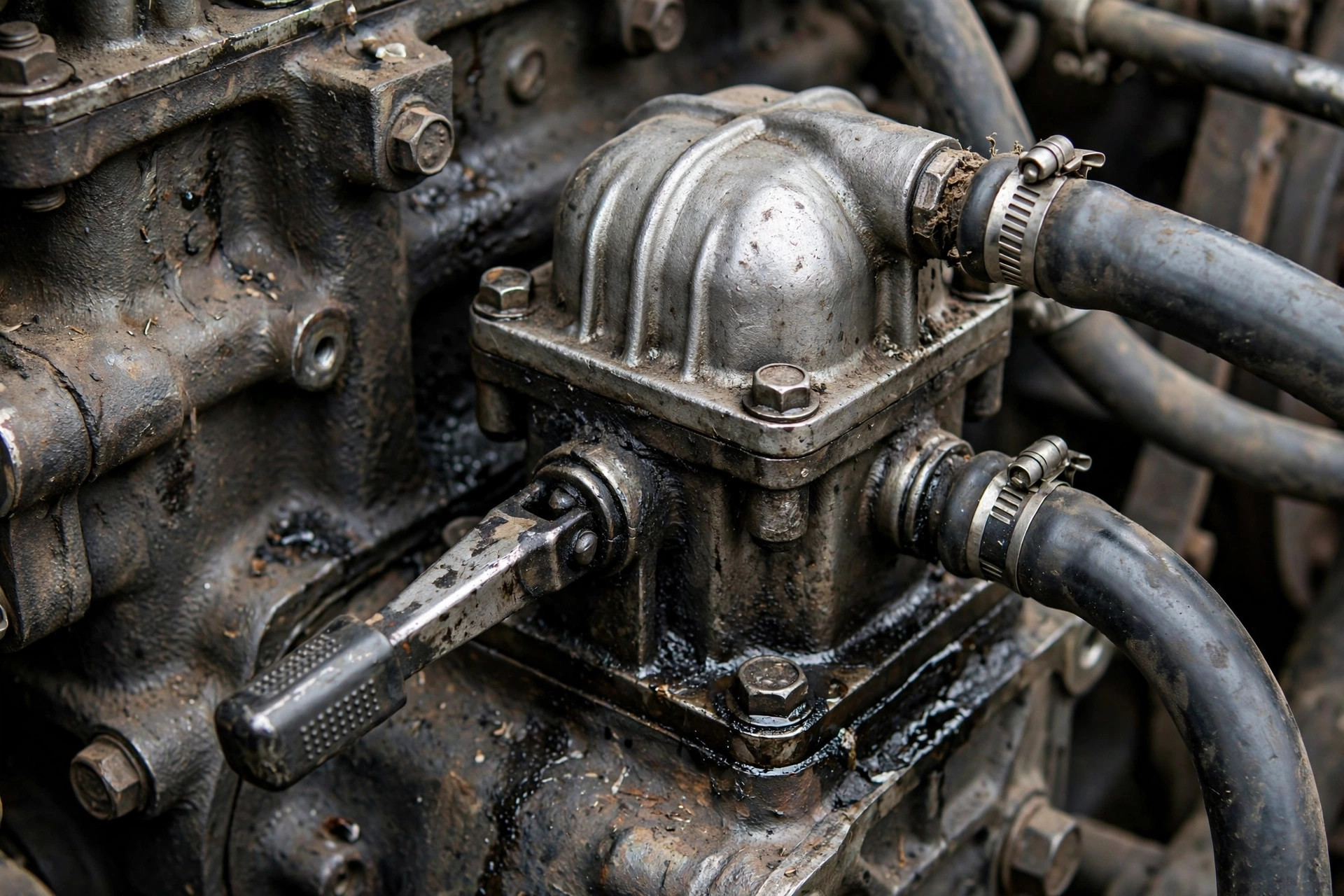

The lift pump — some people call it the supply pump or feed pump — is the humble one. It pulls fuel from the tank and pushes it through the filters up to the injection pump. Low pressure. Roughly 2 to 5 bar on most engines. A mechanical diaphragm pump driven off the camshaft on older engines, or a small electric pump on newer ones. It’s a sixty-dollar part on a lot of engines. No electronics, no glory, and nobody thinks about it.

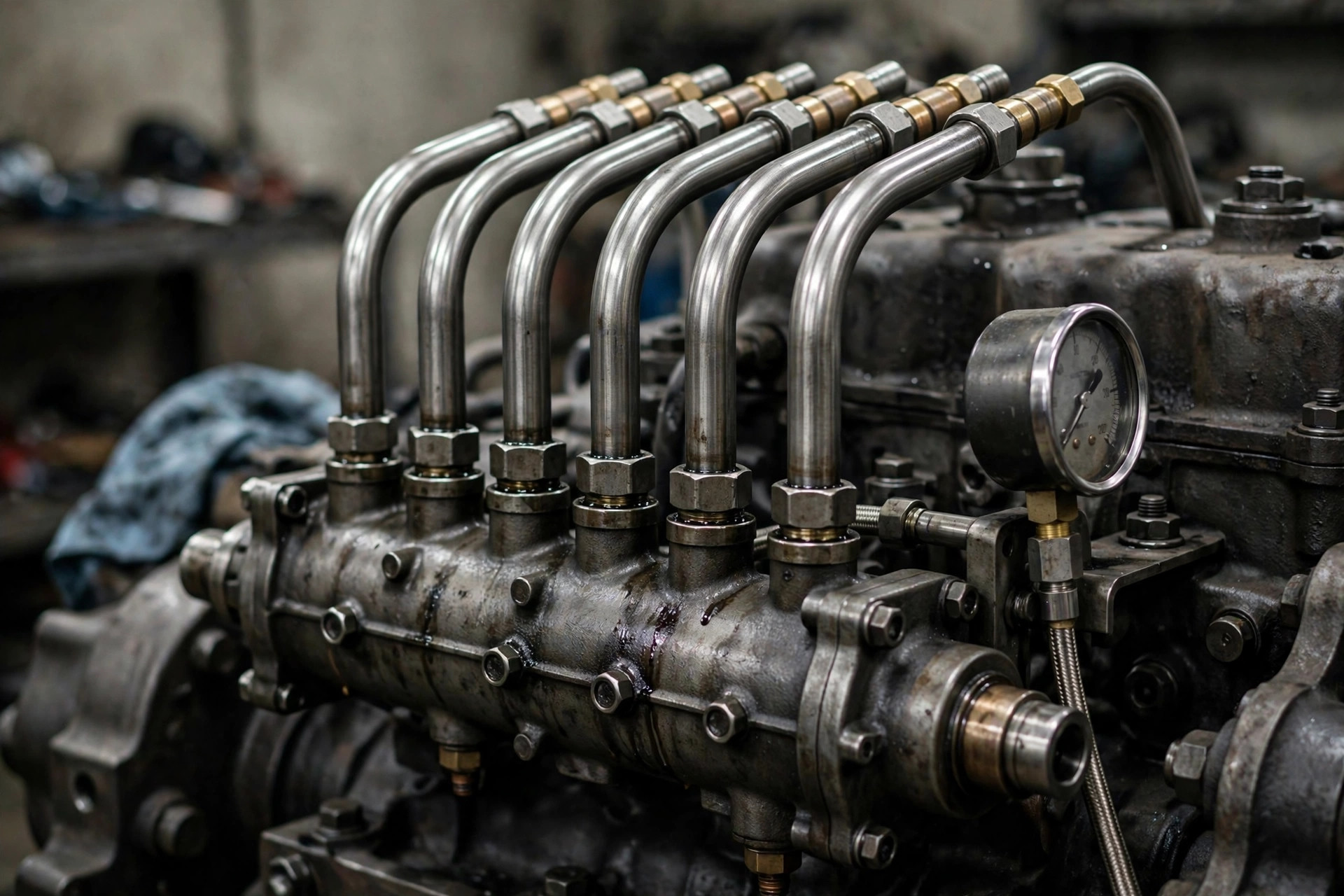

The injection pump is the diva. It takes that low-pressure fuel and turns it into the 200-plus bar blast (older mechanical pumps) or the 1,500-plus bar blast (common rail) that actually atomizes through the injectors. Inline pumps, VE rotary pumps, common rail high-pressure pumps — same religion, different churches. This one costs real money. And here’s the part people forget: on most mechanical pumps, diesel fuel is the lubricant. The plungers and barrels inside run on a film of fuel. Starve it, run it dry, or feed it dirty fuel, and it eats itself.

Two pumps. One moves fuel, one weaponizes it. When your generator starves, figure out which one stopped doing its job before you touch anything else. If you want the full picture of how the whole supply chain fits together, read our fuel system design guide — the pump is one link in a longer chain, and the chain breaks at its weakest point.

A dying lift pump doesn’t announce itself. It whispers.

This is the part that costs people days. A lift pump rarely fails all at once. It fades. The diaphragm stretches and gets tired. The check valves stop seating cleanly. An electric lift pump’s motor brushes wear down. And the symptoms look like everything else.

It starts fine in the morning and dies under load — because at idle the tired pump can keep up, and at full fuel demand it can’t. It cranks long after sitting for two weeks — the pump let the fuel drain back to the tank overnight, and now you’re cranking air. It loses prime after every filter change no matter how carefully you prefill. The hand primer goes soft and stays soft.

I’ve got a field test for this that takes ninety seconds. Crack the bleed screw on the filter head, work the hand primer, and watch. Fuel should come out in a solid, angry stream — no bubbles, no spitting. If it spits and foams, you’ve got air getting in somewhere upstream: a cracked pickup tube, a loose hose clamp, a lift pump with a tired diaphragm sucking air past its own seals. Fix that before you buy a single part downstream. Our no-start troubleshooting walkthrough starts at the battery, but half the sets that get past the battery land exactly here.

And one thing that separates the rookies from the rest: after months of sitting, a mechanical lift pump’s diaphragm can take a set. On the first crank after a long layup, give the primer a few strokes before you ever touch the start button. I once watched an owner crank a generator dry for three straight minutes and then wonder why the starter smelled like a campfire. Those three minutes also ran the injection pump dry. Two casualties for the price of one.

The injection pump is the diva in the room

Now the expensive one. The injection pump doesn’t just pressurize fuel — it times it. Each cylinder’s shot has to land at exactly the right crank angle, and on mechanical pumps that timing is set with shims or a keyway, and it drifts as things wear. Retarded timing gives you lazy black smoke and climbing exhaust temperatures. Advanced timing gives you that sharp diesel knock that sounds like someone hitting the block with a hammer.

Honestly, most injection pumps die of neglect, not old age. Dirty fuel scores the plungers. Water in fuel — even a little, even once — rusts precision surfaces with clearances measured in microns. And dry running is the fast lane: crank a common-rail set with no fuel for more than a few seconds and the high-pressure pump is chewing on air. Air doesn’t lubricate. I’ve seen a pump worth several thousand dollars killed by an empty tank and a few minutes of impatience. Don’t be that person.

The common rail sets have their own wrinkle. The high-pressure pump feeds a shared rail, and the ECU meters each injection. Which means when a common rail generator stumbles under load, everybody blames the electronics. Half the time I trace it back to fuel supply — a weak lift pump, a clogged pickup screen, a kinked hose. The diva gets the blame. The humble pump did the crime.

Five ways owners kill a fuel pump

Short list. All of them avoidable. All of them expensive.

1. Cranking it dry. Covered above. Prefill filters, prime the system, and don’t crank more than about 15 seconds at a stretch. Let the starter cool between attempts — your starter motor will thank you too.
2. Running the tank low “just this once.” The pickup screen sits near the bottom for a reason, and the reason is that the bottom is where the water, the rust, and the microbial slime live. Running low doesn’t just risk air — it serves the pump a cocktail. Our fuel storage guide explains what grows down there while your set sits.
3. Skipping the water drain. Most primary filters have a little drain at the bottom. Thirty seconds of work. Water is the number-one killer of injection pump internals, and it gets in through condensation, not bad fuel. Drain it monthly — it’s on the maintenance checklist for a reason.
4. Ignoring the return line. Restricted return flow raises pressure in strange places and can push the injection pump’s seals past their limit. I’ve found return lines pinched by a misplaced hose clamp more than once — a five-cent problem wearing a five-thousand-dollar costume.
5. “Upgrading” to the wrong pump. Which brings me to the argument I keep having.

Should you bolt on an electric lift pump?

This is where the old hands and I disagree, and I’ll say it out loud. Plenty of owners add an aftermarket electric lift pump as a booster. It helps with priming after filter changes, it pushes fuel up from a low-mounted day tank, and it makes bleeding a one-person job. I’m not against it. I’ve fitted them.

But the senior tech who taught me half of what I know thinks they’re a crutch. His argument: a healthy mechanical lift pump doesn’t need help, and every extra pump, relay, and splice is another leak point and another thing to diagnose at 2 a.m. He’s not wrong. I’ve been called out to “mysterious” air-in-fuel problems that turned out to be the aftermarket pump’s own fittings weeping.

Here’s the thing, though. If your day tank sits below the engine, or your fuel run is long, or your set sits for months between runs, an electric lift pump wired to run during cranking is genuinely useful. Just buy a decent one, wire it through a proper relay with a fuse, and put it where you can reach it. A pump you can’t service is a pump you’ll ignore. Which brings us right back to where we started.

So next time your generator starves with a full tank, do the ninety-second test before you order a single part. Crack the bleed screw. Work the primer. Watch the stream. The pump has been trying to tell you what’s wrong the whole time — it just doesn’t have a warning light. You have to listen with your eyes. And if the stream tells you something you don’t like, talk to us before it turns into a pump replacement.
