The call came at 3:40 in the morning, during a grid outage that had already lasted eleven hours. The 600 kVA standby set at a food distribution warehouse had just stopped, and the temperature inside the freezer rooms was climbing past minus twelve. The site manager’s voice had that tight, controlled edge people get when they can already see the insurance claim forming. I drove out expecting a dead engine. What I found was an engine in perfect health, sitting next to a day tank bone dry — with a 20,000-liter bulk tank fifty meters away, full to the brim.
The fuel transfer pump had been dead for months. Nobody knew. The generator had sipped its way through the day tank’s eight hours of fuel and then simply starved, in sight of twenty thousand liters it couldn’t reach. That night rewired how I think about diesel generators. The engine gets all the attention — the brand badge on the side, the horsepower number in the brochure. But the engine is never the part that fails you. The fuel system is. Every time. And the fuel system is the part of the specification everyone treats as an afterthought: one line on the quote that says “fuel system: standard.”
There are really three architectures for getting diesel from storage into the engine, and picking the wrong one for your site is the most expensive mistake in the fuel system category. Here’s how they actually compare — not the catalog version.
A sub-base tank is the fuel tank built into the generator’s own base frame. Engine and tank arrive as one welded unit. For sets up to a few hundred kVA this is the default, and honestly, for most indoor standby installations it’s the right answer. No transfer pump. No level controls. No fifty-meter fuel line for someone to drive a forklift through. Fuel flows by gravity or the engine’s own lift pump, and the whole system has about four moving parts, all of them dumb and reliable.
The catch is capacity. A sub-base tank typically holds eight to twenty-four hours of fuel at full load — often closer to eight. That number is fine for a site where the grid comes back the same evening. It’s not fine for a typhoon week, a remote tower site, or a facility whose business dies when the power does. I’ve had customers tell me their generator had “a full tank” and then ask why it died at hour nine. Their generator had a full tank. Their fuel system just wasn’t sized for their outage.
The other thing nobody mentions: refueling a sub-base tank during an outage means a fuel truck parked next to a running generator, which some sites prohibit and all sites should think hard about. And once you want more than a day of runtime, the sub-base tank can’t grow. You’re into day tanks or bulk storage, which is where the interesting mistakes live.

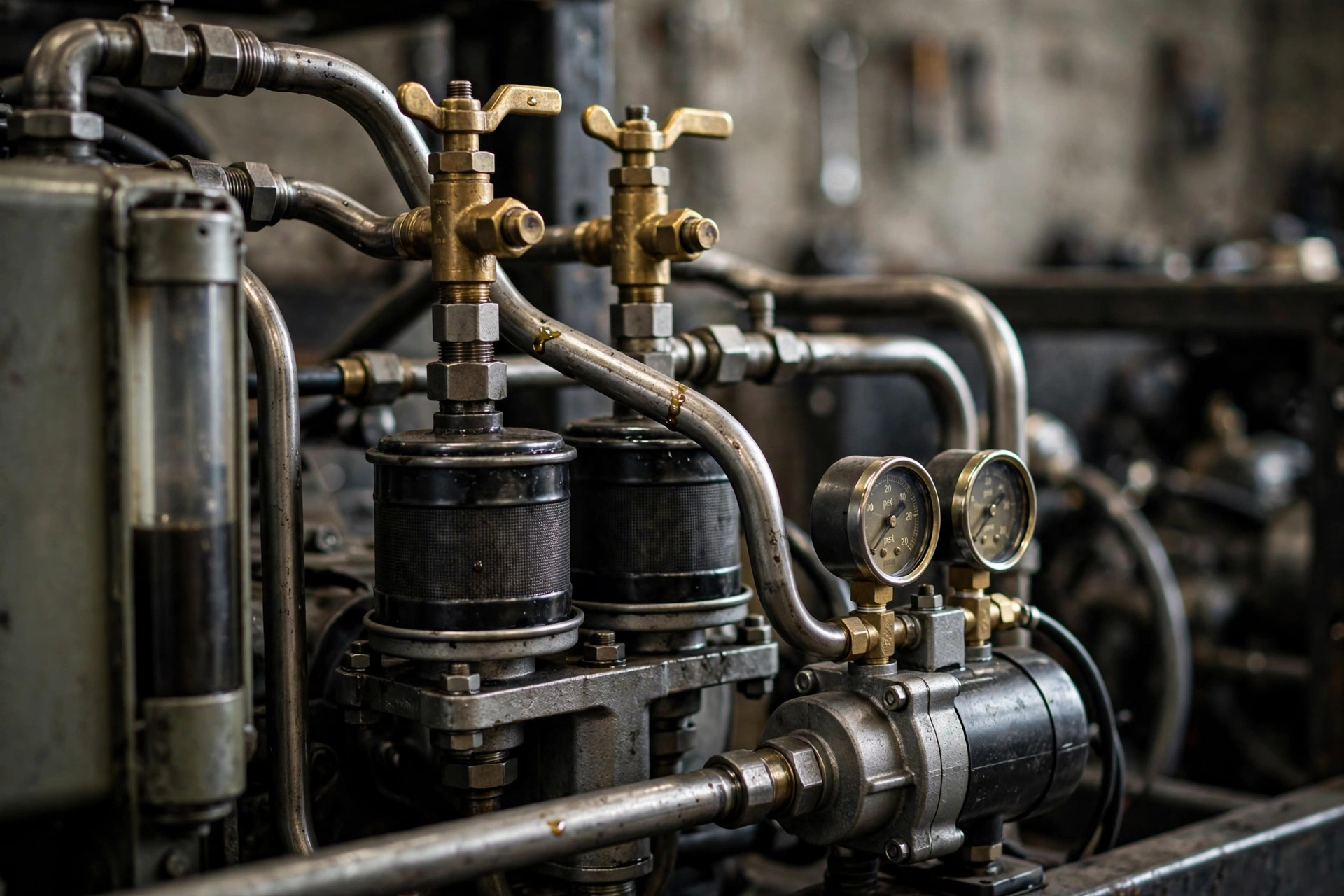

A day tank is a small tank — usually a few hundred to a couple thousand liters — mounted near the generator, fed automatically from a big bulk tank by a transfer pump with level controls. The generator drinks from the day tank; the day tank drinks from the bulk tank. It’s the architecture you’ll see in every hospital, data center, and high-rise I’ve ever commissioned, and there’s a reason it’s the professional default: it keeps the generator’s fuel supply short, simple, and clean, no matter how far away the big storage sits.
Here’s the thing people miss, though. A day tank doesn’t remove the fuel system’s failure points — it relocates them to the transfer pump and the level controls, which are the cheapest components in the whole installation and therefore the ones nobody maintains. Float switches stick. Transfer pumps seize from sitting idle for two years. The control relay that starts the pump quietly corrodes. I once found a day tank installation where the transfer pump had been wired through a breaker that someone had switched off during a renovation and never switched back on. The generator ran fine on its day tank for eighteen months of monthly tests — thirty minutes at a time, never enough to empty it — and then the first real outage emptied it in nine hours. Monthly no-load tests will never catch a dead transfer system. You have to test the whole chain under load, the way our load bank testing guide describes, or you’re testing a fantasy.
My rule of thumb: the day tank should hold at least as much fuel as your longest realistic outage plus a margin, and the transfer system gets its own line item in the maintenance schedule — pump run test, float switch exercise, alarm check. A day tank you don’t maintain is just a smaller, more expensive way to run out of fuel.

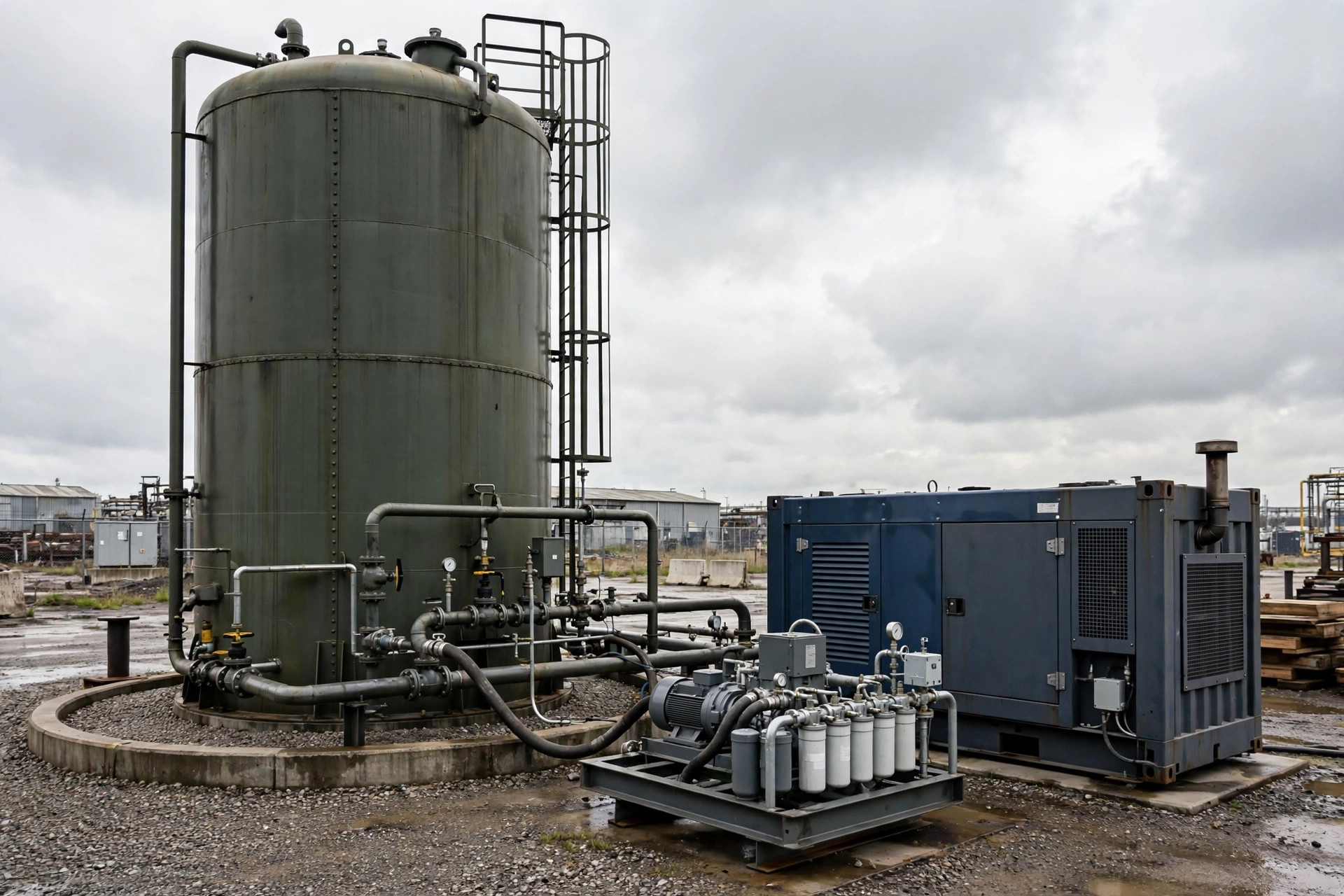

Bulk tanks — the big outdoor cylinders, five thousand liters and up — are how you get to 72 hours, a week, a month of runtime. Hospitals and data centers live on them. And bulk storage is where diesel fuel itself becomes the problem, because diesel is a perishable product and nobody wants to hear that. It oxidizes. It grows microbial contamination (“diesel bug”) at the fuel-water interface. It absorbs water from humid air every time the tank breathes. Stored badly, it’s measurably degraded in six to twelve months — which is exactly how long most bulk tanks sit between fill-ups at a standby site. We’ve covered the chemistry in the fuel storage shelf-life piece; the design answer to it is fuel polishing.
Fuel polishing is a separate pump-and-filter loop that circulates the stored fuel through fine filtration and water separation on a schedule, independent of the engine. Is it worth it? For a sub-base tank, no — burn the fuel, refill it, done. For a bulk tank that sits for a year between outages, yes, and I’ll argue with anyone who says otherwise. I’ve opened bulk tanks where the fuel looked like weak tea with a layer of black slime at the bottom, and that fuel was feeding a hospital’s emergency generator through nothing but the engine’s own filters. The engine’s filters are the last line of defense, not a fuel management strategy.
One honest caveat: polishing systems get oversold. A polishing loop with the wrong filter rating or a timer set to run ten minutes a week is theater. Size the loop to turn the tank over in a reasonable number of hours, use proper coalescing filtration, and — this is the part vendors skip — sample the fuel and test it once a year. A fuel sample costs less than a filter change. Not sampling is how you discover your polishing system has been polishing nothing for three years.
Quick detour, because this is the detail that bites even well-designed systems. Diesel engines don’t burn all the fuel they pump — they return a large share of it to the tank, hot, to cool the injectors. The return line is part of the fuel system, and it has opinions. If the day tank sits above the engine and the return line drops straight down into it with no check valve or proper routing, you can get siphoning and air locks that the engine’s lift pump can’t clear. If the return goes back to a bulk tank far away, the head pressure changes everything about how the day tank level controls behave.
I’ve seen two generators of the same model, on the same site, behave differently for a year before someone traced it to a return line routed through a low spot that collected condensation. Spec the return line with the same seriousness as the supply line. The engine manual gives you the maximum allowable back pressure and the lift height — read those two numbers, they’re the whole story.
Stop me if this sounds like a sales pitch, but here’s my actual decision tree after twelve years of 3 a.m. calls. Under roughly 500 kVA, indoor, grid reliable: sub-base tank, sized honestly for your longest plausible outage, and a refueling plan written down before you need it. Over that, or any site where the outage history scares you: day tank near the generator plus bulk storage, with the transfer system on the maintenance schedule and alarms you actually test. Bulk tank that sits more than six months between turnovers: add polishing, and sample the fuel yearly. Skip any of the middle steps and you’ll find out which one you skipped at the worst possible time.
The warehouse from the opening? They got a new transfer pump, a low-level alarm wired to the building management system, and a maintenance line item with someone’s name on it. The engine never needed a thing. It never does. It’s the fuel system that decides whether a diesel generator is a backup power system or an expensive sculpture, and “standard” is not a specification. Size it, maintain it, and test the whole chain — because the fuel you can’t deliver might as well not exist.
