Last spring a customer called me about a two-year-old 250 kVA set that had started setting off car alarms in the parking lot next door. Same machine. Same load. Nothing had changed — except the muffler, which had quietly rotted out from the inside. The shell was thin as a soda can. The packing was gone. He’d never looked at it.
Nobody does. The muffler is the one part of a diesel generator that dies quietly, and by the time you can hear it dying, it’s already dead. Here are the three questions I actually get asked about it.
Sometimes. And that’s exactly the problem — “sometimes normal” is where expensive mistakes hide.

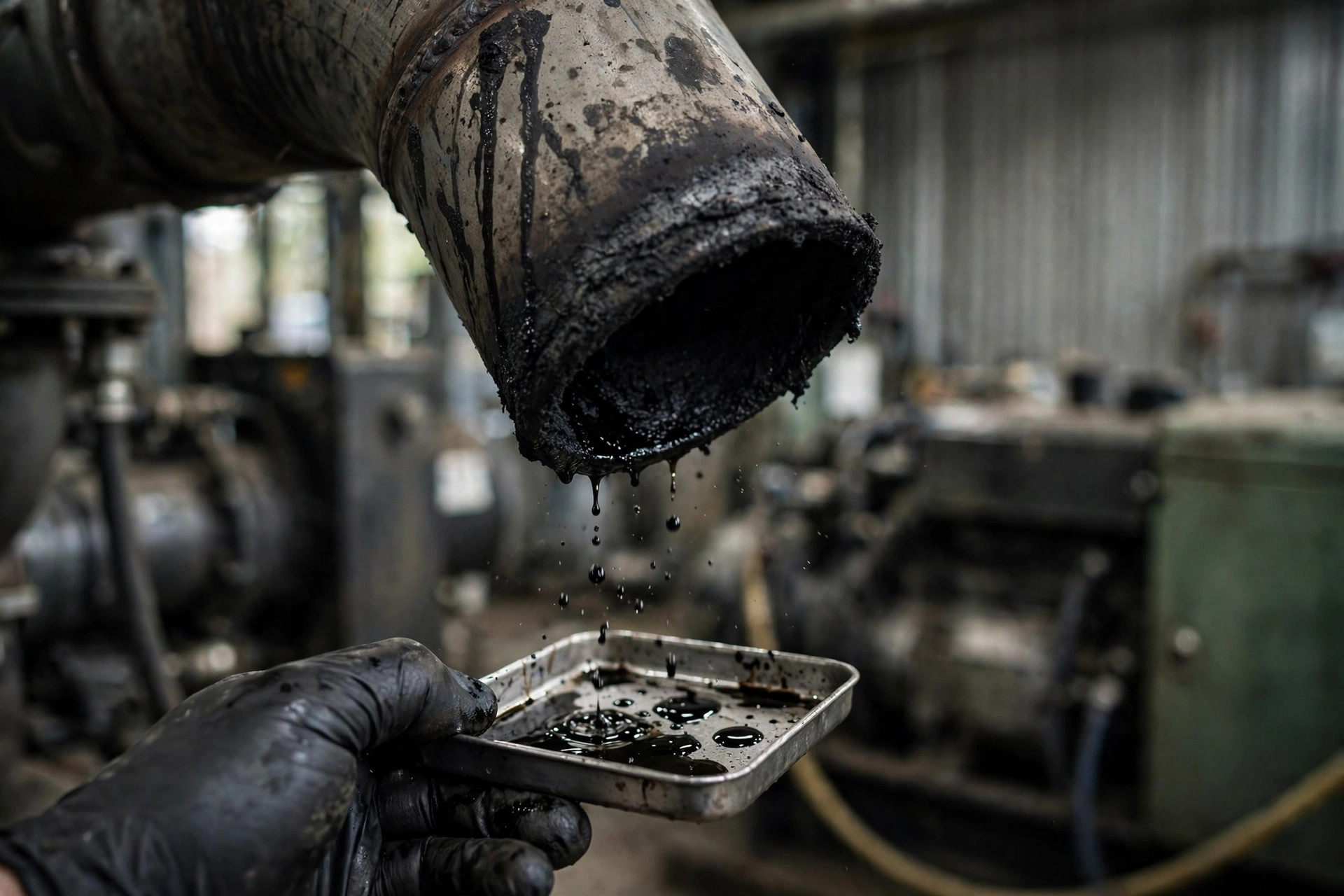

Every cold start makes condensate. Burning diesel produces water vapor, the exhaust pipe is cold, and the vapor turns back into liquid on its way out. It’s black because the inside of the pipe is coated in soot. A small puddle — call it a coffee cup’s worth — under the stack after a cold start, gone by the time the set is warm? Ignore it. That’s chemistry, not a fault.
But if the drip keeps going after the set is fully hot, something else is happening. In my experience it comes down to three things, and you can sort them out with a gloved finger.
One: rain down the stack. This is the most common. The rain cap flap rusts or sticks open, a storm rolls through, and water runs straight into the muffler. I’ve opened silencers with two inches of standing water sloshing inside after a wet season. The owner swore the set “just started dripping one day.” It had been collecting rain for months.
Two: oily slobber from wet stacking. If the set runs light-loaded for long stretches, unburned fuel and oil mist condense in the exhaust instead of burning off. The drip feels oily between your fingers and smells like diesel. That’s not a muffler problem — that’s a loading problem, and the color and texture of what comes out of your exhaust will tell you the rest of the story.
Three: coolant. Rare, but real. A failing head gasket or cracked liner can push coolant into the exhaust. It has a faintly sweet smell and a slightly slippery feel. If the drip is sweet, stop worrying about the muffler and start worrying about the engine.
Rule of thumb I give every customer: a watery drip after a cold start that disappears is condensate. A drip that continues at full operating temperature means you find out which of the three it is. Takes thirty seconds.
Honest answer: anywhere from three years to fifteen. And the spread has almost nothing to do with steel quality. It’s about water management.
Three things kill mufflers. Rain down the stack, which I already mentioned. Condensate pooling in low spots of a horizontal exhaust run that was never given a drain — the pipe looks fine from outside while the bottom of the muffler sits in acid water. And the sneaky one: standby sets that run twenty minutes a month. Those short runs are the worst possible case. The exhaust gets warm enough to make acidic condensate and never hot enough to boil it off. The muffler marinates in it.
I saw both extremes in the same year. A hospital standby set — 400 kVA, exercised monthly like clockwork — had its muffler perforated at year four. A prime-power set at a quarry, same muffler model, running ten hours a day, looked fine at year twelve. Same part. Different life.
So how do you check? You don’t need instruments, though an infrared temp gun helps. Walk out there and tap the shell with a wrench. A healthy muffler rings. A rotted one thuds — dull and dead, like knocking on a watermelon. Then look at the rain cap first, always, because that’s where the water gets in. Scan the shell with the temp gun while the set runs: cold spots mean the internal baffles have collapsed or the packing has washed out. And check the support brackets — I’ve seen mufflers hanging by rust and prayer, which is a great way to crack the turbo flange when they finally let go.
When it’s done, replace it. Don’t patch it. A patch buys you months, because the steel around the patch is exactly as thin as the spot that failed. Mufflers are cheap relative to everything they protect, and a proper exhaust run with drains and sane back pressure will make the new one last.
This is the question that costs people real money, because a clogged muffler doesn’t announce itself. It just quietly strangles the engine.
Everything downstream of the pistons depends on the exhaust getting out freely. When the muffler restricts flow — a collapsed internal baffle, packing material blown loose and balled up, soot and scale from years of light loading — back pressure climbs. The engine has to push exhaust out against that restriction, and it pays for it in power.
The symptoms look like everything else, which is why this gets misdiagnosed constantly. The set can’t hold rated load anymore — a 500 kW machine that falls over at 450. Black smoke under load. Exhaust gas temperature creeping up. The turbocharger working harder, running hotter, dying younger. The ugly version: a chunk of a collapsed baffle breaks loose and goes straight into the turbo. Now you’re buying both.
A rental company chased “low power” on a 350 kVA set for three weeks. New fuel filters. New air filter. A turbocharger was on order — several thousand dollars, two weeks lead time. I put a water manometer on the exhaust tap and found the back pressure was nearly double the engine maker’s limit. The muffler’s internals had collapsed. New muffler, four hundred bucks, problem gone. The turbo quote got cancelled.

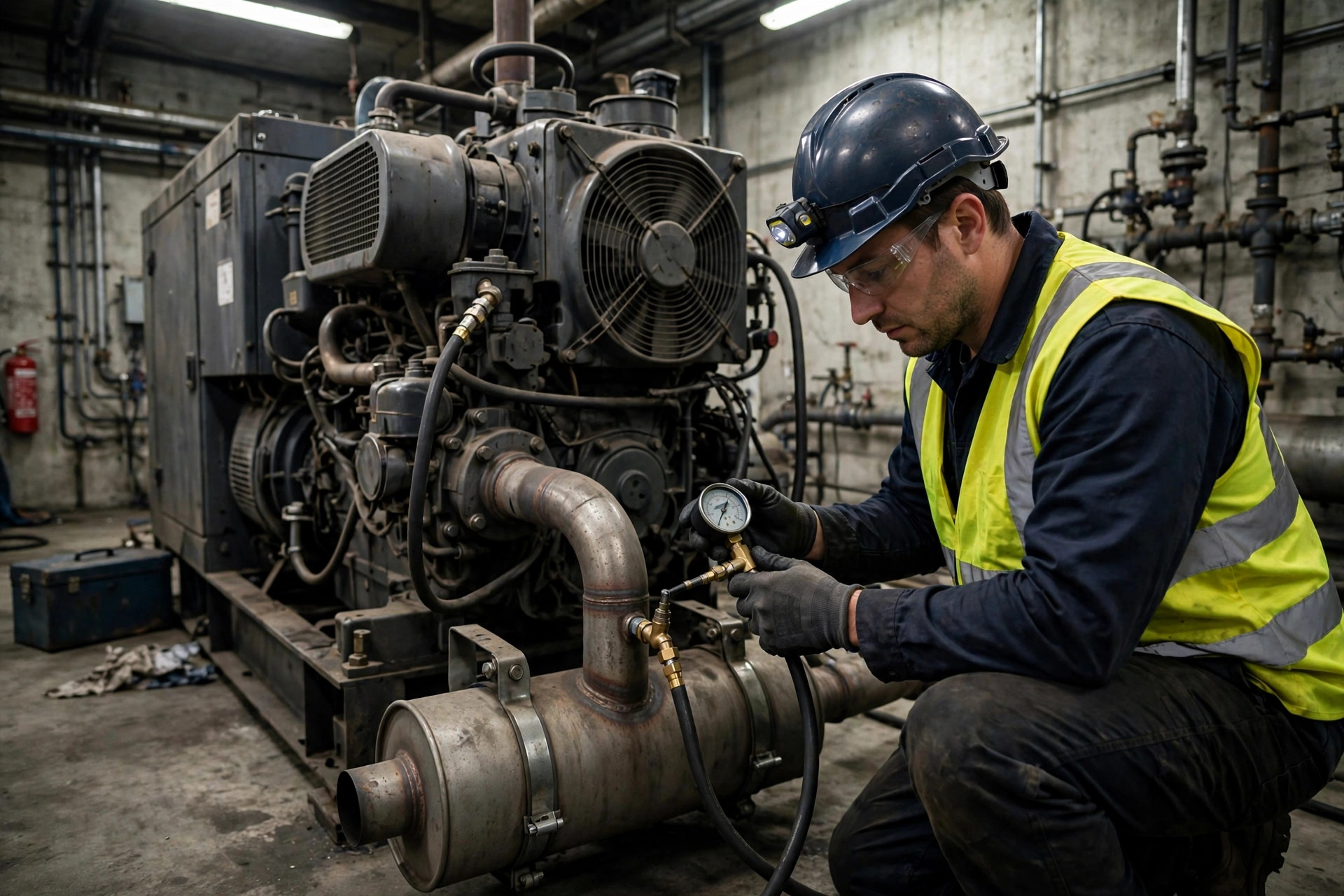

You can check this yourself in ten minutes. Most engines have a small 1/4-inch pressure tap in the exhaust before the muffler, or you can add one. A simple water manometer — clear tubing and a ruler, honestly — or a low-range pressure gauge tells you the number. Every engine maker publishes a maximum exhaust back pressure, typically a few kilopascals. Don’t guess at it; look it up on the data sheet. If you’re over, the restriction is real, and the muffler is the first suspect.
And when you replace it, fix the reason it clogged. If the set has been running at 20% load for years, the new muffler will choke the same way — chronic light loading is what packs the internals with unburned crud in the first place. Put the exhaust on your maintenance checklist alongside the filters and the battery, and it stops being a surprise.
The muffler costs a few hundred dollars. The turbo it can take with it costs thousands. Walk out there with a wrench. Tap it. Look at the rain cap. Ten minutes, once a year. Nobody does it. Then they call me about the car alarms — or about the noise complaint from the building next door.
