An Overheating Generator Warns You Three Times. Most People Miss All Three.

The phone rang at 11:40 p.m. A rental-yard manager I know had a 400 kVA set feeding a night concrete pour, trucks lined up, and a temperature gauge sitting two needle-widths from the red.

“Can we finish the pour?” he asked.

I told him what I always tell people in that moment. That gauge isn’t a suggestion. It’s the third warning. He’d missed the first two.

Here’s the thing about overheating. Nobody’s generator runs fine on Monday and melts down on Tuesday for no reason. The machine talks to you first. Three times, usually. And the damage I see in the field almost never comes from the heat itself — it comes from what people do after they notice the heat.

The Gauge Creeps. You Tell Yourself It’s Fine.

Warning number one is the needle moving somewhere it didn’t used to go.

Not the red zone. Before that. Five, ten degrees hotter than normal under the same load. That’s the moment to act, and almost nobody does. Because the set is still running. The job is still going. Shutting down to investigate costs money right now, while “it’s probably fine” costs money later. Guess which one people pick.

At a cold-storage warehouse I serviced, a standby set ran about six degrees hotter than its baseline for nearly two years. Nobody wrote it down. Nobody asked why. Then one August afternoon, full load, 38°C outside — the controller shut it down on high coolant temperature. Twenty thousand dollars of frozen product at risk, one dead-afternoon scramble, and the cause? A radiator half-choked with lint from the loading dock. Two years of warning. Zero minutes of attention.

If your gauge reads higher than it did last season under the same load, something changed. Find out what. That’s not advice. That’s just how machines work.

That Sweet Smell Means Coolant Is Leaving the System

Warning number two is the smell.

Ethylene glycol smells sweet. If you catch a whiff of it near the radiator, coolant is going somewhere it shouldn’t. Check the header tank when the engine is cold — is the level dropping week after week? Look for white or greenish crust around hose clamps and the water pump weep hole. That’s dried coolant. That’s your leak, waving at you.

And here’s the mistake people make at this stage: they top it up with plain water. Again. And again. Until the coolant in the system is mostly tap water with some rusty ambition. Straight water boils sooner, corrodes faster, and in winter it can freeze and crack the block. I’ve pulled cylinder heads off engines where the water jackets looked like a coral reef. All because “coolant is expensive.”

It isn’t. An engine is.

The other classic at this stage is the stop-leak additive. Look, I’ve seen it buy someone a week. I’ve also seen it clog a radiator core so thoroughly the core had to be replaced. Pouring sealant into a cooling system is a bandage on an artery. Find the leak. Fix the leak.

Steam Means You’re Already Late

Warning three is steam.

By the time vapor is coming off the radiator cap or the overflow, you’re not diagnosing anymore — you’re doing damage control. And this is where people hurt themselves, not just the machine.

Do not open the radiator cap on a hot engine. I know you know that. I’m saying it anyway, because every year somebody does it. The system is pressurized. That pressure raises the boiling point, which means the coolant inside is far hotter than 100°C and still liquid — until you release the pressure. Then it flashes to steam. Instantly. In your face. I’ve seen the burns. They’re the kind you don’t forget, and neither does the person wearing them.

Shut it down. Walk away. Let it cool for an hour, minimum. Then investigate.

The Usual Suspects — In the Order That Actually Saves Time

So what actually overheats a diesel generator? Rarely the radiator. I say that because the radiator is what everyone blames first, and it’s guilty maybe a third of the time.

Start with the thermostat. It’s a twenty-dollar part that decides whether coolant circulates at all, and it fails more often than anyone admits. A thermostat stuck half-closed gives you exactly the symptom everyone describes: fine at light load, creeping hot under load. At a quarry job years back, a big set went through two radiator flushes and one very expensive “maybe it’s the water pump” before somebody pulled the thermostat and found it opening about a third of the way. Twenty dollars. Three weeks of downtime before that.

Next: the fan belt. Loose, glazed, or missing chunks — the fan slows down, airflow drops, temperature climbs. This is a thirty-second visual check. People skip it because it feels too simple. The simple things are what get you.

Then the coolant itself. Old, diluted, or the wrong type. Coolant doesn’t last forever; the corrosion inhibitors deplete. If nobody’s changed it in five years, it’s not protecting anything. And mixing coolant types can turn the whole batch into gel. Ask me how I know. Actually, don’t — just don’t mix them.

Then airflow around the set. This is the invisible killer, and it deserves its own section.

Airflow: The Problem Nobody Sees

A diesel generator is basically a giant air pump that happens to make electricity. It needs enormous volumes of air — for combustion, and far more for cooling. Take that air away and no radiator on earth will save it.

I’ve walked into generator rooms where the set was breathing its own hot exhaust. The room had an inlet louver the size of a postcard and an outlet that vented into the same corridor the inlet drew from. The generator was inhaling 50°C air and wondering why it couldn’t cool down. It wasn’t wondering. I was. The installer should have known better.

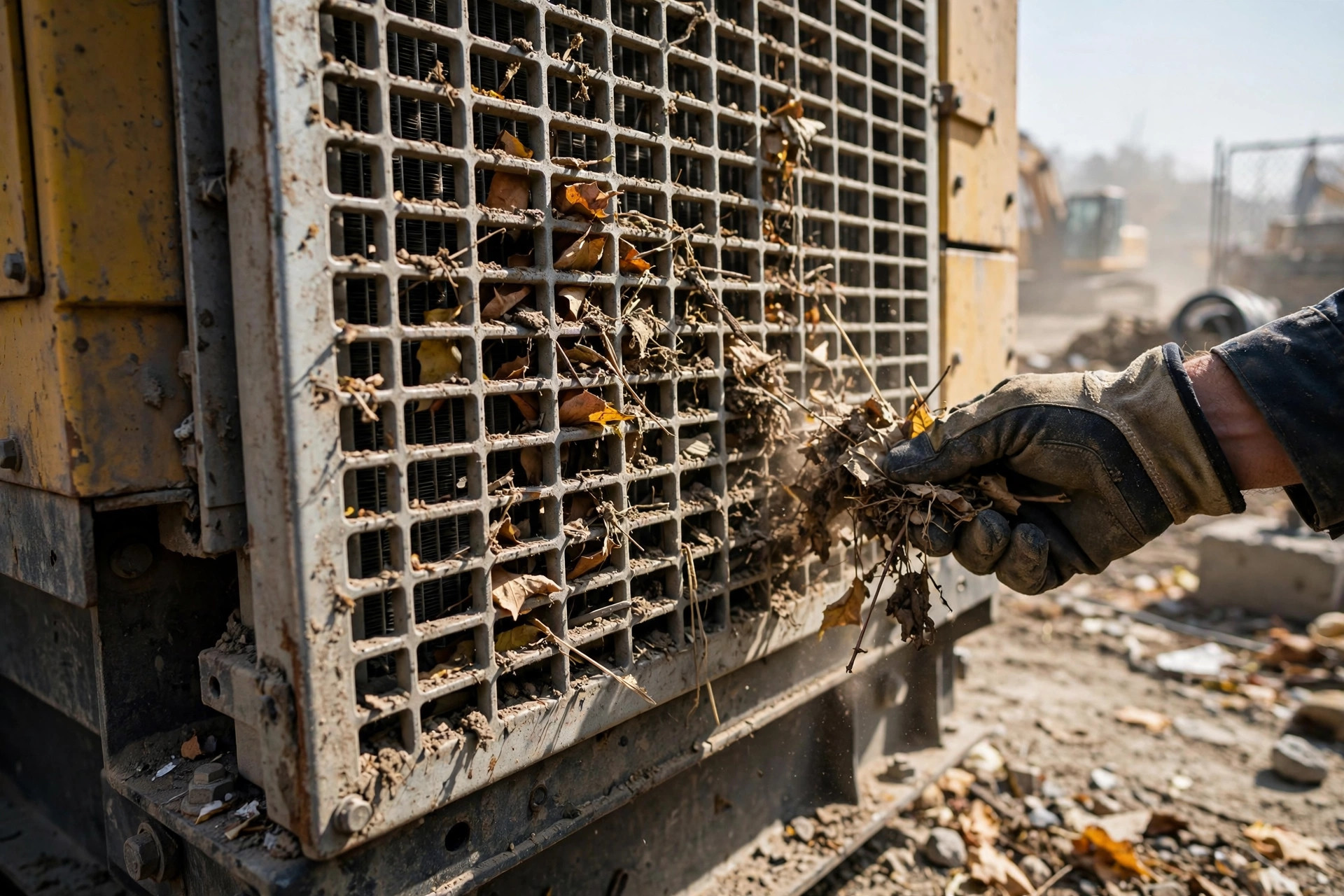

Outdoor sets get it too. Leaves packed against the radiator grille. A plastic sheet somebody draped over the canopy “to keep the rain off” that never came off. One site had stacked pallets against the air outlet for a month. A month! The operator swore the overheating started “all of a sudden.”

It didn’t. It started the day the pallets went up.

Rule of thumb I give every customer: stand in front of the radiator with the set running. You should feel a strong, steady pull of air. Weak, fluttery, or hot air blowing back at you means the airflow path is compromised. Fix the path before you touch a wrench.

The Load Nobody Added Up

And then there’s the load.

Engines make heat in proportion to the work they do. If somebody added a chiller, a compressor, or half a production line since the set was sized, the generator might now be running past its continuous rating on a regular Tuesday. A set rated for standby duty — short runs during outages — that’s been quietly doing prime-power work for a year will run hot. That’s not a cooling problem. That’s a math problem.

I covered the prime vs. standby distinction in detail before, because getting it wrong is one of the most expensive mistakes in this business. If your set has “always run a little hot,” check what’s actually plugged into it before you blame the cooling system.

The Three-Minute Check Before You Call Anyone

Engine off and fully cool. Every time — no exceptions.

• Look at the fan belt. Cracks, shine, slack? There’s your first suspect.
• Check the coolant level in the header tank. Low again after you topped it up last month? You have a leak. Find it.

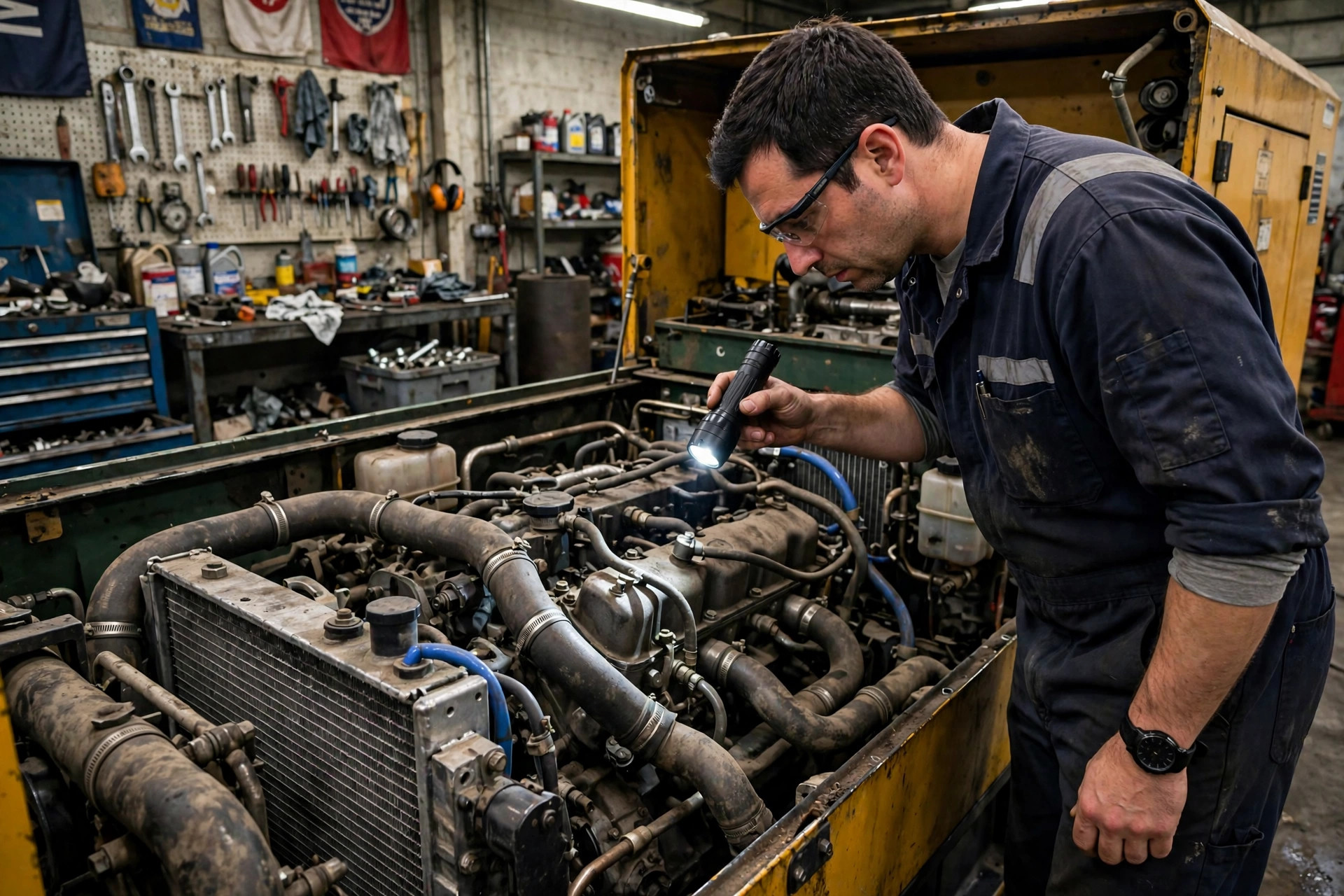

• Feel the top and bottom radiator hoses. One hot, one cold after the engine’s been working? Coolant isn’t circulating — think thermostat or pump.
• Look at the airflow path. Inlet clear? Outlet clear? Nothing stacked against the set? Nothing draped over it?

That check takes three minutes and solves — I’m not exaggerating — most of the overheating calls I’ve ever taken. For the full routine that keeps the rest of the machine alive, see the maintenance checklist and the no-start troubleshooting guide.

If It Were My Set

Here’s what I’d actually do, if this were my machine and my money.

I’d fix the gauge habit first. Write down the normal operating temperature under normal load. Tape it to the controller door. When the number moves, you investigate that week — not “when we get around to it.” The warehouse story I told you earlier? A twenty-dollar thermometer habit would have prevented the whole mess.

I’d change the coolant on schedule, with the right type, and I’d stop topping up leaks with water like the leak is going to fix itself. It won’t. Leaks only grow.

And I’d stop treating the cooling system as the thing you look at after everything else. On a diesel generator, cooling is the thing that lets everything else happen. The engine, the alternator, the controller — they all quit together when the temperature wins.

Old Chen? He shut the set down, let it cool, and found the fan belt slipping at half speed. Finished the pour at 3 a.m. with a borrowed shop fan blowing into the radiator intake. Ugly fix. It worked.

That’s the thing about overheating. The machine always tells you. You just have to listen before the steam does the talking.
