The Day a Diesel Generator Ran Away — And the Switch Nobody Tested

I’ve heard a diesel engine scream exactly twice in my career. The first time, I was standing fifteen feet from it, and I remember my body deciding to move backward before my brain gave it permission. This was at a concrete plant in the middle of a load rejection test, and the 400 kVA set on the pad decided it was done listening to its governor.

The sound is hard to describe. It’s not louder, exactly. It’s wrong — a rising pitch that climbs past where you know it should stop, and then keeps climbing. You can hear metal in it. Everybody on that pad froze for maybe two seconds, which is an eternity when a twelve-liter diesel is racing toward a speed it was never built to survive.

Here’s the thing about runaway: once it starts, the throttle doesn’t matter. The fuel rack could be welded shut and the engine would keep climbing, because a runaway diesel can feed on its own lubricating oil through a failed turbo seal, or on crankcase vapor, or on anything flammable drifting into the intake. Cut the diesel fuel supply and a runaway engine shrugs. That fact is the whole reason overspeed protection exists — and the reason it has to be independent of everything else on the machine.

Why a generator runs away in the first place

Under normal operation, the governor holds engine speed dead steady — 1,500 or 1,800 rpm — by adjusting fuel delivery against the electrical load. Shed the load suddenly (a big motor trips, a breaker opens, the ATS transfers in the wrong moment) and the engine is still making power for a load that’s no longer there. Speed jumps. A healthy governor catches it in a fraction of a second.

Runaway starts when the governor can’t catch it. The causes I’ve actually seen: a mechanical governor with a stuck fuel rack — gummed up from sitting, corroded, or simply never exercised. An electronic governor whose actuator lost its drive signal. And once, memorably, a technician who’d “temporarily” bypassed the fuel rack limit during commissioning and then forgot it was temporary. The set started fine. It just never stopped accelerating.

There’s also the uglier version I described at the top: the engine stops needing the fuel system at all. A failed turbocharger seal can push engine oil straight into the intake. Now the engine is burning its own lube oil, the oil feeds the fire, the fire spins the turbo faster, which pushes more oil in. It’s a feedback loop with no off switch in the fuel system. Cutting diesel to the injectors does nothing. Closing the throttle does nothing. The engine will run until it seizes, throws a rod, or explodes — whichever comes first. That day at the concrete plant was the oil-fed kind. We lost the engine.

The device that has exactly one job

An overspeed trip device does one thing and does it without asking the governor for permission. It’s a completely independent speed sensor — usually a magnetic pickup reading teeth off the flywheel — wired to a trip relay. When measured speed crosses the set point, it does the same thing every time: it dumps the fuel (closing the fuel solenoid / rack) and, on a properly built set, it also slams shut the emergency air intake flap.

The air flap is the part people forget, and it’s the part that matters most in a real runaway. Fuel shutoff stops a governor failure. Only an air shutdown stops an engine that’s feeding on its own oil. If your set has an emergency air intake flap, treat it like the fire extinguisher of the generator world: you may never need it, but the day you do, nothing else works.

Typical trip settings land around 10 to 15 percent above rated speed — roughly 1,650 to 1,725 rpm on a 1,500 rpm set. The exact number is set by the manufacturer and stamped in the manual, and it’s worth reading your own manual rather than trusting a blog (including this one) for the number. What matters isn’t the precise figure. What matters is that the device is armed, that it was set at the factory or by a competent commissioning tech, and that nobody has messed with it since.

Nobody tests it, and that’s the real problem

Of all the sets I’ve walked up to in twelve years, I’d guess maybe one in ten has a documented overspeed trip test in its service history. The governor gets tested every time the set runs. The ATS gets exercised weekly. The overspeed trip? It’s the switch nobody touches, because testing it feels like deliberately breaking something.

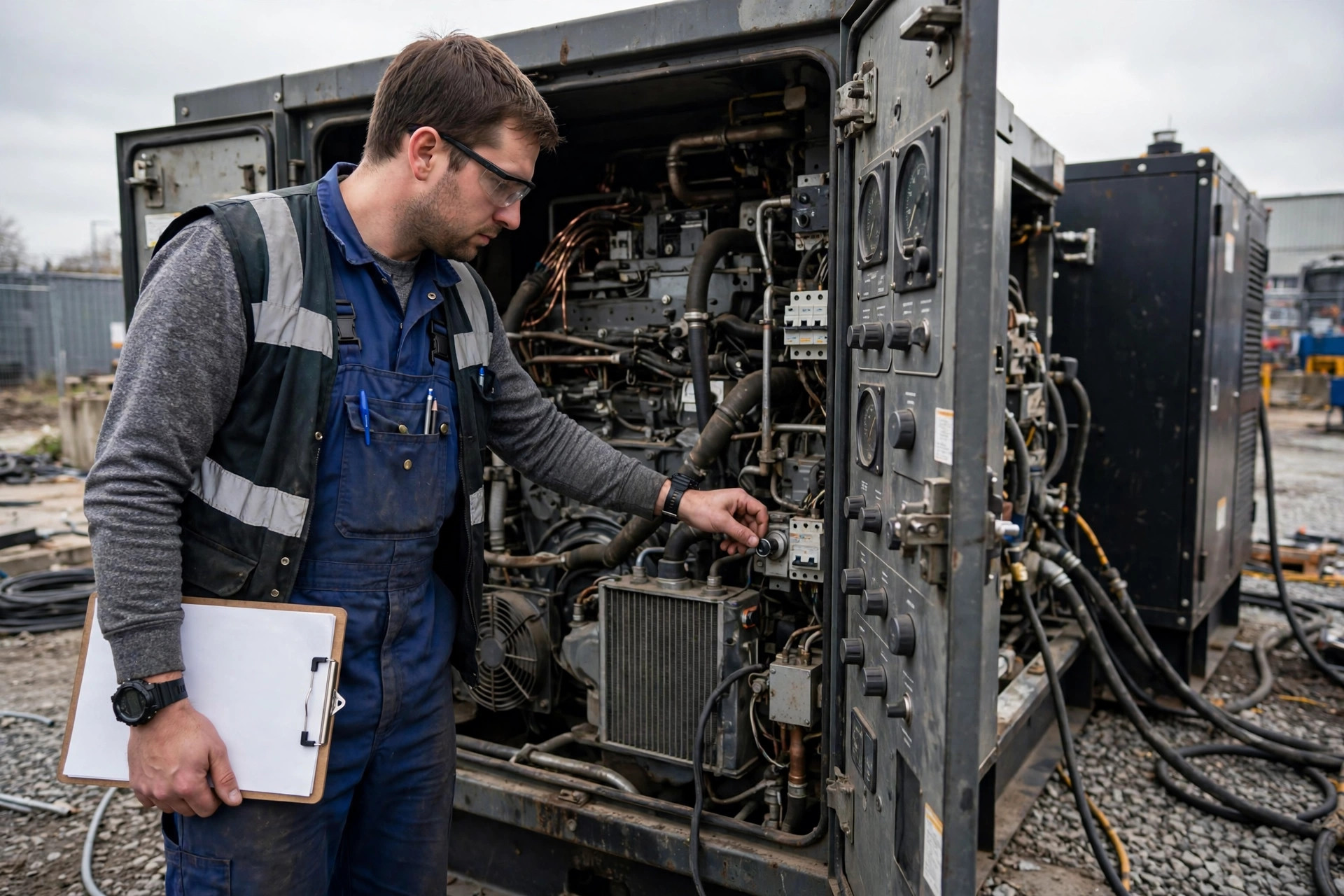

That’s exactly backwards. The correct test is simple: during a scheduled load bank test, with the set running under load, the trip point is temporarily lowered (or simulated with a test signal on electronic systems) and the operator verifies that the device actually kills fuel and closes the air flap at the test speed. On a mechanical overspeed bolt — the old flyball or spring-loaded pin design — the test means checking the bolt moves freely and hasn’t rusted into its housing. I’ve found them seized. In a marine environment, that happens faster than people expect.

Run it once a year, minimum, and write down the trip speed. If you commission a new set and the commissioning report doesn’t include an overspeed trip verification, your commissioning wasn’t finished — see my commissioning checklist for what else gets skipped. The five minutes it takes to test this thing is the cheapest insurance in the entire generator room.

The mistakes I keep finding

Since we’re being honest about field reality, here’s my personal hall of shame — the overspeed protection failures I’ve run into on real sites, in no particular order:

The disconnected solenoid. Trip device worked fine. It just wasn’t connected to anything. Somebody removed the fuel solenoid during a repair and the wiring got “reconnected” to nothing. The trip relay clicked dutifully into the void during every test nobody ran.

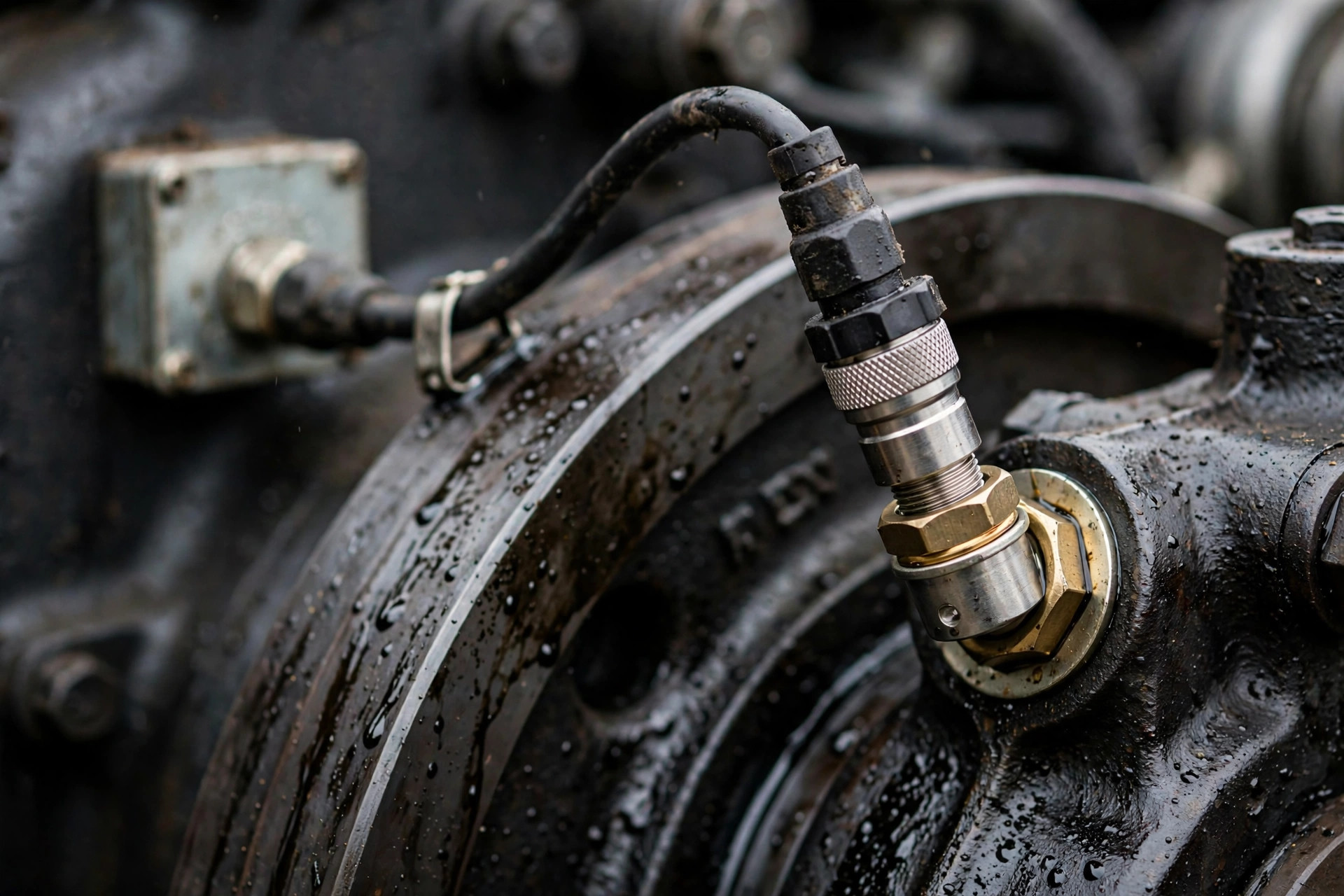

The pickup gap. A magnetic speed pickup reads flywheel teeth across a small air gap — typically under a millimeter. Vibration opens the gap, the signal weakens, and at some point the controller can’t read speed at all. On most electronic controllers, that produces a “speed signal loss” alarm and the set shuts down safely. On some older ones, it produces nothing, and the overspeed trip goes blind. Check the gap with a feeler gauge once a year. It takes ninety seconds.

The bypassed flap. Emergency air intake flaps are annoying to reset — they have to be manually re-opened after a trip, and on some sets that means climbing into the enclosure with a wrench. So some operators “temporarily” wire them open. I’ve seen flaps that had been wired open for years. Every one of those sets had an overspeed trip device that could shut off fuel while the engine happily kept breathing and burning oil.

The wrong set point. A controller replacement, a parameter restore from the wrong backup file, a well-meaning tech who “adjusted” something — and suddenly the trip point sits above the speed where the rotating assembly comes apart. I’ve seen a set where the trip was set to 120 percent because “we kept getting nuisance trips.” They weren’t nuisance trips. The engine was actually overspeeding.

What I’d do if I owned the set

Honestly, the list is short. Test the overspeed trip once a year during the load bank run and log the actual trip speed — not “tested OK,” the number. Inspect the air flap linkage and exercise it by hand while you’re in there; if it’s stiff, free it up and find out why. Check the mag pickup gap. And make sure the fuel solenoid the trip fires is actually plumbed and wired — a visual check, five seconds, and it would have caught the worst case I ever found.

One more thing, and this is the part salespeople won’t tell you: overspeed protection is not a substitute for a healthy governor and a maintained engine. A trip device that fires once a year because your governor is flaky isn’t protection, it’s a confession. Fix the governor. The trip is the last line, not the first.

The set at the concrete plant never ran again. We did the teardown afterward — the rod had let go at the big end and the block was scrap. The operator told me later they’d skipped the overspeed test at commissioning because the schedule was tight. That’s the sentence I think about every time I walk past a generator room now: the schedule was tight. Test the switch. It costs you ten minutes, and it’s the only thing standing between a bad day and a destroyed engine.
