The phone rang at 2:14 a.m. A hospital facilities manager, half-awake and fully annoyed: the standby generator had shut itself down in the middle of its weekly test again, the display flashing LOW OIL PRESSURE in angry red capitals. “Third time this month,” he said. “Are we buying a lemon?”
I drove over the next morning, checked the dipstick — full, clean oil, right on the mark. Started the set. The mechanical gauge sat rock-steady at 4.2 bar. Ran it under load for an hour. Perfect. The engine was fine. It had always been fine. What kept shutting the generator down wasn’t the engine at all. It was a thirty-dollar sensor that had decided to lie.
That job taught me something I now tell every customer who calls with the same complaint: when a diesel generator shuts down “for no reason,” there’s always a reason. It’s just usually not the reason the display claims.
Here’s the thing most owners don’t realize. A modern generator controller — Deep Sea, ComAp, whatever module sits on your set — has no idea what the engine is actually doing. It only knows what the sensors tell it. Oil pressure switch reports zero? The controller takes its word for it and kills the engine. It has to. That’s the job it was given.
And the logic is deliberately paranoid. A standby set is programmed to sacrifice the load to save the engine. Run five more minutes with genuinely no oil pressure and you’re looking at a seized crankshaft and a five-figure rebuild. Shut down on a false alarm and you’re looking at an annoyed facilities manager and a 2 a.m. phone call. The engineers who wrote that firmware chose the phone call. Every single time.
So when the display blames low oil pressure, high coolant temperature, or overspeed, treat it as a witness statement — not a verdict. Witnesses lie. Sensors lie even more often.
In my experience, nearly every nuisance shutdown on a standby generator comes down to one of five things. I’ve seen all five more times than I can count, on sets from 20 kVA to over a megawatt.

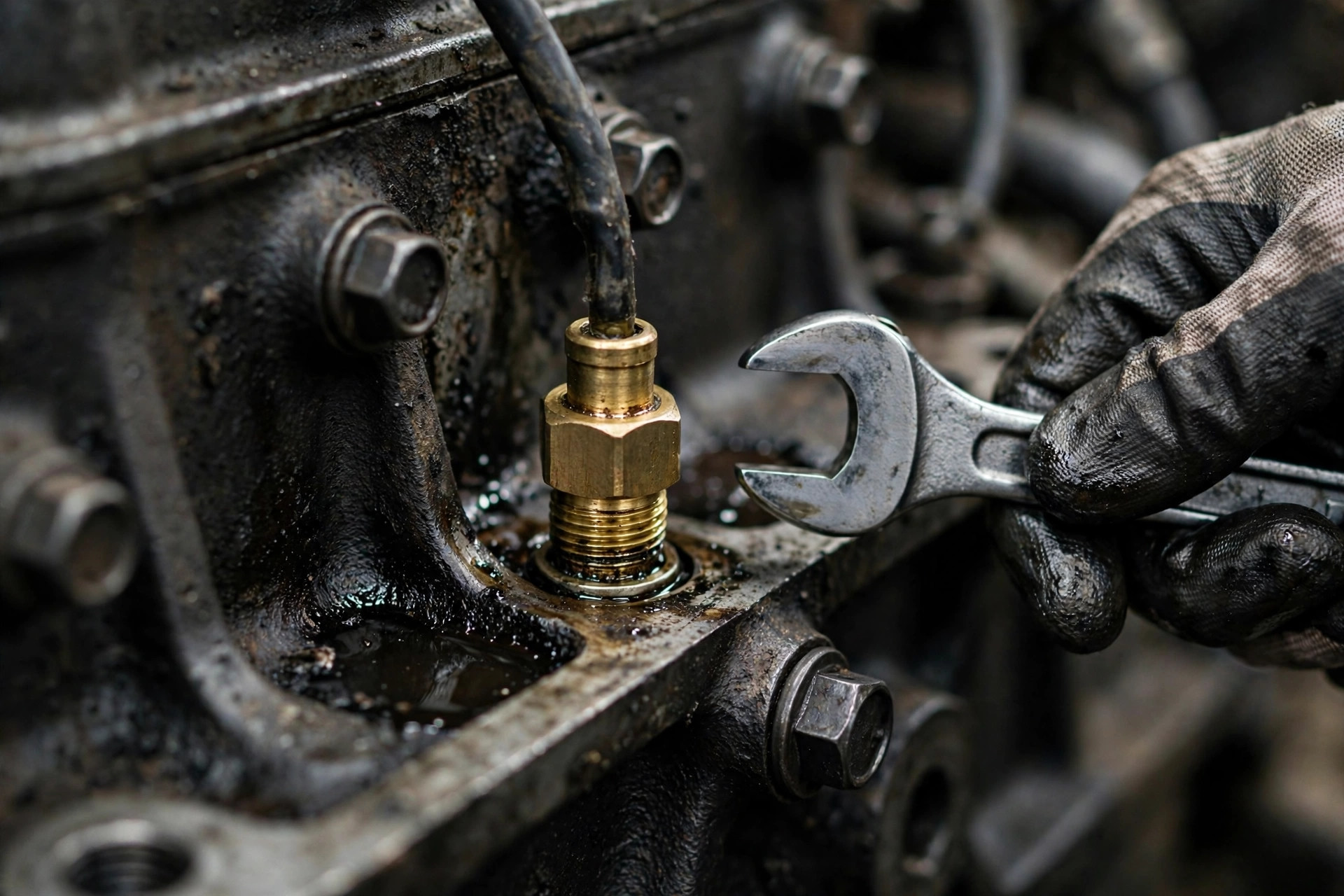

Number one with a bullet. The sender — that little brass can threaded into the oil gallery — spends its life soaked in heat, vibration, and oil mist. Eventually the diaphragm inside gets tired, or the connector corrodes, and it starts reporting pressure drops that never happened. The classic pattern: the set runs fine for twenty minutes, then shuts down on low oil pressure right as everything reaches operating temperature.
The tell is simple. Tee a mechanical gauge into the same port. If the needle sits happy at 4 bar while the controller panics, you’ve found your liar. I’ve replaced senders on sets with barely 2,000 hours on the clock. It’s a wear item. Treat it like one, and keep a spare on the shelf — it costs less than the fuel for one service visit. If your set cranks but won’t stay running, by the way, start with the no-start checks in order before you blame the protection system.

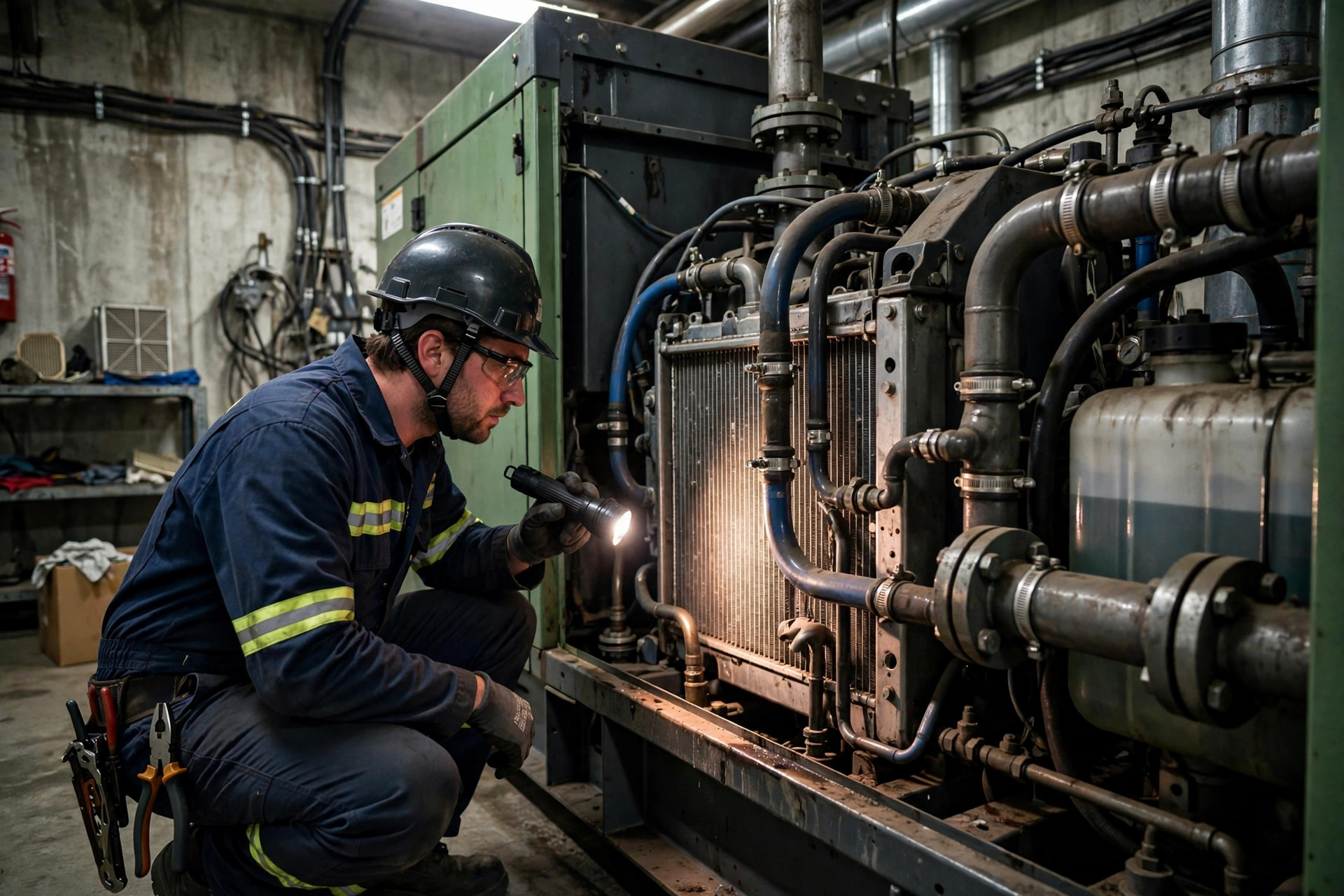

Somebody tops up the coolant after a service. A week later the system burps out a trapped air pocket, the level drops half an inch below the probe — and the controller sees “low coolant” and shuts the set down. The coolant was never actually low enough to matter. The probe just lives at the top of the radiator, exactly where the air collects.
If your shutdowns started right after a coolant service, look here first. Bleed the system properly, top it up hot, run it, and check the level again the next day. The “fault” usually vanishes. Genuine overheating is a different animal — here’s how to tell the two apart.
Overspeed shutdowns that make no sense are often this. The magnetic pickup — a small sensor aimed at the flywheel teeth — counts revolutions so the controller knows the speed. The air gap is supposed to be roughly half a millimeter to a millimeter. Vibration loosens the locknut, the sensor backs out a fraction, and at certain speeds the signal gets ragged. The controller does the math on a ragged signal, concludes the engine is overspeeding, and trips. It isn’t.
Clean the tip, reset the gap with a feeler gauge, tighten the locknut with a dab of thread locker. Ten minutes, and the phantom overspeeds stop. I’d been chasing one of these on a telecom site for two visits before I stopped trusting the display and started trusting the feeler gauge — the gap had opened up to nearly 2 mm. While you’re in there, it’s worth understanding what the governor is actually doing with that speed signal, because a hunting governor and a lying pickup produce eerily similar symptoms.
This one wears a dozen disguises. A weak battery turns the engine over just slowly enough that the crank cycle times out — “fail to start” — or the engine catches, stumbles below the underspeed threshold for a second, and the controller kills it before it can recover. The display blames the engine. The engine never got a fair chance.
If your nuisance shutdowns cluster in cold weather, or after the set has sat untouched for weeks, load-test the batteries before you touch anything else. Don’t just read the voltage — a dying battery can show 12.6 volts at rest and collapse the moment the starter engages. Batteries remain the number-one cause of standby generator failures, full stop, and most of those deaths are slow starvation, not sudden failure.
Every E-stop button on and around the set is wired in series in a single loop. One corroded terminal, one wire chafed through where it crosses a sharp edge, and vibration opens the circuit for a fraction of a second. The controller reads that as “someone hit the emergency stop” and shuts down instantly. Then the wire settles back, the loop closes, and there’s nothing to find — until the next bump.
Intermittent E-stop faults are miserable to chase because they never fail while you’re watching. My approach: with the set running, go wiggle every connection in the loop, gently, one at a time. And look hardest at the wiring where it flexes —, at the canopy door hinges, where the harness passes through bulkheads. The start-signal wiring between the ATS and the set deserves the same suspicion; a flaky two-wire start circuit produces the same kind of ghost.
At this point owners usually ask me the obvious question: if false trips are this common, why not just widen the shutdown setpoints? Give the oil pressure a little more slack, let the temperature run a little hotter before tripping?
Don’t. Those setpoints are the last line of defense between a $30 sensor and a destroyed engine, and the day the sensor tells the truth, you’ll be glad the controller believed it. What you can do is use the two-stage system the way it was designed: alarms warn, shutdowns act. If your controller supports it, set a low-oil-pressure alarm well above the shutdown point, and actually investigate alarms instead of clearing them. Most nuisance shutdowns I meet had been sending alarm warnings for weeks. Nobody looked. Learn what your controller’s event log is trying to tell you — it’s the cheapest diagnostic tool you own.
There is exactly one legitimate exception, and it has a dramatic name: battle short. It’s an emergency mode — required by NFPA 110 for certain life-safety installations — that disables the protective shutdowns and lets the set run itself to destruction if that’s what it takes to keep the load alive.
Fire pump generators live by this logic: a fire pump’s engine isn’t allowed to protect itself, because a burned-up engine that kept the sprinklers running beats a pristine engine sitting in a burned-down building. But battle short is for life safety, not convenience. For a normal standby set powering an office or a warehouse, overriding the protection because the trips annoy you is how you turn a $30 sender into a $30,000 engine. Leave it alone.
When you get the call, work in this order. First, read the actual fault — not the summary, the event log with timestamps. A fault that appears three seconds after crank tells a different story than one that appears after forty minutes at full temperature. Second, check the simple mechanical truth: oil level on the dipstick, coolant level in the radiator (not the overflow bottle), belt condition, battery voltage under load. Third, verify with an independent instrument before replacing parts — mechanical gauge, multimeter, feeler gauge. The controller is a witness, remember. Get a second witness.
Fourth — and this is the one people skip — ask what changed. Shutdowns that start after a service point at the service: a pinched wire, a half-bled cooling system, a sensor disturbed and not re-torqued. Shutdowns that start with the seasons point at batteries and block heaters. Machines don’t develop new habits for no reason. Something changed. Find it.
The hospital generator that kept calling me at 2 a.m.? New sender, thirty dollars, twenty minutes with a wrench. It hasn’t woken anyone up since. Most nuisance shutdowns end the same way — not with a rebuild, but with somebody finally checking whether the witness was telling the truth.
