The phone rang at 1:40 a.m. A factory’s mains had dropped, their 800 kVA set was supposed to pick up the load, and instead of cranking it just went click. One click. Then silence. The maintenance lead was already pricing a replacement starter motor on his phone while we talked.
He was probably wrong. That’s the first thing I told him, and it’s the first thing I’ll tell you: the starter motor takes the blame for roughly half the no-crank calls I get, and it’s actually guilty in maybe a third of those. The rest is cables, connections, and batteries that read “fine” on a voltmeter and fold the moment you ask them for a few hundred amps. Everybody points at the starter because it’s the part that makes the noise — or in this case, the one sad click that it didn’t make.
Customers ask me three questions about starter motors. Same three, for twelve years. Here are the honest answers.
Maybe. But you don’t get to say that until you’ve measured voltage at the starter terminal, while cranking. Not at the battery posts. At the motor. I’ve watched people replace two batteries and order a starter chasing a problem that lived in a six-inch ground cable.

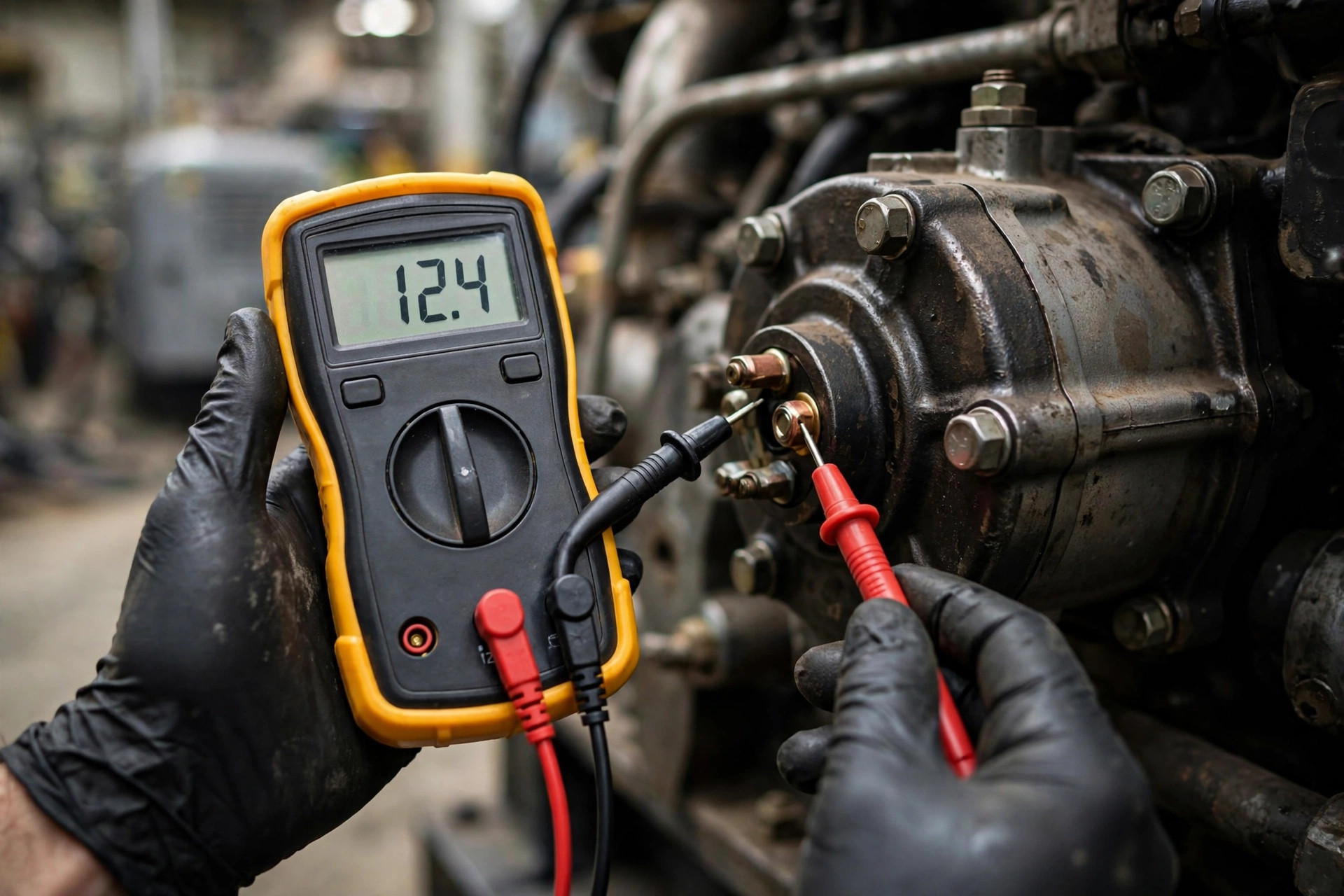

Here’s the test that settles it. Meter on the starter’s main terminal, someone hits the start button. If the voltage holds up there and the motor barely turns — or just clicks — then yes, suspect the starter or its solenoid. If the voltage collapses at the terminal while it holds steady back at the battery posts, your problem is everything in between: corroded lugs, a loose ground strap, a cable that’s gone green inside the insulation where you can’t see it. Electricity doesn’t care what the battery can deliver. It cares what actually arrives.
On a job I handled a few years back, the site had already done the expensive half of the misdiagnosis: new batteries fitted, new starter ordered, roughly nine hundred dollars, a week out. I found the ground strap bolt finger-loose with a white crust of corrosion underneath it. Cleaned it, torqued it, hit start. Cranked like it was new. Total cost of the actual repair: zero, plus one awkward phone call to cancel the starter order. That ground strap is the most skipped connection on the whole machine, and it fails more starters-by-reputation than anything else I know.
The solenoid deserves its own mention, because it lies to people. That heavy clunk when you hit start is the solenoid doing two jobs at once: throwing the pinion gear into the flywheel, and closing the big contacts that feed the motor its hundreds of amps. One sharp click and nothing else often means the solenoid fired but the motor never got current — burned contacts inside, most likely. No click at all usually means the start signal never arrived, which is a control wiring problem, not a starter problem. Different fix, different price, and worth knowing before you unbolt anything.
One more thing while you’re down there: most sets above the small portable range run 24 volts, two 12-volt batteries in series. One weak battery in that pair drags the other one down with it, and the pair will still show a pretty 25 volts at rest. Cranking batteries need to be checked under load, not admired with a voltmeter. The number of “dead starters” that were really one tired battery in a 24-volt pair would fill a warehouse.
Different noises, different verdicts. Learn them and you’ll stop guessing.

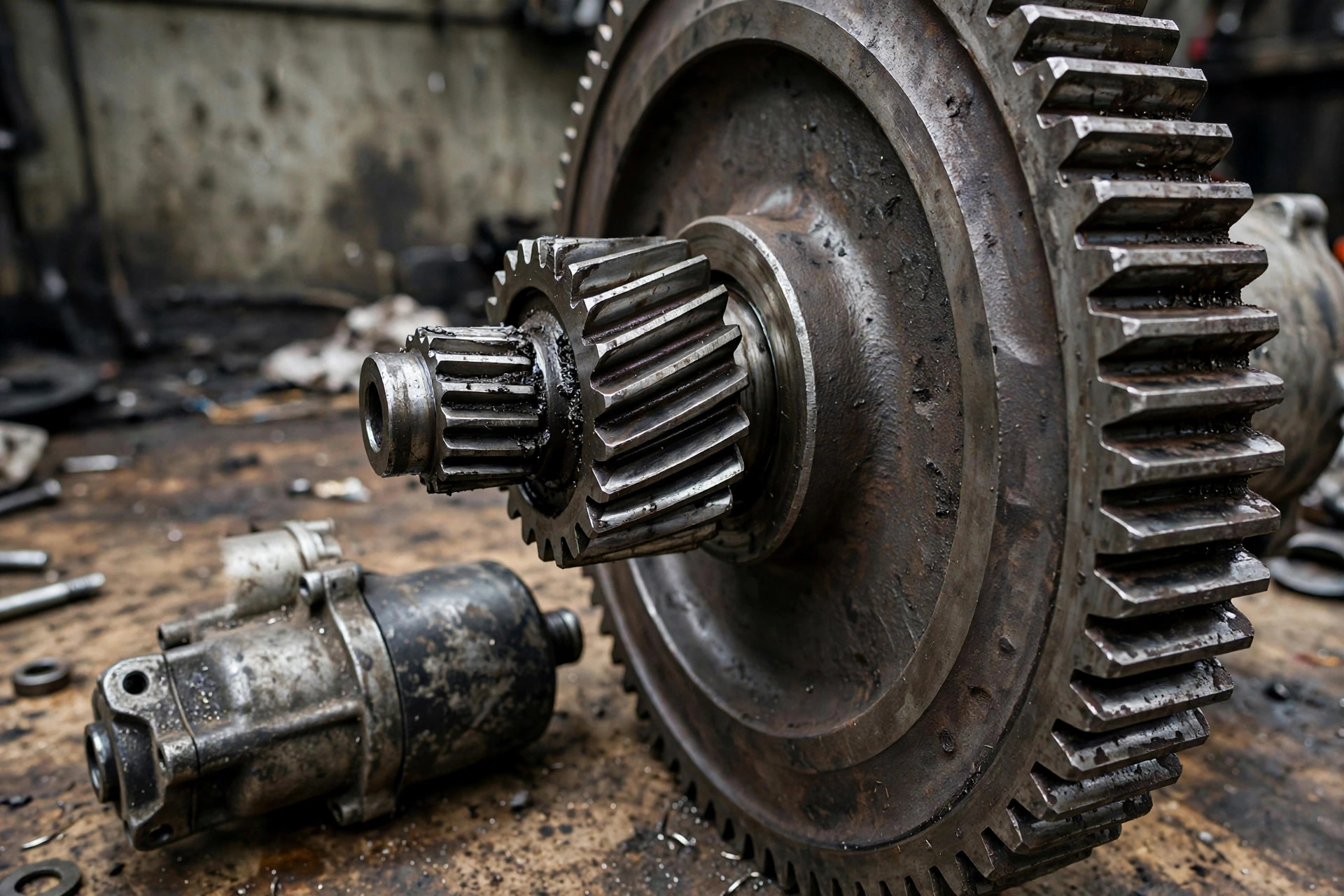

Grinding on crank — that ugly metal-on-metal chatter — is the pinion gear chewing the flywheel ring gear instead of meshing with it. In the order I actually see them: worn pinion or ring gear teeth, a starter that’s worked loose on its mount and sits crooked, or a tired solenoid that doesn’t throw the pinion in all the way. The loose starter is the one people miss. Vibration backs the mounting bolts off a fraction over the years, the motor tilts a degree or two, and every start takes a little more off the teeth. By the time it grinds loudly, you’ve been paying for it quietly for a year.
Spinning free — the motor whirs happily and the engine doesn’t turn — is the drive not engaging. On older starters that’s the Bendix; on most modern ones it’s the solenoid-shifted pinion not traveling far enough. The motor itself is fine. This one fools people into condemning the whole starter when the fault is in the engagement mechanism, which is a smaller, cheaper problem. Don’t buy a motor when you need a drive.
And the smell. If someone cranked for a minute straight trying to force it — and someone always does — you’ll smell hot varnish and maybe see smoke. That’s cooked windings. A starter is built for brutal current in short bursts, not continuous duty. The field practice I give every site: crank in bursts of roughly fifteen to thirty seconds, then let it rest a couple of minutes. Ignore that and you’ll turn a connection problem into a starter problem, which is the most expensive possible upgrade of your original fault.
Honestly? Keep a spare starter on the shelf if the set is critical. A starter motor costs a fraction of one unplanned outage, it doesn’t go bad sitting in a box, and swapping one is an hour’s work with basic tools. The sites that skip this are the same sites calling somebody at 1:40 in the morning. And be careful with the cheapest rebuilt unit on the market. Some rebuilds are excellent. Some are a coat of paint over somebody else’s worn-out pinion. For a standby set that has to start during the one outage that matters, I’d rather see a quality new or reputable-reman unit than a mystery rebuild. That’s not brand snobbery. That’s arithmetic.
One more killer, and it’s free to fix: heat soak. The starter bolts to the side of the engine, usually within arm’s reach of the exhaust manifold or the turbo. There’s supposed to be a heat shield there. About half the sets I inspect are missing it — removed during some long-ago service and never refitted. Heat cooks the solenoid and bakes the grease out of the drive mechanism. If yours is gone, put one back. It’s a bent piece of metal, not an engineering project.
Nobody services the starter until it fails. Fine. But at least look at it once in a while. Fold this into any planned maintenance visit and it takes five minutes:
That’s the whole program. A wrench, a wire brush, and ears.
The starter motor is the strangest part on a diesel generator. It does the hardest work on the entire machine — dragging a cold engine full of thick oil up to cranking speed against full compression — and it does it for ten seconds at a time, a few dozen times a year. Then it sits in the heat and the dust and gets ignored until the night everything depends on it.
The 1:40 a.m. factory? Ground strap. Cleaned, torqued, running before the coffee I never got to drink went cold. If your set is cranking slower than it used to, don’t wait for the click of doom — walk the no-start checks in order, and if the batteries check out under load, talk to us before you order parts. The starter might be innocent.
