It was 2:14 in the morning when my phone went off. A food warehouse — three truckloads of frozen product — and their 400 kVA standby set had cranked twice and given up. I drove an hour through fog. The engine was fine, the fuel was fine. The battery was dead. Not old. Not abused. Just a little green box nobody had touched in fourteen months. That night cost them more than every battery they’d ever bought, stacked in a pile.
A standby generator battery lives the worst life of any battery you own. It sits. Months, sometimes years, doing nothing — and then it’s expected to spin a cold diesel engine hard enough to compress air until it ignites. A car battery gets recharged every day. A genset battery just waits, losing a little charge every week through self-discharge, until the one night it’s needed.
Here’s the thing most people get wrong: they treat the battery like a fuel tank. Full means good. It doesn’t. That’s why generator battery maintenance is the cheapest insurance on the whole machine — and the most skipped.
The first mistake is trusting the word “new.” I’ve walked onto a site where the battery installed three weeks earlier wouldn’t crank a warm engine, let alone a cold one. Stamped on the case: a date code from four years back. The supplier had sold old stock off the shelf, and nobody had checked.
Batteries self-discharge sitting on a warehouse shelf — a few percent of charge every month — and while they sit, sulfate crystals grow on the lead plates. That’s sulfation, and it’s mostly one-way. A “new” battery that’s been waiting two years on a shelf isn’t new. It’s tired before it ever sees a starter motor.
Honestly? Before any battery goes into my projects, I read the date code. If it’s older than six months, it gets a full charge and a load test before I accept it. The supplier’s delivery guy thinks I’m being difficult. I’m not. I’m being the guy who doesn’t get a 2 a.m. phone call.
The second mistake is the lazy voltage check: twelve-point-six volts on the meter feels reassuring. It’s a liar.
A sulfated battery can hold 12.6 volts with no load and collapse to 9 the second the starter pulls a few hundred amps. I’ve watched it happen more times than I can count — the meter smiles, the engine groans, the ATS never transfers. Resting voltage tells you the battery is present. It doesn’t tell you it can work.
The real check is a load test. A proper carbon-pile tester is the honest tool: it makes the battery actually work and watches what happens. At minimum, meter the battery while someone cranks the engine. If it drops below about 9.6 volts under crank, that battery is done — whatever the resting number says. Ten minutes. Do it twice a year.
Most standby sets have a small float charger bolted somewhere — a trickle charger that keeps the battery topped up between runs. And it has a little green LED. Green means good. Right?

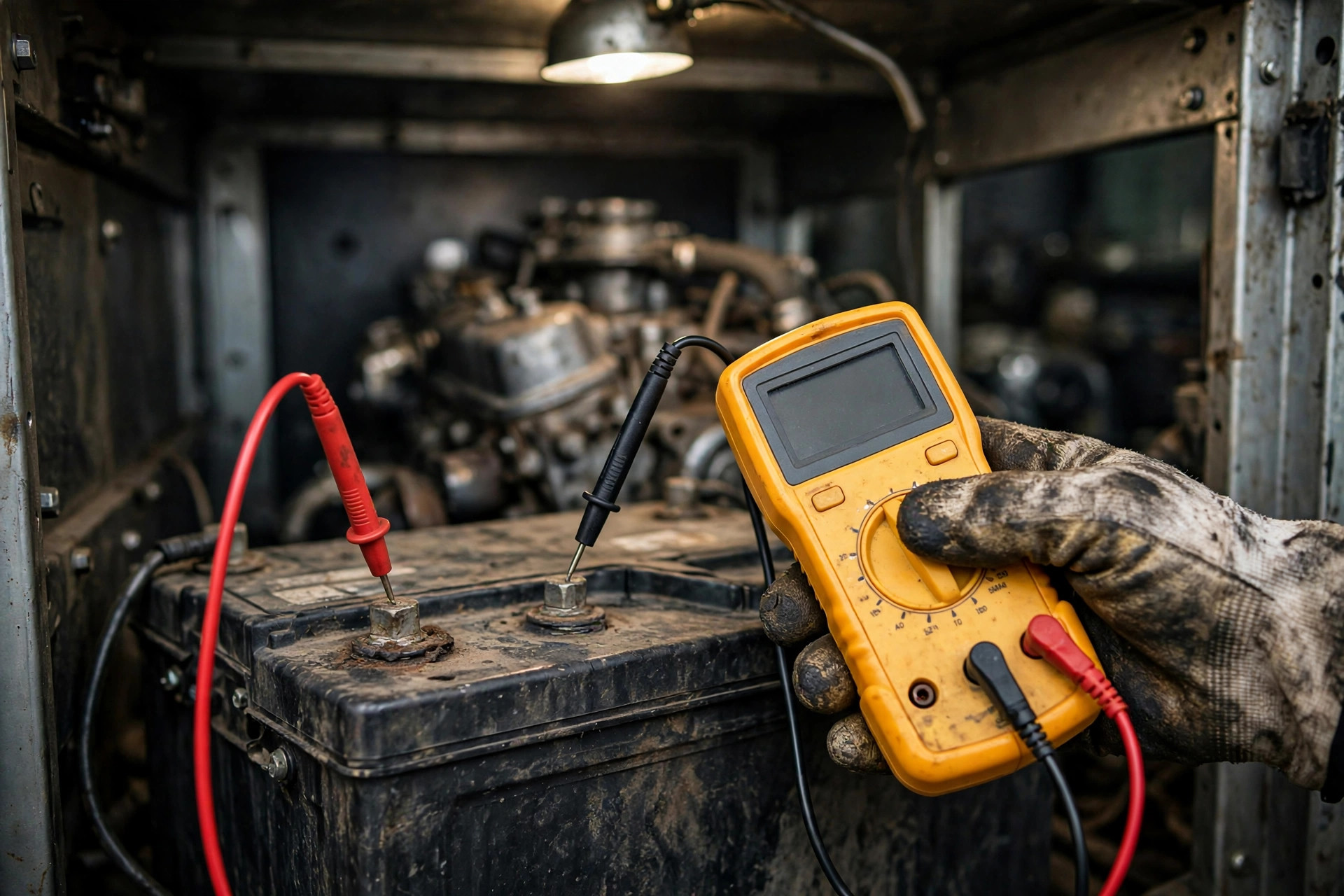

Last spring I pulled into a client’s site, saw the green light glowing, and almost trusted it. Metered the battery anyway, out of habit: 11.9 volts. The charger’s LED was lit, but its output had died months earlier. The battery had been starving since winter, quietly, while everyone walked past the green light.
Now I meter the charger, not the LED. Two minutes, and it has caught two dead chargers since. A float charger is the single most overlooked part of generator battery maintenance — it works for years, then fails silently, and the battery pays for it. NFPA 110, the standard for emergency power systems, requires regular battery inspections precisely because this failure is so common. If your site has a generator that legally has to work, the charger check isn’t optional. It’s compliance.

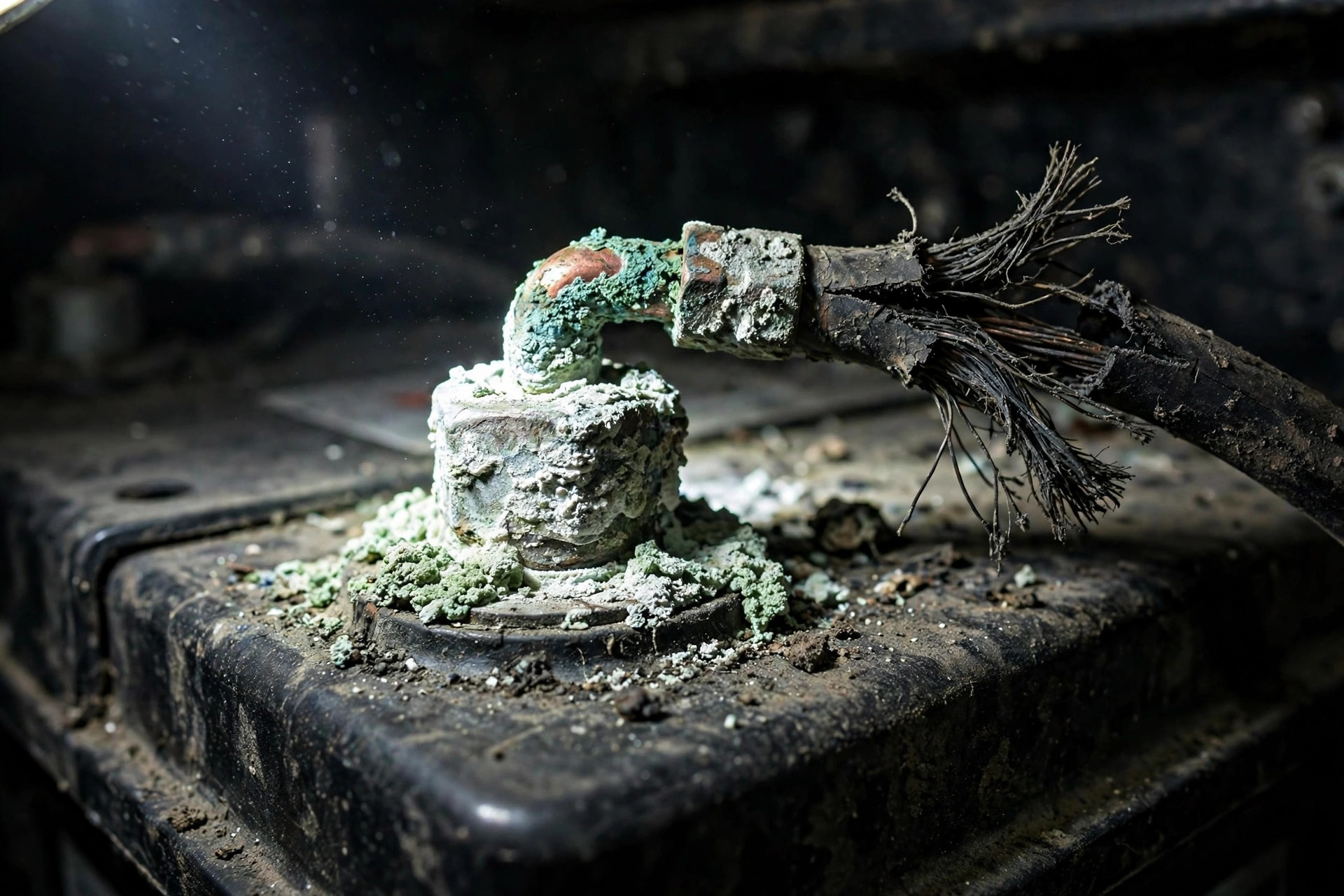

Mistake number four lives on the terminals. That white-green powder crusting the battery posts — corrosion — looks like something you’d dust off and forget about. It’s not dirt. It’s resistance.
A crusty terminal can steal more cranking amps than a weak battery. The engine turns slowly, everyone blames the battery, the battery gets replaced, and the crust is still there on the new lugs. I keep a wire brush and a tube of anti-corrosion grease in my kit for exactly this. Five minutes of cleaning, and starters that “struggled all winter” suddenly spin like new.
While you’re there, check the hold-down. A battery bouncing around on a genset skid dies young — vibration cracks the plates inside until they shed. Tighten the bracket. It’s free.
Mistake five happens at the parts counter. Diesel engines don’t ask politely to start — they demand it, with compression ratios a gasoline engine would call cruel. The number that matters is cold cranking amps — CCA. How much current can the battery push out at freezing temperature? A battery that starts a pickup truck fine in October will embarrass itself trying to crank a cold six-cylinder diesel in January.
Size the battery to the engine, not the tray. And pick the type with your eyes open. Flooded batteries are cheaper and forgiving, but somebody has to check the water — and on a standby set, “somebody” is usually nobody. Sealed AGM types cost more and ask nothing. The old hands I work with swear by flooded cells and a hydrometer; they say the specific gravity readings let you see trouble coming weeks ahead. I lean AGM on standby sets, because standby sets live where nobody checks water. We argue about it. Both positions are honest.
If the battery is flooded, two rules: distilled water only — tap water’s minerals poison the plates — and never fill to the brim before charging, because charging raises the level and the acid ends up on the floor. Small things. The kind nobody tells you until you’ve done it wrong once.
You don’t need a program. You need ten minutes:
That’s it. The engine gets its oil changes and filter swaps. The battery gets ten minutes. One of those is worth two hundred dollars; the other one is the reason the machine starts.
People spend forty thousand dollars on a generator set and then grudge the price of a battery. I’ve stopped finding that surprising. But I still get the 2 a.m. calls — and almost every one ends at the battery box. Go check yours today — not with your eyes, with a meter. If you’re chasing a starting problem instead, our won’t-start troubleshooting guide walks the full order of checks, and the maintenance checklist covers everything else that dies from neglect. The battery is the cheapest part on the machine and the one most likely to leave you standing in a dark room. I know, because I’m the guy who gets that phone call. A proper load bank test once a year will also tell you whether the whole set — battery included — is still honest.
