The call came at 2:14 on a Tuesday morning. A facility manager I’d worked with for years — calm guy, the type who shrugs at burst pipes — did not sound calm. His building’s automatic transfer switch had failed its monthly test. Not a clean failure, either. It got stuck halfway between utility and generator, humming like an angry fridge, refusing to go either direction. And here was the part that kept him up: the only way to open it up and fix it was to schedule an outage that no tenant and no boss would ever approve.
I’ve been on both ends of that phone call. The sites that have a bypass wired around their ATS? It’s a nuisance and a work order. The sites that don’t? It’s a hostage negotiation.
Everybody specs redundancy into the generator. Dual starters. Oversized battery chargers. Then one transfer switch, and everybody moves on. Funny how that works.
Here’s the thing: transfer switches fail. Contactor coils burn out. Control boards take a lightning surge and die quietly. Contacts pit from years of load breaks until one day they weld themselves to the wrong side. I know all this because I’ve stood in front of dead ones. The automatic transfer switch that’s supposed to save you during an outage has failure modes of its own, and the monthly exercise test — which everybody treats like a clean bill of health — only proves the switch can move when it feels like cooperating.
NFPA 110 requires the emergency transfer switch to be listed to UL 1008. Fine. Listing means it passed the lab tests. It doesn’t mean it’s immortal.

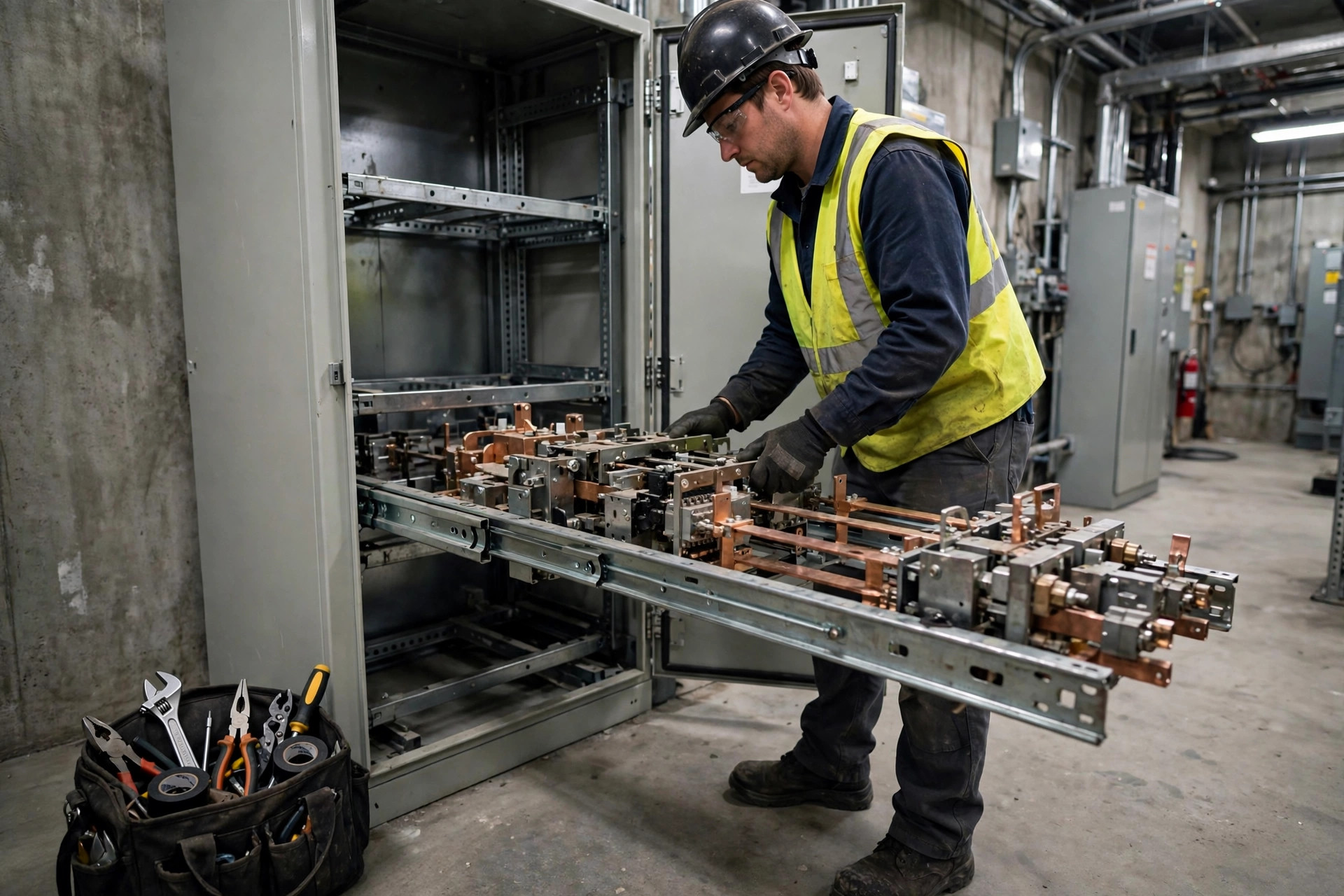

On a hospital job I commissioned years back, we watched a tech rack the entire transfer switch tray out of its cabinet at noon on a Wednesday. The load stayed up the whole time on the bypass. Nobody in the building noticed a thing. That afternoon the switch got new contacts, a cleaned-up control board, and a full bench test — work that would have meant an approved outage and a weekend of paperwork anywhere else. That’s the whole pitch for a bypass. Everything else is details.
Strip away the catalog poetry and there are really only three architectures in the field. I’ve installed or serviced all three. They are not three versions of the same thing.
This is the one the brochures photograph. A bypass switch wired in parallel with the transfer switch, everything in one lineup or in two cabinets bolted together. The choreography goes: close the bypass, isolate the transfer switch, rack the whole ATS tray out of the cabinet — and the building never notices.
Two things make this version special. First, the ATS is drawout: it physically slides out on rails, so you can take it to a bench, rebuild it, or drop in a spare tray. Second, most of these offer a test position — the isolated ATS can be exercised and timed while the bypass carries the real load. You get to watch your transfer switch do its little dance without risking the building.
The catch is money and floor space. In the quotes I’ve seen, plan on two to three times the price of a plain ATS, plus a lineup that’s noticeably deeper. If you’re buying this for a strip mall, you’ve bought jewelry.
This is two interlocked load-break switches — sometimes one bypass selector — in a cabinet, wired around a standard ATS. When the ATS needs attention, a qualified tech throws the switches by the book, the load moves to the bypass path, and the ATS gets worked on.
It costs a fraction of the integrated version. It also transfers with a blink — open transition, break-before-make — because a human hand on a switch can’t do what a closed-transition contactor does. And it leans entirely on procedure. The switches have to be thrown in the right order, by someone who understands what they’re doing. I have seen a bypass cabinet with the procedure placard faded to illegibility. That’s not a design flaw. That’s an owner flaw.
Some sites build the bypass out of circuit breakers instead of switches, with mechanical key interlocks tying the whole scheme together. This is the route big hospitals and heavy industrials take when the bypass also has to serve as a service-entrance disconnect, or when the frame size runs past what standard bypass switches cover.

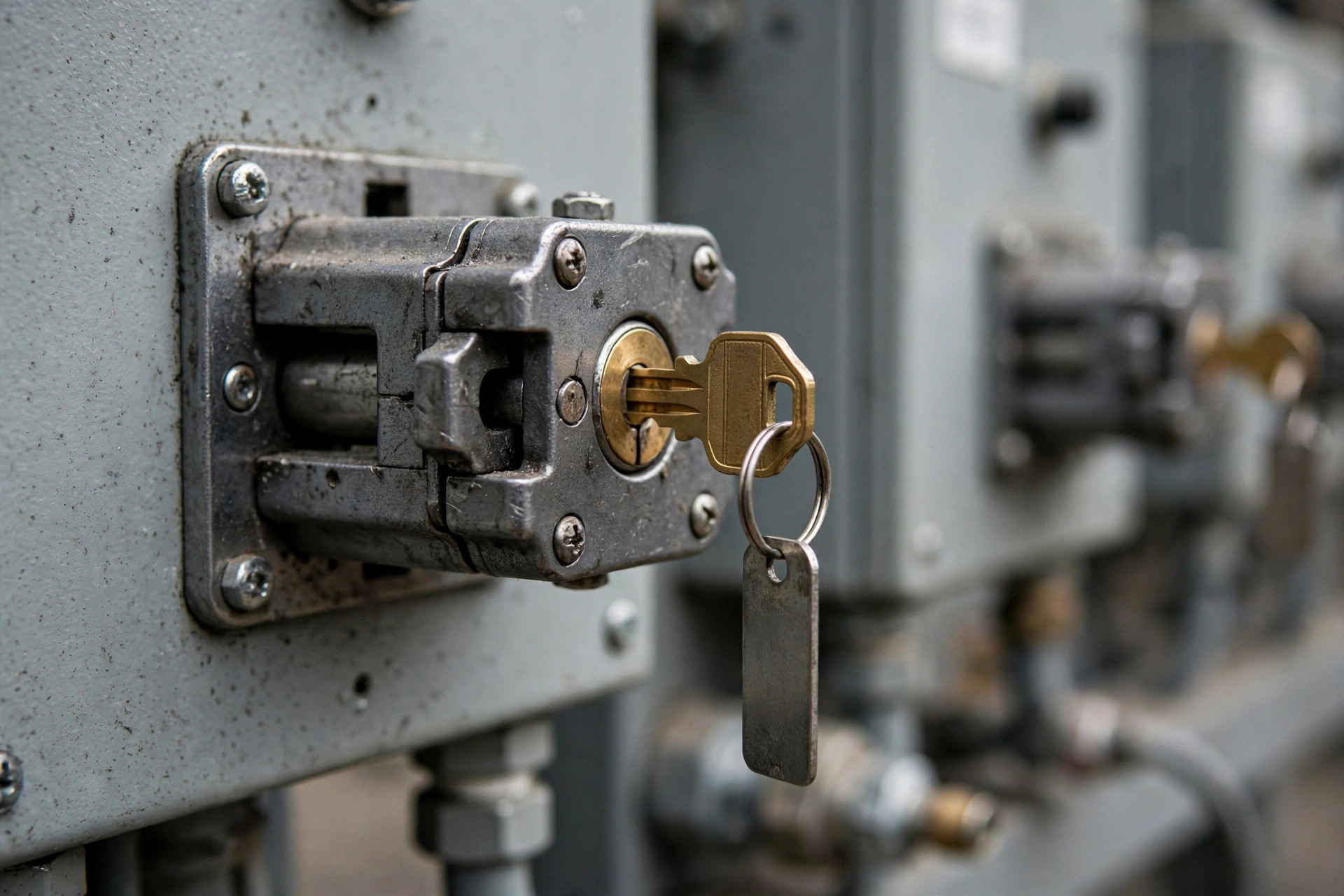

The key interlock — the Kirk-style captive key system — is the star of this show. One key, one fixed sequence: you physically cannot close the bypass to the generator while the utility path is closed, or the reverse, unless the scheme was designed to allow a supervised closed transition. The metal enforces the procedure when the placard has faded.
Look at that table and notice what’s missing: there’s no row where the cheap option wins everything. That’s the point. Pick the architecture that matches the cost of your outage, not the cost of your switch.
Here’s the detail that quietly decides the whole purchase. Open transition means break-before-make: the load blinks. Closed transition means make-before-break: the generator and the utility run in parallel for a fraction of a second — typically under 100 milliseconds — and the load never sees a thing.
If your loads can’t take a blink — and a data hall or an operating room really can’t — then your bypass path needs closed-transition capability too, and it has to be listed for it. A manual bypass cabinet that isn’t rated for closed transition simply cannot do that job. Throwing it closed-transition style would parallel the sources for as long as a human hand takes, and that is not 100 milliseconds.
An old-timer I work with hates closed transition on principle. He’d rather take the blink than parallel with the utility for even a heartbeat, and for a warehouse or a cold-storage dock, honestly, he’s right. But tell that to the UPS room, where the whole point of the generator is covering the gap the batteries can’t.
Don’t buy closed transition for loads that don’t need it. And don’t skip it for loads that do.
A bypass creates a new way to fail, and it’s an ugly one: accidentally paralleling the utility and the generator, or backfeeding a dead utility line while a line crew is working on it. The fix is mechanical key interlocking — a captive-key scheme that makes the wrong sequence physically impossible.
Whatever architecture you pick, the bypass hardware has to be rated like it means it:
That list is short because the rule is simple: the bypass is not a junior version of the transfer switch. It’s a transfer switch wearing a different hat.
Hospital, data center, airport — anything where an outage makes the news: integrated bypass-isolation, closed transition, done. Don’t negotiate with yourself on this one. The day you need to rebuild an ATS at noon on a Wednesday, you’ll understand.
Small office, school, retail, light industrial: a manual bypass cabinet around a good standard ATS, open transition, and spend the money you saved on actual maintenance — including that load bank test everyone keeps postponing. That combination beats a deluxe switch that never gets serviced.
And the thing I’d talk you out of: a bypass-isolation ATS on a 60 kW office building. It’s jewelry. It will impress exactly one person — the salesman who sold it to you.
Match the switch to the outage. A bypass costs real money once. Not having one costs real money at 2:14 on a Tuesday morning, with interest.
That facility manager from the opening? We put a manual bypass cabinet around his ATS the next month. He still calls me when something looks odd. Just never at 2 a.m. anymore.
