Two minutes. That’s how long the rental set had been cooling down — well, not cooling down, just standing there — before the operator killed it. Full load, a 500 kVA set running a tower crane crew through a heatwave afternoon, exhaust stack shimmering. He hit the stop button the way you turn off a light. Thirty seconds later the turbine housing was still glowing faintly in the dark enclosure. I remember thinking: that turbo just died. It took another three weeks to prove me right.
Here’s the thing about a diesel generator turbocharger. Nothing else on the machine works that hard. The crankshaft turns at 1,500 or 1,800 RPM. The turbo next to it is spinning past 100,000 RPM — some small ones touch 200,000 — on a shaft the thickness of your thumb. There are no ball bearings in most of them. The shaft floats on a pressurized film of engine oil. That oil film, a few microns thick, is the only thing standing between a $2,000 part and a pile of scrap.
And almost every turbo death I’ve seen was the owner’s doing. Not manufacturing defects. Not bad luck. Habits.
People picture a turbocharger as tough. Steel, hot, glowing — it looks indestructible. It’s the opposite. The shaft rides in plain journal bearings that need clean oil, at pressure, every second it spins. Lose oil pressure for a few seconds at speed and the bearings score. Do it a few times and the shaft starts wobbling. Wobble at 120,000 RPM doesn’t end gently — the compressor wheel kisses the housing, metal shrapnel goes into the engine’s air intake, and your “turbo problem” becomes an “engine rebuild problem.”

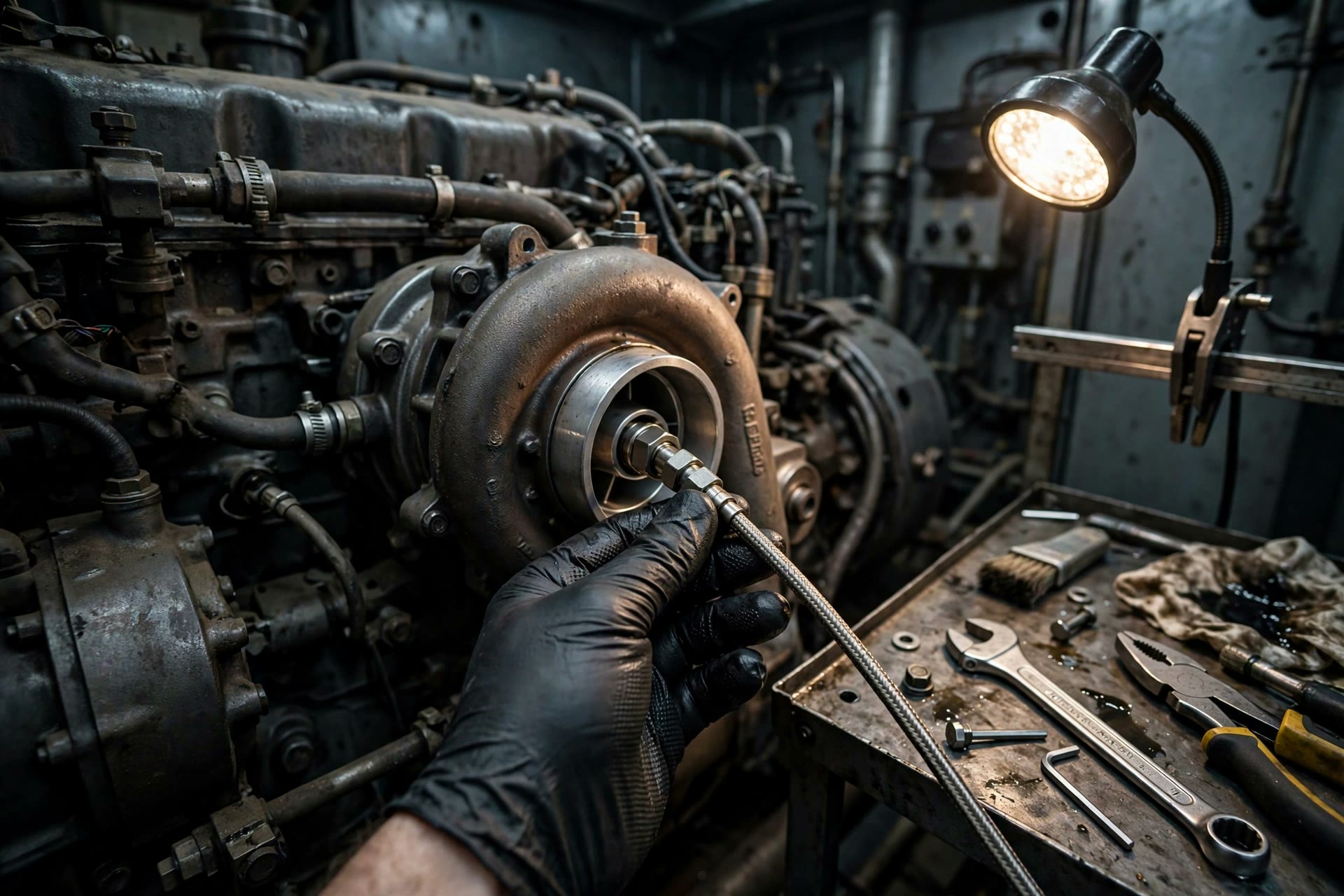

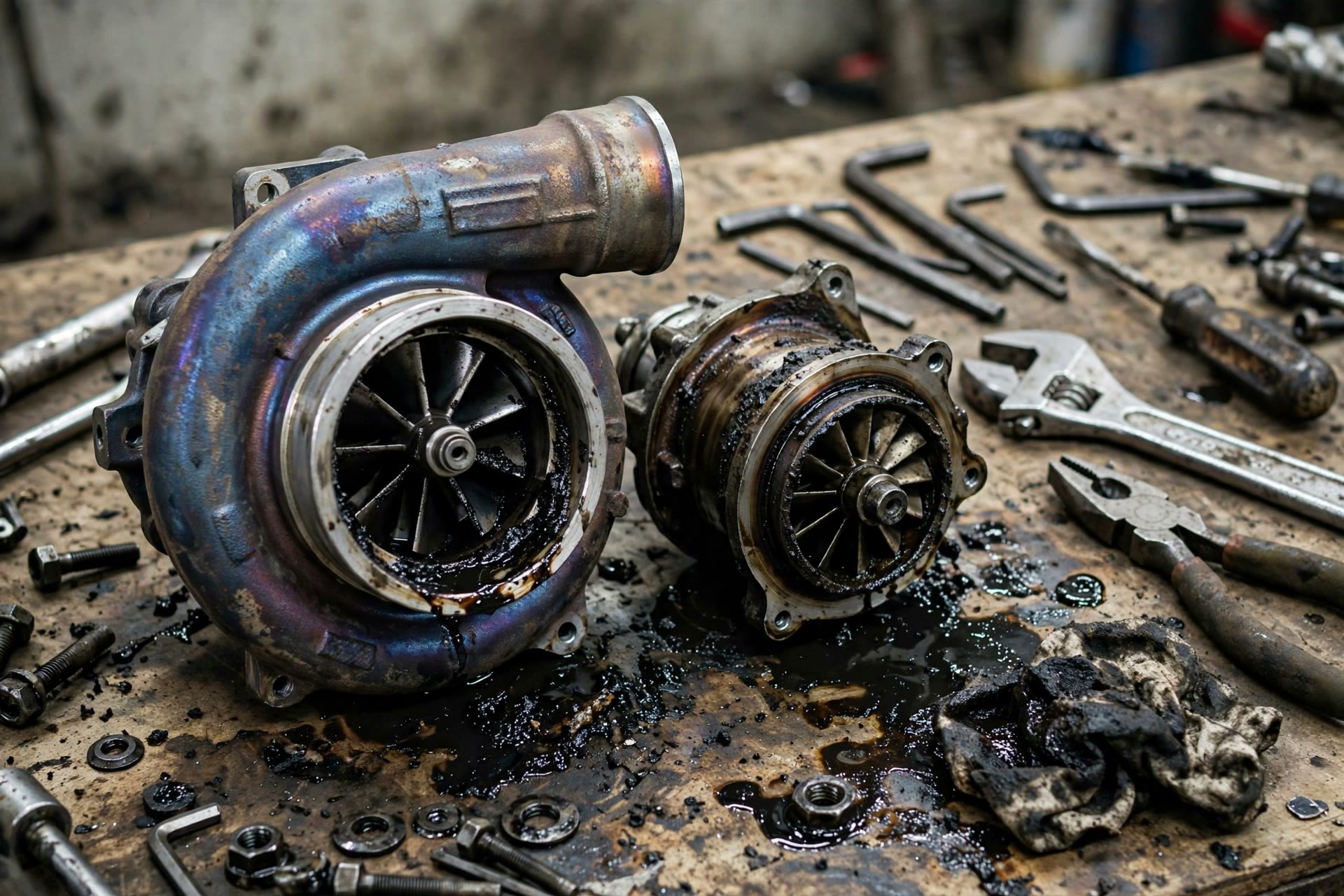

I pulled one apart in a workshop in 2019 where you could read the failure like a diary. The bearings were blue-black — coked oil, cooked solid. The shaft had scoring on one side only, which told me the oil feed was partially blocked for a long time before it finally gave up. The owner swore his oil changes were on schedule. Maybe. But the feed line to the turbo was a narrow steel tube, and a slug of sludge from an overdue change had lodged in it years ago. He was maintaining the engine. Nobody was maintaining the turbo’s blood supply.
Death number one, then: oil starvation. It comes in flavors — low oil level, wrong-viscosity oil in a cold climate, a clogged feed line, extended oil change intervals that an oil analysis would have flagged months earlier. And the cruel part is that the engine can tolerate a little of this abuse. The turbo can’t. It’s the canary in the lube-oil coal mine, and by the time it stops singing, the engine has been breathing the same poison.
Now the second way people kill turbos, and it’s the one that makes me wince every time I see it. Heat soak.
Run a set hard and everything in the exhaust side is brutal hot — turbine housing north of 600°C under real load, the shaft and bearing housing soaked in it. When you shut the engine down from full load, the oil pump stops instantly. But the heat doesn’t. It soaks backward from the turbine into the bearing housing, and the oil sitting in those bearings gets flash-cooked. Cooked oil becomes coke — hard carbon deposits that score bearings and plug oil passages on the next start. Do this enough times and you’ve built a little crematorium inside your turbo.
The fix is stupidly simple and almost nobody does it: let the set idle for three to five minutes before shutdown. No load, just breathing. Exhaust gas temperature drops, the turbo spools down from its scream to a lazy spin, oil keeps flowing while the heat bleeds off. Most modern controllers even have a cooldown timer you can enable — set it once, and the machine protects itself from the operator. Check yours. Honestly, half the controllers I walk up to have the cooldown timer sitting at zero, disabled, waiting for someone who never arrives.
Rental sets die of this the fastest. Different operator every week, none of them paid to care about cooldown. If you rent machines out, weld the cooldown into the controller and lock the settings. If you rent machines in, ask the rental company whether the cooldown timer is enabled. Their answer tells you a lot about the machine you’re about to trust.
The third killer attacks from the other end — the compressor side, the part that breathes in your site air.
A turbo compressor wheel is a precision piece of aluminum spinning insanely fast, with blade clearances measured in fractions of a millimeter. Now feed it air full of construction dust because the air filter hasn’t been changed in two years. Every particle becomes a tiny projectile. The blades erode — slowly, then suddenly — the wheel goes out of balance, clearances open up, and boost pressure sags. The engine controller, trying to hold power, throws more fuel at a dwindling air supply. Black smoke. Higher exhaust temperatures. More heat into the turbo. You see the spiral.
I’ve seen sets where the compressor housing was packed with oily sludge — the crankcase breather feeding oil mist straight into the intake, year after year. I’ve seen intercoolers so clogged the engine was effectively breathing through a straw. And the owner’s complaint is always the same: “the generator lost power.” Sure it did. It was suffocating.
The air filter restriction gauge costs about as much as a sandwich. It sits on the filter housing and tells you when the filter is actually choking. I’ve walked past brand-new-looking filters with the gauge pegged in the red — looks clean on the outside, plugged solid inside. Change filters on hours and on the gauge, not on vibes. And if you’re running in real dust — quarry, cement plant, desert road job — halve the interval. The filter is cheap. The turbo is not.
So what does a turbo check actually look like in the field? Not a teardown. Nobody’s pulling a turbo for fun on a Tuesday.
First, listen. A healthy turbo has a clean whistle under load. A bearing on its way out changes the note — a high-pitched whine, or a siren-like wail that rises and falls with load. I had a customer call me about a “new noise” and describe it over the phone; I told him to shut the set down and don’t restart it. He listened. The turbo we pulled had maybe fifty hours left in it. Trust your ears — they notice before the gauges do.
Second, when the set is stone cold and shut down — and I mean cold, not “ten minutes ago” — you can check shaft play by hand through the compressor inlet. A tiny bit of radial movement is normal; the oil film takes up the slack when running. Axial play, in and out along the shaft? That’s the one that scares me. Any noticeable end float means the thrust bearing is worn, and it’s a matter of when, not if.
Third, look at the oil. Not the dipstick — the turbo’s drain line area. Wet oil around the compressor or turbine ends means seals are passing oil. A little misting on an old set can be lived with. Active dripping cannot; oil in the intake fouls the intercooler and, in the worst case, a runaway — the engine starts burning its own lube oil as fuel and no governor in the world can stop it. That’s a rare catastrophe, but it starts as a drip somebody ignored.
And please, don’t do what one site crew did and “test” the turbo by revving the unloaded set and listening for spool-up. A generator doesn’t load like a truck engine; free-revving tells you nothing except that you enjoy noise. Real turbo testing happens under real load — a load bank run, or actual site load, watching boost pressure and exhaust temperature against the engine’s data sheet.
The turbocharger is the hardest-working part on your generator and the least inspected. It asks for almost nothing: clean oil on time, a few minutes of cooldown, clean air in. Give it those three things and it’ll outlive the paint on the canopy. Starve it of any one of them and it’ll teach you what a $2,000 part costs when it takes the engine with it. Your call.
