A Steel Container Around a Generator Isn’t Packaging. It’s a Strategy.

It rained sideways for six hours in that port city. At two in the morning my phone buzzed — a site manager I’d sold a 400 kVA set to two years earlier. His voice was half drowned out by the rain on his end. “The generator’s dead. The control panel’s underwater.”

It wasn’t a flood, not really. Just a low spot in the yard, a tarp that came loose in the wind, and an open-frame genset sitting on a concrete pad with nowhere to hide. The engine itself was fine. Engines don’t drown from splashes. But the control panel had drunk half an inch of rainwater through a cable gland that was never meant to face the sky. Two thousand dollars of parts, four days of downtime, and a lesson I now repeat at every quote meeting: the box around the machine is part of the machine.

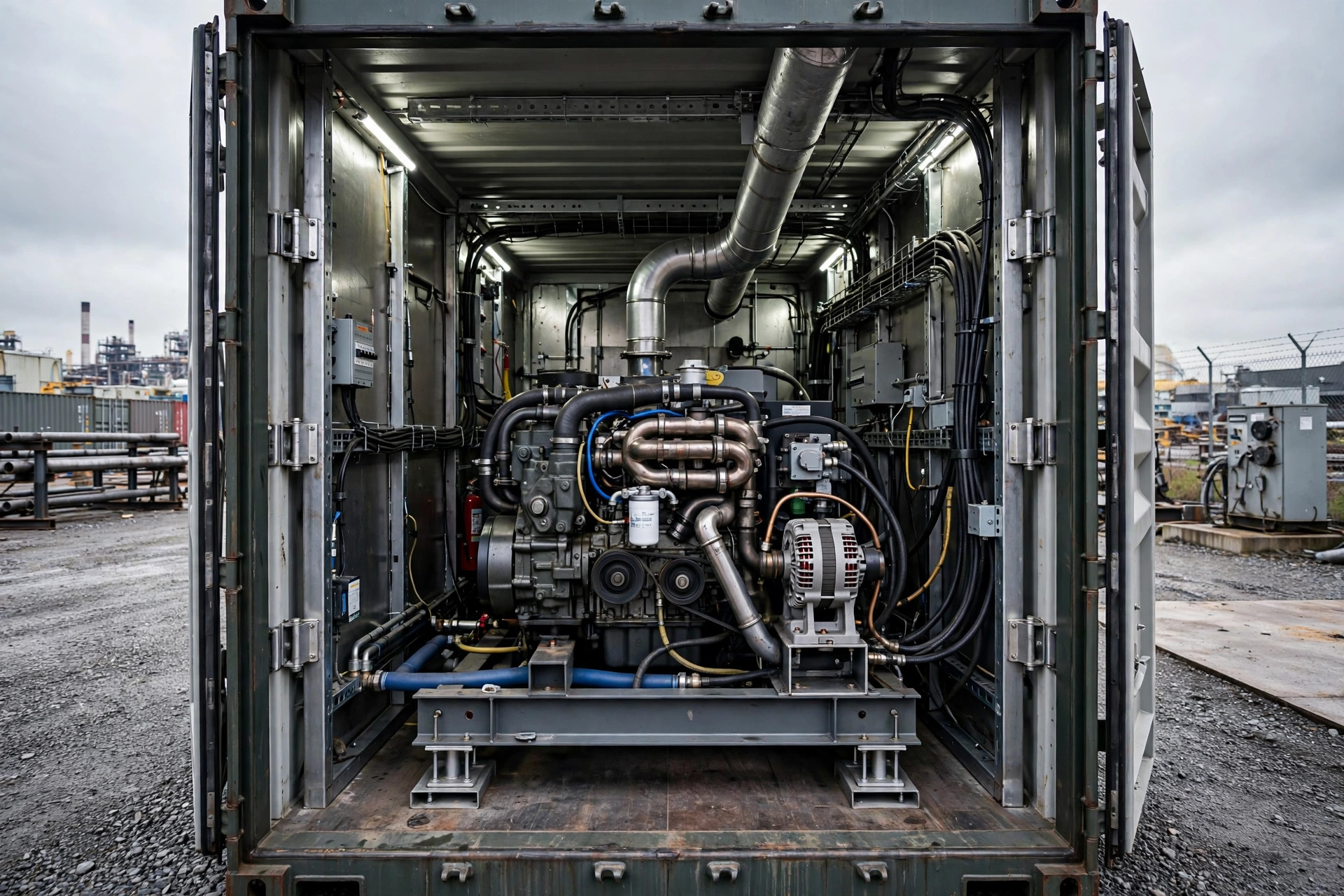

Here’s the thing. A diesel genset comes in basically three bodies: open frame (bare skid, engine and alternator sitting out in the open), canopy (a steel skin with doors, often sold as the “silent type”), and containerized — the whole unit fitted inside a standard 20- or 40-foot shipping container, ventilation louvers, exhaust stack, day fuel tank, the works. Same engine inside. Same alternator. Completely different life.

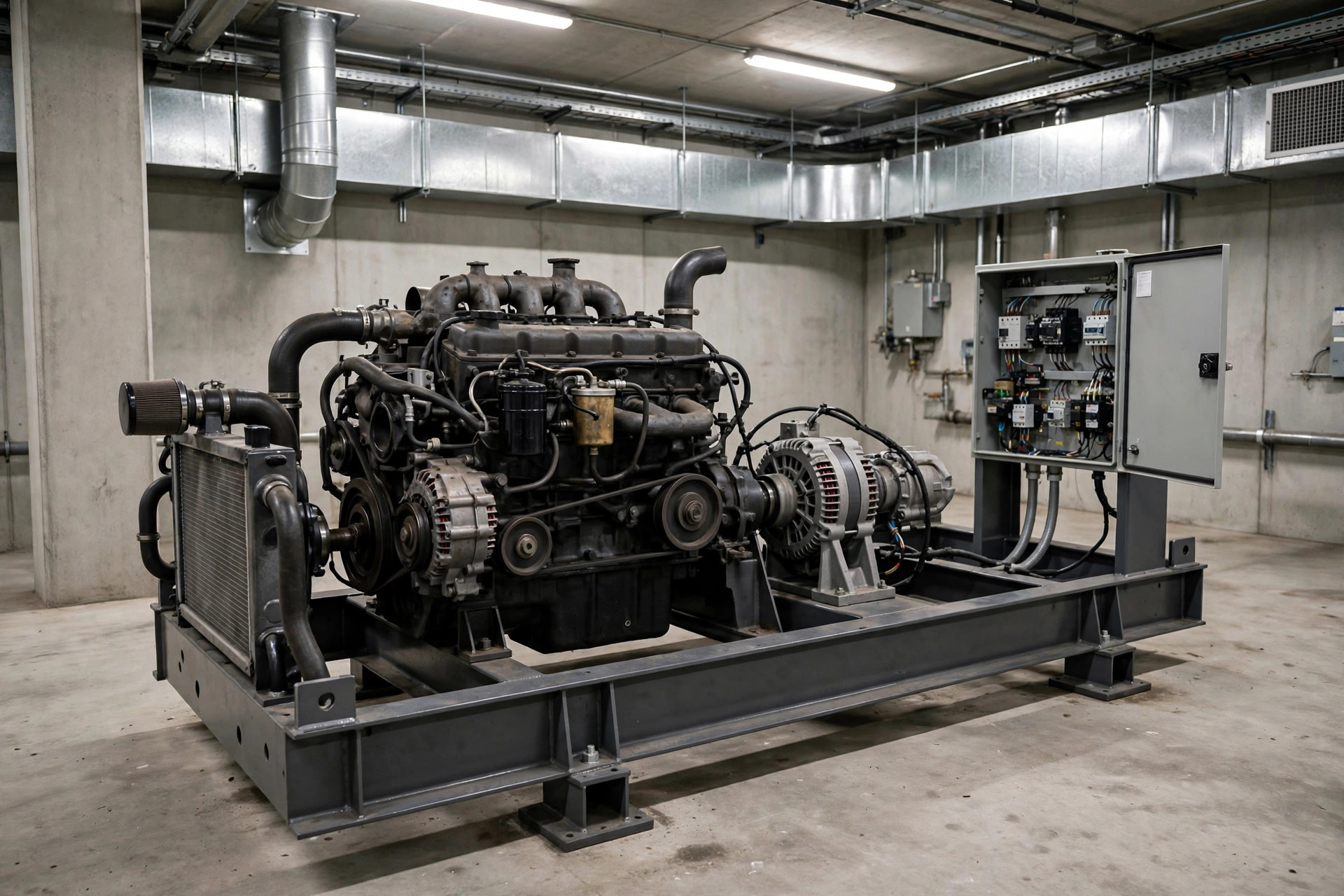

What an open frame is actually for

Nobody should apologize for buying an open skid. Put it inside a proper generator room — dry, ventilated, somebody walking past it once a day — and it’s the best value per kVA you’ll ever get. No steel skin means the price stays low, and every filter, belt, and injector is two seconds from your hands. I’ve seen open sets run fifteen years in a dry plant room in Guangdong, sauna-humid outside, and the only thing that ever killed them was a neglected starting battery.

An open frame also wins when the set rarely runs. A standby unit that fires up twice a year for a test schedule doesn’t need a weather-rated body. It needs a roof, the right size for the load, and a maintenance contract somebody actually honors.

So when does the steel box earn its money?

Ask one question: does this machine sleep outside? If the answer is yes, stop debating whether you need protection and start debating how much.

Outdoor exposure kills electronics before it kills engines. Rain gets into controllers. Dust cakes onto alternator windings — I once pulled a winding out of a quarry genset that looked like it had been dipped in cement slurry. Sun cooks fuel in the tank and ages rubber hoses years early. Salt air at a coastal site eats unpainted steel in months, not years.

Noise is the second driver. Honestly, it’s the one that closes most deals. An open 500 kVA set screams at roughly 100 dB(A) at seven meters — a chainsaw you can’t switch off. Put the same machine in a proper canopy and you’re looking at 68 to 75 dB(A). That’s the difference between neighbors calling the authorities and neighbors not noticing. In a city, a hospital, a residential backup — the canopy isn’t a luxury. It’s the permit.

Then there’s the stuff nobody writes in the brochure: theft and curiosity. A copper-hungry thief can strip an alternator off an open skid in twenty minutes with a wrench. A locked container door doesn’t make it impossible. It just moves the target to the next site. Same with curious hands — I’ve watched a factory worker “help” by opening a cabinet on a running open set. He survived. The controller didn’t.

Export is the last one, and it surprises people. A containerized genset is already in a shipping container, so the freight math is almost insultingly simple: it travels like cargo, stacks like cargo, and lands at the port ready to be craned onto a truck. Open sets need wooden crates, fumigation certificates, and a forklift crew that treats them like museum pieces. On the last export job I priced, the crating and handling for an open set ate almost half of what the containerized option would have cost extra at the factory.

The money math nobody puts in the quote

Here’s where buyers get confused, because the quote looks brutal: a canopy adds roughly 15 to 25 percent to the machine price, and a full containerized build can push 30 percent or more on small units. So people delete the line and plan to “build a small room for it later.”

I’ve watched that movie. A client in the Middle East deleted the canopy line to save about $9,000 on a 250 kVA order, then spent three months and close to $25,000 building a concrete blockhouse with ventilation, exhaust ducting, and a fuel room — designed by a contractor who had never sized a generator room in his life. The room worked, eventually. But the canopy would have been cheaper, faster, and it would have arrived already tested.

The honest rule: price the canopy against the building, not against nothing. A machine that needs weather protection gets it one way or another. The factory sells it tested, with the ventilation already engineered. The local contractor builds it from scratch, on your schedule, with your risk.

When you’re deciding, this is the only short list you need:

• Buy open frame if the set lives indoors, the site has people who actually maintain things, and the budget is genuinely tight.
• Buy a canopy or container if the set sleeps outside, the neighbors can hear it, the site is remote or coastal, the unit will ship overseas, or it joins a rental fleet that moves.

The trap inside the box

Now — because this is me, and I can’t let you leave happy — the container creates its own problems. I want you to know them before you pay for one.

Heat. A 500 kVA engine dumps an enormous amount of heat, and a steel box in direct sun is an oven with a generator in it. Good containerized sets are engineered for this: calculated intake and exhaust areas, the radiator placed so it breathes, sometimes a thermostatically controlled fan. Bad ones are just a container with holes cut in it. I once walked onto a site where the operator had parked a second pallet of spare parts against the intake louver “temporarily.” Six months of temporarily. The set derated itself every summer afternoon and nobody understood why until we moved the pallets. Leave a meter of clear space around every vent. Write it on the wall if you have to.

Space to work. A container with one door on the end is a coffin with a price tag. You need doors on both long sides, or at least removable panels, because the day you change an alternator bearing you will thank me. Ask the supplier for the maintenance clearances on the layout drawing before you sign. Not after the unit lands.

Corrosion and condensation. The weld seams and the cut edges around the louvers are where rust starts. Always. And in humid climates, a cold engine in a steel box sweats — I’ve opened containers in Southeast Asia where every control panel wore a film of moisture. Decent builders fit an anti-condensation heater in the panel. Ask for it by name. It’s cheap, and it saves controllers.

One more, from a job that still annoys me: check where the exhaust exits and where the intake breathes. On a badly laid-out unit, the exhaust curls straight back into the intake when the wind drops. The engine starts breathing its own hot air, output drops, fuel consumption climbs, and the load test looks “fine” because nobody measured on a still, hot day. A five-minute look at the layout drawing catches it. Nobody looks.

Silent type, canopy, container — don’t overthink the labels

One last thing, because the terminology trips buyers up: “silent type” is just marketing language for a canopy with acoustic insulation. There’s no legal definition, no ISO number that makes a set officially silent. A canopy that claims 70 dB(A) at seven meters on a 500 kVA set is doing its job. A “silent” sticker on a thin box isn’t. Ask for the measured number and the distance it was measured at — if the seller can’t give you both, the sticker is decoration.

And whether the set is open or containerized doesn’t change its duty rating. A standby-rated engine in a beautiful container is still a standby-rated engine. Don’t let the box fool you into overloading it. If you run a construction fleet, this matters more than you think — site duty is the hardest life a generator lives, and the enclosure choice is only half the reliability story.

So next time a quote lists the container at twenty percent extra, don’t delete the line and promise yourself a shed. Price the shed. Then decide. The steel box isn’t packaging. It’s the cheapest building you’ll ever buy for that machine — one that arrives already wired, already tested, and already knowing how to breathe. If you’re weighing the options for a real project, talk to the Pavo team with your site conditions in hand; the right answer takes about ten minutes once someone asks where the machine will actually sleep.
