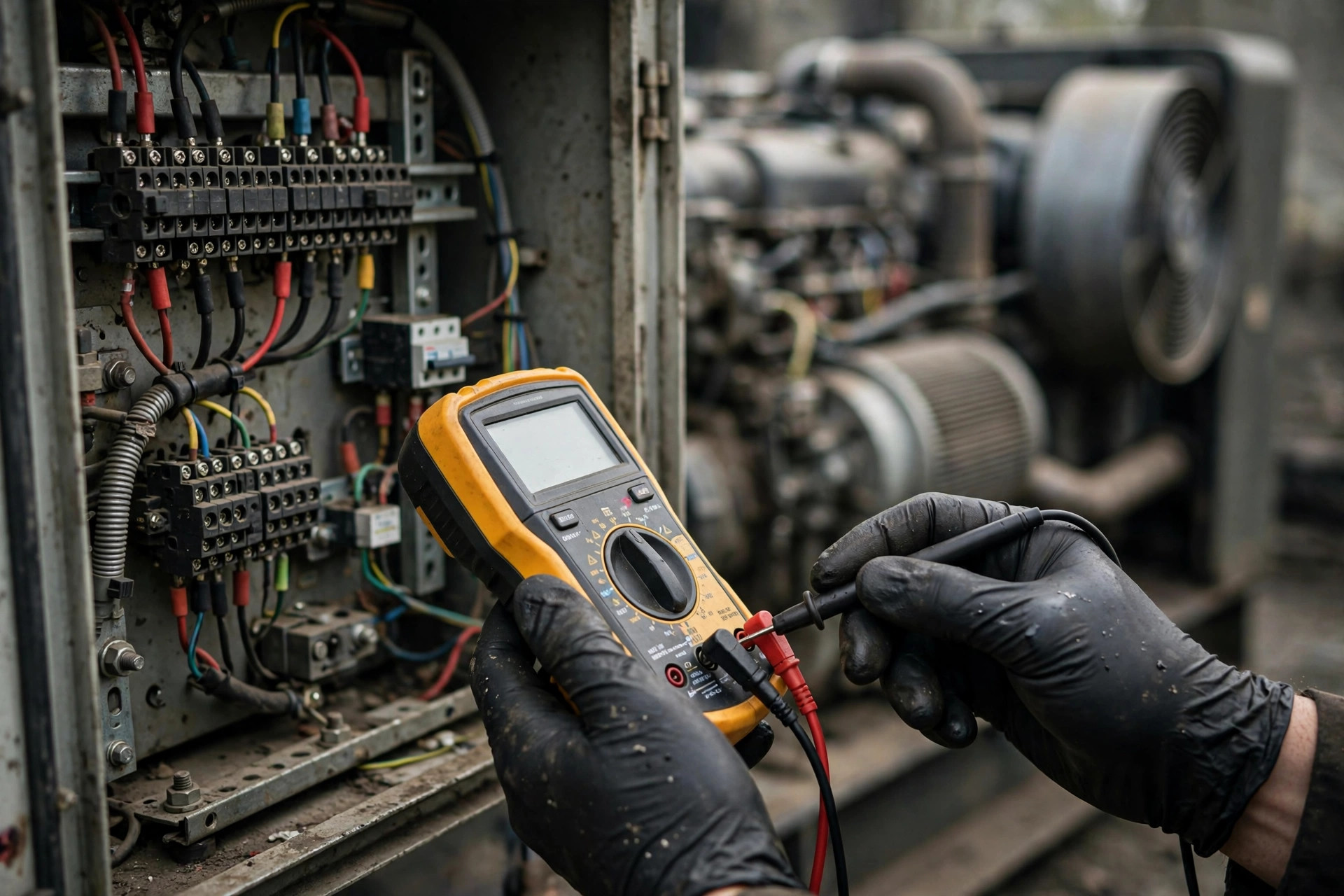

The voltage was 228, then 241, then 233 — all inside a minute. The plant electrician pointed at the meter like it had insulted him personally.
“AVR’s shot,” he said. “Third one in two years.”
I’d heard that sentence a hundred times. And here’s the thing: the AVR almost never dies the way people think it does. It gets murdered — by heat, by bad wiring, by the room it lives in. This article is me answering the three AVR questions I actually get from customers, over and over, usually standing in front of a generator that’s humming along just fine while the meter does its little dance.
Maybe. But probably not yet.

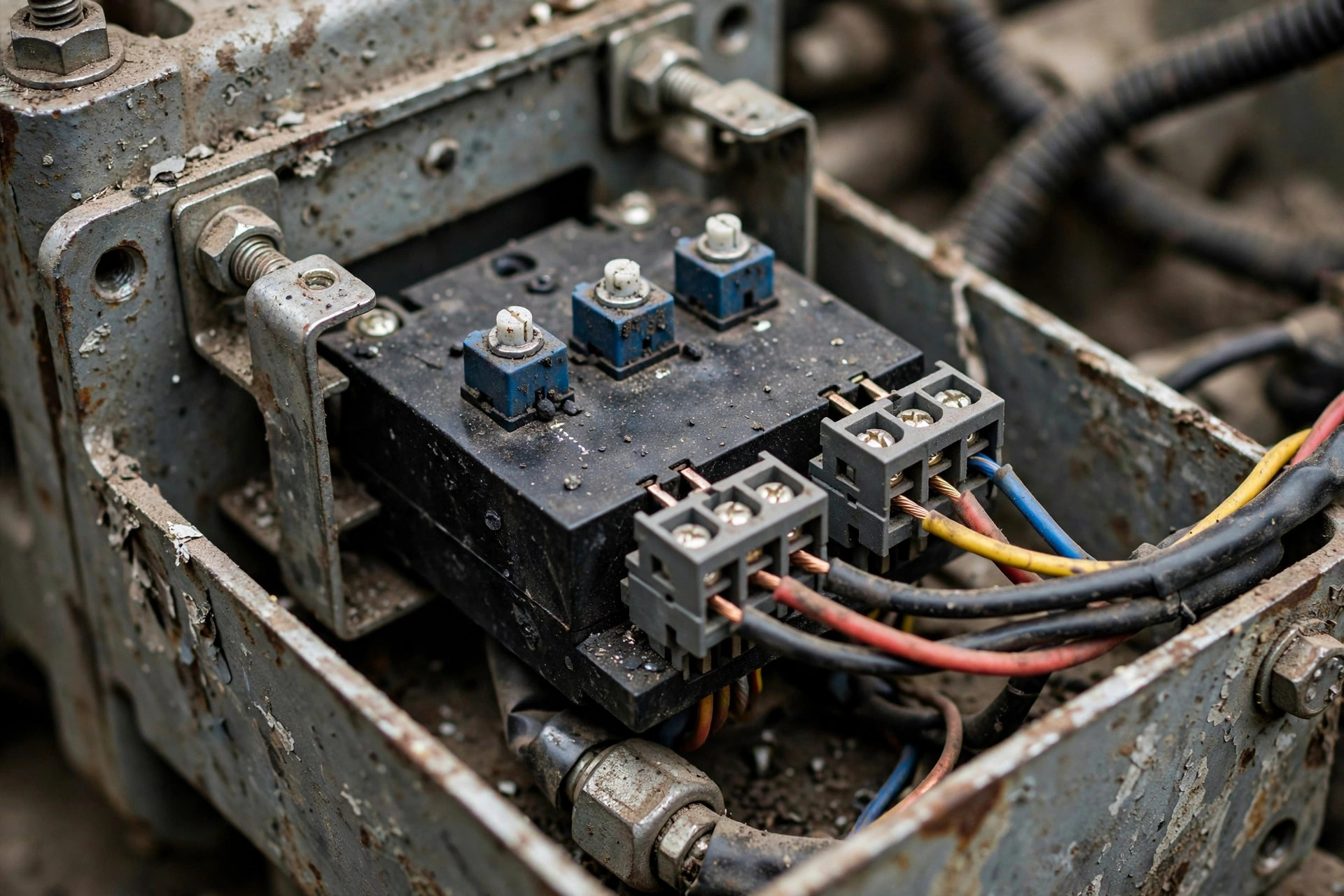

The AVR — automatic voltage regulator — is a small electronic box bolted to the back of the alternator. Its whole job is to watch the output voltage and feed the right amount of DC to the exciter field. Voltage droops, it pushes harder. Voltage climbs, it backs off. That’s it. Simple job. Expensive consequences when it goes wrong.
Wandering voltage has about six usual suspects, and the AVR is only one of them. Loose sensing wires are my favorite, because they cost nothing to fix and everybody misses them. The AVR reads the output voltage through a pair of sensing leads; if one terminal is corroded or loose, the AVR “sees” a voltage lower than the real one and keeps pushing the field up. The meter swings. You replace the AVR. The meter still swings.
I had exactly that call two winters ago — a 400 kVA set at a food warehouse, voltage swinging ±15 volts. The owner had already bought a spare AVR, the expensive genuine one, and was ready to pay my emergency rate to swap it. I told him to hold off, pulled the sensing terminals, and found green crust on both. Ten minutes with a wire brush and some contact cleaner. Voltage sat at 400 volts flat and didn’t move for the hour I watched it. He still paid me, by the way. Just not the emergency rate.
Brushes and slip rings are the other one, on brush-type machines. When the carbon brushes wear down or the slip ring glazes over, the field current gets erratic — and erratic field current looks exactly like a dying AVR on a meter. If your set has brushes (check the manual — most smaller standby sets do, most big prime-power sets with brushless exciters don’t), look there before you buy electronics.
And then there’s the one nobody wants to hear: the engine. If the governor is hunting — RPM swinging up and down — the voltage will follow, because on a synchronous alternator, voltage tracks speed. An AVR can’t fix a fuel problem. I once watched a customer replace two AVRs on a set that was actually starving for fuel because of a collapsed filter. (Yes, the same $40 filter story. It’s the gift that keeps on giving.) Fix the engine first. The AVR gets blamed for sins it didn’t commit more than any part I know.
So the honest answer to question one: check sensing leads, check brushes if you’ve got them, and make sure the engine holds speed under load before you spend a cent on a new regulator. If all three are clean and the voltage still wanders, then it’s probably the AVR. On the replacement side, our OEM vs aftermarket parts guide lays out which components are safe to buy cheap and which aren’t — AVRs sit firmly in the “don’t gamble” column.
Heat. It’s heat, almost every time.
An AVR is a handful of semiconductors in a plastic or resin-potted box, and it lives bolted to the alternator — which is, not coincidentally, the hottest part of the machine after the exhaust manifold. Every ten degrees above its rated temperature cuts the life of its capacitors roughly in half. The math is cruel and it never negotiates.
The typical failure I see: a standby set in a small concrete room, “ventilated” by a louver the size of a pizza box. The room hits 45, 50 degrees Celsius on a summer afternoon. The AVR cooks for six hours. Nobody notices, because standby sets mostly sit there. Then the grid fails at 2 a.m., the set starts, loads up — and the weakened regulator finally gives out right when you need it most. I’ve opened AVR covers and found the potting compound soft enough to dent with a fingernail. That’s not a bad part. That’s a bad room.
Dust and moisture finish what heat starts. In a quarry or a coastal site, fine dust cakes onto the board and traps heat against it. In humid rooms, condensation forms on the cold board at night and evaporates by noon, leaving conductive salt tracks across the traces. One customer in a fish-processing plant went through an AVR a year until we moved the sensing and control wiring into a sealed junction box and gave the room proper airflow. Same AVR model. It lasted four years after that and was still going when I last visited.
So before you curse the brand, look at where the box lives. If the generator room runs hotter than about 40°C, if the AVR sits in direct radiant heat off the alternator housing, if nobody has blown the dust out of the control end in years — the AVR isn’t the problem. It’s the victim. Our generator room ventilation guide covers what proper airflow actually looks like, because half the rooms I walk into would fail it in the first paragraph.
Honestly? Sometimes. And that’s what makes this question dangerous.
An AVR is not complicated circuitry. A decent copy of a common regulator — the kind that fits half the alternators in the world — will often work fine out of the box. I’ve installed budget AVRs that ran for years without a hiccup. My old mentor would have called me a heretic. He bought genuine everything, down to the zip ties. He was wrong about the zip ties. But here’s where I’d defend him on the AVR: the difference isn’t the circuit board. It’s what happens when something goes wrong.
A good AVR fails gracefully. Voltage drifts a little, the warning lamp comes on, you have time to react. A cheap one with sloppy over-excitation protection can drive the field hard into a fault and take the exciter winding with it — and suddenly your $60 saving is a rewind bill. The other failure mode is hunting: a cheap regulator with a badly tuned control loop makes the voltage oscillate, slowly cooking everything downstream. Motors run hot, UPS units complain, the UPS starts dropping the generator — and you spend weeks chasing a ghost that lives in a $60 box.
My rule, earned the hard way: if the AVR model is common, the set is non-critical, and you buy from a supplier who actually answers the phone, a mid-priced copy is a reasonable bet. If the set backs up anything that matters — a hospital, a data hall, a factory line — buy the genuine part or at least a tier-one equivalent, and budget for a proper commissioning: set the voltage, check stability under a load bank step, confirm the protection trips at the right point. An AVR swap that isn’t tested is just a new rumor installed in an old box.
One more thing people skip: write down the settings. Most AVRs have a voltage trim pot, and some have stability and under-frequency roll-off adjustments. The factory settings are a starting point, not gospel — I dial in every AVR I install under real load and photograph the final positions. The next guy who touches that set will thank you. That next guy has been me, more than once, cursing a predecessor who left everything at “factory.”
Three questions, one thread. The AVR is the most blamed part on a diesel generator, and the least often guilty. Check the sensing wires. Cool the room. And when you do replace the regulator, buy one you’d trust at 2 a.m. during a blackout — because that’s when it gets to vote.
