Tuesday, 6:40 in the morning. My phone buzzed on the nightstand — a cold-storage warehouse, 500 kVA standby set, DPF fault. Third time in two months. The DPF had been replaced in March, and that replacement cost more than my pickup truck. I sat up, did the math in my head, and thought the one thing you learn to think after twelve years in this trade: maybe the DPF was never the problem.
Here’s the thing most generator owners never hear. On a Tier 4 Final set, the exhaust doesn’t just hit the DPF. The chain goes DOC, then DPF, then SCR. Three stages. The DOC — the diesel oxidation catalyst — is first in line, cheapest of the three, and quietly does the work that lets the other two function at all. When it dies, it dies quietly. And the controller almost always blames the part behind it.
Three questions I get about this brick. Let me answer them the way I answer them on site.
Think of it as the warm-up act that makes the whole show possible. Exhaust gas comes out of the turbo carrying carbon monoxide and unburned hydrocarbons — fuel that didn’t finish burning. The DOC is a honeycomb brick coated with precious metals, mostly platinum and palladium, and it finishes the burn: CO and hydrocarbons go in, carbon dioxide and water come out.
That reaction gives off heat. Real heat — enough to matter downstream. The DOC doesn’t only clean the gas; it raises the exhaust temperature behind it. It also converts some of the NO in the exhaust into NO2. Both of those matter downstream: the DPF needs hot, NO2-rich gas to burn off its trapped soot passively, and the SCR behind it needs the right NO/NO2 balance to do its chemistry. A dead DOC pollutes more, sure. Worse, it starves the rest of the chain. (I’ve written about the DPF side of this story and the SCR side separately — this piece is about the brick in front of both.)
One catch: the DOC has to be hot to work. Light-off — the temperature where the catalyst actually wakes up — sits around 250 to 300 degrees Celsius, roughly. Below that, it’s an expensive paperweight. And this is where standby generators get into trouble, because a standby set doing its weekly no-load exercise run might never see exhaust temperatures anywhere near that. The brick sits there, cold, doing nothing, week after week.
I pulled a DOC off a farm standby set a couple of years back. Twenty minutes of no-load exercise every Sunday, like clockwork, for six years. The owner was proud of that routine — he thought he was maintaining the machine. The inlet face of that DOC looked like someone had painted it with roofing tar. It had been running cold for so long that unburned fuel had just been condensing on it, layer after layer. He wasn’t maintaining the generator. He was embalming it.
Honestly? You probably don’t, at first. That’s the trap. The controller watches differential pressure across the aftertreatment can and its soot-loading model, and when the numbers go bad it names the DPF, because the DPF is the part it understands. The DOC has no sensor that says “I’m poisoned.” It just quietly stops doing its job, the DPF stops regenerating passively, soot piles up, and the controller points at the victim.
Back to that warehouse set. DPF replaced in March. Faults back by May. The service company wanted to replace the DPF again — under warranty, thankfully for the owner, but still two more days of downtime and a rental set parked outside at day rates. I asked them to do four things before ordering another filter.

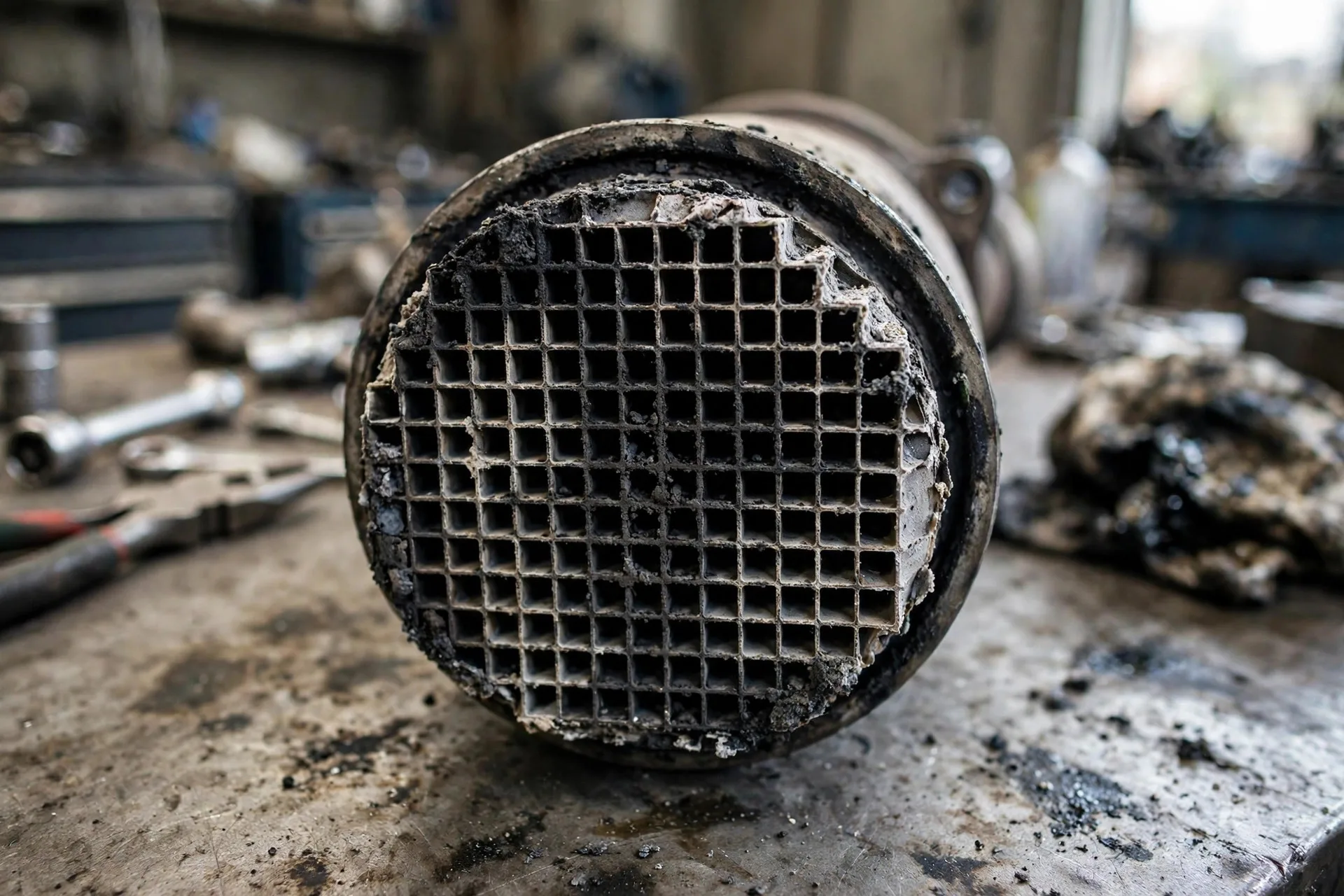

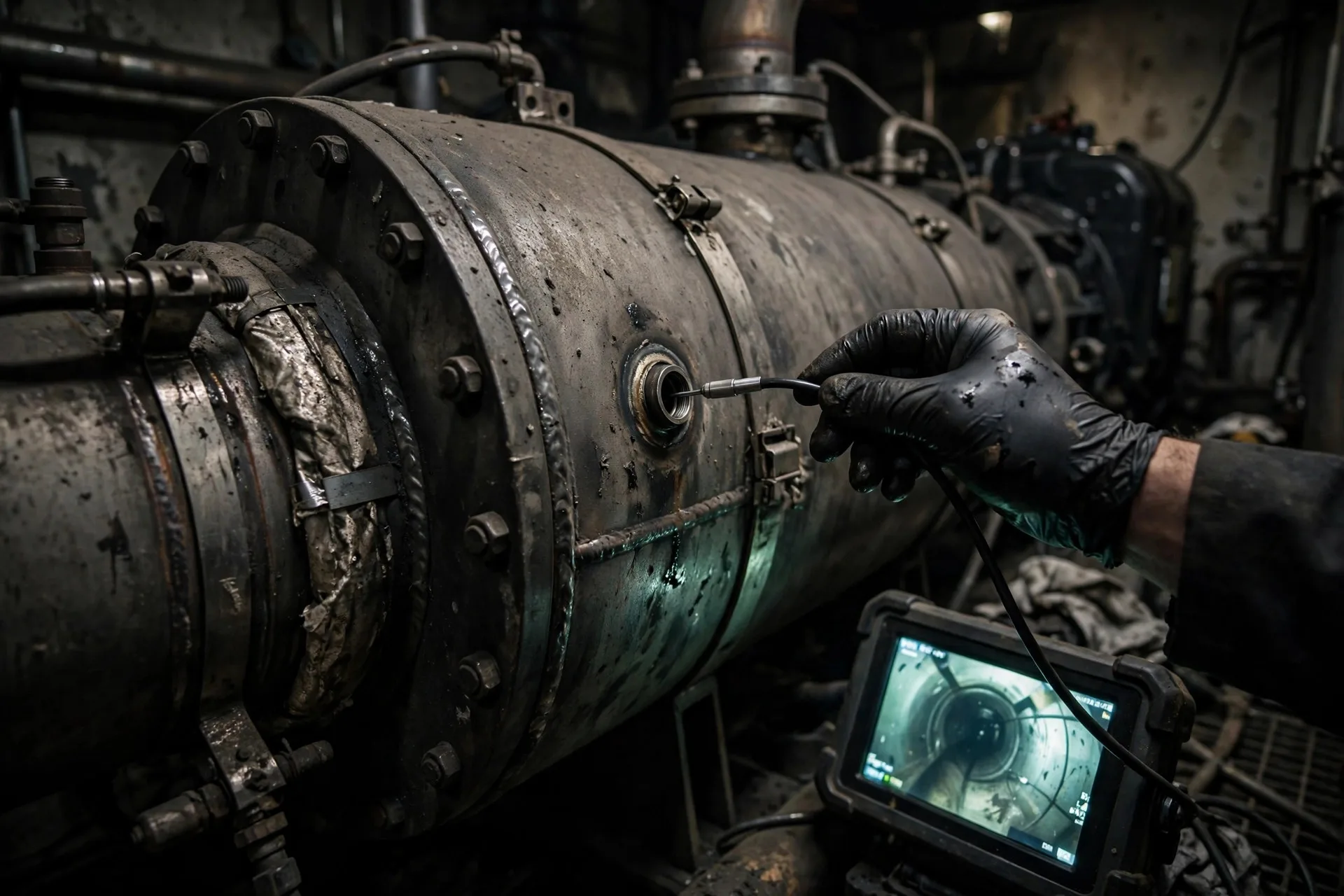

They scoped it. The DOC inlet face was caked shut — soot and ash packed into the channels like grout. The DPF they’d replaced in March was fine. The root cause was upstream the whole time: years of light-load running, a DOC that never lit off, a DPF that never got the hot NO2 it needed for passive regen. They thermally cleaned the DOC, put the set on a real load-bank schedule, and the faults stopped. Total bill was a fraction of one DPF replacement.
Three ways they die, in the order I see them.
Face plugging is the most common and the most forgiving. Chronic light-load operation — weekly no-load exercise, a set sized twice as big as the load, wet stacking from idling — cakes soot and ash onto the inlet face until exhaust can’t get through the channels. The good news: if the washcoat underneath is still alive, a proper loaded run can burn some of it off, and a professional thermal cleaning (basically a controlled bake) can take one from dead back to serviceable. I’ve seen baked DOCs go back on sets and run for years.
Sulfur poisoning is the quiet killer. The precious-metal washcoat — platinum, palladium — has active sites that sulfur loves to sit on. Tier 4 markets run ultra-low-sulfur diesel, 15 ppm, precisely because the aftertreatment needs it (the emissions rules aren’t decoration). Run a few tanks of high-sulfur fuel through a Tier 4 set and those sites get coated. Mild cases can sometimes recover with sustained high-temperature operation. Chronic exposure doesn’t recover. The brick looks fine on a borescope and does nothing. A thirty-year veteran I still argue with insists sulfur poisoning is mostly a myth — he says a DOC either works or it doesn’t, no “half dead.” He’s wrong, but he’s been wrong confidently since before I started, so these days I just hand him the temperature gun and let the numbers argue. This is also the failure that makes me ask about fuel first, every time, because it’s the one you can’t see.
Then there’s thermal damage, and this one is usually self-inflicted. Repeated failed regenerations, over-fueling, a DPF that’s been force-regenerated a dozen times while the root cause sat upstream — sustained temperatures high enough to sinter the washcoat, clumping the precious metals into useless lumps. A sintered DOC is done. No cleaning, no bake, no magic additive brings it back. You’re buying a new one. It pairs, unpleasantly, with what I’ve seen on the EGR side of these engines — one neglected stage quietly taking the next one down with it.
The honest cost math, in order: a thermal cleaning costs a fraction of a new DOC, and a new DOC costs a fraction of a new DPF. That’s the hierarchy to keep in your head. Every dollar spent misdiagnosing upstream is a dollar you didn’t need to spend downstream.
One more thing, because someone always asks. Yes, you can buy kits that hollow out the DOC or delete the whole aftertreatment. And yes, the set will run. It will also be tampered equipment — warranty gone, and in most Tier 4 markets, fines that make a new DOC look like pocket change. I’ve watched owners do the delete math and save a few thousand. I’ve watched the same owners pay it back with interest. Not my money, not my call — but I’ve never seen the cheap route stay cheap.
Prevention is boring, which is why nobody does it. Run the set loaded — a real load-bank test once a year minimum, and exercise runs with actual load on them. Feed it proper ultra-low-sulfur fuel. And watch your exhaust temperatures the way you’d watch oil pressure. A DOC that lights off every time it runs is a DOC that lives. Fold it into the regular maintenance routine and it stops being a surprise.
Next time your controller blames the DPF, take a look at what’s sitting in front of it. The answer is usually a brick nobody checks — until it costs them a filter. If you want a second pair of eyes on an aftertreatment problem, talk to us.
