Sunday morning, a cold-storage warehouse. The manager met me at the gate looking like he’d been awake since four. “The new generator’s trying to kill our compressors,” he said. “Voltage keeps climbing.” He wasn’t exaggerating. My meter read 545 volts on a 400-volt system. The protection relay had tripped, restarted, tripped again. The whole building sat in the dark because one set was making too much power.
It took me nine minutes to fix. The part that failed cost less than a cup of coffee, and nobody on site had ever heard of it.
Here’s the thing about overvoltage on a diesel generator: everybody blames the voltage regulator. Nine times out of ten, the regulator is the last thing you should suspect.
Voltage running high has three usual suspects. They look identical on the meter. They have nothing in common underneath. Compare them honestly before you spend a cent.
Suspect one: the sensing fuse. Your AVR doesn’t “know” the voltage. It measures it, through a pair of small wires called the sensing circuit, usually protected by a tiny fuse — one or two amps, sitting in the control panel. Blow that fuse and the AVR sees zero volts. So it does exactly what it was built to do: pour field current into the exciter to raise the voltage. Which it can’t see. So it pours more.
The result is a regulator doing its job perfectly on completely wrong information. Voltage climbs — 440, 480, past 500 — until the overvoltage protection trips or something downstream gives up. On that Sunday call, the sensing fuse had been popped by a pressure washer. The cleaning crew had hosed down the control panel on Friday. The fuse didn’t blow until Monday morning, when vibration finished the job. Two days of lying in wait.
Suspect two: the sensing point. Some sets sense all three phases. Plenty of smaller ones sense only one. And the AVR regulates only what it sees.
Move the loads around and the reading lies. I got called to a site where L1 read a perfect 230 and L2 was high enough to trip the UPS. The sensing leads were on L1. The customer’s new single-phase load had been hung on L2. The AVR was holding its own phase dead-on and letting the other two drift wherever physics took them. The regulator wasn’t broken. It was faithfully regulating the wrong phase.
This one fools experienced people. The panel meter agrees with the AVR — because the panel meter is usually wired to the same phase. You need a real meter on all three phases at the alternator terminals to catch it. Every time.
Suspect three: the regulator itself. Sometimes it really is the AVR. Output stage shorted, reference drifted, lightning found its way past the surge protection. It happens. It’s just rare.
My rule, earned the expensive way: you don’t get to blame the regulator until the sensing circuit has been proven innocent. Fuse, wiring, sensing point, three-phase balance — in that order. Then, and only then, the box.
People ask why the overvoltage trip didn’t save the loads. It usually does, eventually — most sets trip somewhere around 110 to 115 percent of rated voltage, roughly, depending on the protection settings. But “eventually” is doing a lot of work in that sentence.
A runaway takes seconds to climb. Contactors chatter. Motors draw high current and cook. Electronics downstream — controllers, chargers, the building’s own systems — eat voltage they were never designed for. The trip protects the generator. It doesn’t always protect everything the generator feeds.
And there’s an uglier version. Some older or simpler sets have the overvoltage element disabled, mis-set, or wired to alarm instead of trip. I won’t name the site. Let’s just say the fluorescent ballasts told us about the problem before the panel did. If you own a standby set, find out which one yours does — alarm or trip — before a Sunday morning teaches you.
When the voltage runs high, do this before you touch the parts catalog. In order.

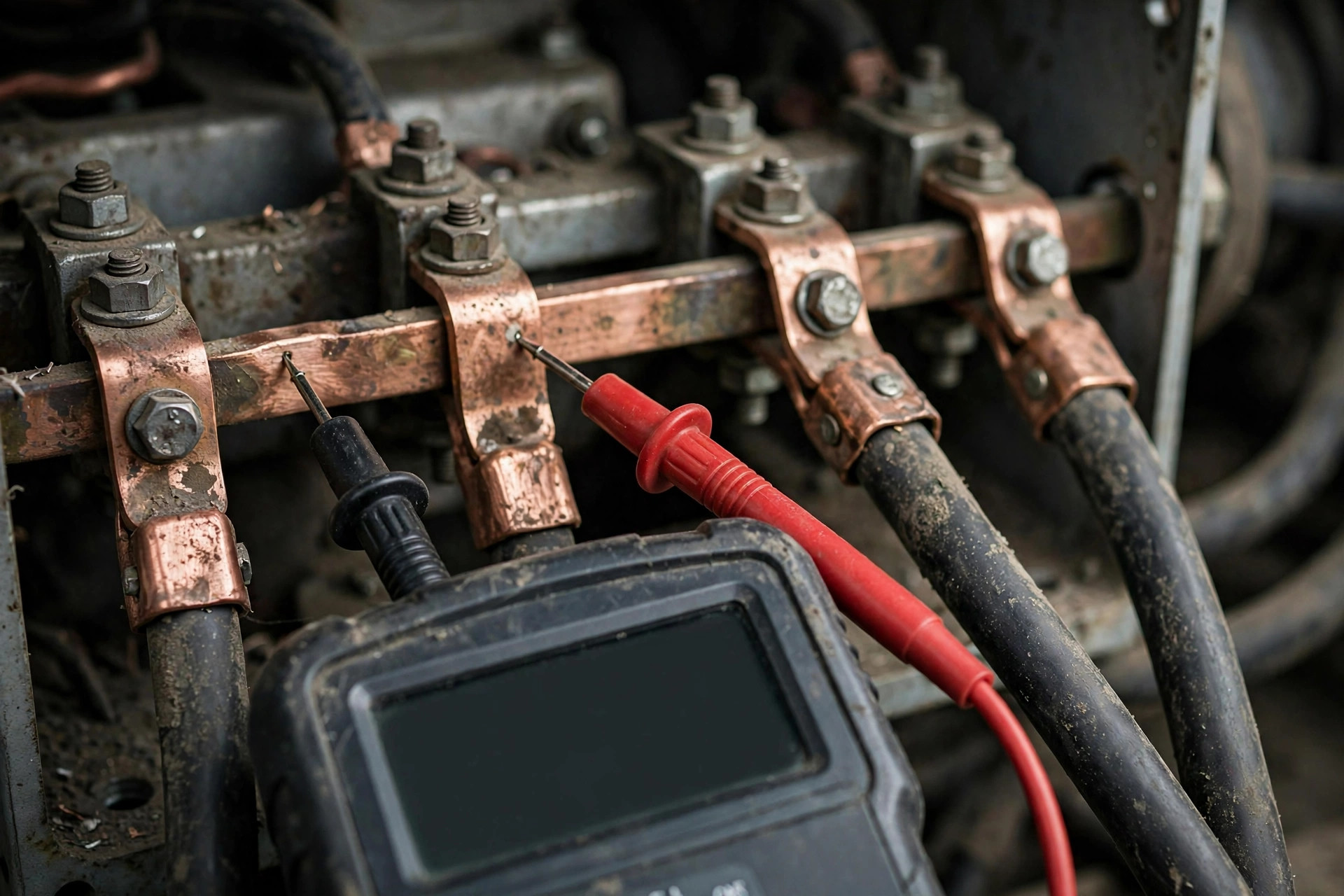

Measure all three phases at the alternator terminals. Not at the panel, not downstream. If one phase is high and the sensing is single-phase, you’re probably looking at suspect two.

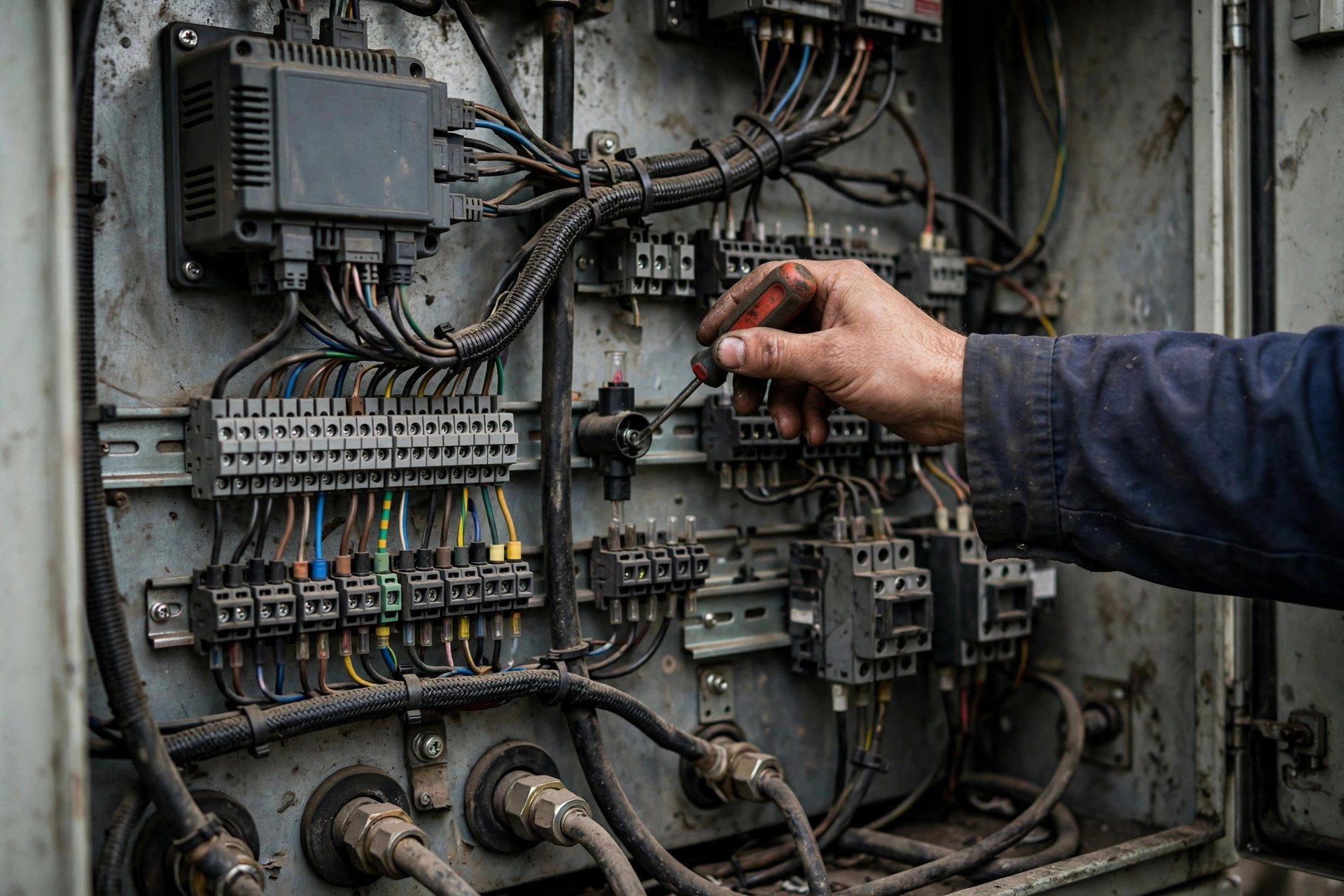

Pull the sensing fuse and meter it. Don’t look at it — meter it. A fuse can look fine and read open. While you’re there, check the fuse holder. Corroded holders have fooled better technicians than me.
Check the sensing wiring end to end. Loose terminal, pinched wire, a connector that walked out under vibration. The sensing circuit is low-current; a bad connection reads the same as a blown fuse to the AVR.
Verify what the AVR is actually seeing. Measure the sensing input at the regulator terminals with the set running at no load. Compare it to the output terminals. If the regulator sees 0 volts while the set makes 500, the sensing chain is broken, not the regulator.
Then — only then — suspect the box. If the sensing is proven good and the voltage still climbs, you’ve earned the right to price an AVR.
An old hand I used to work with had one rule for high voltage: swap the AVR. “It’s always the regulator,” he’d say — the same way he said it about no voltage. He wasn’t a bad technician. He was a fast one. And fast is expensive when it’s wrong.
I started keeping a tally a few years back, because arguments need numbers. Of the last twenty overvoltage calls in my logbook, eleven were the sensing circuit — blown fuses, corroded holders, pinched wires. Five were sensing-point problems on single-phase-sensed sets. Four were genuinely dead regulators. So no, it isn’t always the regulator. Barely one in five.
Look, I get the instinct. The AVR is the box with “voltage” in its job description. When the voltage misbehaves, the box looks guilty. But the box can only work with what it sees, and what it sees comes through a fifty-cent fuse and a few feet of wire. Check the eyes before you replace the brain.
Add the sensing fuse to your maintenance checklist. It takes thirty seconds: pull it, meter it, look at the holder. Do it alongside everything else, and write it down the way you’d log a nuisance trip — not because the fuse wears out on schedule, but because the one time it fails silently, you’ll want to know it was fine last month.
And if your set senses a single phase, find out which one. Label it. Tell the next electrician. The cheapest insurance in the building is a piece of tape that says “AVR senses L1.”
That cold-storage manager still tells the story, by the way — usually to new staff, usually ending with “and the whole fix cost less than my lunch.” He’s not wrong. Just make sure nobody pressure-washes the control panel on a Friday again. If your voltage is climbing and you’d rather have experienced eyes on it, get in touch — we’ve chased this ghost before.
