The genset was brand new. It had never been started. And I failed it in thirty seconds, with a little grey box that costs less than a tank of diesel.

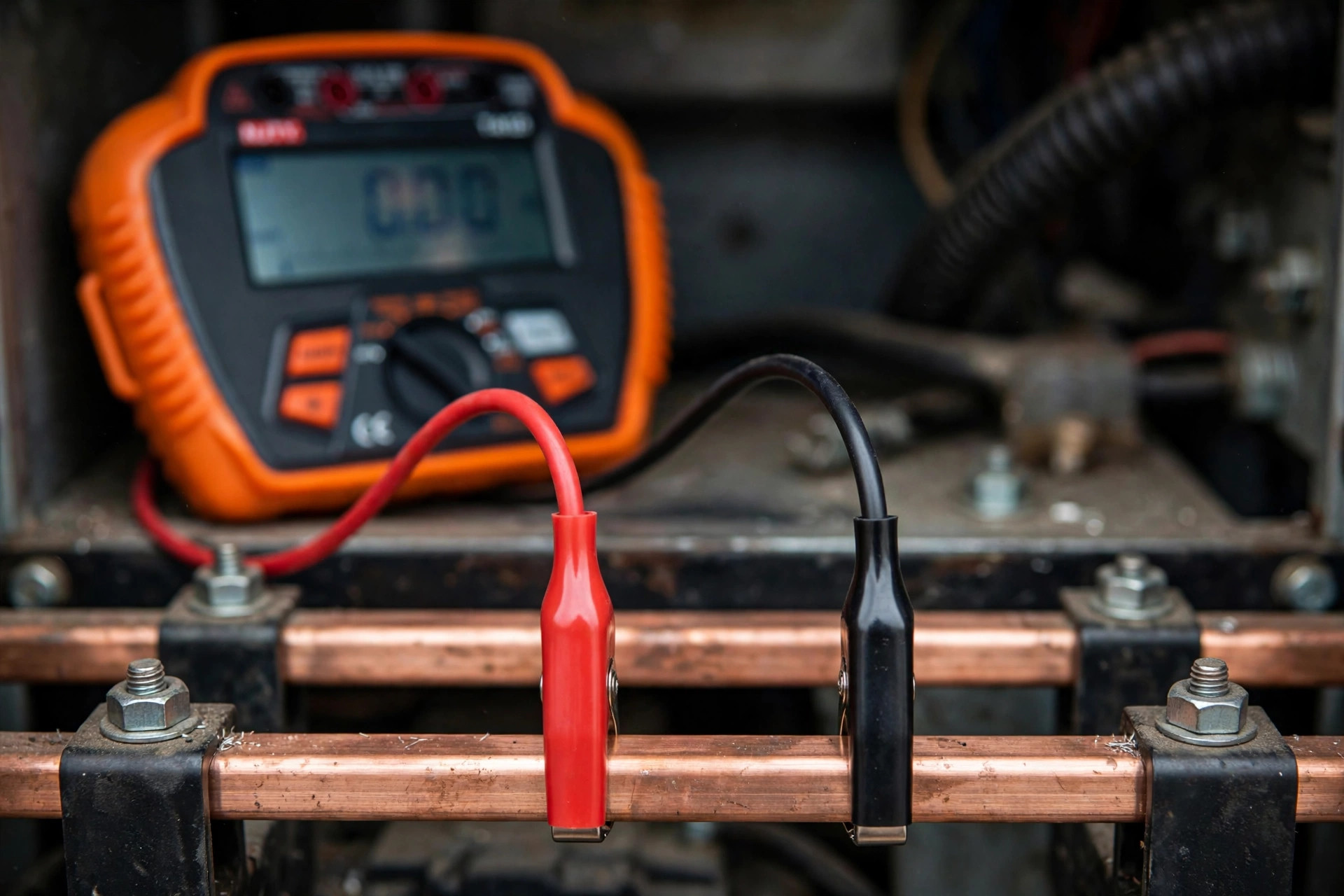

Commissioning morning. Big warehouse outside the port, July, the kind of humidity where your shirt sticks to you by nine. The set sat on its pad, wired to the building, fuel in the base tank, batteries on charge. The foreman wanted it started by lunch — he’d promised the client a handover on Friday. I pulled out the insulation tester, clipped the leads to the alternator windings, hit the button, and watched the numbers fall. Phase U to ground: 0.4 megohms. Phase V: 0.3. Phase W: 0.5.
“Is that good?” the foreman asked.
“No,” I said. “We don’t start this machine today.”
He laughed. Thought I was joking. I wasn’t. A winding with half a megohm to ground on a 400-volt alternator is a fault waiting for a voltage. Energize it and you’re betting the whole alternator that the insulation holds. I don’t take that bet. Nobody who has ever seen a winding flash to ground takes that bet.
Here’s what surprised the foreman most: the machine was perfect. Fresh from the factory, never run. The alternator wasn’t damaged. It was wet. The set had spent three months in a shipping container and two more in an unventilated warehouse, and the windings had been breathing damp air the whole time. Moisture had soaked into the insulation. That was all. One of the cheapest problems a generator can have — and one of the most expensive if you ignore it.
An insulation resistance test — everybody calls it a megger test, after the brand that invented the box — does something beautifully simple. It pushes a high DC voltage into the winding, usually 500 or 1000 volts on a low-voltage alternator, and measures how much current leaks out through the insulation to ground. Good insulation barely leaks. The number comes out in megohms. New, dry windings often read tens or hundreds of megohms. Sometimes the meter just shows overload and gives up counting.
The rule of thumb every commissioning hand I know carries in his head: on a 400-volt-class machine, anything below about one megohm, and you stop. Don’t energize. Don’t “just try it.” A winding at 0.4 megohms might run for a day. It might run for an hour. It might arc phase-to-ground the moment full voltage hits it and weld itself into a repair bill bigger than the alternator cost. (Rough field rule, not a code number — the standard engineers quote for the formal version is IEEE 43.)
Thirty seconds. That’s the whole test. Thirty seconds, and you know whether the most expensive single component in the genset is safe to wake up.
If you hang around test engineers long enough, someone will tell you to take two readings — one at one minute, one at ten — and divide the second by the first. That’s the polarization index, the PI. The idea: in healthy insulation, the leakage current keeps falling as the test voltage soaks in, so the ten-minute reading should sit well above the one-minute one. A PI of 2.0 or better is the number the textbooks like.
Here’s where the old guys and I argue.
An engineer I respect — twenty-five years, mostly big hydro machines with form-wound stators — swears by the PI. “It catches contamination the one-minute reading misses,” he says. And on large form-wound stators, he’s right. But on a random-wound alternator inside a 100-to-800 kVA genset? I think it’s overkill most of the time. Those windings are small. The reading settles in under a minute. I’ve watched guys stand around for nine extra minutes computing a ratio that told them nothing the first reading hadn’t. Site time is money, and a simple pass-or-fail at one minute catches the failures that matter.
That said — and I tell every apprentice this — if the one-minute reading lands in the borderline zone, say between 1 and 5 megohms, then yes, run the full ten minutes. That’s exactly the situation the PI was invented for. The test has a purpose. It just isn’t always that purpose.
After a decade of these tests, almost every reading falls into one of three buckets. Near zero — fractions of a megohm, or a dead short. That’s not moisture. That’s damage: a winding that’s been cut, crushed, or carbon-tracked. That machine needs a rewind or a replacement stator, and no amount of drying will fix it.
A tenth of a megohm up to about one — that’s the damp machine. Nine times out of ten, it’s moisture. The fix is heat and time: energize the anti-condensation space heaters if the set has them, or pull the covers and push warm dry air through the windings, then retest. I’ve watched 0.3-megohm readings climb past 50 after a day of proper drying. It feels like magic. It isn’t. It’s just physics catching up.
Five megohms and up — a healthy machine. Start it. One caveat: insulation resistance roughly halves for every 10 degrees Celsius the winding warms up, so a reading taken on a cold winding will always look worse than the same winding hot. Write the temperature down next to the number, or the number means nothing next month.
See the pattern? The middle bucket is by far the most common. Moisture, not damage. Which is exactly why the test matters: it turns a problem that looks like a dead alternator into a drying job.

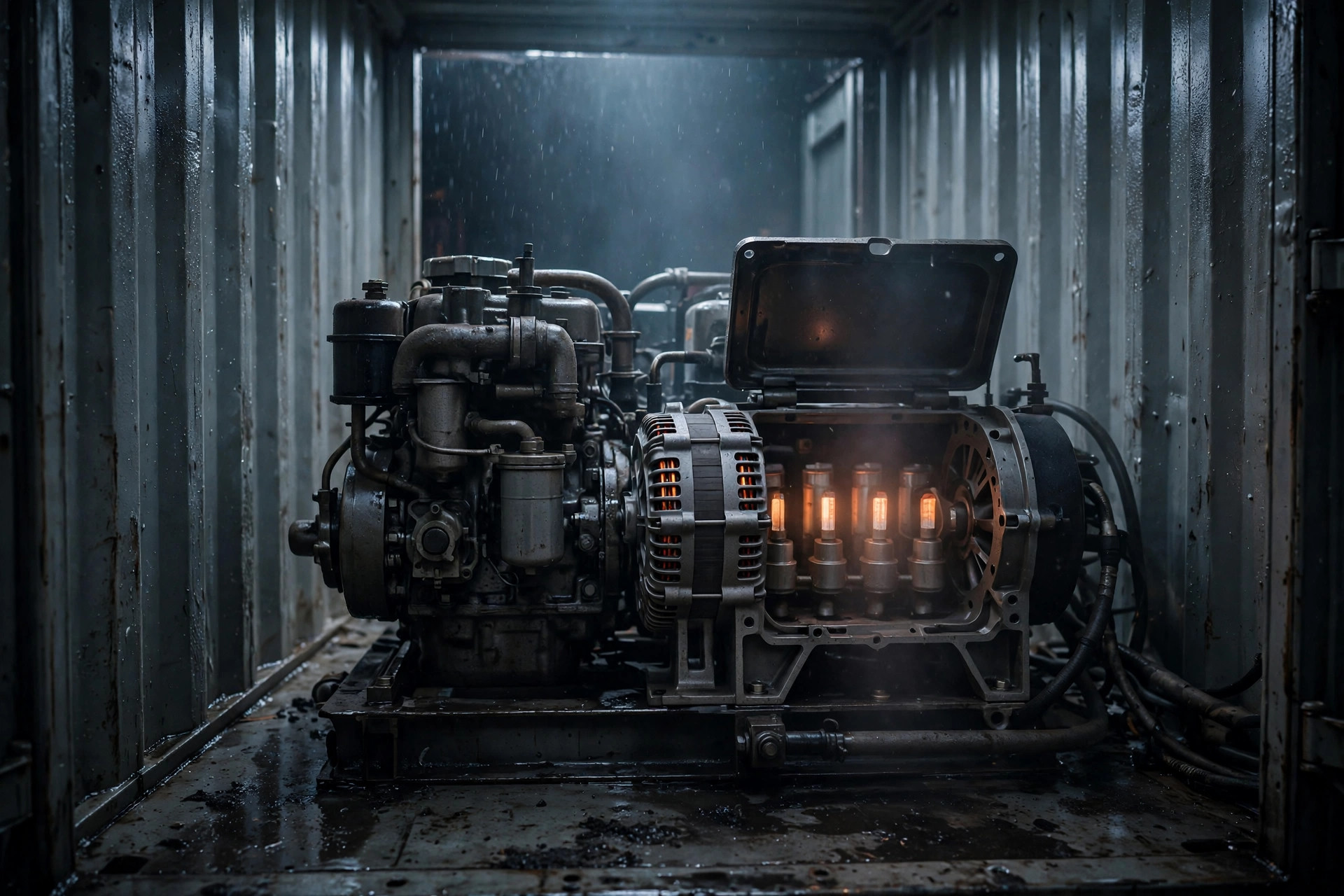

It sounds wrong, doesn’t it? New machine, failed test. But copper windings breathe. The insulation on the wire — enamel, varnish — drinks moisture straight out of the air. A genset that ships in winter, rides a container across the ocean, then waits three months in a humid warehouse has spent its whole young life collecting water. The windings never saw voltage. They don’t need to. Damp air does the job alone.
This is why anti-condensation heaters exist — little heating elements tucked into the alternator that keep the windings a few degrees above ambient when the machine sits idle. They’re cheap. A few hundred dollars on a machine that costs tens of thousands. And I keep finding them disconnected. Not failed — disconnected. Somebody never wired them, or the breaker feeding them got borrowed for something else. Checking that heater circuit is now part of every commissioning I do. Two minutes. The one time it isn’t wired is the time it matters.
There’s a second, quieter cause I’ve seen more than once: cleaning. Somebody hoses the genset down before delivery, or pressure-washes the engine bay, and water finds the winding through the ventilation slots. The machine looks beautiful and tests terrible. Ask me how I learned that one. Actually — don’t. It involved a very awkward phone call with a customer.
Sometimes the drying doesn’t move the needle. You bake the machine for two days, the reading stays at 0.2, and no heater in the world is going to fix it. That’s when you start looking for the ugly causes.
Carbon dust is a common one on older sets — years of grime and brush wear building a conductive path across the end windings. A careful clean-out can sometimes recover those. Thermal damage is the one that doesn’t recover: insulation cooked past its rating goes brittle and cracked, and no test will bring it back. You can see it if you know what to look for — varnish gone brown, a burnt-toast smell when you open the terminal box.
The honest moment is when the retest after drying reads the same as before drying. That’s your answer. Not moisture. Something structural. Time to talk about a rewind or a replacement alternator — and to be grateful the tester found it on the ground instead of the engine finding it at full load.
Back to that warehouse morning. We dried the set — covers off, space heaters on, a day of warm air — and the readings climbed: 12 megohms, then 60, then the meter stopped counting. We started it on Friday. Handover happened on time. The foreman still tells the story as the time I “failed a brand-new generator.” He means it as a joke now. He didn’t, at the time.
The tester cost less than the fuel in the base tank. The test took thirty seconds. Skip it, and you’re gambling an alternator against your schedule. Every time I’ve seen that gamble lost, the person who lost it said the same thing afterward: the machine looked fine.
If you’re commissioning a set — new or used, doesn’t matter — put the insulation test on the checklist before the first start, every time. Our commissioning checklist lists it as step one for a reason. And if the reading comes back low, don’t panic and don’t push the start button. Dry it, retest it, and thank the little grey box. It just did the cheapest failure analysis you’ll ever get. The alternator is the one part of a genset you really don’t want to learn about the hard way.
