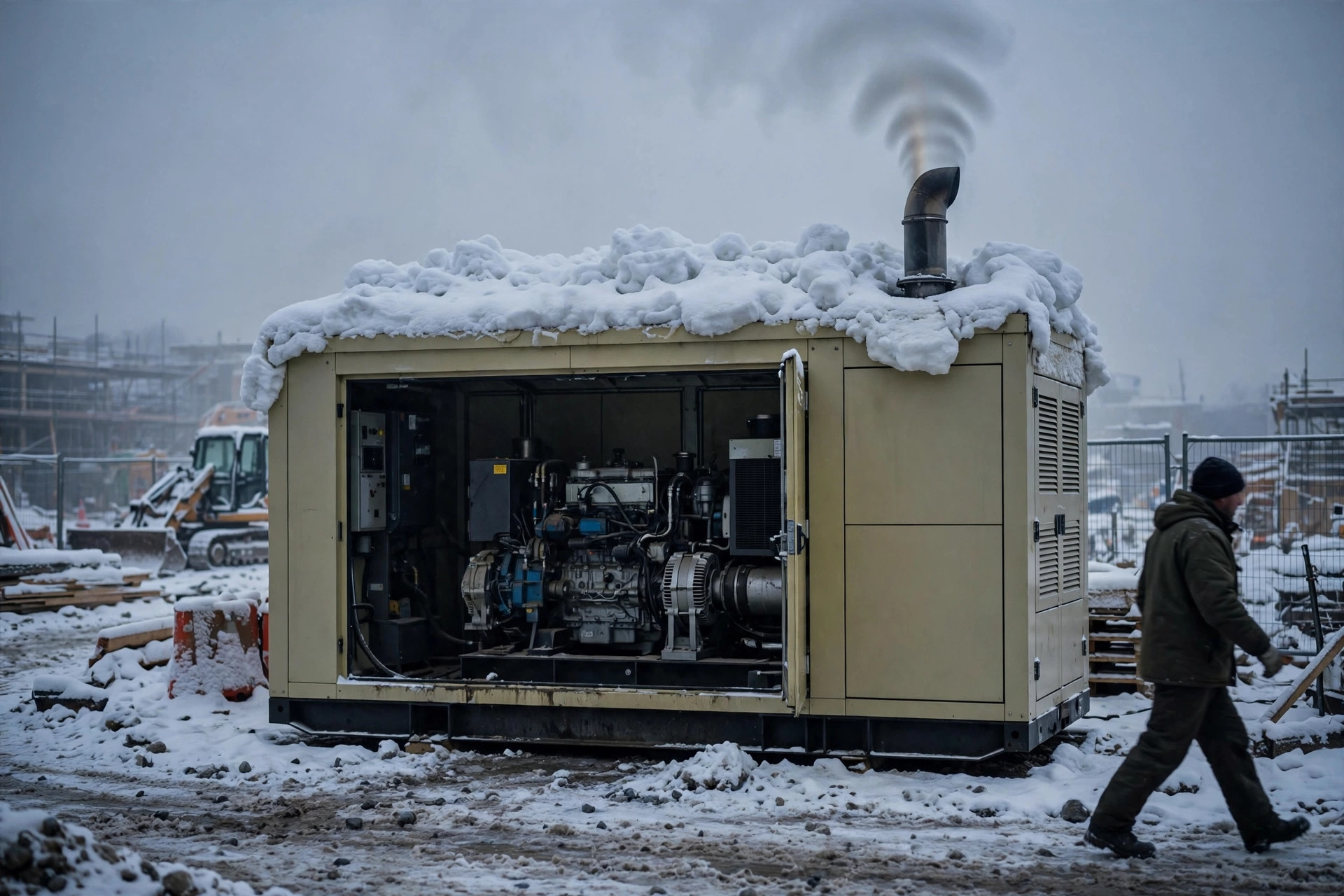

It was 4:12 in the morning, minus 18 outside, and the grid had just died. The ATS did its job — I heard it clunk over. Then the generator cranked. And cranked. Ten seconds of that labored whirring, then the controller gave up and tried again. Nothing.
Here’s the part that stung: the block heater was plugged in. Its little indicator lamp glowed green all winter, every winter, for three years. But the coolant temperature gauge read 4°C. Four. The heater was a 1000-watt unit bolted onto a 1250 kVA set — roughly the heating power of a hair dryer trying to warm up a truck engine. That night I learned something nobody puts in a brochure: a heater isn’t a checkbox. It’s a sizing decision, and most of them are sized wrong.
After that night I went through every cold-start heating option on the market — tore the specs apart, called the guys who install them, and asked what actually fails in the field. Three contenders showed up again and again: the jacket water heater (the classic block heater), the oil pan heater, and the battery warmer. They are not interchangeable. Honestly, two of them are supporting actors at best. Here’s the honest comparison.
Quick physics, because it explains everything below. At minus 20, 15W-40 oil flows like honey. A battery loses roughly half its cranking power. Diesel starts waxing — those little paraffin crystals that clog filters. And every clearance inside the engine is at its worst: cold pistons in cold liners, tight and dry.
A cold diesel doesn’t refuse to start out of spite. It refuses because three things conspired against it at once. In the projects I’ve handled, seven out of ten winter no-starts traced back to those three things being unprepared — not to anything wrong with the engine itself.
So the real question isn’t “which heater.” It’s “which of those three problems does each heater actually solve.”
This is the classic block heater — an electric element threaded into the coolant circuit, usually 1500 watts on a small set and 3000 to 5000 watts (sometimes two units) on anything above a megawatt. It keeps the coolant around 38–49°C, and convection carries that warmth through the whole block: liners, head, even the oil splashing around inside gets some mercy.
Of the three heaters, this is the only one that attacks the main problem — cold metal and thick oil at the cylinders where combustion has to happen. Everything else is garnish.
But “mandatory” doesn’t mean “any one will do.” I worked on a 2000 kVA installation that came with a single 1500-watt heater because someone value-engineered the spec. At minus 25 the coolant never broke 15°C, and the set cranked like it was chewing gravel. We added a second heater on the opposite side of the block. Problem gone. Same engine, same fuel, same battery — the only change was enough watts in the right places.
One more thing people get wrong: these heaters should run through a thermostat, not straight off the breaker. A heater with no thermostat control is either cooking your electric bill all summer or — worse — silently dead all winter. More on that below, because the thermostat deserves its own section.
Oil pan heaters come as stick-on pads or immersion elements that go through the sump. They warm the oil directly, which sounds great until you think about it for ten seconds: warm oil, cold block. The cylinders are still stone cold. The clearances are still wrong. As a primary cold-start strategy, an oil pan heater alone is like warming your hands while standing naked in a blizzard.
That said — I don’t dismiss them entirely. Paired with a properly sized jacket water heater, in real deep cold (think minus 30 and beyond), pre-warmed oil means the starter motor draws noticeably less current on that first crank. On big sets with marginal battery capacity, that margin matters. It’s a supporting actor that knows its role.
The warning I’d give: stick-on pads run hot in a small footprint. I’ve opened sumps with a ring of baked-on oil varnish right where a pad sat slightly crooked — localized overheating cooking the oil film, year after year. If you go this route, immersion-type elements distribute heat better, though they mean draining the sump and pulling the pan for installation. And if anyone tries to sell you an oil pan heater instead of a block heater, walk away. That’s not a heating strategy, that’s a sales quota.
Battery blankets and warming pads are the cheapest of the three, and the most emotionally satisfying — you feel like you’ve done something. At minus 18 a battery genuinely loses 40 to 50 percent of its cranking amps, and a warmer claws some of that back. On an unmanned remote site, I’d rather have one than not.
But here’s the thing nobody selling them will tell you: a warmer can’t save a weak battery. It just keeps a dying battery comfortably warm while it fails. I’ve seen sites with toasty, blanket-wrapped batteries that still couldn’t crank — because the batteries were four years old and the charger had been dead for months. The blanket was theater. The audience was the maintenance log.
The old hands on my crew disagree with me on this one, by the way. One of them calls battery warmers a complete waste of money; I say they’re a cheap second layer if the fundamentals are right — healthy batteries, a working float charger, terminals you actually clean. We argue about it every October. He’s probably two-thirds right. If you want the full battery story, I wrote a longer piece on generator battery maintenance — the charger matters more than the blanket, every time.
Every block heater story I’ve told you so far has a hidden fourth character: the thermostat. And it dies in two ways.
Death one: stuck open. The heater runs 24/7, all summer, heating a block nobody needs heated. I once found a site where the heater had been cooking since May. The owner’s electric bill told the story before I ever opened the canopy — thousands in wasted kilowatt-hours, and a heater element halfway through its life for nothing.
Death two: stuck closed. The heater never runs at all. Green indicator lamp, cold block, 4 a.m. no-start. Sound familiar? That was my opening story. The lamp lied. The thermostat had failed two winters earlier and nobody checked, because who checks a heater that “has always worked”?
A heater you never check is a rumor, not equipment.

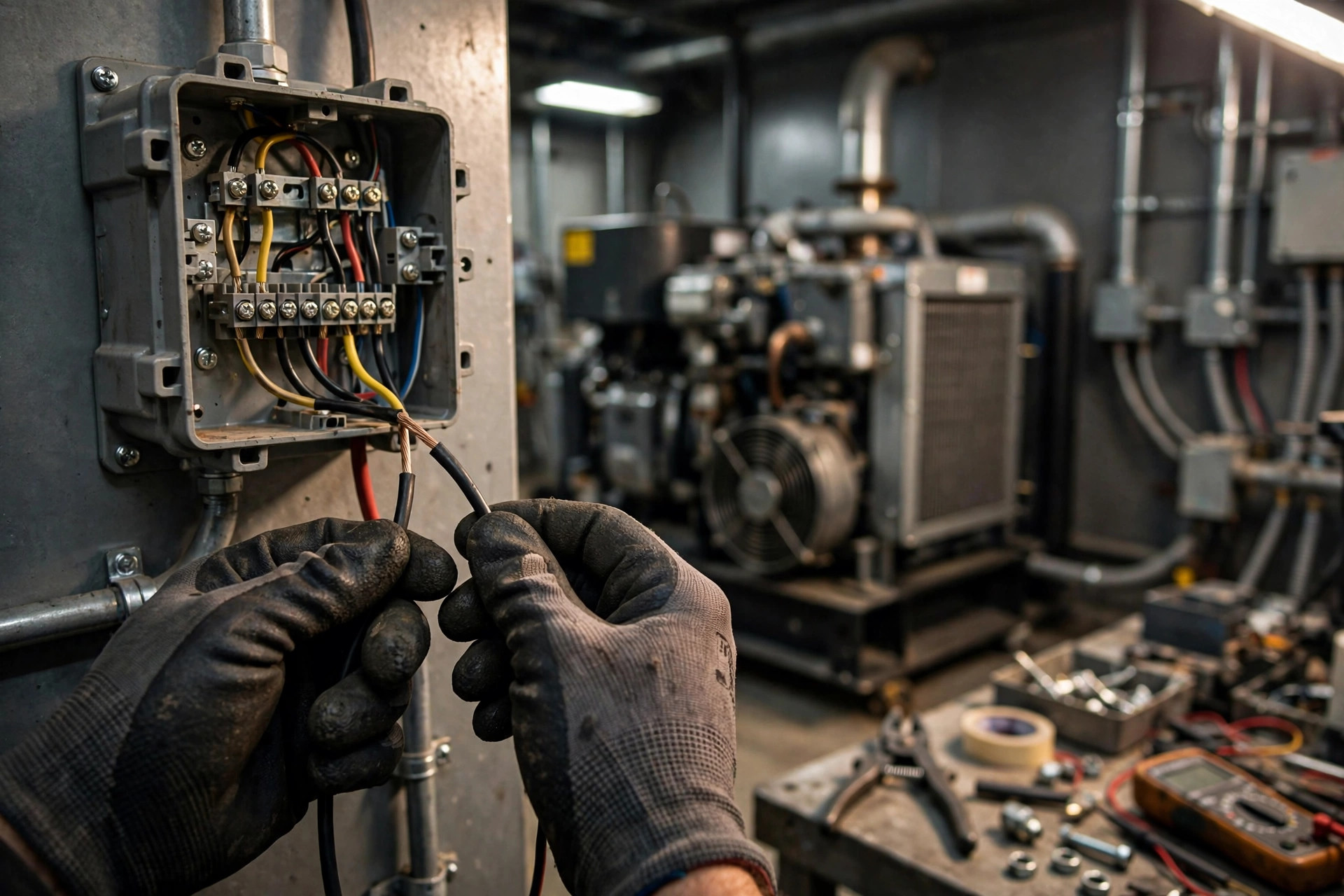

So here’s my October ritual, and I mean this literally: every fall I walk my sites with a clamp meter and check each heater’s draw for ten minutes. Feel the inlet and outlet hoses — there should be a real temperature difference. Last year I caught a dead thermostat on a hospital standby set this way. Ninety-dollar part, twenty minutes to swap. That set started first crank all winter. If you only take one habit from this article, take that one. For the rest of the winter playbook, see my cold-start survival guide — and if your set cranks but won’t catch, run through the no-start checks in order before you blame the heater.
Enough comparing. If it were my money and my 4 a.m. phone call on the line:
Don’t economize on the heater to save a few hundred bucks. That saving won’t cover one emergency callout in January — the truck roll alone costs more, and that’s before the part where everyone’s standing around in the cold explaining to the facility manager why the backup power wasn’t.
If you’re speccing a heater for a new set and want a second pair of eyes on the sizing, talk to us — tell us the kVA and your coldest month, and we’ll tell you straight whether one heater is enough or you’re buying a rumor.
