The call came at 1:40 in the morning, which is when these calls always come. A 400 kVA standby set in a hospital basement had cranked strong, fired up like it meant it, run for about ten seconds, and died. The on-call guy cranked it again. Same thing. Fired, ten seconds, dead. He called me because the third attempt did the same thing and the UPS batteries were down to their last hour.
I asked him one question: “When you pump the hand primer, does the lever go soft?” Silence. Then: “What hand primer?”
Forty minutes later I was in that basement with a flashlight, working a little lever on the side of the engine that he’d walked past a hundred times. Thirty-odd pumps, a hiss of air out of the bleed screw, then solid fuel. The set started and stayed started. The “major fuel system failure” was a tired check valve in a part that costs less than a tank of diesel.
That part is the lift pump. And it is the most misdiagnosed, most ignored, cheapest-to-fix troublemaker in a diesel generator’s entire fuel system.
Here’s the thing. When someone says “the fuel pump died,” they’re usually picturing the expensive one — the injection pump, the precision-machined heart that meters fuel to each cylinder at thousands of psi. That pump costs as much as a used car to replace. And it is almost never the problem.
The lift pump — also called the feed pump or supply pump — is the humble one upstream of it. Its whole job is low-pressure grunt work: pull fuel from the tank, push it through the filters, and keep the injection pump’s inlet full. We’re talking a few psi, not thousands. On most generator engines it’s a small mechanical diaphragm pump driven off a camshaft lobe, with a hand primer lever sticking out of it. Newer or bigger sets sometimes use an electric lift pump instead.
It has maybe four moving parts and two little one-way check valves inside. The check valves are the whole story. They’re what keep fuel from draining back to the tank when the engine sits. When they get tired — worn seats, a bit of grit, a diaphragm gone stiff with age — the fuel column slowly siphons backward overnight, or over a week, or over the three months your standby set sat between tests. Then the next start sucks air.
I’ve seen quotes for injection pump rebuilds written up for sets that needed a ninety-dollar lift pump. The giveaway is always the same: the engine fires briefly on the fuel still sitting in the filters and lines, then starves. An injection pump that’s actually dead doesn’t fire at all. Remember that distinction and you’ll save somebody a very expensive mistake someday.
The second most common way to meet the lift pump is right after you’ve done everything right. You changed the fuel filters — good maintenance, gold star — and now the set won’t start. So you crank it. And crank it. The starter gets hot, the batteries sag, and nothing happens except your growing suspicion that you broke something.
You didn’t break anything. You just installed two big empty cans full of air where fuel used to be, and the lift pump can only move a thimbleful per stroke against an air lock. Cranking the engine to prime the system is like trying to fill a swimming pool with a teaspoon while someone keeps pulling the plug.

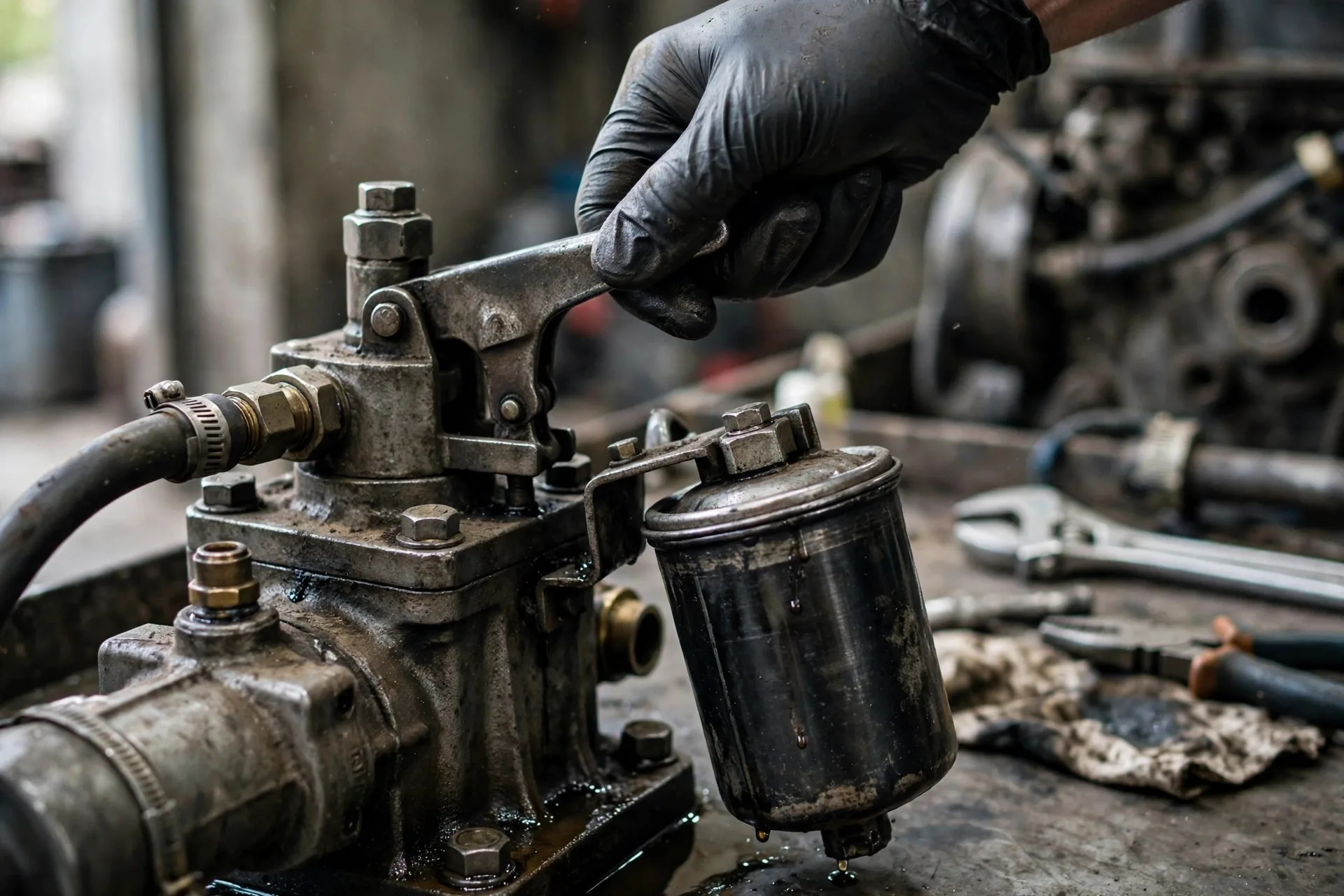

This is what the hand primer lever is for, and there’s a trick to it that the manual buries in one line. The lever only pumps when the camshaft lobe is off the pump’s drive plunger. If the engine stopped with the lobe holding the plunger at full lift, the lever just flops back and forth doing nothing — which convinces a lot of people the pump is broken. Bar the engine over a quarter turn by hand and try again. When the lever suddenly gets firm under your thumb, you’ve found the working position.
The routine that works: open the bleed screw on the filter head, work the lever until the fuel coming out is bubble-free, close the screw, then give it another dozen firm strokes to pressurize the head. Don’t rush it. I once watched a contractor’s helper pump three times, declare it primed, and crank for two minutes straight. The filters were still half air. Thirty patient strokes would have had him home an hour earlier.
Electric lift pumps are more forgiving — key on, let it run its cycle, repeat two or three times — but they have their own trap: people assume the pump runs whenever the key is on, when on many controllers it only runs for a timed prime cycle or while cranking. If yours goes quiet after a few seconds, that’s normal. Cycle the key again instead of leaning on the starter.
Loss of prime on a standby set that sits for weeks is a special kind of maddening, because the usual suspect — a fuel leak — leaves no evidence. There’s no puddle, no drip, no smell. That’s because the leak is backward. Air is getting in; fuel isn’t getting out.
The suction side of the fuel system, everything between the tank and the lift pump inlet, runs at slight vacuum when the engine turns. A cracked suction hose, a filter housing O-ring that’s gone flat with age, a loose banjo bolt, a pinhole in a steel line where it chafes against a bracket — any of these will sip air in while the engine runs and let the fuel column fall back to the tank when it stops. The engine runs fine once started, because at speed the lift pump outruns the little air ingestion. It’s the cold start after a long sit that exposes it.
The drain-back path I see most often is the check valve inside the lift pump itself, or the one in the filter head on some engines. Here’s the five-minute test I do on every standby set that “sometimes needs a few extra cranks”: prime it solid in the evening, run it, shut it down, and come back the next morning before touching the starter. Work the hand primer. If the lever is firm within a few strokes, the system held its prime. If it pumps soft for twenty or thirty strokes before firming up, fuel went somewhere overnight — and “somewhere” is back down the suction line to the tank.
On one rental-fleet 350 kVA I chased this for two visits before I stopped looking at the engine and looked at the installation. The belly tank sat a full meter below the lift pump. Gravity wanted that fuel back in the tank every single night, and the only thing arguing with gravity was one tired check valve. A new lift pump fixed it — but so would have questioning why the tank was mounted so low in the first place. Elevation matters. If your tank sits below the pump, that check valve is doing lonely, thankless work, and it deserves to be on your replacement schedule.
My favorite field diagnostic for suction-side air, when I can get away with it: a short length of clear hose temporarily spliced into the suction line. Crank the engine and watch. A steady stream of tiny bubbles marching toward the pump is the most honest confession a fuel system can make. Just don’t leave the clear hose in place permanently — it’s a diagnostic tool, not a repair.
I’ll keep this one short, because I’ve written about ether before and it deserves its own warning label. A shot of starting fluid will fire a diesel with air in its fuel lines. It’ll fire it beautifully, in fact. Which is exactly the problem: it masks the delivery fault for one more start, and every successful ether start convinces the owner the fuel system is fine.
At a quarry site I visited on a Tuesday morning, the operator had been ether-starting their 500 kVA for the better part of a month. “She’s just cold-blooded,” he told me. She wasn’t cold-blooded; her lift pump diaphragm had a split you could see daylight through, and she’d been losing prime every night for weeks. A month of ether starts had washed the cylinder walls enough that we were discussing oil consumption before we’d even fixed the original fault. Fix the prime problem and the ether can stays on the shelf where it belongs.
This one stings, because the weekly no-load exercise is good practice and I’m not about to tell anyone to stop doing it. But understand what it actually proves. When your controller fires the set every Tuesday at 10 a.m., the fuel system was primed last Tuesday. The check valve only had seven days to leak down, and seven days often isn’t enough for a weak valve to fully drain the lines. The set starts, runs unloaded for twenty minutes, and logs a pass.
Then the real outage comes after the set has sat for six weeks — a long quiet stretch, maybe a mild season with no grid events — and the lines are full of air. The exercise tested the battery, the starter, the controller, and the ATS. It never tested whether the fuel system could hold prime across a long sit, because it never gave it a long sit.
Honestly, the fix is almost embarrassingly simple: once a quarter, before the exercise run, walk out there and work the hand primer first. Count the strokes to firm. Write the number on the log sheet next to the hour meter. When “four strokes” becomes “twenty strokes” over a few months, you’re watching a check valve die in slow motion — and you get to replace a cheap pump on your schedule instead of diagnosing a no-start at 2 a.m. on someone else’s.
An old-timer I worked with for years disagrees with me on one point, and I’ll give him his due: he thinks electric lift pumps are a crutch and a properly maintained mechanical pump with a good check valve never loses prime. He’s right about the second half. Where we split is that I’ve started specifying electric primer pumps — wired to run a timed prime cycle before crank on standby controllers that support it — on sets that sit for months. He calls it cheating. I call it acknowledging that the check valve will age whether we watch it or not, and a thirty-second electric prime is cheaper than one emergency callout.
So next time a set fires, dies, fires, dies — before anyone writes up an injection pump, before anyone reaches for the ether, go find the little lever on the side of the engine. Pump it. If it goes soft and then firms up, the engine just told you everything. The fuel system lost its prime. Now you get to find out whether it was the pump’s check valve, a suction-side air sip, or just a filter change that nobody primed. All three are cheap. All three beat a 2 a.m. phone call.
