Tuesday morning, 9 a.m. I’m standing next to a 500 kVA standby set in a logistics warehouse, finishing up a service. The facility manager walks over, coffee in hand, and nods at the engine. “While you’re here—change the oil filter too, yeah?”
I point at a second spin-on canister, tucked under the exhaust manifold, wearing six years of dust. “You mean that one? That’s not an oil filter.”
He squints. “Then what is it?”
“Your coolant filter. When did you last change it?”
The silence that followed told me everything.
A diesel engine’s coolant filter looks like an oil filter that got lost. Same spin-on canister, same threads, bolted to the side of the block. It’s plumbed into the cooling circuit, and it does two things.
Job one is obvious: it catches junk. Casting sand left over from manufacturing, scale, solder bloom, rust flakes—everything the coolant picks up as it circulates. Fine. Filters filter. Nobody argues with that.
Job two is the one nobody knows about, and it’s the important one. Inside most coolant filters sits a slow-release charge of DCA—diesel coolant additive, also called SCA, supplemental coolant additive. It dissolves into the coolant over months and lays down a protective film on the wet cylinder liners. That film is the only thing standing between your liners and a very specific, very expensive kind of death.

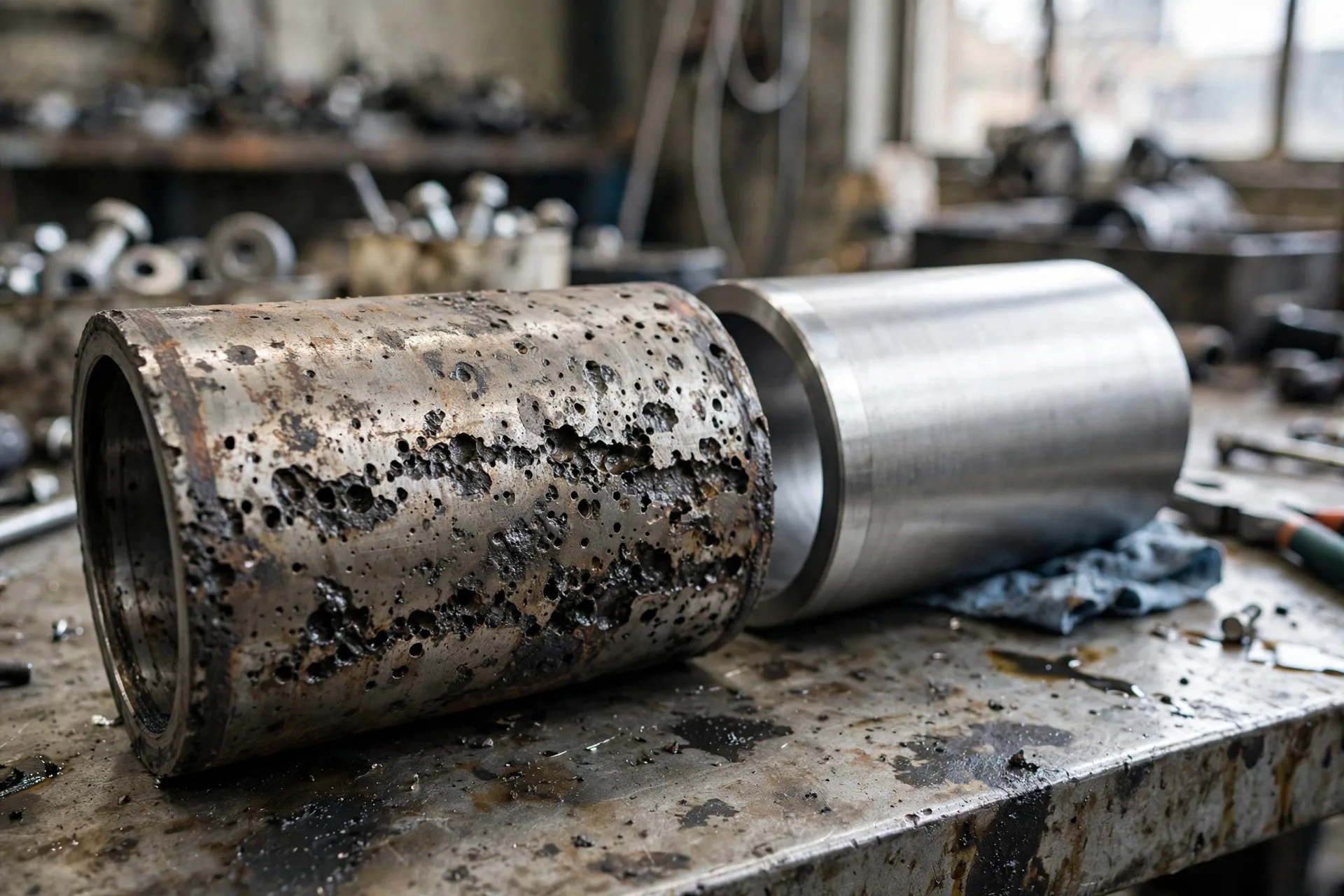

Here’s the mechanism, in plain terms. A wet liner vibrates—thousands of tiny flexes every second as combustion hammers the piston. That vibration makes microscopic vapor bubbles form and collapse in the coolant hugging the liner wall. Each collapse is a tiny hammer blow. Without the additive film, those hammer blows eat pinholes straight through the liner. Engineers call it cavitation erosion. I’ve pulled liners that looked like someone attacked them with a needle.
Once a pinhole goes through, coolant finds the crankcase. Oil turns to milkshake. Bearings die. And the engine never warns you—it just starts drinking coolant one pinhole at a time. If you want the full picture of what the cooling system is up against, start there. This is the part of it nobody services.
Most owners I meet have never changed the coolant filter. Not once. The canister sits there for the life of the machine, its additive charge long exhausted, filtering nothing but time.

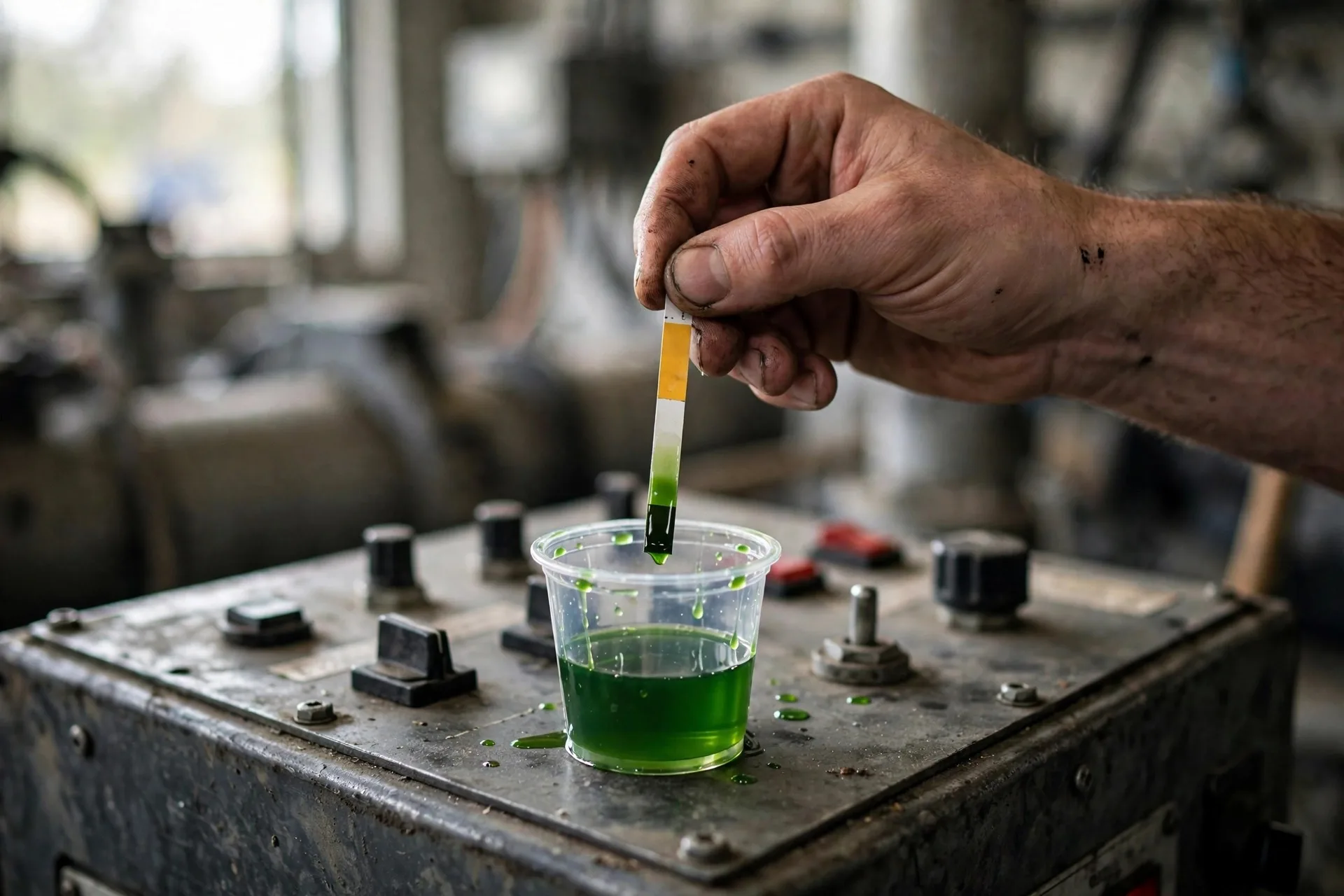

The charge lasts roughly a year, or around 500 running hours—whichever comes first. After that, the liner protection is gone and nobody knows, because there is no gauge for it. There is a test strip. A thirty-second dip that reads the additive concentration in the coolant. I’ve handed them out like candy. Almost nobody uses them twice.
In one project I worked on, a 500 kVA prime-power set at a quarry—around 9,000 hours on the clock—started losing coolant with no external leak, and the oil level kept creeping up. The site mechanic was already pricing a head gasket. I pulled the liners instead. Two of them were pitted through like Swiss cheese, coolant weeping into the crankcase. The coolant filter on that engine was the original. The date code said it was old enough to drive.
The head gasket was fine. The bill ran to four figures in parts and a week of downtime, all because a thirty-dollar canister never got spun off. That engine is now a line item in what actually decides how long a generator lasts—and it wasn’t the engine’s fault.
Here’s where it gets tricky, because “coolant filter” isn’t one thing. Some canisters come pre-charged with DCA. Some are blank—filtration only, no chemistry. They look identical on the shelf. They are not interchangeable.
Put a blank on an engine whose coolant depends on the filter for its additive top-up, and the protection quietly fades out. Put a pre-charged one on a system someone already dosed with liquid SCA, and you get over-concentration: silicates drop out of solution and turn to gel. Gel doesn’t cool anything. It packs into radiator tubes.
A maintenance tech I know—good intentions, wrong chemistry—poured a bottle of liquid additive into the system at every service, “for good measure,” on top of a pre-charged filter. Two years of that. The set started running hot at 70% load. The radiator looked fine from the outside. Inside, half the tubes were packed with gray gel and we had to rod it out. He’d spent two years carefully poisoning his own cooling system, one bottle at a time. (Overheating has a way of exposing exactly this kind of well-meaning mistake.)
The rule I give people: know what your coolant needs before you buy the canister. Read the filter label—it says whether it carries a charge and how much. If someone already added liquid SCA, don’t stack a charged filter on top. More chemistry isn’t more protection. It’s gel.
One more trap, and this one’s newer. Extended-life OAT coolants—the red or orange stuff rated for six years—explicitly forbid SCA. The chemistry is already in the coolant, balanced at the factory. Spin a charged filter onto an OAT system and you over-additize it. Same gel problem, different route.
For OAT systems you want a blank filter: filtration only, hands off the chemistry. I keep running into mixed fleets—green conventional coolant in one set, red extended-life in the next, and one filter part number on the shelf that threads onto both. That’s how the wrong canister ends up on the wrong engine. Label your shelf. Better yet, write the coolant type on the filter head with a paint marker, so the next guy doesn’t have to guess.
And the classic. The owner does everything right—drains the system, flushes it, fills with fresh, properly inhibited coolant—and leaves the old filter on.
A fresh fill with a depleted filter starts life with a protection gap, because on conventional coolant the filter is part of the dosing system. New coolant, new filter. Same service. No exceptions. Put it on the maintenance checklist as one line item, not two.
While you’re there: some filter heads have small service shutoff valves so you can change the canister without draining the system. Fine. Just reopen them. I once spent an hour diagnosing “no flow through the filter circuit” that turned out to be a valve someone closed during a filter change and never reopened. The engine was fine—the filter just wasn’t filtering anything. A ten-second fix after an hour of head-scratching. Those are the ones you remember.
An old-timer I worked with used to say coolant that still looks green is fine. I tell him he’s wrong, usually over tea. Color tells you about dye, not chemistry. The strip tells you about chemistry. Trust the strip.
That warehouse manager? He bought a case of test strips and a paint marker the same week. Last I heard, every filter in his plant has a date on it. Total cost: less than the coffee budget.
Your generator’s coolant filter will never ask for attention. That’s exactly why it needs some. Go look at yours—if you can’t read a date on it because there isn’t one, you already know what to do. And if you’d rather have someone else squint at it, ask the Pavo engineering team—we’ve spun off enough ancient canisters to read a date code like a palm.
