Your Generator’s Coolant Is Eating the Engine From the Inside

Nobody thinks about coolant until the engine is already hurt. That’s the pattern I’ve watched for twelve years: oil gets changed on schedule, filters get logged, and the green liquid in the radiator just sits there, year after year, slowly turning into something that eats the engine from the inside.

A standby set I got called to last spring had been running on the same coolant for nine years. Nine. The operator was proud of how “low maintenance” his generator was. The inside of that cooling system told a different story — brown sludge in the expansion tank, a radiator half-blocked with scale, and liner seals so eaten they were weeping into the oil. His low-maintenance generator needed an overhaul that cost more than three years of scheduled services.

Here’s the thing: coolant is doing three jobs at once, and when it quits one of them, it doesn’t send you a warning.

Coolant has three jobs. Most owners only know one.

Job one: carry heat away from the engine to the radiator. Obvious.

Job two: stop the coolant freezing in winter and boiling in summer. The glycol does that — mixed roughly 50/50 with water, it drops the freeze point well below anything your site will see and raises the boiling point so the hottest spots around the cylinder head don’t flash into steam. That’s the job everyone knows.

Job three is the one nobody talks about: the coolant is also the engine’s internal corrosion protection. Plain water — especially hard water from a site tap — is brutal on cast iron, aluminum, copper, and solder. The additive package in the coolant (the industry calls it SCA, supplemental coolant additive) lays down a protective film on every wet metal surface inside the engine. Nitrite, molybdate, silicate — these aren’t marketing terms, they’re what’s keeping your liners from dissolving.

And unlike oil, the SCA package is sacrificial. It gets consumed doing its job. When it’s gone, the protection is gone, even if the liquid is still green and the engine still runs cool.

Whatever’s in the jug goes in the radiator. Bad idea.

I’ve seen maintenance guys top up a diesel generator with tap water, car antifreeze, leftover coolant from the truck fleet — whatever was closest. All of it causes damage, just different damage.

Tap water first. The minerals in hard water don’t stay dissolved when you heat them. They plate out as scale on the hottest surfaces — the exact surfaces that need to shed heat most. Scale is an insulator. A thin layer of scale on a cylinder head does the same thing as turning the radiator down a size. I’ve pulled radiator cores from sites with hard tap water that were coated inside with what looked like white plaster.

Car antifreeze is the subtler trap. A passenger-car coolant and a heavy-duty diesel coolant look the same in the jug, but the diesel one carries a much heavier SCA load — because a diesel engine’s wet cylinder liners need it. I’ll get to liners in a minute. Car coolant in a diesel genset means under-protected metal from day one. It also means the wrong change interval, because the car jug’s label was written for a car.

The rule is boring and correct: top up with the same heavy-duty coolant the system was filled with, pre-mixed if you can get it. If you don’t know what’s in there, find out before you pour anything in. Our maintenance checklist has the coolant level check in its regular routine for exactly this reason — the “whatever’s in the jug” top-up is where most coolant stories start going wrong.

The afternoon I found jelly in a radiator

Different coolant chemistries do not play nicely together. The old green stuff (inorganic additive technology, IAT) and the newer orange/red/yellow long-life coolants (organic acid technology, OAT) use completely different inhibitor chemistry. Mix them and the additives can react and drop out as a brown gel — mechanics call it exactly what it looks like. Jelly.

I found this on a site where the day-shift guy topped up with green and the night-shift guy topped up with orange, for months. The radiator was full of brown sludge. The heater hoses had swollen soft. The engine was running hot under load, and everyone blamed the thermostat. We flushed the whole system twice, replaced the hoses, and the “mystery” overheating went away with the jelly. If your engine is running hot and the cooling system looks like chocolate milk, check the coolant chemistry before you touch anything else — our overheating guide covers the diagnostic order that keeps you from replacing parts that were never the problem.

Mixing also applies to colors, which is the part that gets people. Color is just dye. Two coolants can be the same green and still be incompatible chemistries. Read the spec on the jug — it should say something like ASTM D6210 for heavy-duty diesel, or name the engine maker’s spec. If the jug you’re holding doesn’t match what’s in the engine, don’t pour.

It still looks green. It’s still dead.

This is the nine-year-coolant story from the top, and it’s the most common one I see. Coolant doesn’t turn black like oil. It stays green, or red, or whatever color it started, long after the additive package is exhausted. The color tells you nothing about the protection.

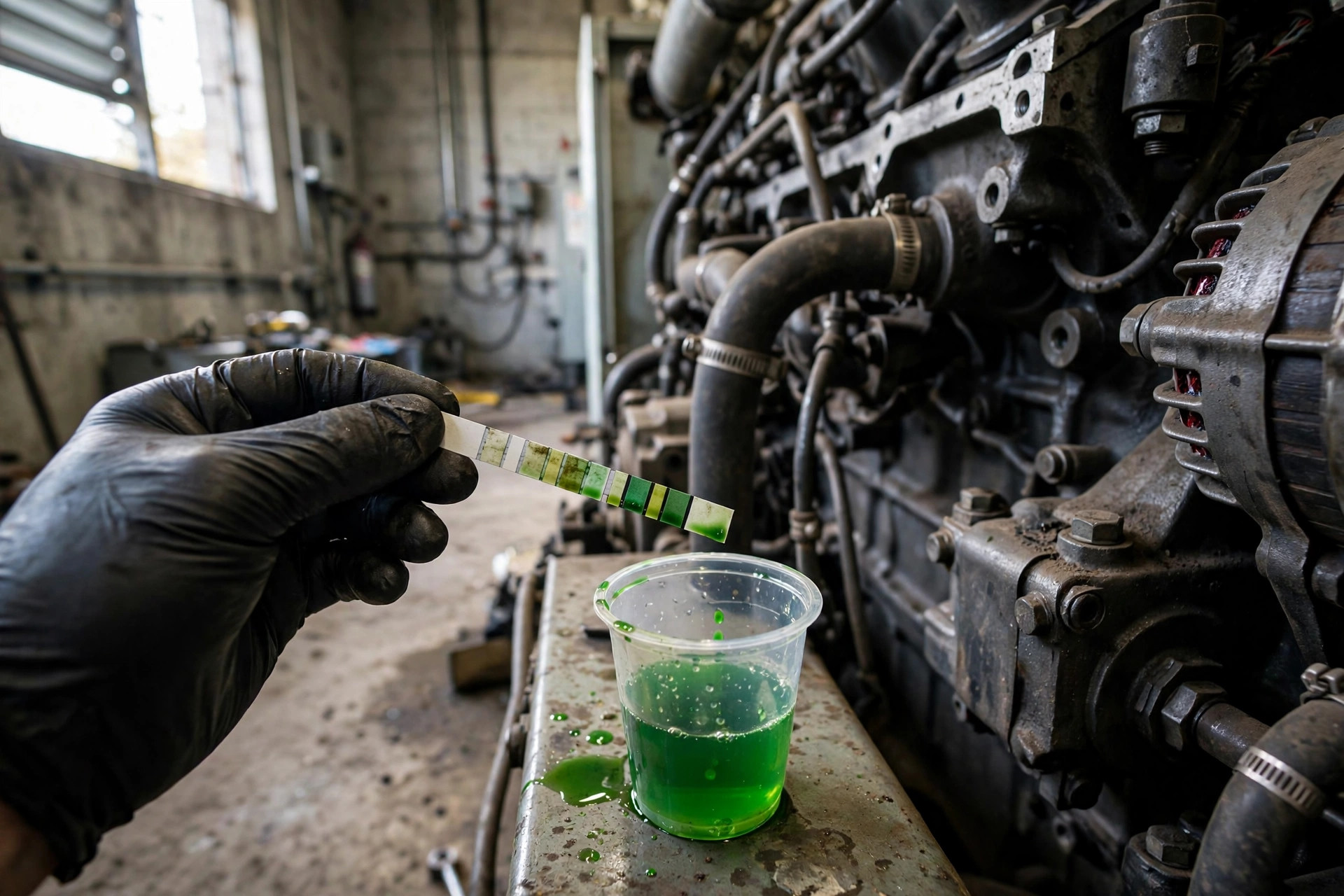

What actually expires: the SCA chemicals get used up protecting metal, glycol slowly breaks down into organic acids (which then start attacking the metal they used to protect), and the pH drifts down. The test for this costs almost nothing — nitrite test strips, dipped in a coolant sample, tell you in thirty seconds whether the additive level is still in the band. A refractometer tells you the glycol concentration and the freeze point. Any service tech worth hiring does both on a maintenance visit. If yours doesn’t, ask why.

Intervals: follow the engine maker’s spec, not the jug’s marketing. Conventional heavy-duty coolant with SCA typically wants attention (test and top up additives, or change) on the schedule the engine manual defines — commonly around the two-year mark or the hour count in the manual, whichever comes first. Extended-life OAT coolants go longer but they are not “fill for life,” whatever the jug implies. When in doubt, test. The strip is cheaper than a liner.

Cavitation — the killer nobody’s heard of

Now the part that makes coolant a diesel-specific religion. Most heavy-duty diesel engines use wet cylinder liners — the liner sits directly in the coolant, and coolant flows around it. When the piston slams down, the liner vibrates at high frequency. That vibration makes tiny vapor bubbles form and collapse on the coolant side of the liner wall. Each collapse is a microscopic hammer blow. Over thousands of hours, the hammering pits the liner wall — and eventually punches pinholes straight through it.

That’s cavitation erosion, and it’s the reason diesel coolant carries nitrite and molybdate additives in the first place. The SCA film is the only thing standing between the liner and the hammering. When the additives deplete, the pitting starts. When it punches through, coolant leaks into the cylinder or the oil — the oil goes milky, and you’re looking at a liner replacement at minimum, a full overhaul at worst.

I serviced an 800 kVA prime-power set that had this exact failure at six years old. The owner had changed the oil religiously. He’d never once tested the coolant. The liners were pitted like the surface of the moon, and two had pinholed. His maintenance log was perfect except for the one line that mattered. That job is why I tell every customer the same thing: on a wet-liner diesel, coolant is a structural part of the engine. Treat it like one.

This is also why cheap “will-fit” coolant is a false economy. The additive package is the product. A jug that meets the engine maker’s spec — Cummins, MTU, whoever built your engine, they all publish one — has the chemistry your liners were designed around. The bargain jug has dye and glycol and hope. Same logic as filters, which I wrote about in the OEM vs aftermarket parts piece: some things you buy cheap, and coolant chemistry isn’t one of them.

So what does “maintaining the coolant” actually look like?

Nothing exotic. It’s just that nobody does all of it.

Keep the system full, with the right pre-mixed heavy-duty coolant — same spec as what’s in there. Test the SCA level with strips at every service and the glycol concentration with a refractometer before winter (our winter cold-start guide covers why a weak mix strands generators exactly when they’re needed most). Change the coolant on the engine maker’s interval, not when it looks bad — because it never looks bad until the damage is done. And when you do change it, flush properly; the old depleted coolant left in the block dilutes the fresh additive package on day one.

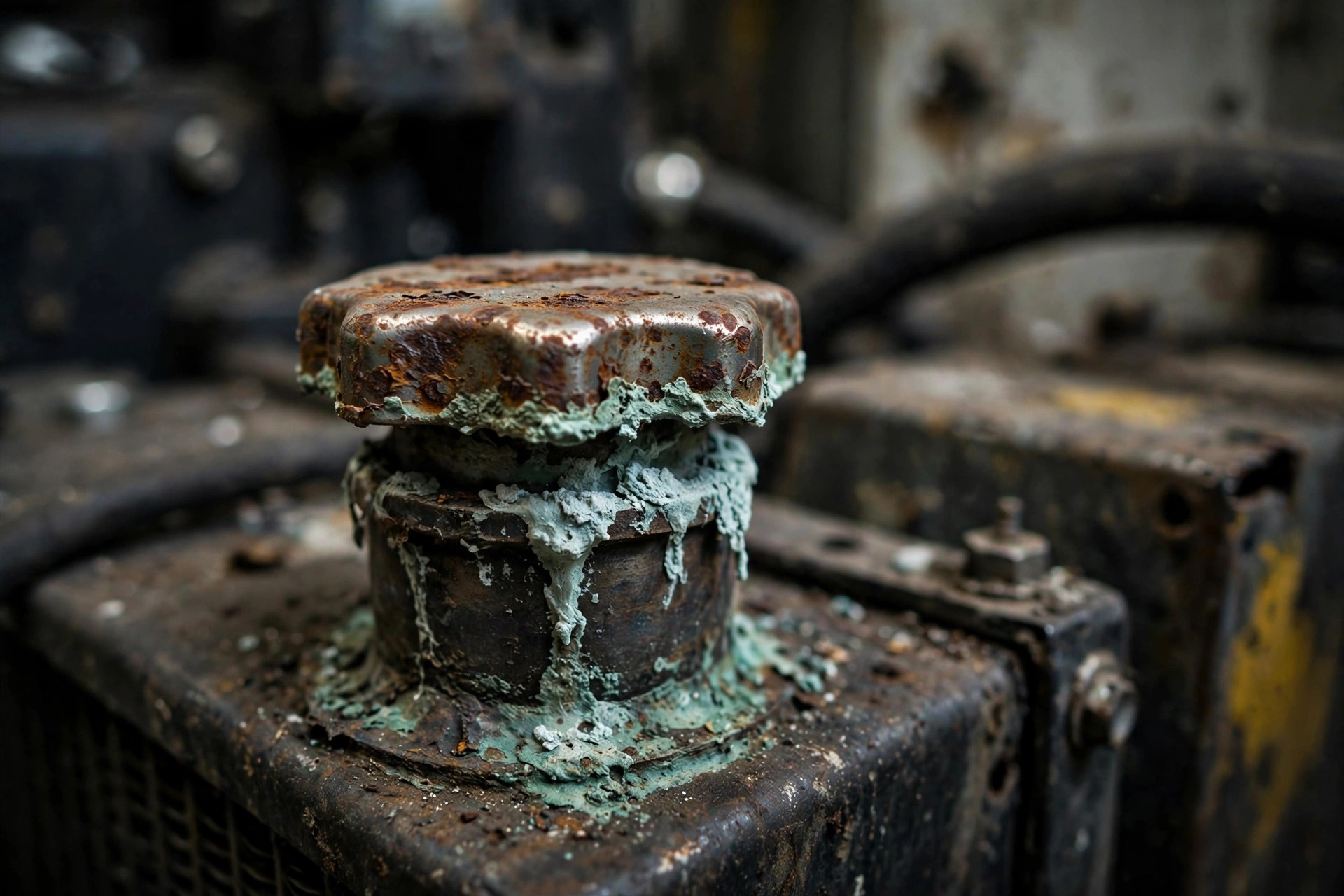

One more thing people skip: the pressure cap. The cap raises the system’s boiling point by holding pressure, and a weak cap lets the hottest spots flash to steam — which, on a wet liner, accelerates exactly the cavitation damage the additives are fighting. A cap is a ten-minute, cheap replacement. Test it or just replace it on schedule. I’ve seen engines run hot for months because of a three-dollar spring that nobody thought to check.

Coolant is the cheapest fluid in your generator and the most ignored. Oil gets the attention because it gets dirty. Coolant does its dying quietly, in the dark, inside the block — and by the time it shows symptoms, it’s not a fluid problem anymore. It’s an engine problem. Check it like it matters. It does.
