Minus twenty-three. That’s what the thermometer on the fence read the morning the 400 kVA set at the logistics park refused to start.
The block heater had been plugged in all night — I know, because I checked. Coolant gauge sitting pretty at 40 degrees. And the starter still turned over like it was chewing gravel. Three tries, each one slower. Then the batteries gave up too.
The coolant was warm. The oil wasn’t. Nobody heats that.
A jacket water heater lives in the coolant circuit. It keeps the water jacket around the cylinders at a cozy 40, 50 degrees, so the block doesn’t wake up frozen. That’s its whole job. (I covered block heaters in detail before — sizing, wiring, thermostats — what they do and where they stop.) It never promised anything about the oil.
The oil sits in a steel pan bolted to the very bottom of the engine — forty-odd liters of it in a 400 kVA machine — with cold air washing underneath it all night. Heat rises. The pan radiates. By 6 a.m. at minus twenty, that oil is within a few degrees of ambient, block heater or not.
So the gauge lies to you, in a way. It tells you the engine is warm. Half the engine is warm. The half that has to move — crankshaft, bearings, pistons — is sitting in honey.
Oil viscosity roughly doubles every twelve to fifteen degrees it drops. Do the math from a mild 20 degrees down to minus twenty and 15W-40 stops behaving like the fluid on the data sheet. It pours. Slowly. Like something from a kitchen, not a crankcase. If you run winter grades, good — the winter starting guide gets into oil grades — but even a 5W-40 at minus thirty is in no hurry.

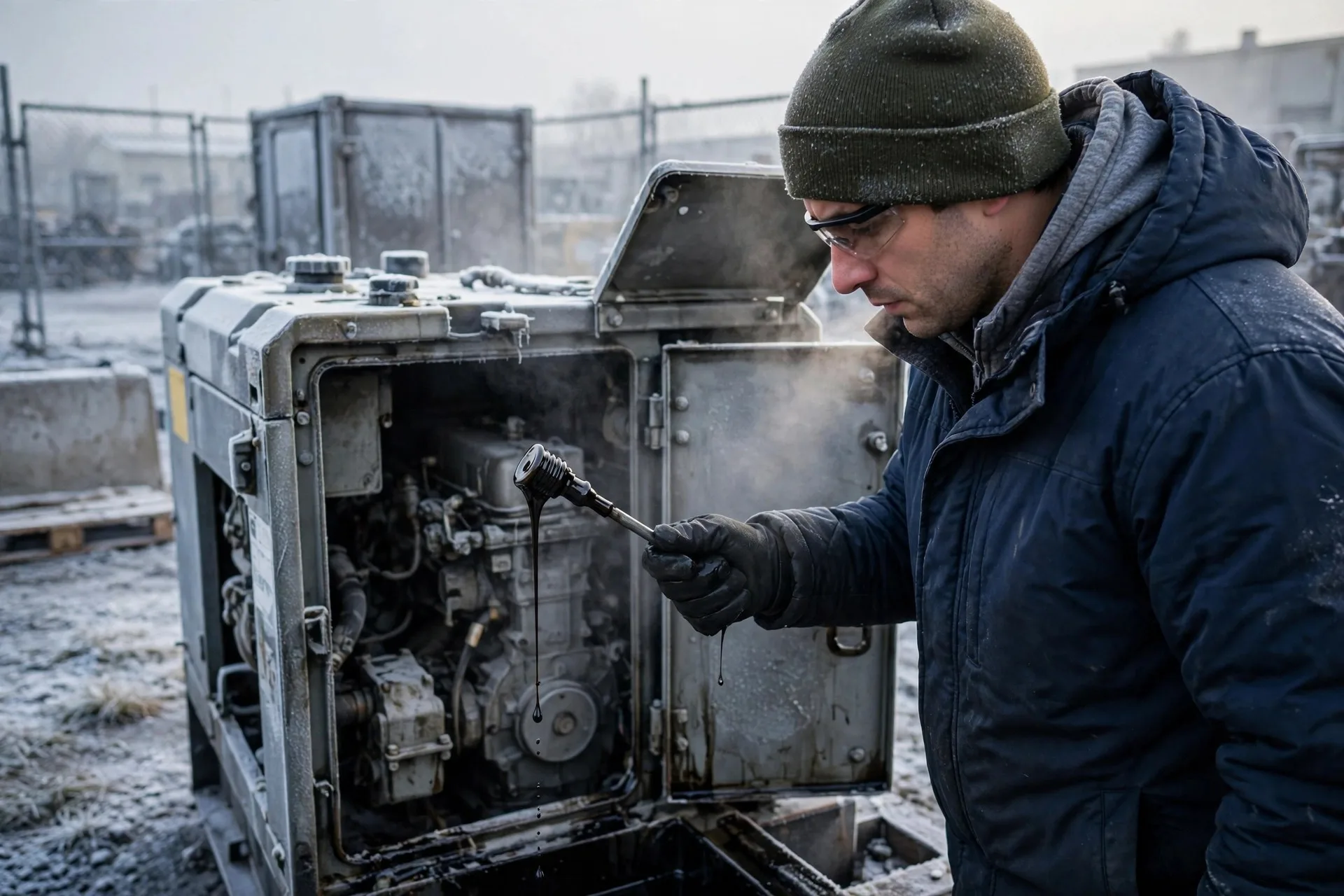

I learned this the expensive way at a quarry, years back. The mechanic there had already swapped in two fresh sets of batteries before he called me — convinced it was a battery problem, because that’s what a slow crank usually is. Usually. Not always; the no-start checklist covers the order I check things in. I pulled the dipstick. The oil strung off it in a thick thread and took its time dripping back. “When did you last see it pour like water?” I asked him. He just stared at it. We didn’t fix anything that morning. We fixed it the next winter, with a thirty-dollar pad heater.
Here’s the mechanical part, short version: a diesel starts on compression heat. The pistons have to move fast enough to squeeze the air hot. Thick oil drags everything — crankshaft, cam, the oil pump itself — and cranking RPM sags below the line where compression can do its job. You get white smoke, a few hopeful coughs, and nothing.
Meanwhile the starter is paying for it. Ten extra seconds of grinding at low speed is heat in the windings and wear on the Bendix drive — the starter motor guide has the full autopsy of what slow cranking does to them. And oil pressure takes its sweet time building, which means the turbocharger — sitting at the very top of the engine, last in line for oil — spins dry longer than it should. Turbos get their oil last and lose it first; cold starts are already their worst moment.
I’ve watched operators reach for the ether can at exactly this point. It works — the engine fires. It also hammers the pistons harder than the cold ever did. Ether has its place and its rules; forcing a honey-cranked engine to life with it is borrowing from the engine’s future.
Three ways to heat the oil. None of them is magic. Here’s how they actually compare.

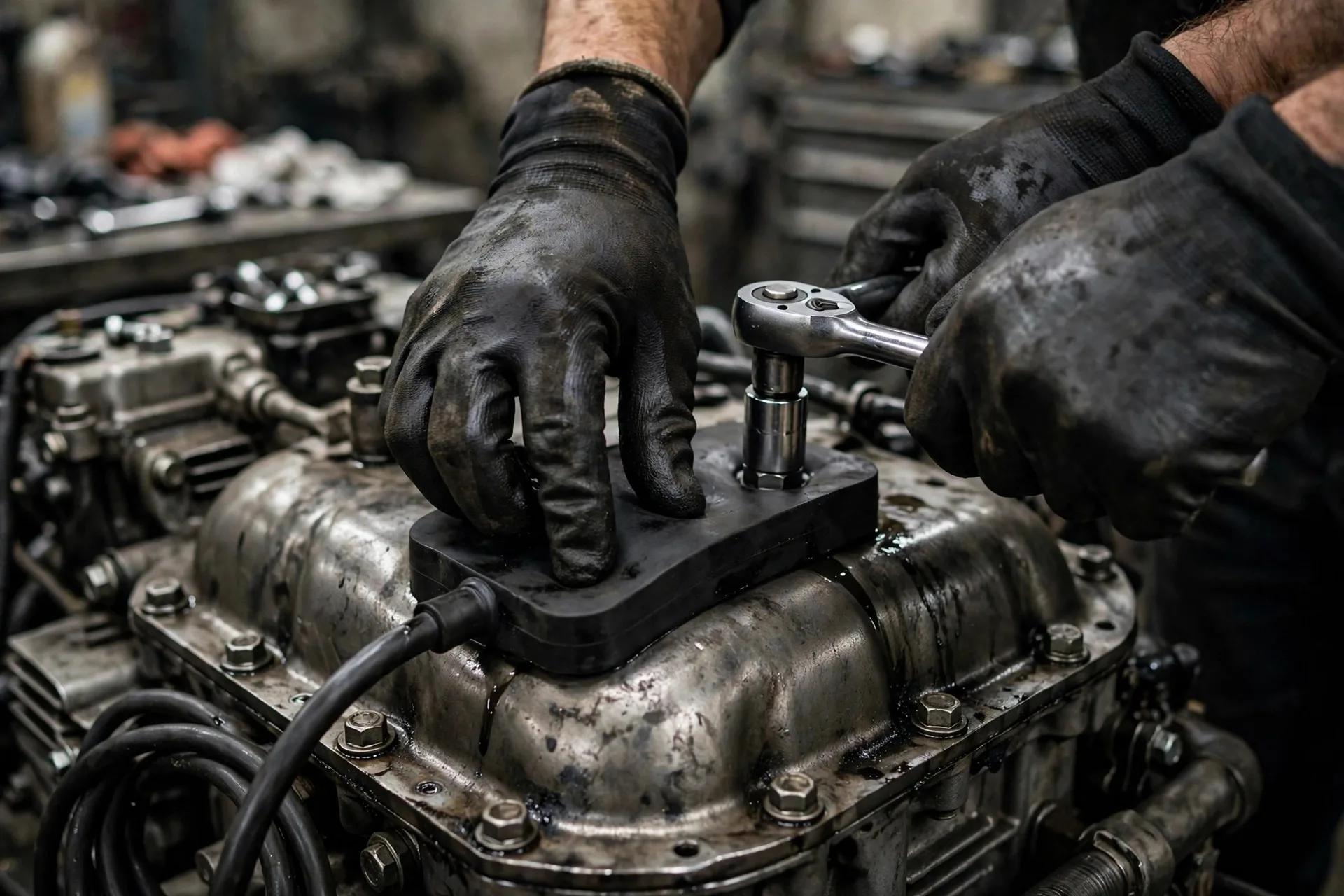

The silicone pad is the lazy answer, and usually the right one. It sticks — or better, bolts — to the outside of the sump and pushes 75 to 250 watts through the steel, slow and even. Almost impossible to overheat the oil with one. Costs roughly thirty to eighty dollars. The catch: adhesive pads and oily pans are enemies, and every sump pan is oily. Get the bolt-on kind. And understand what it is — a maintainer, not a rescue tool. In real cold it needs hours, so it lives on a timer or a thermostat circuit with the block heater.
The immersion heater is the fast one. It’s a cartridge element that goes into a bung in the sump — or replaces the drain plug — and heats the oil directly. Three to five hundred watts, and the oil actually gets hot in a reasonable time. The catch: fitting one means draining the oil and having somewhere to thread it in. If the oil level ever drops and the element sits in air, it burns out in minutes. And if its thermostat ever fails closed, it’ll coke the oil around the element. Wire it through a thermostat. Always.
The magnetic heater is the temporary one. Slaps onto the pan, pulls off when you don’t need it. Rental fleets love them — and for a rental set that’s only on site for one winter, that logic holds. The catch: vibration walks them across the pan, oily steel weakens the grip, and somebody always forgets to pull it off before the set goes back on the truck. I’ve found them hanging by their cords, still warm, heating nothing.
So: standby set that sleeps through winter? Bolt-on pad, on the same thermostat circuit as the block heater. Need the set hot fast after a cold shutdown? Immersion. One winter, temporary site? Magnetic.
An old hand I work with calls all three of these jewelry. His prescription: 5W-40 synthetic, a working block heater, end of discussion. He’s half right — oil grade is the bigger lever, and if you’re still running 15W-40 into a minus-twenty winter, a heater is a bandage on a bad decision. But at minus thirty even synthetic pours slow, and the pad costs less than the fuel you’d burn on one failed start attempt. He’s been doing this longer than me, so I nod politely — and keep the pad plugged in.
The heater is the easy part. The wiring is where people fail it.
The classic: the pad gets wired straight to mains, no thermostat, always on. It cooks all summer. Oil oxidizes, additives deplete early, and you’re paying to heat oil in July. I found one that had been hot 24/7 for two winters — at the oil change the drain oil came out dark and smelled burnt, varnish starting up the dipstick tube. A five-dollar thermostat in series would have prevented all of it.
The other classic: pad shares a breaker with the block heater, nobody labels anything, the breaker trips in October, and nobody notices until the first minus-twenty morning in January. Put an indicator lamp where the operator actually walks past. If the lamp’s dark, something’s wrong — that’s the whole diagnostic.
My November routine, five minutes:
Honest answer: if your winters bottom out around minus ten and you’re running a proper winter oil grade with a working block heater, skip the sump heater. Put the money into batteries — they’re still the number one winter killer — and into keeping the fuel treated. A sump heater below its useful range is just something else to wire wrong. Don’t buy it because a catalog scared you. Buy it because your oil pan is cold at 6 a.m.
Next cold snap, do the hand test. Skip the radiator hose — put your palm flat on the oil pan. Hose warm, pan cold? Then you know exactly which fluid your heater forgot. And it’s the one doing all the moving.
Talk to our engineers if your site sees real winter — we’ll help you spec the right cold-start package before January finds out you didn’t.
