The dipstick was lying on the frame rail, three feet from the engine.
Oil everywhere — canopy floor, the skid, a black fan-shaped spray across the inside of the enclosure door. The customer called it a blown seal. Twenty minutes later he called back: the new dipstick he’d pushed in had popped right back out. Same as the first one.
Nobody’s seal had blown. The crankcase just had nowhere to breathe.
Every diesel engine leaks. Not oil — pressure. On every power stroke, a little combustion gas slips past the piston rings and into the crankcase. The trade calls it blow-by, and a healthy engine makes some. A tired one makes a lot. Either way, that pressure has to go somewhere, or it starts shoving oil out through every seal, gasket, and dipstick tube it can find.
So every diesel generator has a breather. The argument — and it is an argument, ask any two old mechanics — is about what kind.

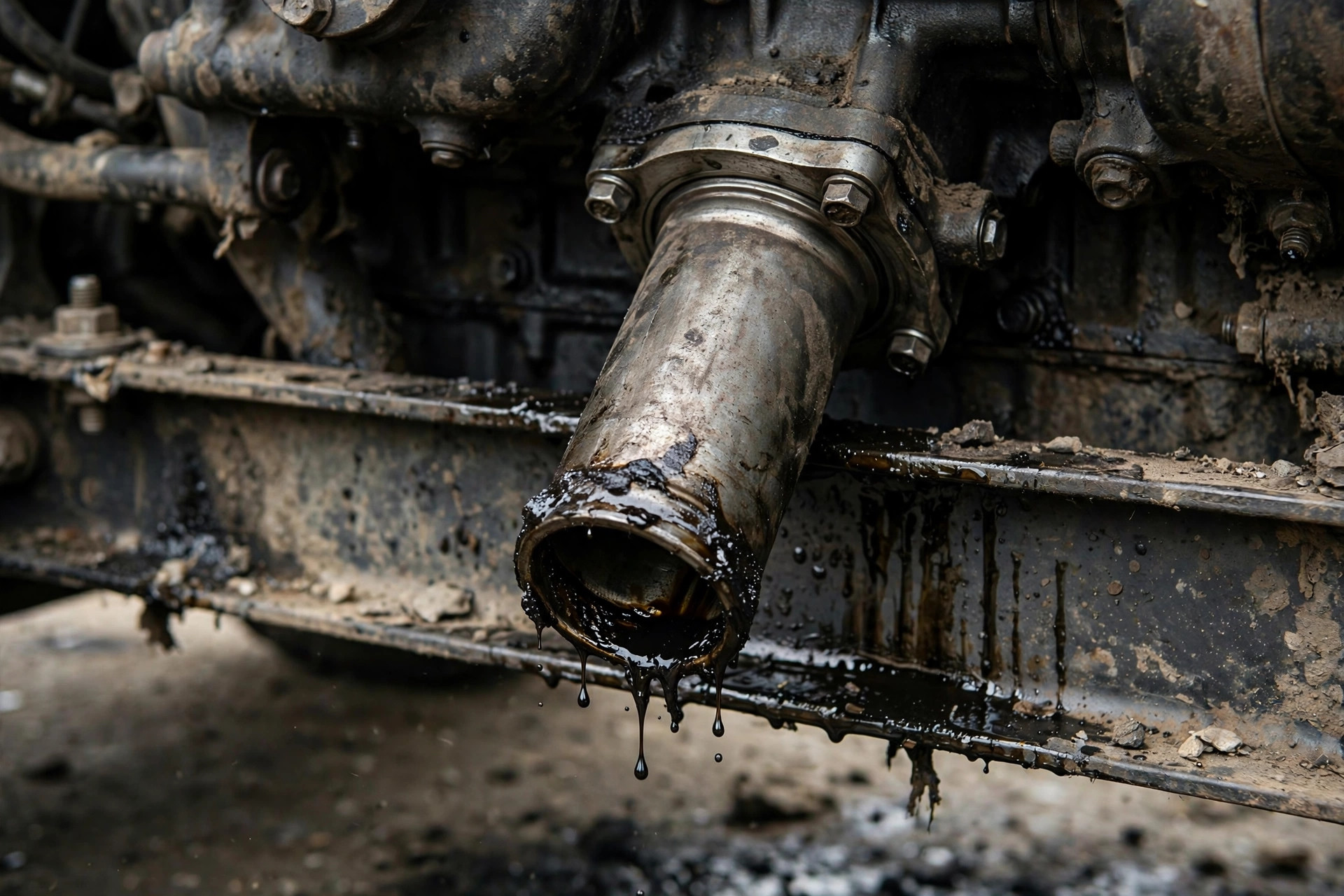

The open draft tube is a pipe. That’s the whole design. One end opens into the crankcase, the other hangs under the engine and drips oily mist onto the ground. It’s been doing this job since diesel engines had jobs.
Here’s what I like about it: it can’t lie to you. Walk up to a running genset, look at the end of the tube, and the engine tells you how its rings are doing. A lazy wisp at idle that firms up under load — normal. A steady chuff-chuff like a little steam locomotive — that engine’s rings are tired, and the tube is doing you the favor of saying so out loud.
The downsides are real, though. It makes a mess. Oily mist coats everything near the outlet, dust sticks to the oil film, and on a site with any environmental rules at all, dripping petroleum products onto the dirt is a conversation you don’t want to have with an inspector. I watched a rental fleet pull every open-tube set off a government job in one week over exactly that. The engines were fine. The paperwork wasn’t.

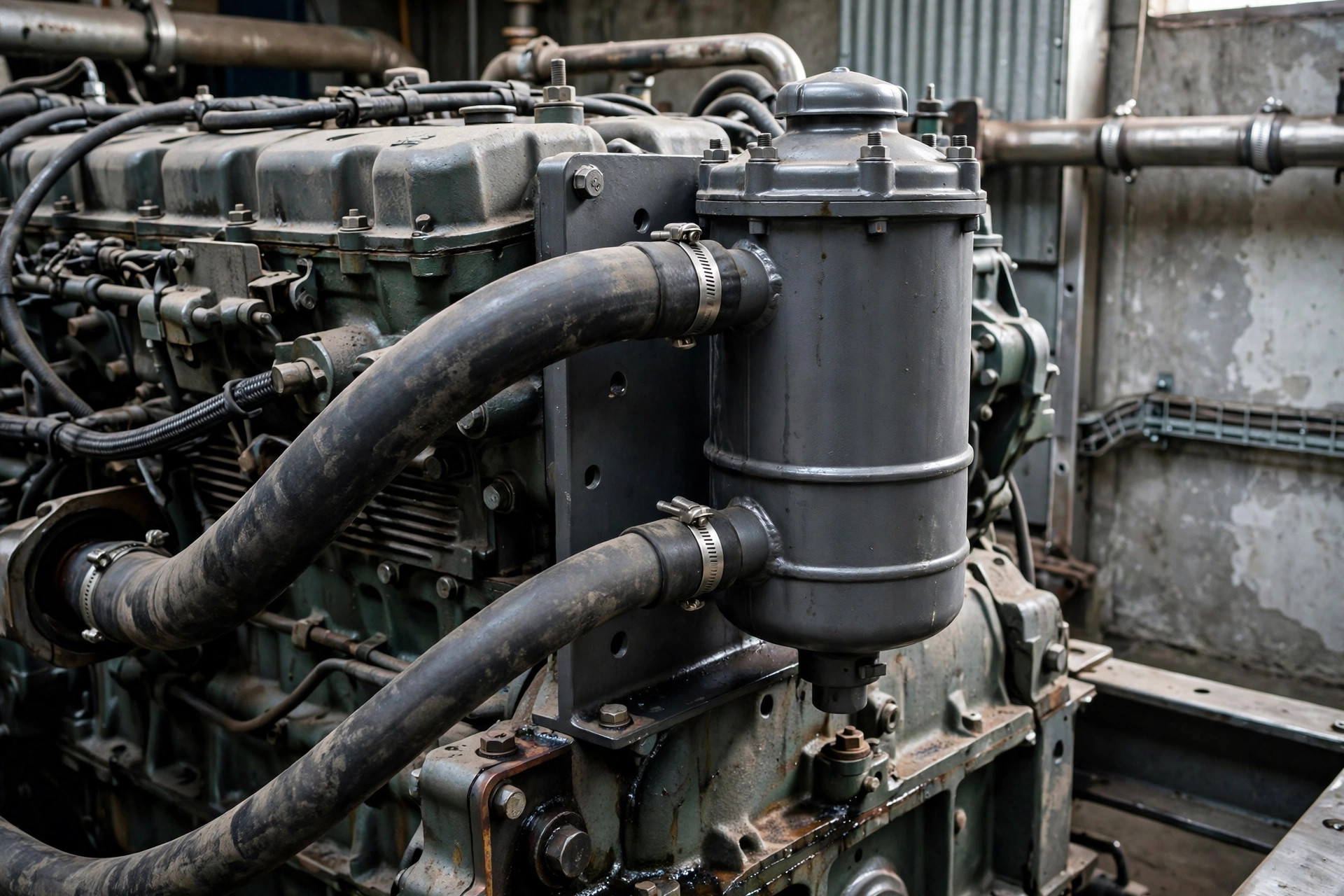

Closed crankcase ventilation — CCV — takes the same blow-by gas, runs it through an oil mist separator, and feeds what’s left back into the engine’s intake. No drip on the ground. No mist in the enclosure. The separator catches the oil and drains it back to the sump.
On paper, it’s better in every way. In the field, it has one failure mode the open tube doesn’t: the separator can clog.
And when it clogs, crankcase pressure has nowhere to go — which is exactly how you get my dipstick story from the opening paragraph. That customer’s set had a closed system. The separator element was packed solid with soot and condensed moisture. The set sat in a cold, damp basement and rarely got properly hot, so the moisture never burned off. Pressure did what pressure does. It found the weakest exit. First the dipstick. If he’d kept running it, the crank seals would have been next, and those cost real money.
There’s a second cost nobody puts in the brochure: the oil mist the separator doesn’t catch goes into the intake. Over thousands of hours it coats the turbo compressor wheel, the aftercooler, the intake valves. Not enough to kill anything quickly. Enough to matter on a set you plan to keep for twenty years.
And one more, the sneaky one: high crankcase pressure pushes back against the turbo’s oil drain. The turbo drains by gravity into the sump — if the crankcase is pressurized, the oil can’t fall freely, so it finds the next easiest path: past the turbo seals and into the intake or exhaust. I’ve seen turbos condemned for “leaking seals” that were perfectly fine. The breather was the criminal. The turbo was just the crime scene.
Don’t get me wrong — closed CCV is the right answer where the rules require it. Emissions regs in a lot of markets basically assume it. If your genset sits next to a building air intake or inside a hospital basement, you don’t get to vent oily mist into the room. But “required” and “better” aren’t the same word.
Honestly? For most standby sets, the open tube is the easier life. Fewer parts. Nothing to clog. And on a machine that runs fifty hours a year, the mess is a rag wiped once a year, not a problem.
Closed CCV earns its keep on prime-power sets and anywhere the installation can’t tolerate oil mist — indoor rooms, regulated sites, anything where an inspector walks the line. If your set already has one, keep it. If you’re speccing new and nobody requires it, think twice before paying for the complexity.
Retrofitting a closed system onto an old open-tube engine is the one I’d talk you out of. I’ve seen the kits. By the time you’ve bought the separator, plumbed the drain-back, and re-routed the intake, you’ve spent real money to add a maintenance item your engine never needed. Put that money toward the air filter instead — a dusted engine from a neglected filter will kill your rings long before breather choice matters.
One list. That’s all this topic needs.
Next time your set runs its weekly exercise, walk around back and look at the breather. Open tube: is it clear, unkinked, dripping the usual small amount? Closed system: when was the separator element last changed? If nobody knows, that’s your answer.
Crankcase pressure is the cheapest early warning your engine gives you. Cheaper than oil analysis, faster than a teardown, and it stares at you from the end of a tube most people never look at. Put it on the maintenance checklist and it stops being a surprise.
Your diesel generator has been breathing through that straw since the day it was built. Make sure the straw is open. And if you’re speccing a new set and want a second pair of eyes on the ventilation details, that’s literally what we do.
