The quarry foreman didn’t call it an air filter problem. He called it “the generator getting old.”
His 500 kVA set — four years on the clock, about 6,000 hours — had lost roughly 60 kW over two months. Black smoke under load. The turbo whistling a half-note higher than it used to. He’d already priced a fuel pump rebuild and a full set of injectors, because black smoke means fuel problems. That’s what the parts salesman told him, anyway.

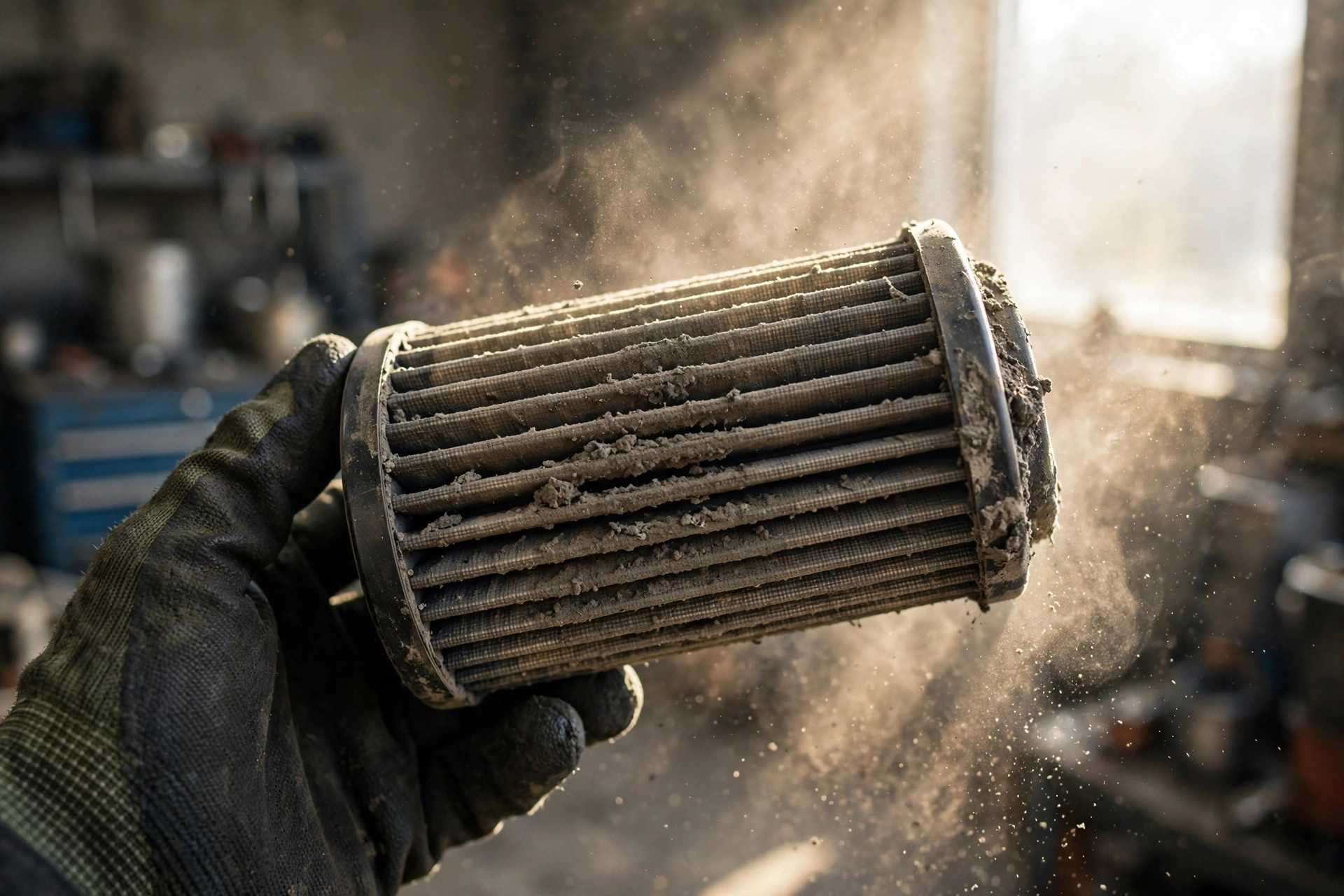

I pulled the element out of its canister and it weighed like a brick. Gray. Packed solid with limestone dust. The restriction gauge on the intake pipe was pegged in the red — had been for weeks, probably. Twenty minutes and one $90 filter later, the set was back to full power. He’d been about to spend eight grand on parts he didn’t need.
Here’s the thing about air filters on diesel generators: they’re the cheapest part on the whole machine, and they guard the most expensive one. An engine rebuild runs $20,000 to $40,000 on a mid-size set. The filter standing between that engine and a dust storm costs less than a tank of diesel. And yet it’s the part nobody looks at until something breaks.
A diesel engine is basically an air pump that happens to burn fuel. At full load, a 500 kVA set swallows something like 30 cubic meters of air every minute. Every speck of dust in that air either gets caught by the filter or ends up grinding between the piston rings and the cylinder walls.
Mechanics have a name for what happens next: a dusted engine. Fine dust gets past the intake — through a clogged filter that’s started to leak at the seal, or a cracked intake hose, or an element some genius “cleaned” with a pressure washer — and it laps the cylinder walls like grinding paste. Compression drops. Oil consumption climbs. Blow-by fogs the crankcase breather. The engine doesn’t fail all at once. It just gets weaker, month by month, until one day it can’t hold rated load anymore.
I’ve seen the teardown photos from a set that ran two years on a construction site with a split intake hose after the filter. The cylinder walls looked like they’d been sanded. The filter itself? Spotless. It never got the chance to do its job because the dust came in downstream of it. That one still bothers me, because the maintenance log showed the filter being changed right on schedule. Changed on time. Useless the whole time.

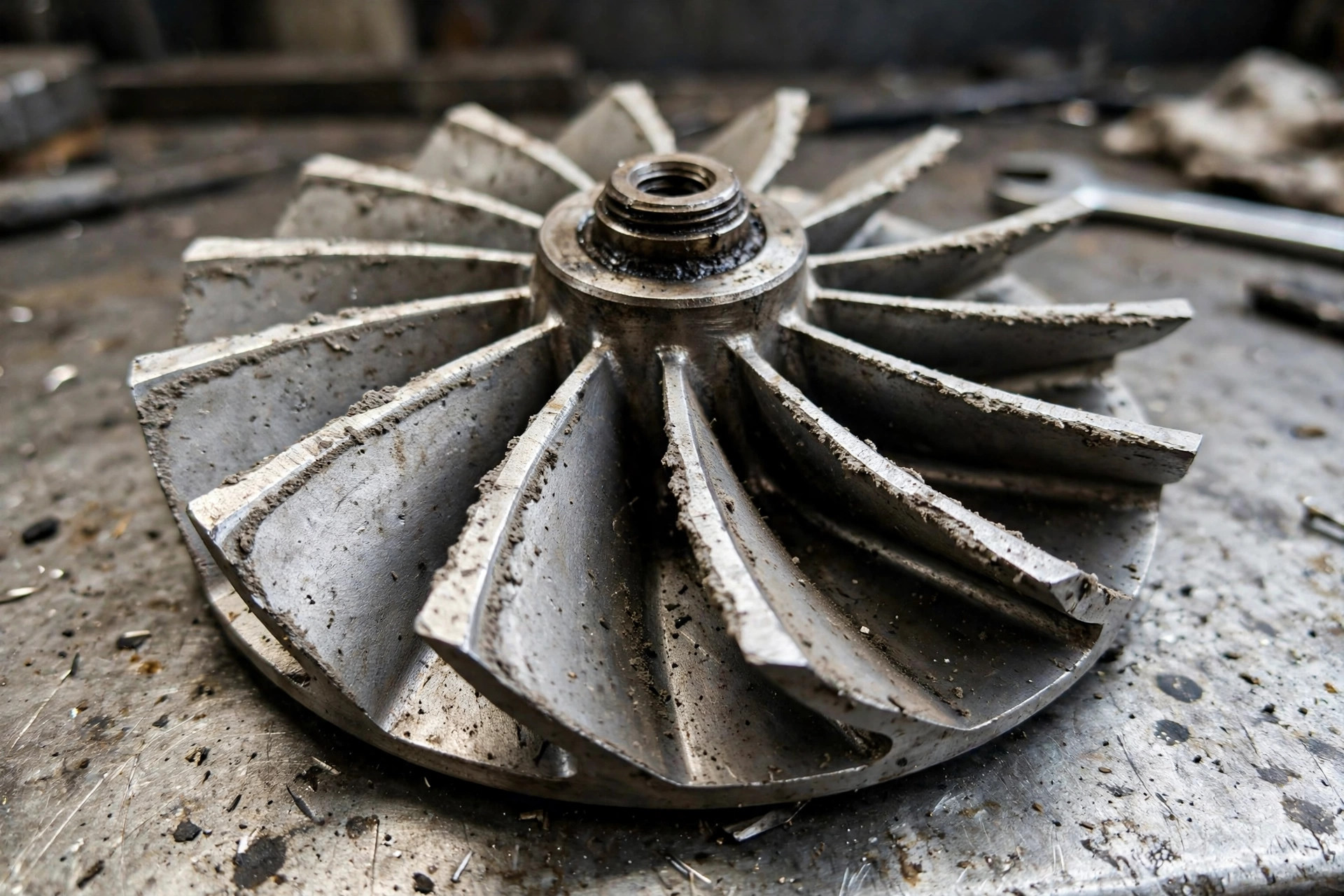

People hear “worn engine” and picture something dramatic. It’s not dramatic. It’s a slow bleed. Fuel consumption creeps up because the engine works harder to make the same kW. The exhaust runs hotter. The turbocharger eats dust too — the compressor wheel erodes, clearances open up, boost drops, and now you’re down on air and the filter is still clogged. Everything compounds.
Then the black smoke shows up, and everyone blames the fuel system. I get it — black smoke usually means too much fuel or bad injectors. But a starved engine runs rich for the opposite reason: same fuel, not enough air. If your troubleshooting order doesn’t start at the intake, you’ll rebuild the injection system on a machine that needed a $90 filter. Ask the quarry foreman how that math feels.
Honestly, I’d put air filter neglect right next to wet stacking on the list of slow engine killers that never make the failure report. Wet stacking at least leaves slobber on the exhaust to confess. Dust just quietly takes the cross-hatch off your cylinder walls and leaves no note.
The manual says something like every 500 hours or once a year. That’s a number written for an average nobody. A standby set in a clean hospital basement and a prime-power set at a quarry do not live in the same universe, and pretending they do is how filters get changed too late or thrown away half-full of life.
The right answer is the restriction gauge — that little dial or pop-up indicator on the intake piping that almost nobody reads. It measures how hard the engine is sucking to pull air through the element, in inches of water column. When it hits the red zone the manufacturer marked, you change the filter. Not at 500 hours. Not “when we get around to it.” When the gauge says so.
Look, changing a filter by the calendar is lazy maintenance wearing a responsible costume. In a dusty environment a filter can hit redline in 200 hours. In a clean indoor room it might go three years and still be fine. The gauge costs about $15 and never lies. I check it every time I walk past a set. Takes four seconds.
One more thing the manual won’t tell you: in really dusty sites, a precleaner — the little centrifugal cap that spins heavy dust out before it reaches the element — can triple element life. Quarries, cement plants, desert jobs. If your sets live in dust, spec precleaners. It’s the cheapest upgrade nobody orders.
An old-timer I worked with for years swore by tapping used elements against the tailgate and putting them back in. “Still got life in it,” he’d say, holding it up to the sun. We disagreed about this for a decade. He’s a better mechanic than I’ll ever be, and he’s wrong about this one. Here’s why — and the other classics:
That said, there is one legitimate reuse trick: some heavy-duty setups run a two-stage system with an outer primary element and an inner safety element. The inner one is your last line of defense — you never clean it, never touch it unless the primary failed. If the safety element is dirty, something went wrong upstream. Treat it as a witness, not a consumable.
So next time you walk past your generator, glance at the restriction gauge. Four seconds. If it’s green, keep walking. If it’s red, you’ve just saved yourself the most expensive $90 you’ll ever spend. The engine won’t thank you — engines don’t talk. But the guy who doesn’t have to rebuild it will.
Funny how the smallest maintenance item gets the least respect. Oil changes get scheduled. Load bank tests get calendar invites. The air filter gets changed when someone finally notices the smoke — and by then you’re not doing maintenance anymore, you’re doing damage assessment. In every dusty job site I’ve walked, the restriction gauge tells the same story: the engine was asking for help weeks before anyone listened.
Talk to your maintenance crew about it this week. Not a meeting — just point at the gauge on your own set and ask when anyone last looked at it. The answer will tell you everything about how that machine is really being treated. And if you need a hand speccing filtration for a dusty site, that’s literally what we do.
