It was 6:40 in the morning and the rental yard looked like a barbecue gone wrong. A 400 kVA set was rolling black smoke out of its stack, thick enough to stain the sky over the site fence. The client’s fleet manager met me at the gate with a phone in his hand.
“I already ordered a new turbocharger,” he said. “Don’t try to talk me out of it.”
Honestly, that one stung a little — I’d just written a whole piece about turbochargers. But the turbo was fine. It was fine the way it’s been fine a hundred other smoky mornings, when the turbo takes the blame for somebody else’s problem. We unbolted the air filter canister before breakfast. The element had collapsed inward like a crushed coffee cup — that set had been breathing through a straw for weeks.
The smoke wasn’t a turbo story. It was an air story. That’s the thing about exhaust smoke: it’s the cheapest diagnostic tool on the whole machine, and it costs nothing to read. Most people just read it wrong. Black, white, blue — three colors, three completely different problems, and the fixes are not interchangeable. Here’s how to tell them apart before you order parts you don’t need.

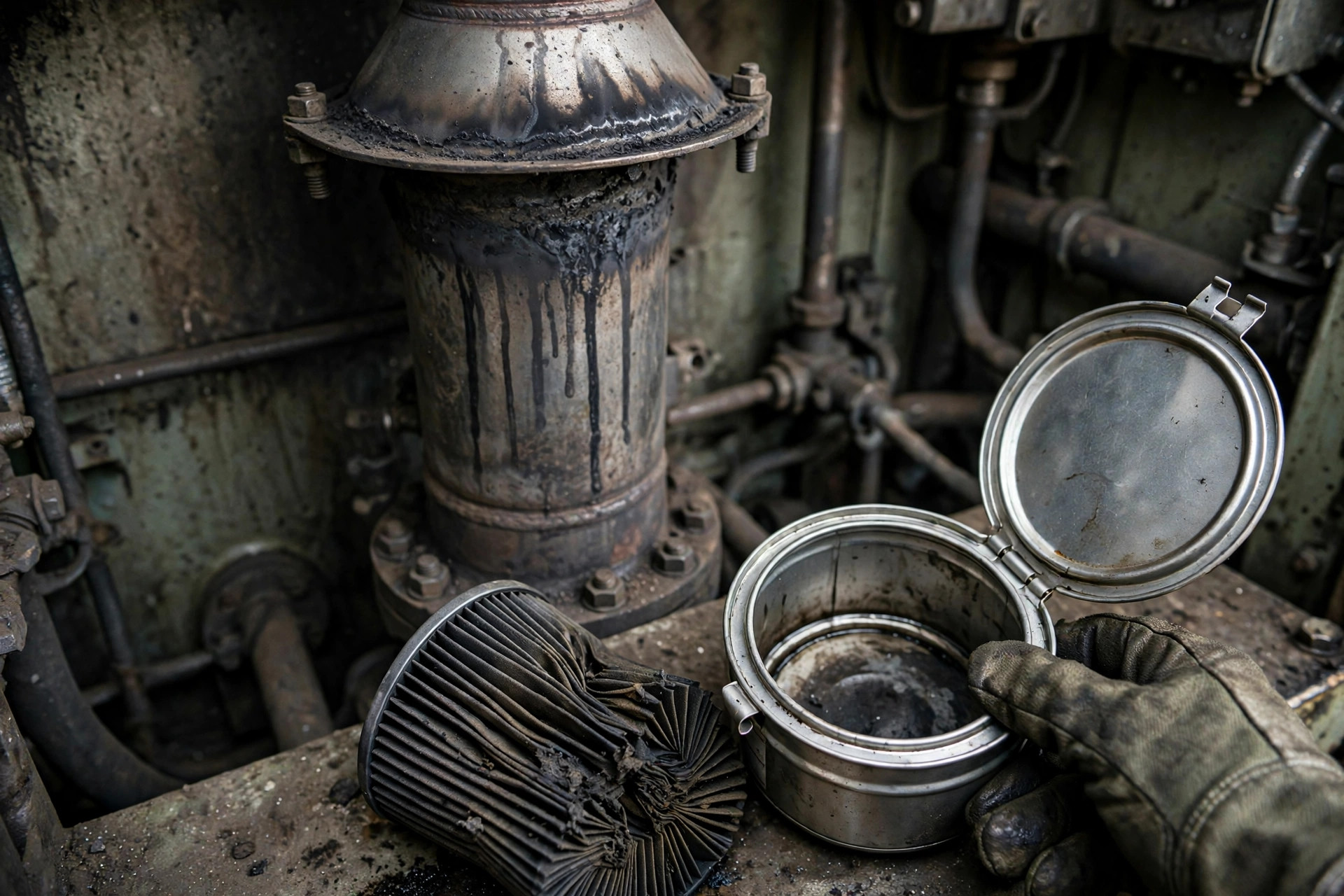

Diesel combustion is simple math. Fuel plus air, squeezed until it burns. Black smoke is fuel that showed up and air that didn’t. Unburned diesel, basically, leaving as soot.
Nine times out of ten on a generator set, it’s air starvation, not a fuel problem. The air filter is the first suspect — and I mean actually pull it out and look, because a filter can look clean from the outside and be packed with fine dust on the engine side. Sets working in quarries will eat a filter element for breakfast. I’ve seen elements with six months of life left on paper and zero left in reality.
Second suspect: boost leaks. A turbocharged engine is a pressure system, and any split boot or loose clamp between the turbo and the intake manifold vents your boost straight into the engine room. The engine still gets its full shot of fuel. It just doesn’t get the air to burn it. On a 500 kVA set I worked on, the culprit was a rubber boot that looked perfect until you flexed it — then it split open like a mouth. A couple hundred dollars in parts. The client had already budgeted for an injector pump rebuild.
Third: stuck or dribbling injector nozzles. If an injector can’t atomize the fuel — worn nozzle, wrong pop pressure — the fuel goes in as a stream instead of a mist. Streams don’t burn clean. They burn black. A quick field check: run the set up to temperature under load, then watch the stack. Black smoke that huffs in rhythm with the cylinders, worse under load, points at one or two bad nozzles — not all of them.
And here’s the one I argue about with people: black smoke on a cold start is normal. For the first minute or two, the cylinders are cold, the turbo hasn’t spooled, the governor is feeding fuel to hold speed — of course it hazes. If it clears as the set warms up, that’s not a fault. That’s physics. Don’t chase it.
What isn’t normal is black smoke under steady load at operating temperature. That means something is wrong with the air-fuel marriage, and the counselor you need is usually the air filter canister, not the fuel rack.
Thin white haze on a cold morning that fades as the set warms up? That’s unburned fuel condensing in cold cylinders. Completely normal. You’ll see it on every diesel you own, every winter, forever. Wave at it and move on.
Persistent white smoke is a different animal. It doesn’t clear. It carries a sharp, sweet smell — coolant burning — and it leaves you staring at a header tank that’s lower than it was yesterday.
That’s coolant getting into the combustion chamber. On a generator engine the usual path is a failed head gasket or a cracked liner, and it is not a “watch and wait” problem. Coolant in the cylinders washes the oil film off the liners, corrodes everything it touches, and turns a head gasket job into a full rebuild if you keep running. I learned that one the expensive way early in my career — on a client’s set, I should add, though the invoice still stings.
The field test is almost embarrassingly simple. Mark the coolant level. Run the set under load for an hour. Mark it again. If it’s dropping and the exhaust smells sweet, stop diagnosing and start planning a teardown. I’ve watched owners chase this with fuel additives and injector cleaner for months — pouring money into the tank while the engine drank its own coolant. Additives don’t fix gaskets.
There’s a third white smoke, and it fools everybody: steam from condensation in a long exhaust stack, especially on sets that do short weekly exercise runs and never get properly hot. That one puffs for a minute and vanishes. If the smoke clears in ninety seconds, relax. If it doesn’t, grab a marker and check the coolant.

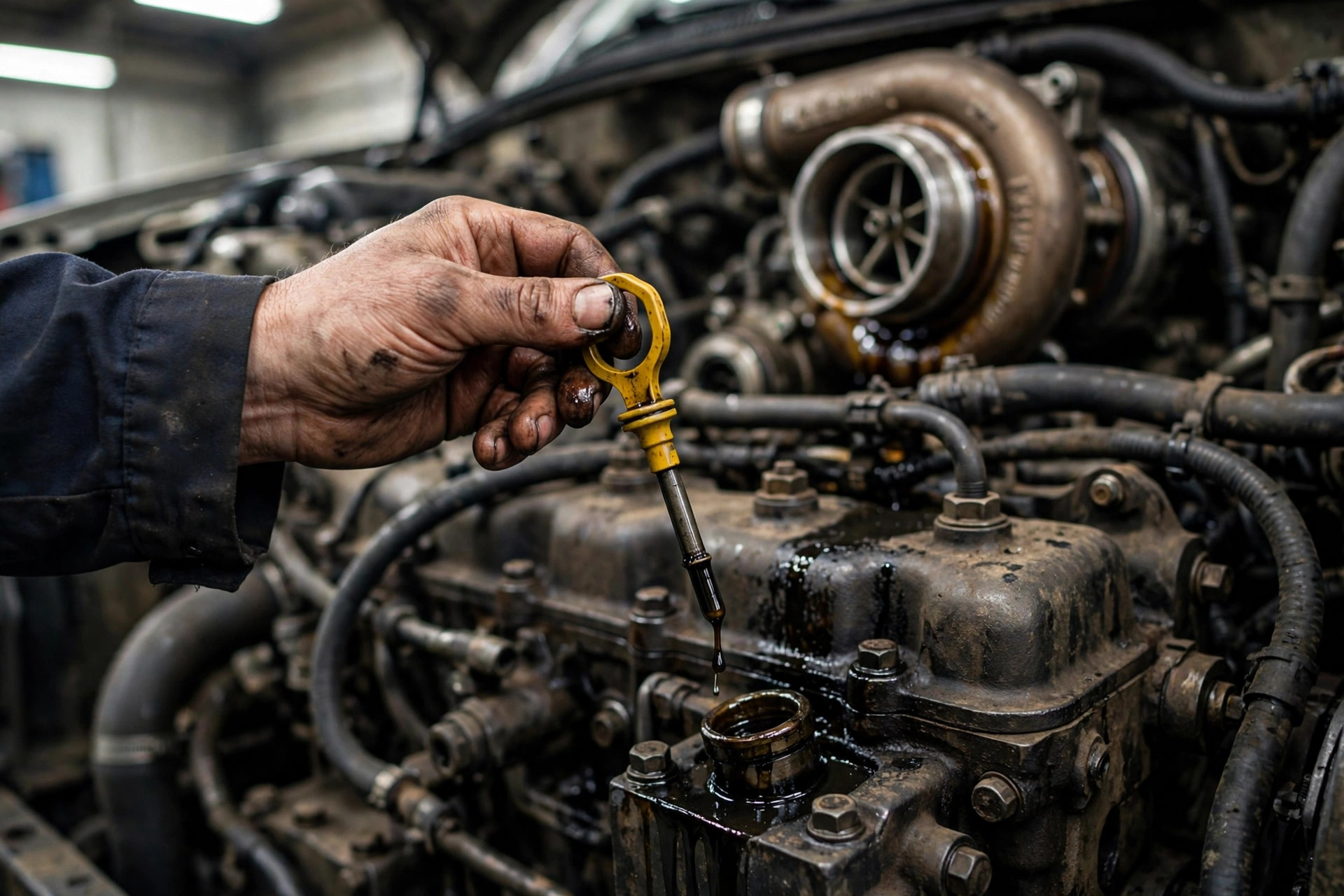

Blue smoke is oil burning in the cylinders. There is no innocent version. Every drop of oil in the combustion chamber is a drop that shouldn’t be there, and the engine will tell you exactly where it’s coming from if you listen.
The most common source on a turbocharged set: the turbo’s oil seals. When the seals wear, oil gets flung into the intake airstream and burned along with the fuel. The irony isn’t lost on me — the turbo survives your suspicion in most smoke stories, but here it actually can be the problem. Blue smoke that gets worse as boost builds, under load, points at the turbo. Blue smoke at idle that fades under load points more toward valve guide seals, which weep oil into the ports when the engine is just sitting there spinning slowly.
Worn piston rings are the heavyweight answer: blow-by, oil consumption, blue smoke under all conditions, and a crankcase that puffs like a steam engine when you crack the breather. A compression test settles it. No shortcuts there.
And one cause that costs nothing to check: the crankcase oil level. An overfilled sump churns oil into mist, and the breather system feeds it straight into the intake. I’ve seen brand-new sets smoke blue because somebody filled them to the top of the dipstick instead of the mark. Check the oil with the engine stopped and cold, on level ground. The dipstick lies to you when the oil is hot and foamy.
Here’s the uncomfortable part. If your set is a modern Tier 4 Final machine with a DPF and SCR, you may never see any of these colors. The aftertreatment system is a very good liar. The DPF traps the soot — that’s its job — so black smoke that would have been obvious ten years ago now shows up as rising exhaust backpressure, forced regenerations every other day, and a fault code that blames the filter.
Don’t read the stack on a Tier 4 set the old way. Read the regeneration history instead. A DPF that regenerates constantly is telling you the engine is making soot it shouldn’t — which means you’ve got a black-smoke problem wearing a disguise. Go back to the air filter and the boost system. The fundamentals didn’t change. The witness just got better at hiding.
First, drowning it in additives. Fuel system cleaner won’t fix a collapsed air filter, a leaking head gasket, or worn rings. It fixes a dirty injector, maybe, sometimes. If the first bottle didn’t change the smoke, the problem isn’t in the bottle.
Second, calling persistent white smoke “just condensation.” Ninety seconds is condensation. Ninety minutes is coolant. The difference is the coolant level, and the marker test takes two minutes. People skip it because the answer scares them.
Third, scrubbing the symptom. This one drives me up the wall. A set with black soot caked around the stack — the classic sign of wet stacking from months of light-load running — and the owner’s big maintenance move is to wash the stack. The soot isn’t the problem. The soot is the receipt. Fix the light loading, or put the set on a load bank and burn the carbon out properly.
Look, the exhaust stack is the most honest part of the whole generator. It can’t lie about what’s happening inside — it can only be misread. Spend five minutes watching it the next time your set runs under load. Black means air. White that won’t clear means coolant. Blue means oil. Get those three right and you’ll stop buying turbos you don’t need.
The fleet manager from that smoky morning? He cancelled the turbo order. We put a filter on it, ran it up to temperature, and the sky over the fence went back to normal. He still brings it up every time I see him. I let him — the embarrassment is mine to share, since I almost didn’t check the filter first either. And yes, he got the full maintenance checklist lecture on the drive back. Nobody gets off that easy.
