A Tuesday, 11:40 p.m. My phone buzzes. It’s the maintenance lead at a packaging plant I’ve serviced for years, half-shouting over the noise floor of his own plant room. Their UPS units keep flipping to battery and back, every few minutes, all night long. They’d already called the UPS vendor twice. The vendor replaced a battery string. The problem stayed.
I drove out the next morning. The plant was on a 750 kVA diesel set during a utility outage. I stood in front of the control panel and watched the frequency meter for thirty seconds: 59.4, 60.3, 58.9, 61.1. It wasn’t the UPS. It wasn’t the engine, either. It was the governor — the little system that decides, moment to moment, how much fuel the engine gets. Here’s the thing most people learn the hard way: frequency problems are governor problems about nine times out of ten. The engine gets blamed anyway, because the engine is the big loud thing in the room.
Strip away the jargon and the governor does one job. It holds engine speed steady, because speed is frequency. A 4-pole alternator spinning at 1800 rpm gives you 60 Hz; drop it to 1500 rpm and you get 50 Hz. That’s not approximate — that’s the physics, locked in by the number of poles.
So the governor watches the speed — old mechanical units do it with spinning flyweights and springs, electronic ones count flywheel teeth with a magnetic pickup — and moves the fuel rack. Load drags the speed down, the governor feeds more fuel. Load drops off, it backs the fuel down. More fuel, less fuel. That’s the entire job description.
Two families exist. Mechanical governors: springs, flyweights, levers, zero electronics. Electronic governors: a control module, an actuator bolted to the fuel system, and that magnetic pickup feeding it speed data. The electronic ones react faster and they’re mandatory if your sets ever parallel. But don’t let a salesman tell you a mechanical governor is obsolete. I’ve seen twenty-year-old mechanical units holding a perfectly respectable 60 Hz on simple standby sets. For one lonely set behind a warehouse, the mechanical governor is not the weak link — stop paying to “upgrade” it.
I once watched a commissioning engineer spend two days chasing a frequency wander on a brand-new installation. He’d already ordered a $3,000 replacement controller. The actual fault was a loose magnetic pickup bracket — the sensor was vibrating against the flywheel housing, feeding the governor garbage speed data. The fix was one bolt tightened to spec. The governor was fine. Its information wasn’t.
“Why does the frequency dip every time our big motor starts?”
Block load. When a 250 hp air compressor starts across the line, it pulls roughly six times its running current for a second or two. The engine has to find more fuel right now — the governor throws the rack open, the turbo spools up, and for two or three seconds the frequency sags. How far it sags and how fast it recovers is called the transient response, and it comes down to two things: how the governor is tuned, and how much headroom the engine has left.
A rule of thumb I’ve used for years: if the dip stays inside about 10% and the frequency is back within five seconds, you’re living in the normal world. Deeper than that, or slower than that, and you’ve got one of two problems — the set is undersized for that motor, or the governor gain is set too soft and it’s reacting like it’s half asleep. And here’s the part nobody wants to hear: you cannot fix a sizing problem with a screwdriver. If the motor is too big for the set, no amount of gain adjustment will save you — that’s a motor-starting sizing problem, not a tuning problem.
“Droop or isochronous — which one do we need?”
This is the setting that confuses more people than any other, and it shouldn’t, because the logic is simple. Isochronous mode holds exactly the set frequency no matter what the load does — 60 Hz at no load, 60 Hz at full load. One set, one building: you want isochronous.

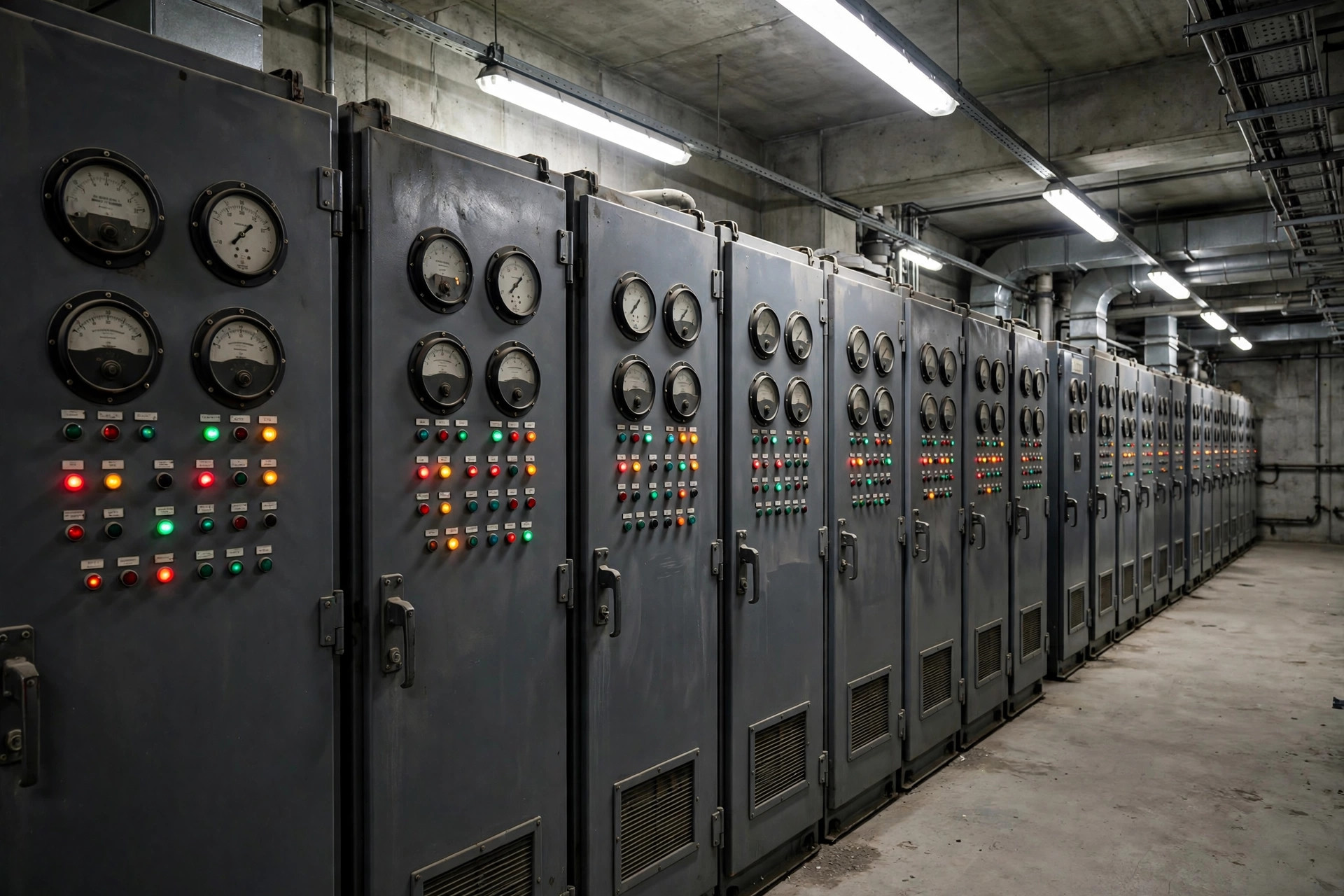

Droop mode deliberately lets the frequency sag as load rises — say 60 Hz at no load down to 58.8 Hz at full load, a 2% droop. That sag is how paralleled sets agree on load sharing without fighting each other. Each set takes load in proportion to its droop curve, and nobody has to argue about it. That’s also why droop is the right answer when sets run in parallel.
The classic mistake — I’ve found it on at least three sites — is a single standby set left in droop mode because that was the factory default. Everything “works.” Then someone notices the wall clocks drifting and the frequency sitting at 59.3 under load, and it gets reported as a fault. It isn’t a fault. It’s a setting somebody never changed.
Honestly? For a single set, isochronous, always. A graybeard controls tech I respect disagrees with me on this — he runs droop even on single sets, says the engine breathes easier and the control is more stable. I’ve never seen the benefit on a modern electronic governor, but he’s been doing this since before I was born, so I record it as an honest disagreement and move on.
“The frequency keeps wandering up and down by itself — is the engine dying?”
Probably not. What you’re describing is called hunting: the governor overshoots, corrects, overshoots again, and the frequency swings in a slow, seasick sine wave. The engine is doing exactly what it’s told. It’s being told wrong.
Before you order a single part, check these three things — in this order, because the cheap causes come first:
I fixed a hunting problem on a rental-fleet set once that the rental company had already quoted as a full governor actuator replacement. The actual fault was a worn throttle ball joint — a twelve-dollar part and half an hour with a wrench. Frequency rock steady afterward. I still think about that invoice that never happened.
One more thing, because I see this mistake constantly: the governor controls frequency (speed). The AVR — the automatic voltage regulator — controls voltage. They do not cross over. Voltage steady but frequency wandering means the AVR is innocent.
Yet when the frequency wobbles, a surprising number of people swap the AVR first. I get it — the AVR is the part they know how to order, and my AVR maintenance piece gets plenty of traffic from exactly these searches. But if the voltage is holding and the frequency isn’t, leave the AVR alone. You’re replacing the messenger.
That’s the whole story. The engine makes the power; the governor decides how much, moment by moment. Give it clean fuel, tight linkage, the right mode for the job — and it will hold the line. Starve it of good information and it’ll wander, and no part you bolt onto the engine will fix that. If you’re still deciding between a supplier and the factory for your next set, by the way, ask them who tunes the governor before it ships. The answer tells you more about the company than the brochure does. My contact page is open if you want a second opinion on a wandering frequency — send me the meter readings, not the parts list.
