The call came on a Tuesday afternoon from the manager of a cold-storage warehouse. Their 800 kVA standby set wouldn’t start. Cranked strong — forty seconds of it, twice — and never caught. “We changed the fuel filters this morning,” he said, like that proved the fuel side was innocent.
It proved something, all right. Just not what he thought.
The batteries were fine. The charger showed green. The tank was half full of diesel that had been sitting since spring, and when I drew a sample into a jar it separated into two layers in twenty minutes. Water, sitting under the fuel like it owned the place. Then I pulled the first injector and the rest of the story wrote itself: scored plungers, a needle that wouldn’t seat, four dead injectors on a healthy engine. The filters were brand new. The injectors never stood a chance.
Here’s what an injector actually is. A diesel engine doesn’t have spark plugs, so the injector is the thing that makes combustion happen: it takes fuel at enormous pressure and shatters it into a mist fine enough to ignite on contact with hot compressed air. Pop pressure on a mechanical unit is measured in hundreds of bar; common-rail sets run far higher. The needle and its seat are lapped to each other with clearances you measure in microns. Two microns. A human hair is about seventy.
Everything else in that engine is a hammer. The injector is a scalpel. And owners treat it like a hammer.
Injectors almost never die of old age. They get killed — by the fuel, by the filter, by impatience. Here are the five ways I’ve watched it happen, in rough order of how often.
Dirty fuel is the number-one injector killer, and it isn’t close. Water is the worst of it. A little water in the tank breeds microbes — the black slime guys in the trade call diesel bug — and the slime sheds particles that sandblast the needle and seat. Water also doesn’t compress and doesn’t burn, so when a slug of it reaches the nozzle it hits like a hammer blow on parts built for mist. I’ve pulled injectors with the tips eroded into little craters. That’s water damage. You can see it with your eyes.
Then there’s the ordinary grit: rust scale from an old steel tank, dust that fell in through a fill cap somebody left off for a season, algae mats breaking loose and riding the fuel line downstream. The injector has no defense against any of this. It was never designed to filter. The filter is supposed to protect the injector, which means injector failure is very often a fuel-storage failure wearing a disguise. If your tank hygiene is guesswork, the fuel in that tank is already going bad — and the injectors drink first.
Quick field habit that costs nothing: drain a sample from the tank’s low-point valve into a clear jar every quarter. Fuel should be bright and clear. If it’s hazy, dark, or separates into layers, your injectors are already on borrowed time.
A fuel injector costs a few hundred dollars. A fuel filter costs about twelve. The math is so obvious it hurts, and yet the filter is the most disrespected part on the whole genset.
I’ve seen every version. The customer who stretched filter changes to three years because “the set only has 200 hours on it” — hours don’t matter to filter media, moisture does, and a filter that’s been breathing damp air for three years is a decoration. The buyer who saved eight dollars per filter on no-name aftermarket elements with the wrong micron rating; the pores were big enough to pass the exact particles that score a needle. The site that ran one filter where the manual calls for primary plus secondary. Penny-wise doesn’t begin to cover it.
I’m not saying every filter must wear the engine maker’s logo — some aftermarket brands are genuinely good — but filtration is one place where the wrong bargain is catastrophically expensive. The honest version of the OEM-versus-aftermarket argument is that fuel filters are the single part I’d never cheap out on. One scored injector buys a decade of the expensive filters.
This is the one that gets good intentions. You do the maintenance right — fresh filters, clean hands — and then you crank the engine to pull fuel through, because that’s how it works on your pickup truck. On a generator with a mechanical injection system, what you’ve just done is run the injector plungers dry at cranking speed with no fuel to lubricate them. Diesel is the lubricant in there. No fuel, no lube. Thirty seconds of dry cranking can score a plunger badly enough to ruin its seal, and a scored plunger dribbles instead of atomizing from that day on.
The warehouse manager from the opening story did exactly this. New filters in the morning, then nearly a minute of cranking across three tries, then a call to me in the afternoon. The water in his tank would have killed those injectors eventually. The dry cranking killed them that day.
The fix is thirty seconds of patience. Fill the new filters with clean fuel before you spin them on. Open the bleed screws. Work the hand primer — or the electric lift pump, if the set has one — until fuel runs clear with no bubbles. The fuel system’s whole job is to deliver bubble-free fuel to the injection pump, and the starter motor is not a fuel pump. Don’t ask it to be one.
A standby set can sit for two years without running. The fuel in the injector bodies doesn’t get that memo. It varnishes. The needle gets sticky in its bore, the nozzle holes start to crust, and the first start after a long sleep is rough, smoky, and lopsided. That’s normal-ish, and it usually clears. The mistake is what happens next: instead of pulling the injectors for a proper test, somebody reaches for the ether.
Now, the old hands and I disagree about starting fluid, and I’ll say that plainly. Plenty of veteran techs swear a short sniff of ether is harmless. I’ve watched it crack a piston crown on a cold engine that was already weak, and I’ve watched it wash the oil film off cylinder walls enough times to stop recommending it. What both sides agree on is this: ether used regularly to bully a weak injector into firing is not maintenance. It’s a mask. It hides the dying injector until the cylinder it was dribbling into is washed, scored, or both — and then you’re not buying injectors anymore, you’re buying an overhaul.
If the set needs ether to start, something is wrong. Find the something.
Dying injectors talk. Almost nobody listens, because every symptom sounds like something cheaper:
Longer cranking before it catches — “must be the batteries.” White smoke at startup that clears after a minute — “it’s cold.” A rough idle that smooths out under load — “bad fuel, it’ll pass.” One exhaust manifold runner cooler than the rest — nobody checks. The oil level creeping up on the dipstick — that’s fuel dilution, unburned diesel washing past the rings from a dribbling injector, and an oil sample will catch it long before your eyes do.
Batteries get blamed for injector problems the way the weather gets blamed for everything else. I’m not saying don’t check the batteries — they’re still the most common no-start cause, and I’ve written that sentence before. I’m saying that when the batteries test fine and the cranking is still lazy, stop buying batteries. By the time a bad injector shows black smoke under load, the cylinder has been eating raw fuel for weeks.

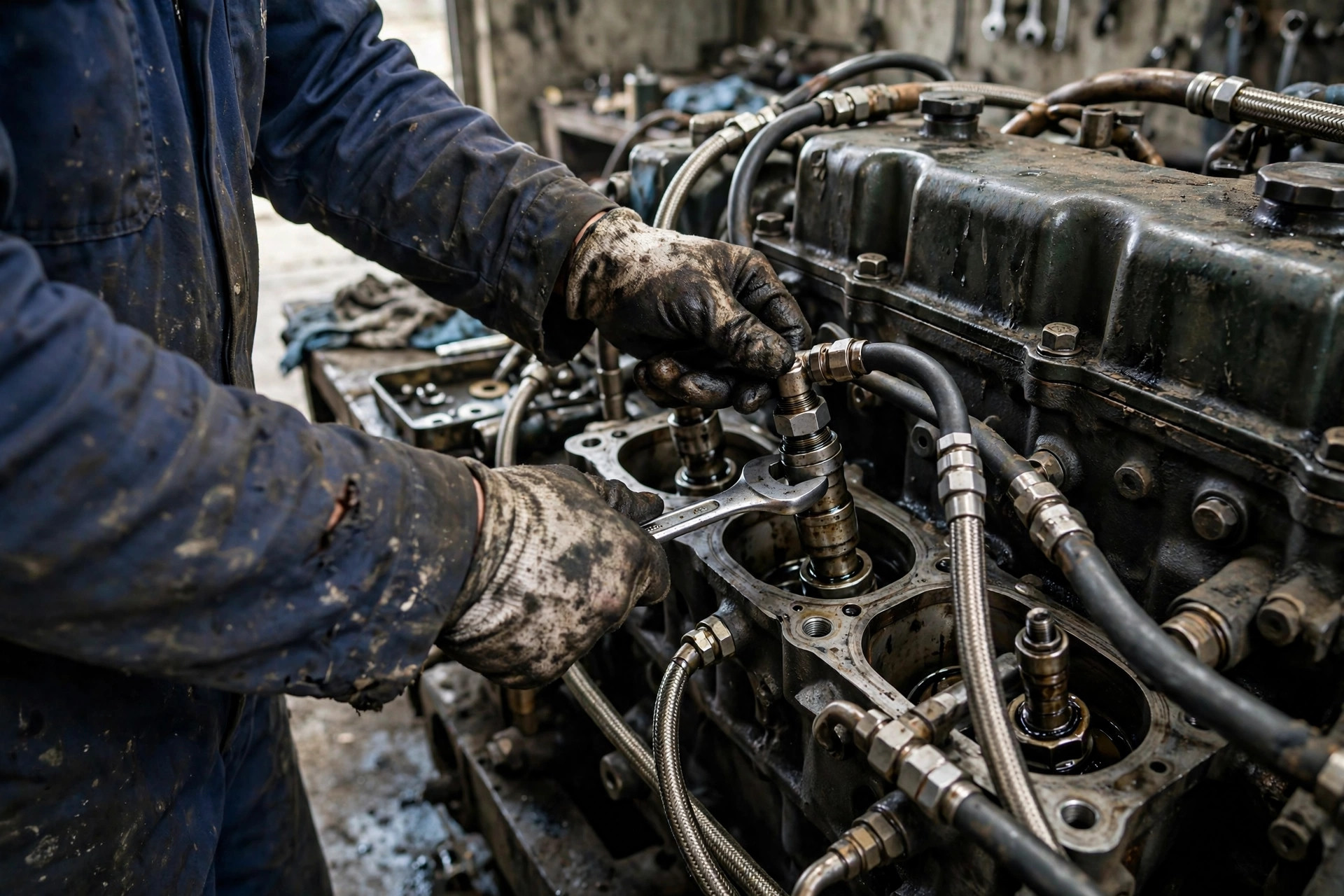

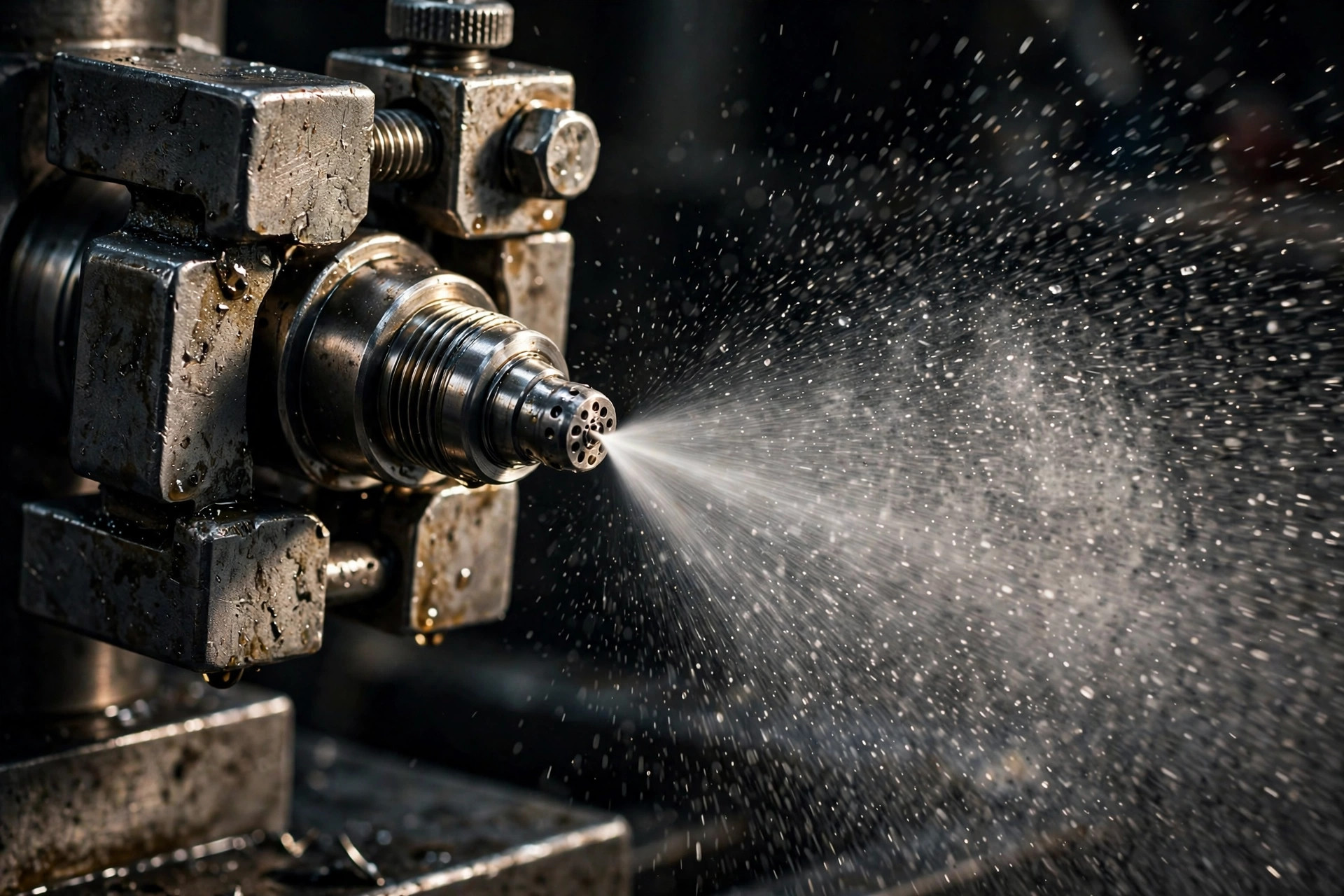

Pulling injectors isn’t hard. Knowing which ones are actually bad is the skill, and it’s called a pop test. The shop clamps each injector in a tester, pumps it up, and watches three things: the pressure where the needle pops open, the shape of the spray, and whether it dribbles after. A good injector gives a sharp chatter and a fine even cone. A bad one streams, drips, or pops twenty bar low.
Two rules from watching this done right. First, replace them as a set — or at least test all of them and replace every one that fails. Injectors live the same life; the one that died first has tired brothers. Second, the small parts matter more than they look: new copper sealing washers every time, the hold-down torqued to spec (a loose injector hammers its seat to death), new olives on the leak-off lines, and the system bled properly before the first crank. Skip the washers and you’ll be pulling it all apart again for a compression leak that sounds exactly like a bad injector.
And when the fresh set is in, write down the date and the hour-meter reading. Injector life isn’t a fixed number — clean fuel and honest filters get you a very long way, dirty fuel gets you nowhere — but a baseline turns the next diagnosis from archaeology into arithmetic.
The injector is the one part in the whole machine that can’t forgive you. Clean fuel, filters changed on time, thirty seconds with a bleed screw instead of a minute on the starter. Do that and the set starts on the first crank, every time, for the next twenty years. Ask it to forgive water, grit, and dry cranking, and it won’t — it’ll just hand you the bill, with interest. If your fuel system needs a professional eye before the injectors pay the price, talk to us.
