The phone rang at 2:40 in the morning, and the voice on the other end was the night-shift supervisor at a food processing plant two counties over. The utility had dropped out at 2:15. Their 1250 kVA standby set had cranked, hit speed, and the ATS had transferred. And the whole plant was still dark.
“The engine’s running perfect,” he said. “Sounds beautiful. We’ve got nothing. Zero volts on the panel meter.”
An engine running perfectly and a plant with no power. If you’ve been in this business long enough, that combination narrows the suspect list fast. Fuel was fine — the engine was singing. The breaker hadn’t tripped. Which left one thing, and it was the first thing I told him to check: the little round plate of diodes spinning on the end of the alternator shaft.
Forty minutes later he called back. One diode had failed open. The whole plant had been held hostage by a part smaller than his thumb.
Here’s the part most owners never hear. A modern brushless generator makes its voltage in a chain, and every link matters. It starts with a whisper — residual magnetism left in the exciter’s iron, just enough for the exciter stator to induce a small voltage in the exciter rotor as it spins. That small AC voltage lands on the rotating rectifier: usually six diodes mounted on a plate bolted to the shaft, spinning at full speed. The diodes turn it into DC and feed it straight into the main rotor field. The main field energizes, the stator sees a spinning magnetic field, and out comes your 400 volts.
The rectifier is brilliant because it killed the slip rings. No brushes to wear, no carbon dust, no maintenance visits with a brush gauge. But there’s a trade. The thing now lives inside the machine, spinning at 1500 rpm, in the hot end of the alternator, where you can’t see it without pulling a cover. Out of sight. And out of every maintenance checklist I’ve ever been handed by a customer.
A diode fails open or it fails shorted. Open is the common one. The excitation circuit goes quiet, the main field starves, and the set makes a few volts of residual — basically zero. The engine sounds wonderful. The frequency is perfect. There is simply no voltage. This is the failure that sends people ordering a new AVR, because “the regulator must be dead.” I’ve watched a $30 multimeter lose that argument to a $2,000 parts order more than once.
A shorted diode is sneakier. Part of the exciter’s output gets shunted through the failed diode, so voltage sags low instead of disappearing. The AVR sees the sag and drives its output to the ceiling trying to fix it, which cooks the exciter stator. Sometimes the voltage hunts up and down. And there’s a smell — hot varnish, sweet and wrong — that comes off the non-drive end of the alternator. If you ever open a generator room and smell that, don’t keep running the set. You’re watching the exciter die in real time.
What kills them? Heat, mostly. The rectifier plate sits in the warmest corner of the alternator, and heat is a diode’s slow poison. Vibration comes second — the stud nuts work loose over thousands of hours, the connection starts arcing, and the diode cooks itself on its own bad contact. Then age, voltage spikes from lightning or big load dumps, and corrosion on the terminals in damp rooms. Nothing exotic. Just physics, given enough time.
Early in my career I worked with a sharp young tech who found a single failed diode on a 500 kVA set. He replaced that one diode — the other five tested fine — buttoned the machine up, and the set ran beautifully. Three weeks later it was dead again. Zero volts. A different diode, same plate.
That’s when an older engineer said something I’ve repeated to every apprentice since: diodes die in families. They’ve all lived the same heat, the same vibration, the same ten thousand hours. If one let go, its brothers are tired. Now I replace all six, from the same batch, matched. A diode costs less than a sandwich. The truck roll to come back costs a day.
And torque the stud nuts. The spec is in the manual — small numbers, easy to ignore, and the single most-skipped step in this whole job. A loose diode is just a future open wearing a disguise.

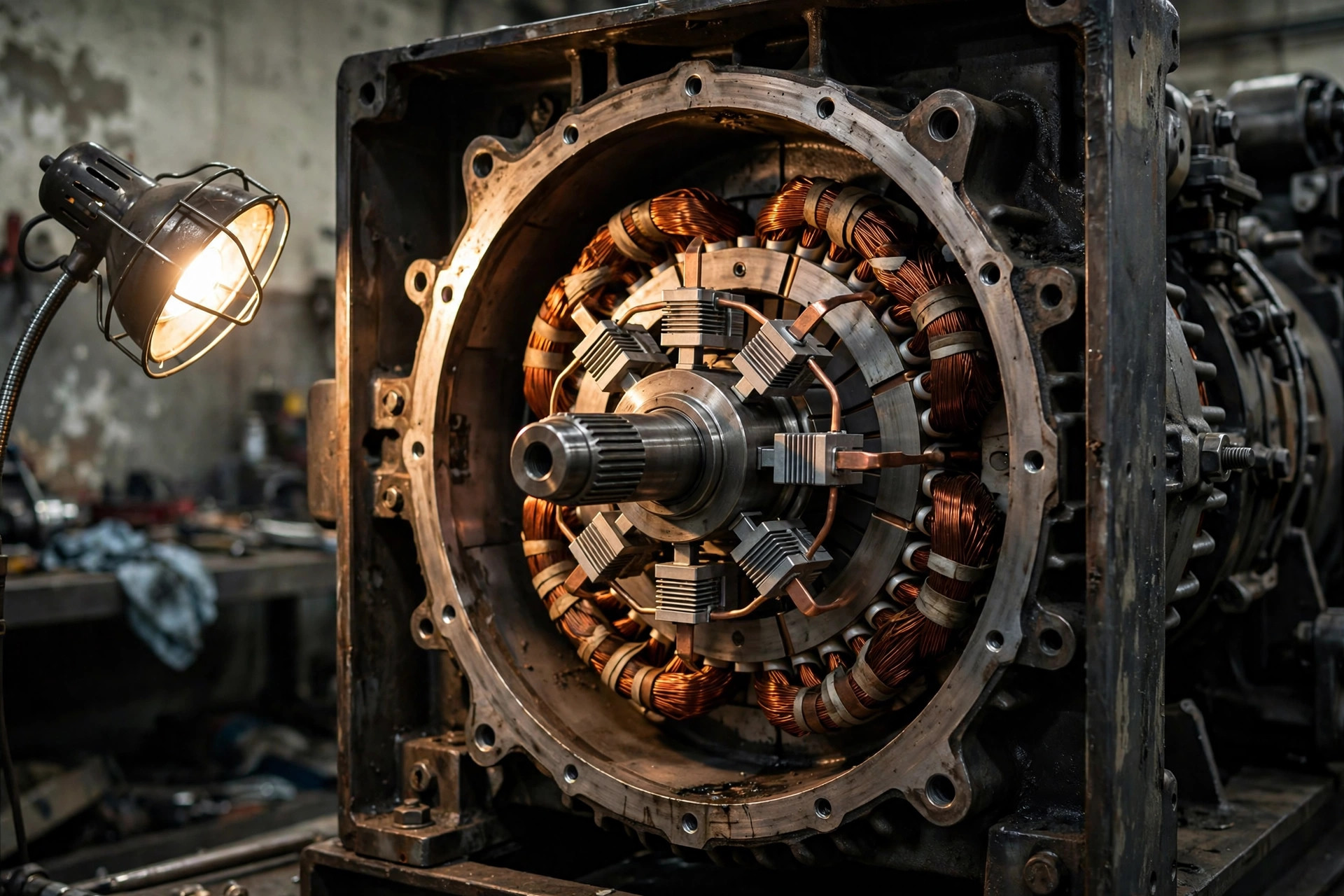

Kill the set. Lock it out — I mean it, lock it out, because the next step puts your hands inside the alternator. Pull the non-drive-end cover and find the diode plate. Now the part people skip: disconnect the leads, or at least isolate the plate. Test diodes in-circuit and the windings will lie to your meter.

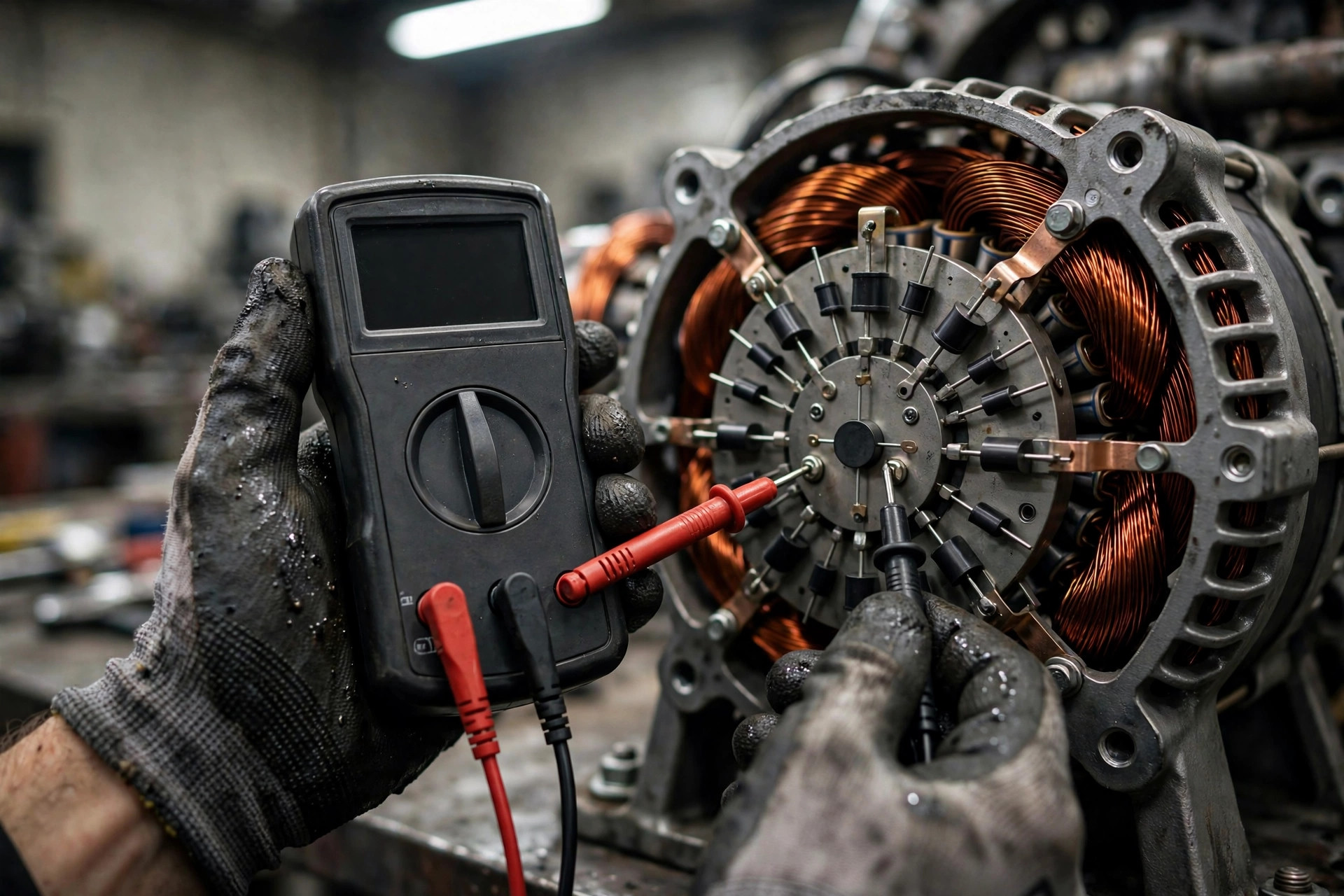

Multimeter on diode mode. Red probe to the anode, black to the cathode: you should see a forward drop, roughly 0.3 to 0.7 volts depending on the diode type. Reverse the probes: the meter should read open, OL, nothing. Then the verdict:
Ten minutes. That’s the whole procedure. I’ve seen sites with six-figure backup systems where nobody had ever done it, because it wasn’t on the PM sheet. And while the cover is off, it’s a good moment for an insulation test of the windings — damp windings and weak excitation fail together more often than people think. If your maintenance contract doesn’t include a diode check and a torque pass on that plate, you don’t have a maintenance contract. You have a receipt.
One honest caveat. Sometimes the diodes are fine and the set still won’t build voltage, because the residual magnetism — that whisper the whole chain starts from — has faded. It happens after long storage, after someone disconnected the field leads, or after a rectifier job where the iron sat dead for weeks. The chain can’t bootstrap. If the symptoms look more like a crank problem than a voltage problem, run the no-start checks first — but a set that cranks and runs fine with zero volts points here.
The fix is called field flashing, and it’s exactly what it sounds like. Disconnect the AVR’s field leads first — F1 and F2, and mark them, because this matters. Then touch a 12-volt battery across the field winding for a second or two, in the correct polarity. You’ll see the field take the charge. Remove the battery, reconnect the AVR exactly as it was, and start the set the way you would after any commissioning job — no load first, watch the voltage build, then load it. Nine times out of ten, voltage comes right up.
Two warnings, and they’re not small. Reverse the polarity and you demagnetize the iron further — you’ll make the problem worse. And never flash through the AVR. The battery goes to the field winding, not to the regulator. Flash through the AVR and you’ll be ordering that $2,000 regulator after all, except this time you’ll deserve it. If you’re not sure which diode kit fits your alternator frame, contact us with the alternator model number and we’ll point you at the right one.
A generator with a dead rectifier is a very expensive air compressor. Engine perfect, fuel perfect, noise perfect, zero power. Keep a matched set of six diodes in the plant room — it costs less than the fuel for the truck that would otherwise come out. And next time the set cranks fine, hits speed, and the voltmeter sits at zero: don’t order parts. Open the end bracket. Six diodes, ten minutes, one multimeter. The generator was never broken. It just lost its spark.
