Sunday afternoon, the maintenance tech changes both fuel filters on the standby generator. Fresh filters, clean rags, job done. Monday morning the weekly exercise kicks off — the engine cranks… and cranks… and never catches. By nine o’clock I’m getting the call. I’ve gotten this exact call more times than I can count. The filters are new. The fuel is fine. The problem is the pocket of air sitting where diesel used to be.
If that just happened to you, here are the three questions I always get — and the answers that actually get the engine running again.
“I cranked it for a solid minute. Why won’t it catch?”
Because cranking doesn’t move air out of the lines the way people think it does. Diesel has to travel from the tank, through the filters, up to the injection pump, and out to the injectors at real pressure. Air trapped anywhere in that chain breaks the column. The pump pushes bubbles. The injectors get foam. Nothing fires. Cranking longer just… cranks longer.

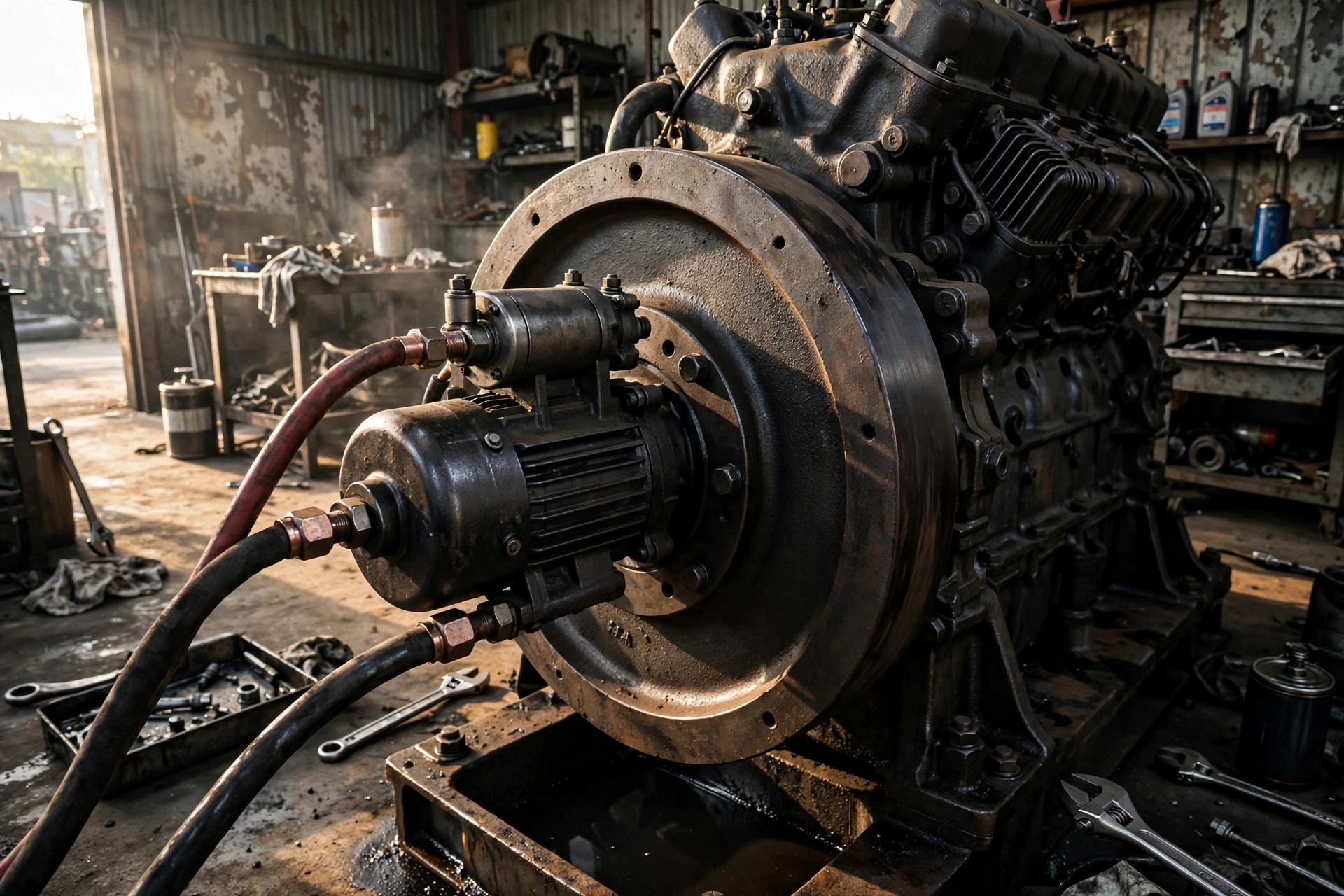

And here’s the part nobody believes until the invoice arrives: a starter motor is not rated for continuous duty. Thirty seconds on, two minutes off — that’s the real limit, and it’s printed in manuals nobody reads. At one of my sites a tech cranked a 500 kVA set in three long bursts on a Monday morning. The engine never fired. On the third try the starter solenoid welded itself shut, and a no-start turned into a no-crank with a $600 starter on order.
Each of those long cranks also pulls hundreds of amps out of the batteries. Kill the starter or kill the batteries — pick your invoice. I’ve written about what dying batteries look like, and a generator that’s been cranked to death is the classic case.
So rule one: if it doesn’t catch in fifteen or twenty seconds of cranking, stop. You’re not priming anything. You’re spending starter.
“My buddy says skip the bleeding — just crank until it goes.”
On a little single-cylinder pump engine, your buddy might get away with it. On a 400 kVA standby set, he’s betting an $800 starter and two batteries against ten minutes with a wrench. I’ve taken that call on a Monday morning more times than I care to admit, and it always starts the same way: “we put the filters on dry Friday.”

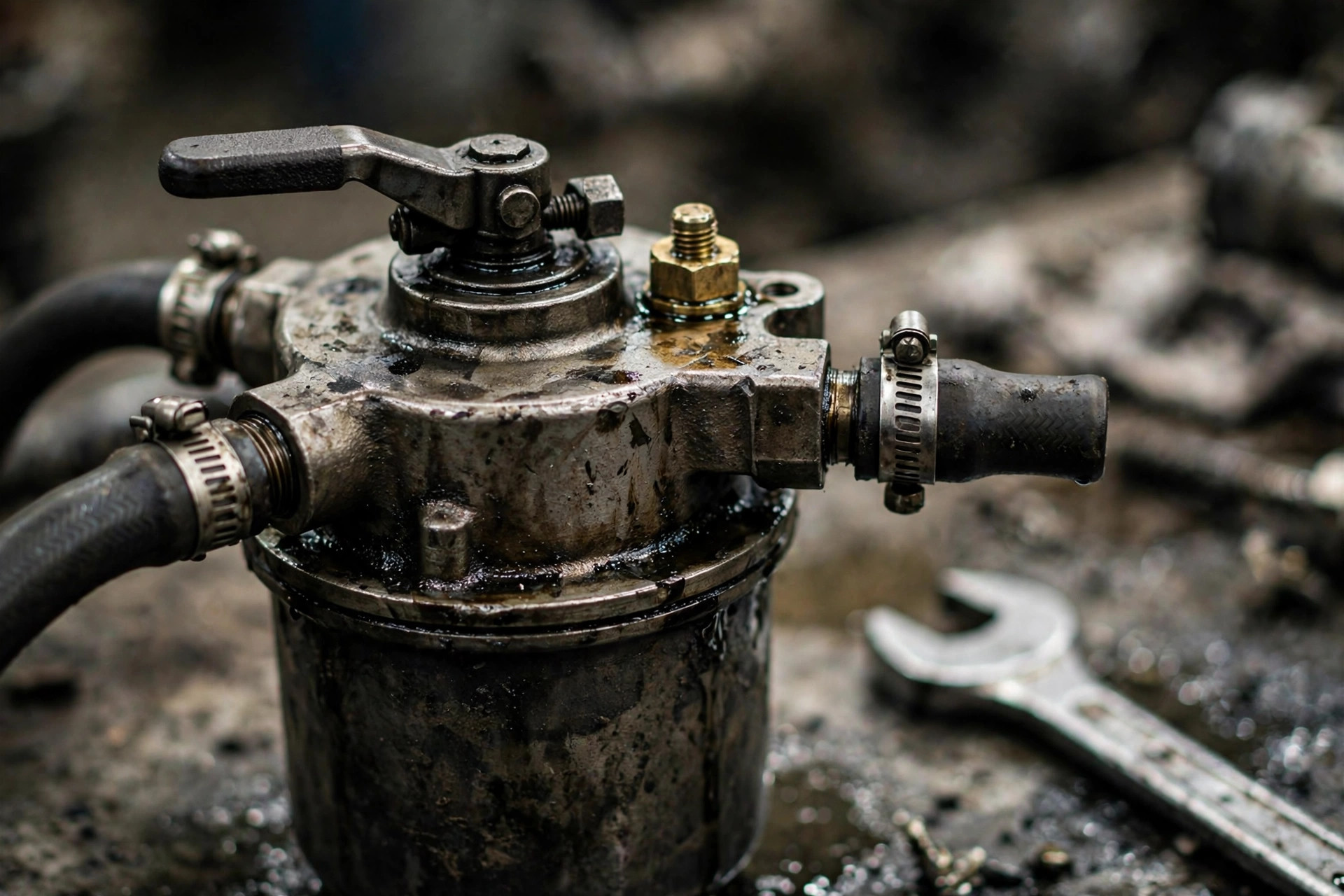

Here’s the order that works. First, pre-fill the new filters before you spin them on. Pour clean diesel through the outer holes — not the center one, that’s the outlet — so the filter goes on full of fuel instead of full of air. Second, work the hand primer on the filter head until it goes firm. That resistance is fuel moving, not air. Third, crack the bleed screws in order — filter head first, then the injection pump — until you get solid fuel with no bubbles, then close them. On older mechanical systems, cracking the injector line nuts and cranking in short bursts finishes the job; tighten each one as fuel appears.
That’s the whole procedure. It fits on an index card:
The fastest no-start I ever fixed took four minutes. The slowest took two days — because the tech installed both filters dry, cranked until the batteries died, charged them overnight, cranked again, and only then called me. Ten minutes of bleeding fixed it. He’d spent two days proving that cranking isn’t priming.
“Mine’s a newer common-rail engine. Does any of this still apply?”
Mostly, it got easier — and one part got more dangerous. Common-rail engines have an electric feed pump that self-primes. Fill the filters, cycle the key two or three times so the pump runs, and it’ll usually push the air through on its own. No hand-primer workout required.
But never crack open a high-pressure injector line on a common-rail system to “help it along.” That rail holds twenty thousand psi and then some. A pinhole leak at that pressure doesn’t drip — it cuts. The old mechanical trick stays with old mechanical engines. Full stop.
Two more things people get wrong here. Glow plugs and intake heaters help cold fuel ignite — they do nothing for air in the lines, so don’t sit there cycling the preheat like it’ll help. And don’t reach for starting fluid either. Ether in an engine with a live intake heater is a detonation waiting for a place to happen, and it won’t fix an air lock anyway. If the engine cranks healthy but won’t fire, walk the no-start checks in order instead of improvising.
“I bled everything properly. It starts, then dies after thirty seconds.”
That’s the signature of a suction-side air leak — and it’s the one that makes good techs feel stupid. A cracked fuel line, a loose banjo bolt, a tired o-ring between the tank and the filter head will suck air in without dripping a single drop of fuel out. No puddle. No stain. Nothing to see. But every time you bleed the system, the leak lets the air right back in.
I chased one of these for half a day at a warehouse site years back. Bled it, started it, died in thirty seconds, bled it again — same dance, four rounds. Turned out to be a banjo bolt on the filter head that was exactly one flat loose. Tightened it, bled once more, never died again. If your engine starts and quits like it’s running out of fuel, stop bleeding and start checking every fitting between the tank and the filters.
Other suspects when bleeding keeps failing: a weak lift pump that can’t pull through new, tighter filters — the feed side of the fuel system deserves its own look. A fuel solenoid or a controller inhibit you haven’t noticed. Or the pickup tube sucking the last inch of old fuel and crud because someone ran the tank low during the last outage. New filters plus a tank of tired old fuel is a combination I’ve seen bite people more than once — it’s why filter changes belong on a schedule, not on a mood.
Write the bleed order on the filter housing with a paint marker — filter, pump, injectors. The next person who changes those filters might be you, at 2 a.m., in the rain. Future you will be grateful. And if you’re speccing a new set or planning the fuel system before any of this becomes a Monday-morning phone call, talk to us — we’d rather help you get it right than meet you after the filters.
