The train stopped between stations at 6:40 on a Friday evening. Lights flickered twice, then went out. For maybe eleven minutes, four hundred people sat in the dark inside a concrete tube, breathing air that wasn’t moving.
Then the emergency lighting came up. Then the fans. Not the grid — the grid was gone. A diesel generator somewhere in a station electrical room had picked up the load in seconds, and the tunnel could breathe again.
That’s the job. Not glamorous. Nobody takes a photo of it. But if you buy backup power for rail transit, you need to understand what that machine is actually being asked to do — because it’s probably not what you think.
Metro trains draw traction power from substations — 750 volts DC off a third rail, or 1500 volts DC, or 25 kV AC off the overhead wire, depending on the system. Those substations feed off the grid. When the grid dies, the trains stop. Full stop.
No diesel generator on earth is going to keep a six-car train moving. The numbers don’t work, the switchgear doesn’t exist, and no transit agency specs it that way. So cross that fantasy off the list right now.
Here’s the thing, though. The train stopping is the safe part of a blackout. The dangerous part is everything else: a tunnel full of people with no ventilation, no lighting, no working signals, no PA telling anyone what to do. That’s what the diesel generator is for.
Because a metro station is basically a small underground city, and cities don’t do well without power. The generator’s load list usually looks like this:
Notice what’s missing. Traction. The generator keeps the system safe and recoverable while the grid is down. It doesn’t keep it running.
I’ve sat in spec meetings where someone asked why the generator couldn’t just be bigger — big enough to move the trains. Honestly? Because you’d need a power station, not a generator. A single six-car train accelerating pulls several megawatts. Multiply that by a line full of trains and you’re talking about a utility, not a genset. The right question was never “how big.” It was “which loads.”
Fair question. And the answer is time.
Batteries are brilliant for the first fifteen minutes. Signaling rooms all run on UPS — they have to, because even a ten-second transfer is too long for safety-critical relays and CBTC processors. But batteries are a bridge, not a destination. After the bridge, you need something that burns fuel and keeps burning it.
A metro outage isn’t always a quick one. Grid restoration after a major fault can take hours. A flooded substation takes days. The diesel generator is the machine that covers the long tail — and the fuel math is where projects quietly go wrong.
Underground fuel storage is the headache nobody budgets properly. Fire codes hate big diesel tanks under stations, so the usual answer is a small day tank in the generator room fed by a transfer pump from a bulk tank at the surface. On one project I worked on, the day tank float switch failed and the transfer pump never ran. The weekly test ran fine — the test only needed the fuel already in the day tank. Nobody noticed until we did a four-hour loaded run and the engine starved at hour three.
Size the fuel for the real outage, not the brochure one. Twenty-four hours of on-site fuel is a common spec. Whether your transit authority will actually let you store that much diesel under a downtown station is a conversation to have with the fire marshal early, not after the concrete is poured.
Probably not. And I say that having watched green checkmarks lie to people for years.
The weekly exercise — ten minutes, no load, engine purrs, controller says PASS — proves exactly one thing: the engine starts. It does not prove the ATS will transfer under load. It does not prove the fuel is good. It does not prove the block heater works, which you’ll discover on the coldest night of the year when the coolant sits at minus ten and the engine cranks like it’s wading through mud.

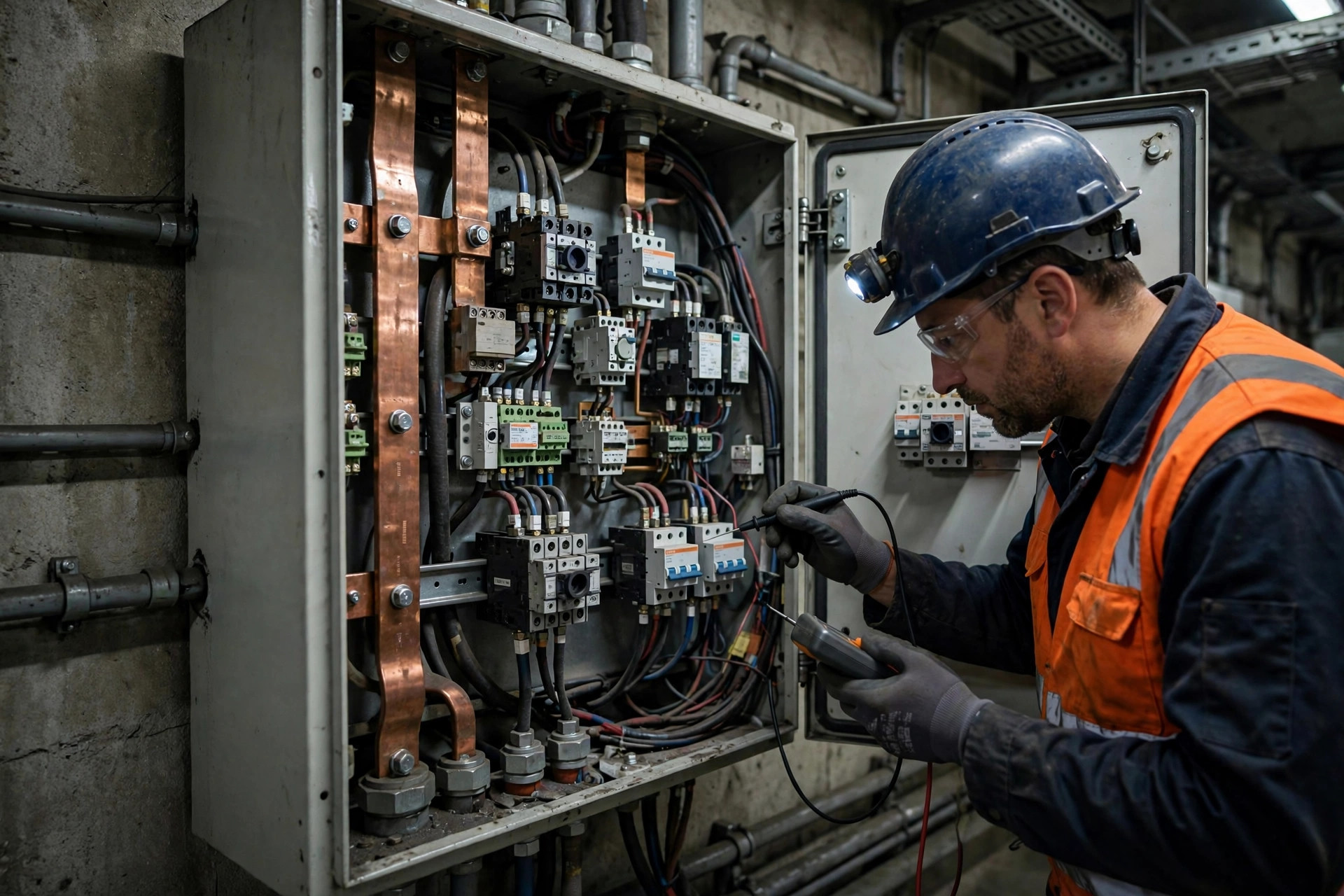

The failures I’ve seen in rail projects were never the engine. They were the boring stuff around it. Corroded ATS contacts that welded themselves open. A battery charger that died quietly six months earlier. Wet stacking in a set that had never once run above 30 percent load — black slobber weeping out of the exhaust joints, glazed cylinder liners, the whole sad story.
Real readiness is three things: a loaded run long enough to get the engine properly hot, an actual ATS transfer test under load a couple of times a year, and someone physically looking at the fuel, the coolant, and the battery terminals. Everything else is paperwork that makes people feel good.
This is the load that decides the generator’s size more than anything else, and it’s the one people underthink.

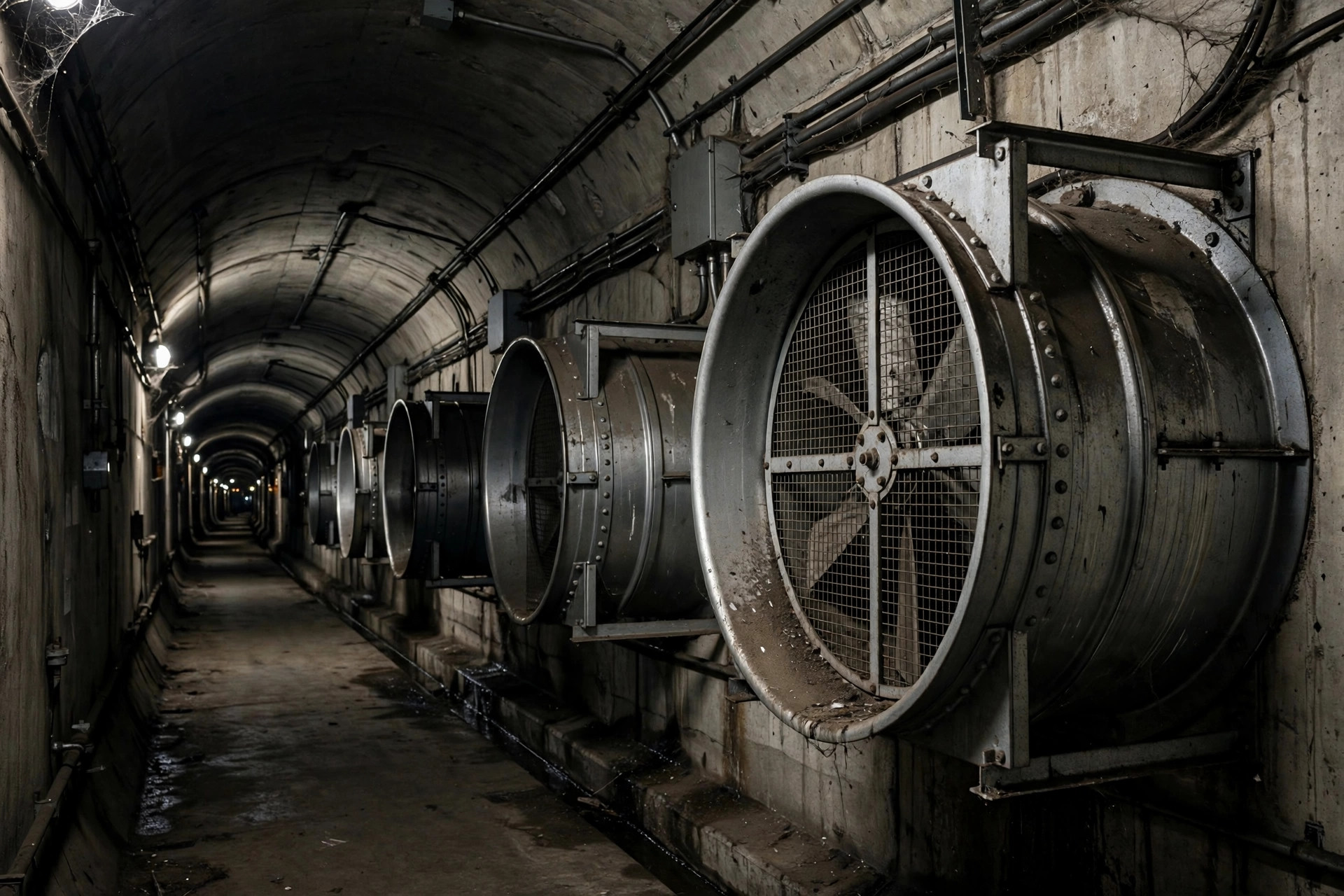

Tunnel ventilation fans are big motors. Big motors draw starting currents five to seven times their running current. If two fans start at once — which is exactly what happens in fire mode — the locked-rotor kVA hits the generator like a hammer. I’ve seen a perfectly good 800 kVA set trip its breaker on fan start because nobody put the motor starting math in the sizing spreadsheet. The generator was fine. The fans were fine. The combination was a disaster.
NFPA 130 — the standard for fixed guideway transit — treats emergency ventilation as life safety. And life safety power under NFPA 110 means Type 10: the generator has to be carrying the load within ten seconds of the outage. Ten seconds. That number drives everything — the block heater that keeps the engine warm, the battery charger that never sleeps, the ATS that’s maintained like it matters. Because it does.
Smoke doesn’t wait for a slow start. Neither does the code.
If a transit agency asked me tomorrow — and a few have — I’d tell them to stop obsessing over kVA and start obsessing over the unsexy stuff. Fuel autonomy that survives the fire marshal’s red pen. An ATS that gets exercised under real load, not just timed. Fan motors with soft starters or staggered starting so the generator doesn’t eat a locked-rotor punch it can’t absorb. A load bank visit twice a year so wet stacking never gets a foothold.
And I’d tell them the generator that matters most is the one nobody ever thinks about. The boring set in the boring room that starts in eight seconds, carries the fans, the signals, and the lights, and lets four hundred people walk out of a dark tunnel instead of sitting in one.
The tunnel never notices. That’s the whole point.
