Your Generator Has a Secret Second Voltage. It’s Hiding in the Terminal Box.

The phone call came on a Thursday afternoon, from a site foreman with a 400 kVA set sitting in the corner of his yard doing nothing useful.

“It won’t run the building,” he said. “The motors just groan and the contactors chatter. The generator’s putting out 208 volts and the switchgear wants 480.”

“Who wired it 208?” I asked.

“Nobody wired it anything. That’s what it does.”

He thought voltage was a property of the machine, like its color. It isn’t. On a reconnectable generator, voltage is a wiring choice — and the same set that was groaning at his building had a second voltage hiding inside its terminal box the whole time.

“The Nameplate Says 480. I Need 208. Is There a Switch?”

Sometimes. The small portable sets — the kind two people can carry — often have a voltage selector switch right on the panel. Flip it, done. But on anything industrial, from a 100 kVA standby set up to the megawatt monsters, there’s no switch. There’s a terminal box, a lid with a wiring diagram glued inside it, twelve numbered leads, and a handful of copper bars or links.

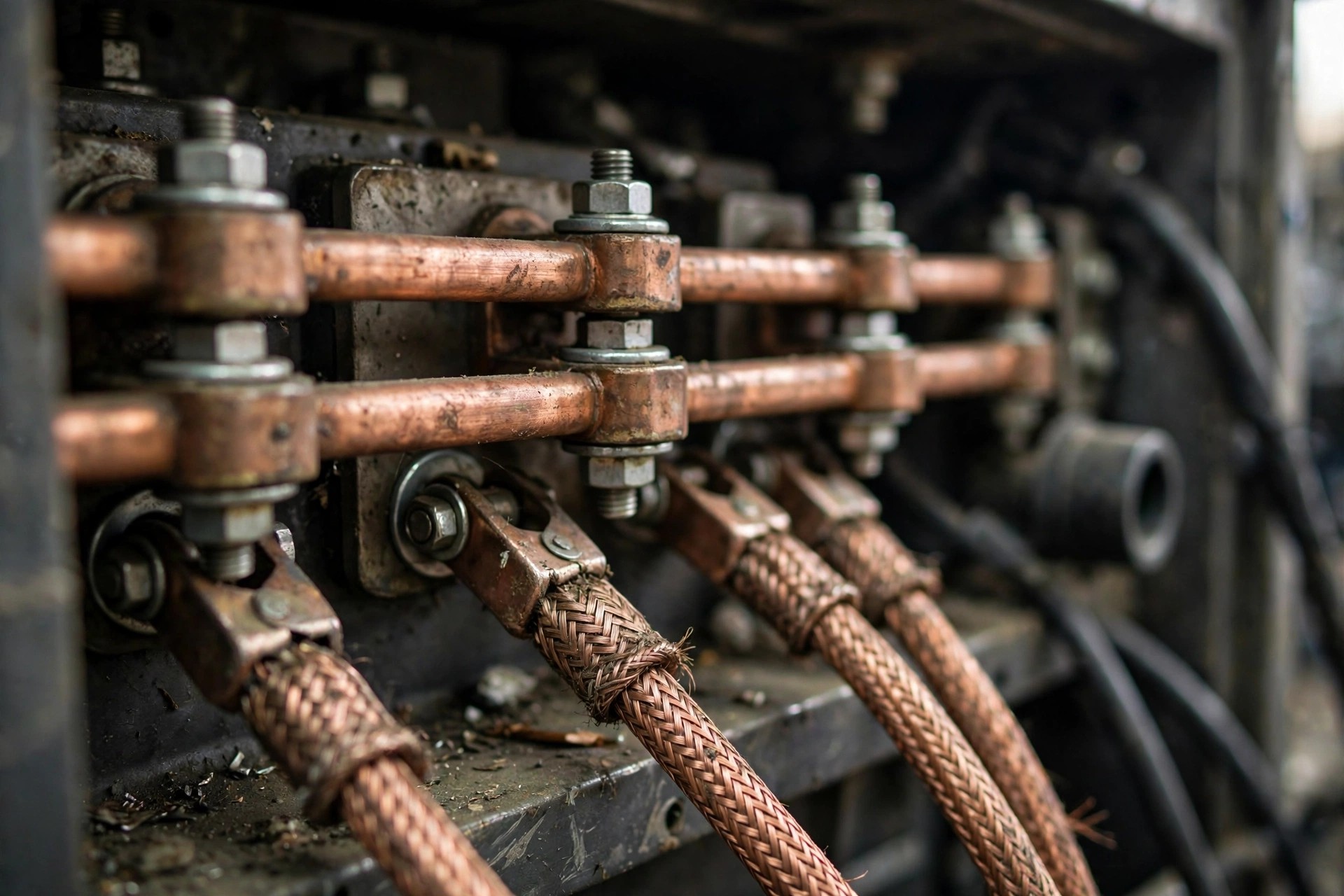

The twelve leads are the giveaway. Open a generator’s terminal box and find leads numbered T1 through T12, and you’re looking at a reconnectable alternator — one of the most underappreciated features in the backup-power business. Each half of the stator winding has its own pair of ends, and how you strap them together decides what voltage comes out. Two winding halves in series per phase, you get the high voltage: typically 480Y/277. The same two halves in parallel, you get exactly half: 208Y/120. Same iron, same copper, same engine. Just a different arrangement of straps.

Worth saying plainly, because people ask it all the time: this is not a rewind. Nobody touches the windings. You’re rearranging connections on the terminal studs, which is exactly what the manufacturer designed the box for. A rewind costs real money and takes the machine apart. A reconnection takes a wrench, a torque spec, and about an hour if you do it properly.

The diagram inside the lid is the whole instruction manual. High-voltage series wye: the line leads land on T1, T2, T3; you strap T4 to T7, T5 to T8, T6 to T9; and T10, T11, T12 join together as the neutral. Low-voltage parallel wye: the line leads land on the T1/T7 pair, the T2/T8 pair, the T3/T9 pair; T4, T5, T6 become the neutral; T10, T11, T12 sit insulated and do nothing. (There are delta versions of both connections too, but wye is what you’ll meet in the field nine times out of ten — the neutral is what gives you your 120-volt control power.) Photograph the lid before you touch anything. I’ve never met a technician who regretted having the before picture.

One thing reconnection can’t do: change the ratio. Series versus parallel is always a 2:1 step. If your load wants 380 volts and your set’s high connection is 480, no arrangement of straps gets you there — that’s a different machine, or a transformer. The two voltages you get are the two the alternator was wound for. Check the diagram, not your hopes.

“Which One Do I Actually Use — and What Happens When Somebody Gets It Wrong?”

Match the connection to the load, not to the nameplate. The nameplate usually lists the high-voltage connection because that’s what the set left the factory in. What matters is what your switchgear, your motors, and your building actually want. Exporting into a market that runs 380/220 or 400/230, like half of the 50 Hz world? You’ll land on the high or the low connection depending on the exact set — verify, don’t assume.

Get it wrong and the failure mode is almost elegant in its symmetry. Wire it high but feed a 208-volt load, and everything gets half voltage. Motors don’t politely run at half speed — they groan, draw far more current than they should, run hot, and the contactors chatter or drop out because the control voltage has collapsed along with everything else. That Thursday phone call was exactly this: a set strapped for 480 trying to feed a 208 building, and every motor on site complaining about it in the same low moan.

Wire it the other way — low connection into a 480-volt load — and there’s no groaning, because everything gets double voltage at once. Contactor coils burn in seconds. The AVR usually dies defending a voltage it was never asked to make. Control boards pop. I watched a brand-new automatic transfer switch turn into an expensive paperweight from one wrong set of straps, and the worst part was how fast it happened: breaker closed, a buzz, silence, and then that smell.

There’s a third mistake that’s quieter and more common than either: wiring it correctly and telling nobody. The straps live inside a closed box. The next electrician who opens it sees 208 on the meter, 480 on the faded nameplate sticker, and concludes something is broken. Label the box. A piece of tape and a marker: “CONNECTED 208Y/120 — DATE.” Costs nothing. Saves the next person’s afternoon.

“I Moved the Bars. Am I Done?”

Almost. Three things separate a proper reconnection from a future service call.

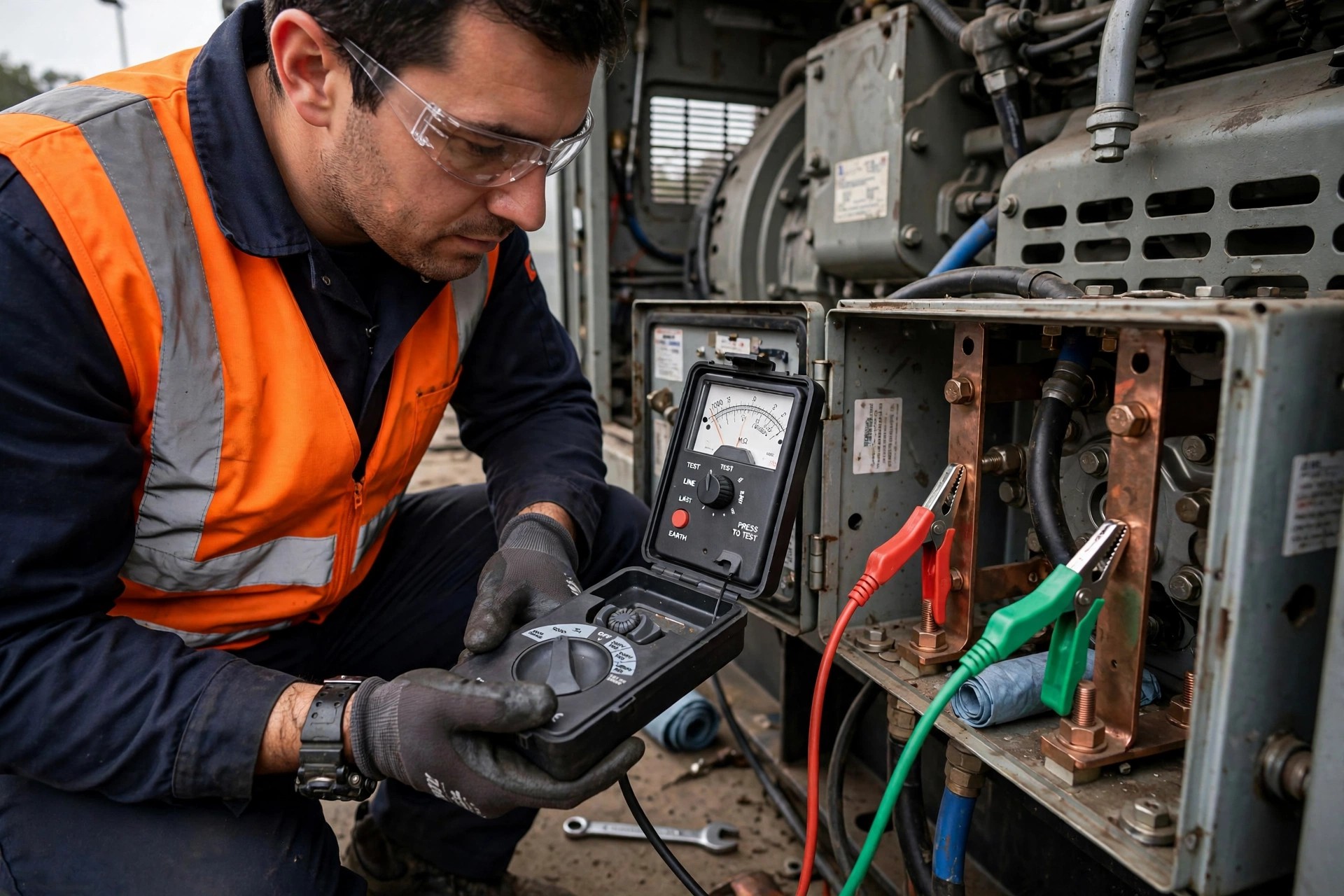

First, megger it. You just disturbed every high-current connection in the machine — loosened studs, shuffled leads, maybe nicked a lug’s insulation without noticing. One insulation test takes ten minutes and tells you the windings are still healthy before you close the breaker. I learned to respect this test years ago on a set that looked perfect and metered fine — the full story of why that test is non-negotiable is here, but the short version is: a nicked lead that passes a casual look will absolutely find a ground path once it’s under load.

Second, torque it and re-check it under load. Copper relaxes. A strap torqued to spec on a cool morning can walk loose through a few thermal cycles, and a loose high-current joint quietly becomes a heater — you’ll find it months later as a discolored lug or a melted boot, long after everyone forgot the reconnection happened. Run the set, load it up, and come back with an infrared thermometer after an hour. Hot spots don’t lie.

Third, verify the voltage at the terminals with a real meter before you close the main breaker — every phase to neutral and phase to phase. It sounds insultingly obvious. It’s also the single habit that has saved more machines than any other I know, because the one time you skip it is the time a strap is sitting one stud off.

An old-timer I work with thinks nobody should ever touch factory wiring. “It came 480, it stays 480,” he says, and for rental fleets where any machine might go anywhere, he’s got a point — standardizing on one connection avoids exactly the phone calls I described. Where we disagree: the terminal box was designed to be reconnected. The diagram is inside the lid. The manufacturer put it there on purpose. Use it — just use it with the meter, the megger, and the label.

Back to that foreman and his groaning building. We opened the terminal box, moved the straps from series wye to parallel wye, meggered it, torqued everything, labeled the lid, and measured 208 across the phases before the breaker ever closed. The motors stopped complaining before lunch. The generator hadn’t changed at all. Just the wiring — and what the wiring was allowed to mean.
