2:14 a.m. The duty phone went off. A standby set at a logistics warehouse — 800 kVA, barely four years old — had dropped to half power right in the middle of a grid outage. The engine was fine. The fuel was fine. The problem was a small amber lamp the maintenance crew had been staring at for three weeks without understanding it. The DEF tank had run dry, the SCR system’s warning countdown had expired, and the controller did exactly what it was programmed to do: it took power away from a perfectly good engine to protect a catalyst most people on site couldn’t point to on a diagram.
That phone call is why I wrote this piece. If your generator is Tier 4 Final or Stage V — and anything built in the last decade for the European, American, or Chinese market probably is — it carries an exhaust aftertreatment system: usually a diesel particulate filter (DPF) catching soot, and an SCR catalyst that uses diesel exhaust fluid (DEF, the urea solution sold as AdBlue in some markets) to break nitrogen oxides down into nitrogen and water. The system works invisibly until it doesn’t. Then it becomes the only thing that matters.
Almost every SCR-related call I take boils down to three questions. Here they are, answered straight.
First, the math, because nobody does it at the quote stage. DEF dosing typically runs 2 to 5 percent of diesel fuel consumption by volume. Take a 500 kVA set pulling roughly 90 liters of diesel an hour at load. That means 3 to 4 liters of DEF every hour. Run it ten hours and you’ve swallowed 30 to 40 liters of urea solution.
Now here’s the trap I keep walking into on site: the fuel tank gets sized for the job — 72 hours of autonomy, let’s say, a 6,000-liter tank — while the DEF tank is whatever came bolted to the skid, often 100 to 200 liters. Do the division. Your fuel lasts three days. Your urea runs out in about thirty hours. Guess which one stops the generator.
I’ve stood in front of exactly that setup at a cold-storage site and had the facility manager ask me, dead serious, why the set derated on day two when the fuel gauge read three-quarters full. The fuel gauge was telling the truth. It was just the wrong gauge to watch.
Consumption also moves around more than people expect. Light loading makes dosing worse per kilowatt-hour, because the exhaust never gets hot enough for the SCR reaction to run cleanly and the controller keeps spraying to compensate. Cold weather thickens the problem — DEF freezes at minus 11 degrees Celsius, and while the tank heater handles that, repeated freeze-thaw cycles in a cheap tank age the fluid faster.

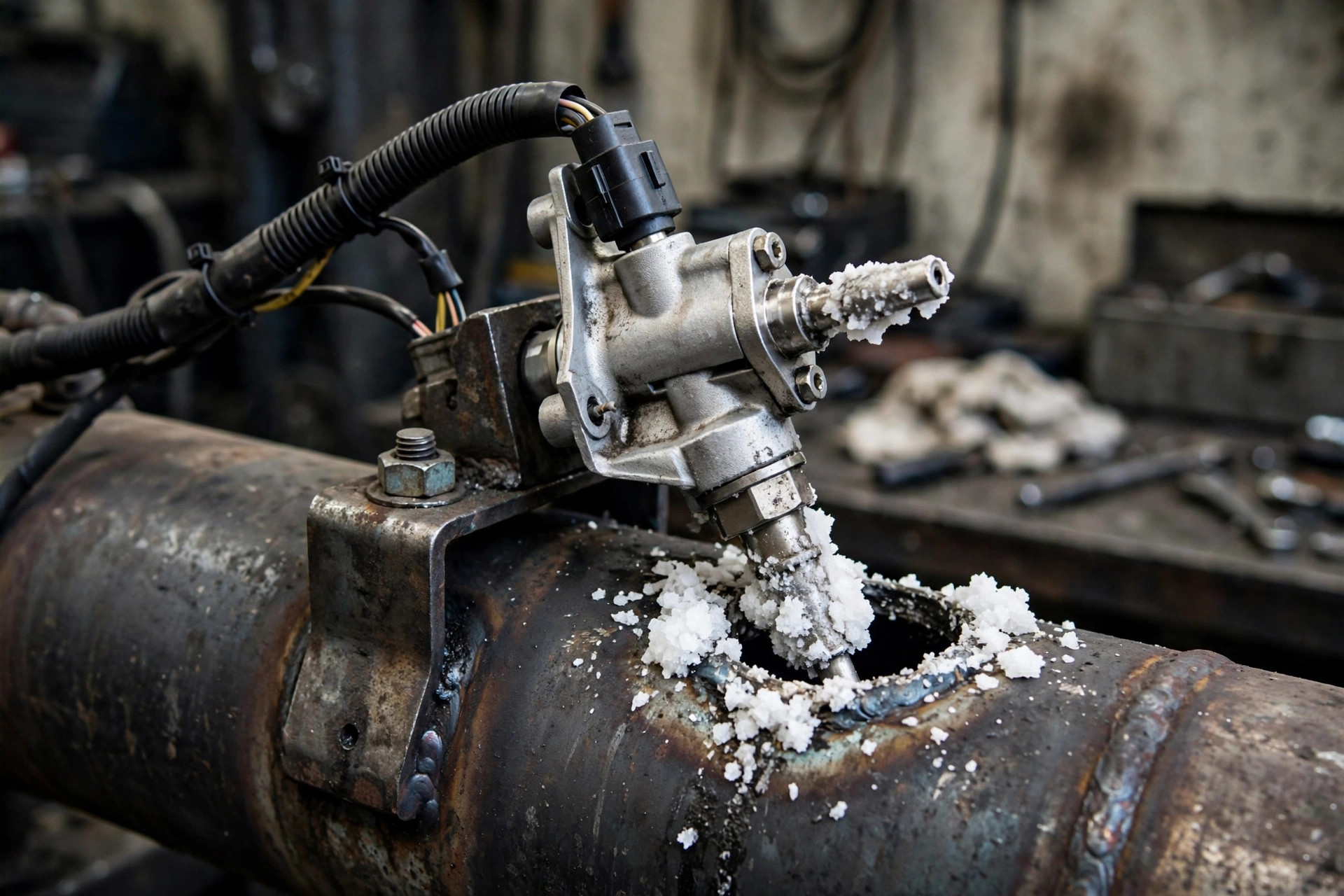

And then there’s quality, which is where cheap owners get expensive lessons. Real DEF is 32.5 percent high-purity urea in deionized water, made to the ISO 22241 standard. The “urea solution” sold for agricultural sprayers is not the same thing. Wrong concentration trips the quality sensor. Contaminated fluid clogs the dosing injector — you’ll see white crystals crusting around the nozzle, which means the spray pattern has gone from a fine mist to a dribble, and the SCR catalyst downstream is starving. I tell customers this bluntly: if the price gap between certified DEF and the bargain drum at the truck stop is what’s breaking your budget, you’re budgeting the wrong line item. Keep containers sealed, keep them out of the sun, and don’t stockpile more than about a year — DEF degrades, and old fluid is just expensive water.
Short answer: maybe, for a while, if you know exactly which lamp it is and what the countdown says. Long answer: this is the question that costs people the most money, because “a while” turns into “three weeks” faster than you’d think.
SCR fault logic runs in stages, and every manufacturer implements it slightly differently, but the shape is universal. Stage one is a warning — amber lamp, maybe a message on the controller. Stage two is inducement: the controller starts taking power away, typically a 25 percent derate, then deeper. Final stage is what the industry politely calls “severe inducement,” which in plain English means the set limps at idle or refuses to start until the fault is fixed. On a generator, torque derate is power derate. A 500 kVA set in stage two is a 375 kVA set, and your load doesn’t care about the difference.

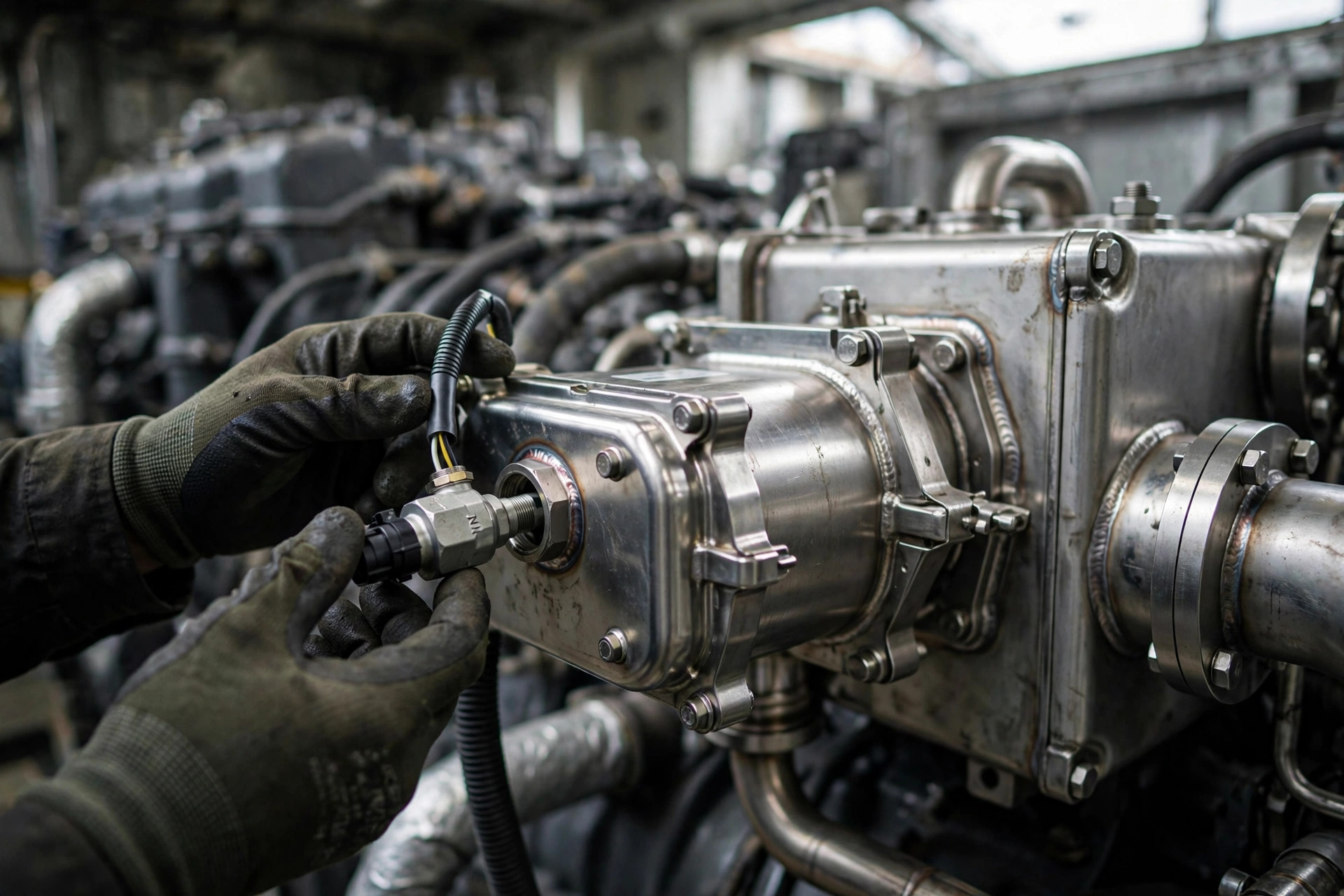

The usual triggers, in the order I actually find them: empty or low DEF tank. Wrong DEF concentration. Clogged or failed dosing injector. Dead NOx sensor (there are usually two, before and after the catalyst, and the controller compares them). Upstream problems — a choked DPF or an EGR fault — that poison the SCR’s working conditions. The controller will give you fault codes. Read them before you touch anything.
Here’s the part where I argue with people. I’ve watched operators clear SCR codes through the controller menu to “reset the countdown,” the way you’d snooze an alarm. It works. Once. Maybe twice. The controller is counting because the catalyst is being damaged or the emissions are out of bounds, and every reset just buys time at compound interest. I saw a site do this for two months on a rental-return set. When the set finally refused to start, the SCR catalyst was coated in deposits so badly it needed replacement — a bill that would have bought roughly a decade of DEF and one service visit to replace a dosing injector.
My rule: an amber SCR lamp on a standby set is a stop-work order for anything critical. On a prime-power set, it’s a “fix it this week” order, not a “watch it” order. And if the lamp is red or the countdown is under a few hours, stop planning around the generator and start planning around its absence. For the emissions background that explains why these systems exist at all, see our walkthrough of diesel generator emissions standards.
First, figure out what’s actually clogged, because the DPF and the SCR fail differently and people mix them up constantly.
The DPF traps soot. Under proper load, exhaust heat burns that soot off passively — this is regeneration, and it happens on its own while the set works hard. Under light load, the exhaust never gets hot enough, soot accumulates, backpressure climbs, and eventually the controller demands a forced (stationary) regeneration: high idle, 30 to 45 minutes, burning extra fuel to cook the filter clean. Skip that long enough and the filter loads past the point where heat can save it. Then it goes to a professional cleaning service — thermal bake, pneumatic blow-out, flow test — or it gets replaced. One more thing nobody mentions: ash never burns. The metallic ash from engine oil accumulates in the DPF forever, so even a perfectly run filter needs professional ash cleaning every few thousand hours.
The SCR side clogs differently. Urea that doesn’t atomize properly — bad injector, cold exhaust, wrong concentration — leaves deposits in the mixer and on the catalyst face. White crust in the exhaust pipe upstream of the SCR is the tell. Light cases get fixed by cleaning the dosing system and running the set hard enough to heat-soak the catalyst. Bad cases mean pulling the catalyst for professional cleaning or replacement.
Prevention is boring and it works. Run the set at real load — this is the same reason I keep pushing load bank testing in almost everything I write; a set that never sweats never cleans itself. Don’t let standby sets idle for hours “to warm up” — idling is how soot builds and wet stacking starts, and there’s more on the exhaust side of that in our exhaust system design guide. Keep DEF fresh and certified. And fold the aftertreatment into the regular maintenance checklist instead of treating it as a separate universe: check the DEF level the same day you check the oil, glance at the dosing injector when you’re doing filters, read the NOx sensor values once a quarter.
Cost honesty, since nobody else gives it to you: a professional DPF/SCR cleaning bill routinely comes in higher than two years of that site’s DEF purchases. A replacement catalyst assembly costs more than most of the maintenance the set will ever see. The urea is the cheapest consumable on the machine. Act like it.
Here’s how I’d put it to a customer over coffee. Your generator has maybe a dozen warning lamps that mean “spend money soon.” The DEF lamp is the only one where the fix costs less than a tank of diesel and the punishment for ignoring it costs more than the service contract. Size the urea tank for the same autonomy as the fuel tank. Buy fluid that meets the standard, not fluid that’s cheap. Don’t reset codes to buy time — you’re not buying time, you’re renting it at loan-shark rates. And run the set hard enough, often enough, that the aftertreatment can do the job it was built to do.
That warehouse set from the 2 a.m. call? It ran fine for the rest of the outage once we filled the DEF tank and cleared the fault properly. The amber lamp had been on for three weeks. The fix took eleven minutes. I’ve thought about that ratio a lot since.
