The inspector didn’t even look at the generator first. He walked past it — a clean 500 kVA set, serviced, logbook full — and went straight to the red fire pump controller on the wall. He asked the building engineer one question: “Show me the locked-rotor calculation.” The engineer blinked. There was no calculation. The generator had been sized for the building’s normal emergency load, and the 250-horsepower fire pump motor had been hung onto it afterward like an afterthought. The inspector wrote the red tag before lunch.
I’ve seen versions of that scene more than once, and it always comes down to the same misunderstanding. A fire pump’s generator is not a normal standby generator. The standard that governs it — NFPA 20, the installation standard for stationary fire pumps — treats the whole assembly with a logic that feels backwards the first time you meet it: the pump is more important than the machine driving it. Everything downstream of that one idea is different. Sizing. Protection. Testing. If you spec a fire pump generator the way you’d spec a generator for an office building, you will fail the inspection, and worse, the system may fail when the building is on fire.
Here are the five mistakes I keep finding in fire pump rooms. Every one of them was avoidable at the quote stage.
A fire pump motor doesn’t start like a normal motor. Across-the-line starting — which is how fire pump controllers start them, deliberately, no soft-start games — pulls locked-rotor current. That’s roughly six times the motor’s full-load current, for the seconds it takes to get up to speed. A 250 hp motor on a 480-volt system can ask for something on the order of 1,500 amps while it starts. Your generator has to deliver that without the voltage sagging so far the motor stalls or the contactor drops out.
The number the industry works to is a voltage dip of about 15 percent during motor starting. Past that, you’re in the zone where the pump may not come up to speed, and a fire pump that can’t start is a very expensive paperweight. Sizing a generator for this means doing a real locked-rotor calculation — starting kVA of the fire pump motor plus whatever else is running — not eyeballing it from the building’s total connected load. The generator that comfortably carries the elevators, the emergency lighting, and the smoke exhaust fans can still choke on the pump.
I’ve stood in front of a nameplate that told the whole story: a 400 kVA set feeding a fire pump motor whose locked-rotor kVA alone was north of 500. On paper it “had capacity.” In the pump room, the first full start test sagged the voltage so hard the controller’s own coil dropped out mid-start. The fix was a bigger alternator and a very awkward conversation with the owner. Do the locked-rotor math first. Everything else is decoration.
This is the one that bends people’s brains, because it contradicts everything you know about protecting electrical equipment. A normal generator is full of self-preservation: overcurrent trip, short-circuit trip, high coolant temperature shutdown, low oil pressure shutdown. All sensible. All designed to sacrifice the load to save the machine.
NFPA 20’s world runs the other way. A fire pump is allowed — expected — to run to destruction rather than shut down. The building is on fire; nobody cares whether the generator survives the night. So the overcurrent devices feeding a fire pump are sized to carry locked-rotor current indefinitely, not to trip on it. And a generator dedicated to fire pump duty gets configured the same way: alarm on everything, trip on almost nothing. Low oil pressure? Alarm, keep running. Overcurrent? Alarm, keep running.
I’ve walked into pump rooms where the generator still had its factory protection settings — the defaults, the ones that would shut it down to save itself. The contractor had done beautiful conduit work and never changed a single setpoint. On paper the system was “protected.” In a fire, the generator would have done exactly what it was told to do: protected itself, and let the pump die. When I point this out, owners look physically uncomfortable, which is the correct reaction. Check the protection philosophy, not just the protection devices.
Nothing in the rules says the fire pump needs its own dedicated generator. Plenty of buildings feed the fire pump from the same standby set that carries the rest of the emergency loads. That’s legal. It’s also where the trouble starts, because every other load on that generator is a thief during the three seconds the pump motor is starting.
Here’s the scenario I keep sketching for customers on napkins. Grid fails at 2 a.m. The generator starts, the transfer switch throws, and the emergency loads come back in stages — except nobody staged them, so the elevators, the stairwell pressurization fans, and the fire pump all land on the generator inside the same few seconds. The pump motor asks for its locked-rotor gulp at the exact moment everything else is also drawing inrush. Voltage dips past the 15 percent line. The pump contactor chatters. The inspector, watching the test with a meter, shakes his head.
The fix isn’t exotic: sequence the loads so the fire pump starts first and alone, or hold other big loads off until the pump is up to speed. If you’re sizing fresh, do the locked-rotor calculation with the real coincident loads, not the wishful ones. For the transfer-switch side of this, our walkthrough of how automatic transfer switches actually work covers the sequencing logic that keeps this clean. And if the budget allows, the cleanest answer is still a generator that answers to the fire pump first and everything else second.

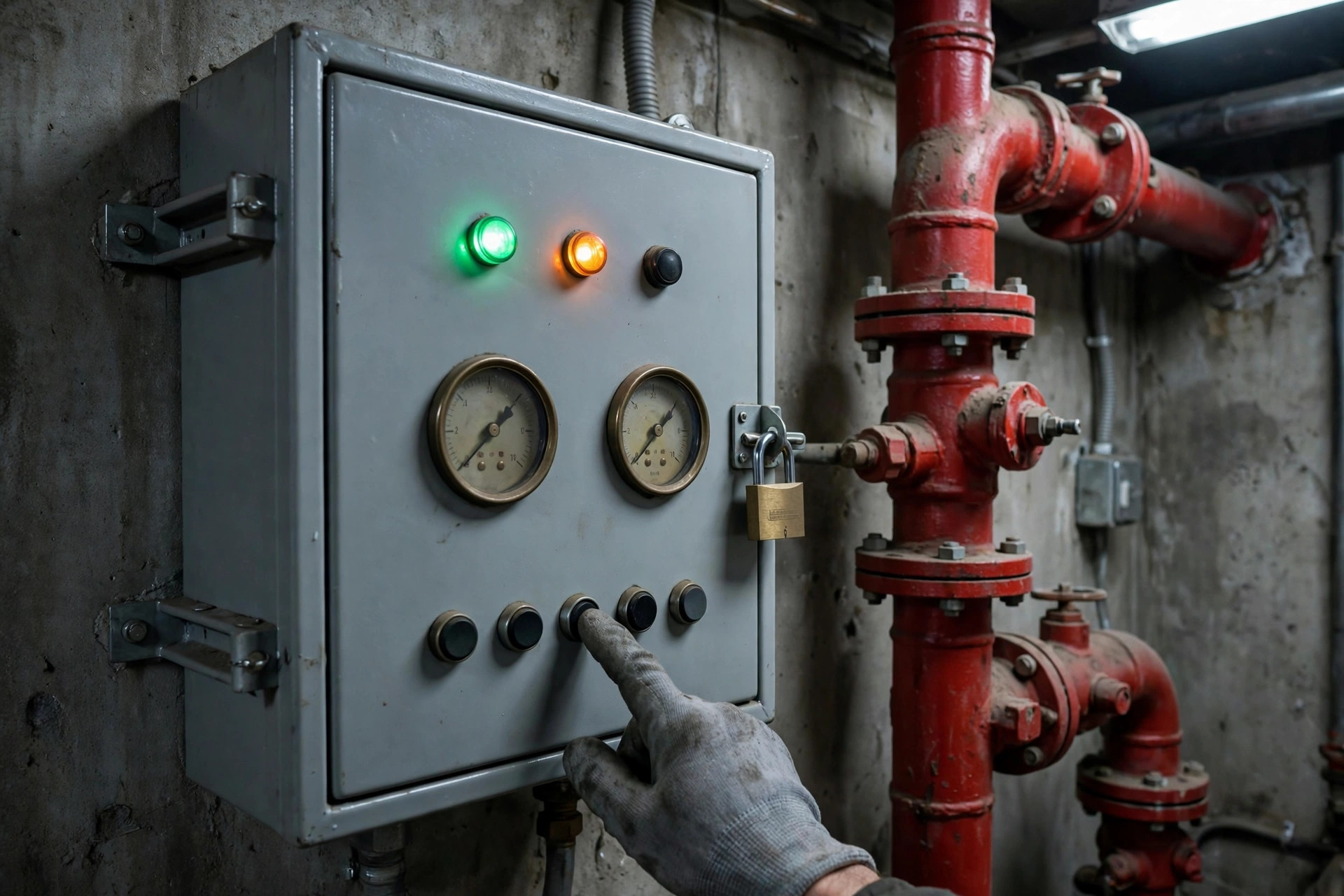

Fire pumps get tested weekly — that’s NFPA 25, and the logbook will show a neat row of checkmarks. What the checkmarks don’t show is whether the test proved anything. I’ve watched “weekly tests” where the operator cranked the engine for thirty seconds, watched it run, and shut it down. The pump never saw water move. The generator never saw load. The logbook got its checkmark, and everyone went home confident about a system that had never once demonstrated it could do its job.
A real test runs the pump — churn test at minimum, flow test on schedule — long enough to get everything hot and loaded. That means the generator runs at real load too, which is the only time you’ll find out about the clogged fuel filter, the weak battery, or the voltage dip that only shows up when the pump motor actually starts. It also means checking the boring stuff the logbook skips: fuel level and fuel age in the day tank, battery charger output, block heater function, the controller’s event history. The generator side of this is ordinary standby maintenance discipline, but the stakes are what make people skip it — nothing has caught fire yet, so the test feels like theater. It’s not theater. It’s the only rehearsal you get.
One detail from a site I won’t name: the weekly test had been “passing” for two years on a set whose starting batteries were being float-charged by a charger that had failed eighteen months earlier. The batteries held just enough surface charge to crank for the thirty-second test. The first time the grid actually failed, the engine cranked twice and quit. The logbook was perfect. The building was dark. Test like it matters, because the one time it matters, the logbook won’t be there.
The red box on the wall isn’t a starter panel with a paint job. A fire pump controller is a listed assembly — built, tested, and labeled for fire pump duty — and the wiring rules around it are special: it gets fed from ahead of the building’s main disconnect in many installations, because a fire pump that goes dark when someone opens the main breaker is a bad joke. You can’t just hang it off a standard transfer switch arrangement and call it done.
When a generator feeds the fire pump, the controller and the generator have to tolerate each other. The controller will start that motor across the line and drag the voltage down; the generator has to ride through it without its own undervoltage or reverse-power protection doing something clever. The control wiring between them — start signals, running feedback, fault annunciation — has to be right, and it has to be tested under load, not just rung out with a meter. I’ve seen the signal wiring done perfectly and the whole thing still fail because nobody had ever started the pump from the generator with the building dark. The first full black-start test is where the surprises live. Schedule it before the inspector does.

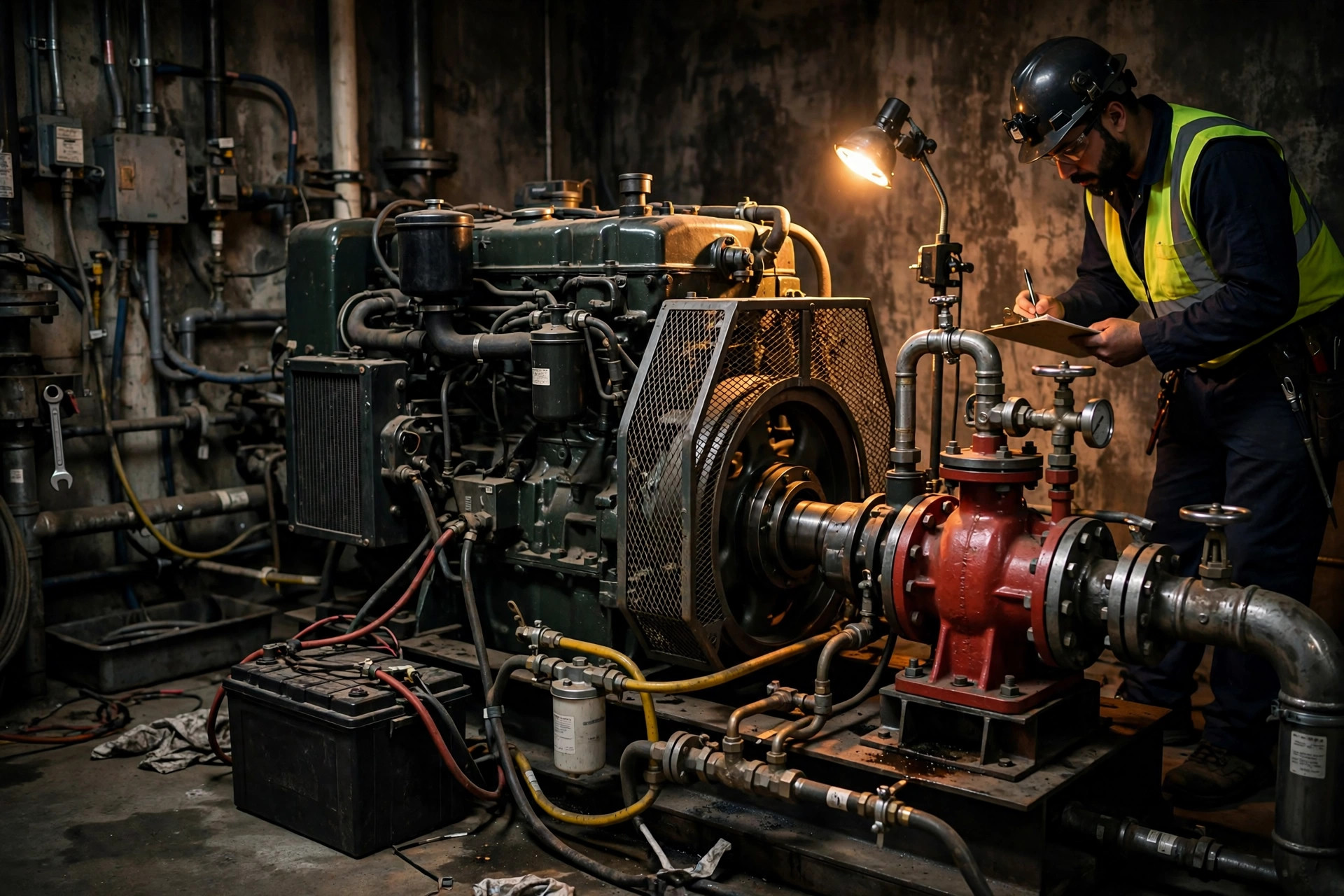

Worth saying plainly: not every fire pump needs a generator. Plenty of installations drive the pump directly with a diesel engine — no generator, no motor, no locked-rotor math, just an engine bolted to the pump through a right-angle drive. It’s simpler, it’s been done for a century, and for a standalone pump house it’s often the honest answer.
The generator route wins when the site already needs standby power for other life-safety loads and one machine can serve both — which is most commercial buildings. Just don’t let the convenience fool you into thinking the generator is doing a normal job. Size it for the locked-rotor gulp. Strip its instinct for self-preservation. Feed the pump first. Test it like the building is actually on fire. The inspector with the red tag isn’t your enemy; he’s the last person who gets to find these mistakes cheaply. After him, the next one to find them is the fire.
