You Bought Three-Phase Power. Your Loads Are Single-Phase.

It was a Friday afternoon when the site manager called, and he wasn’t in the mood for theory.

His 200 kVA diesel generator kept shutting down on an “unbalanced load” fault. The whole site was only pulling about 120 kW. “The machine is twice as big as we need,” he said. “So why does it keep dying?”

He was right about the math. He was wrong about what the machine actually is.

Here’s the thing. A three-phase generator isn’t one big 200 kVA machine. It’s three smaller machines — L1, L2, L3 — sharing one crankshaft. Each winding carries roughly a third of the nameplate. Pile all your single-phase loads onto L1, and L2 and L3 sit idle while L1’s winding cooks itself.

The controller doesn’t average. It watches each phase. And it trips.

Three windings, one shaft, no mercy for favorites

Most buyers read “200 kVA” and picture a 200 kVA bucket of power they can pour wherever they like. The alternator sees something different: three copper windings, each with its own current limit. Pull the whole machine through a single phase and that winding sees far more current than it was wound for.

Current makes heat. Heat kills insulation. Insulation is the whole game — once the stator insulation is cooked, no controller setting brings it back.

Rough rule of thumb: from a three-phase set, your honest single-phase capacity is about a third of the nameplate. Not half. Not “most of it.” A third.

That Friday site? Every lighting tower, every office container, every battery charger — all landed on L1. Because that’s where the first free breaker happened to be. L1 was carrying over 320 amps on windings rated for about 289. The other two phases were nearly empty. The controller did exactly what it was paid to do and shut the whole site down.

Mistake one: stacking everything on L1 because the breaker was free

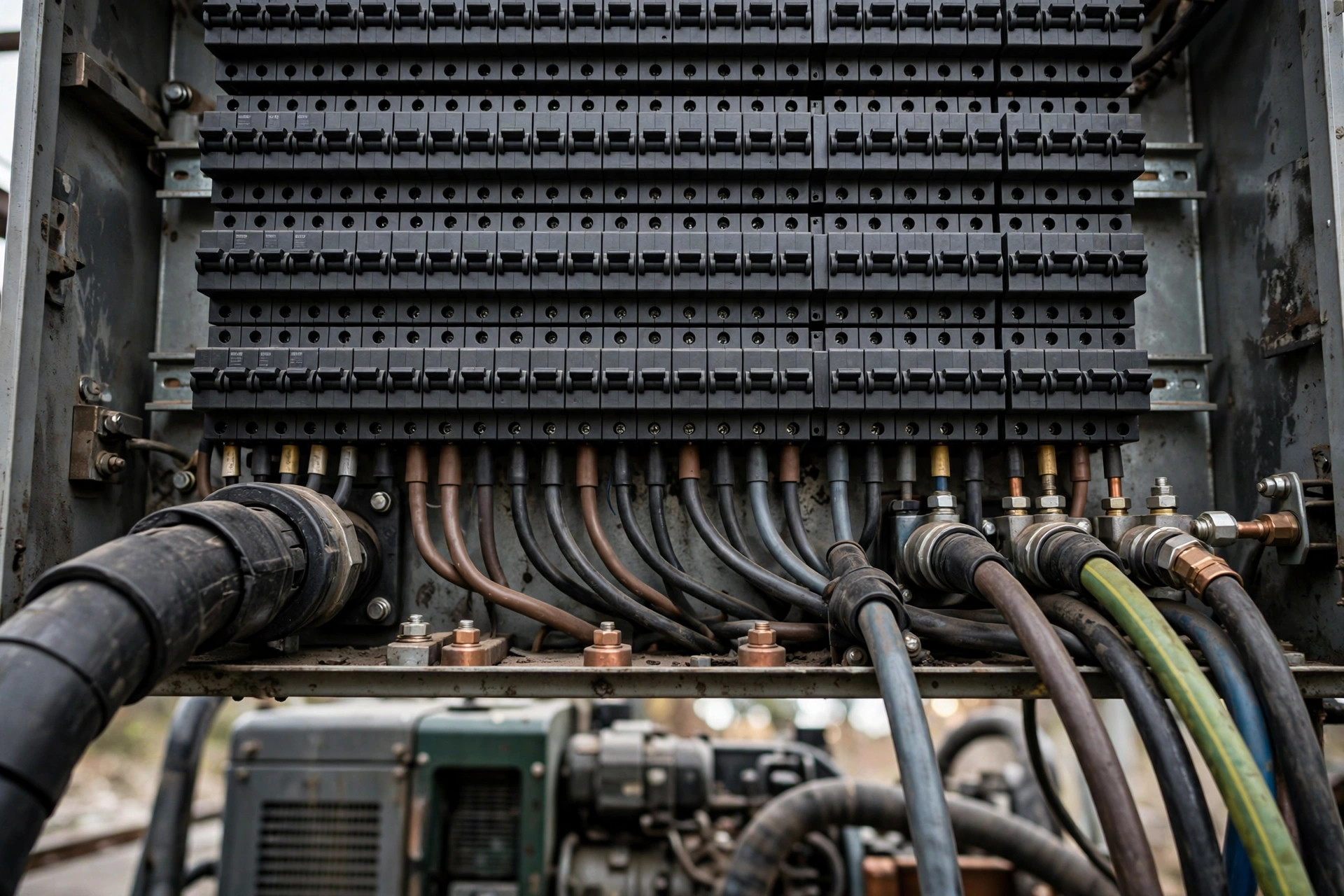

This is the most common sin and it looks innocent. The electrician lands circuits wherever there’s space in the panel. Single-phase loads are small, the panel is big, nobody maps phases.

Two weeks later the set starts tripping on unbalanced load. The site blames the generator. The generator is fine.

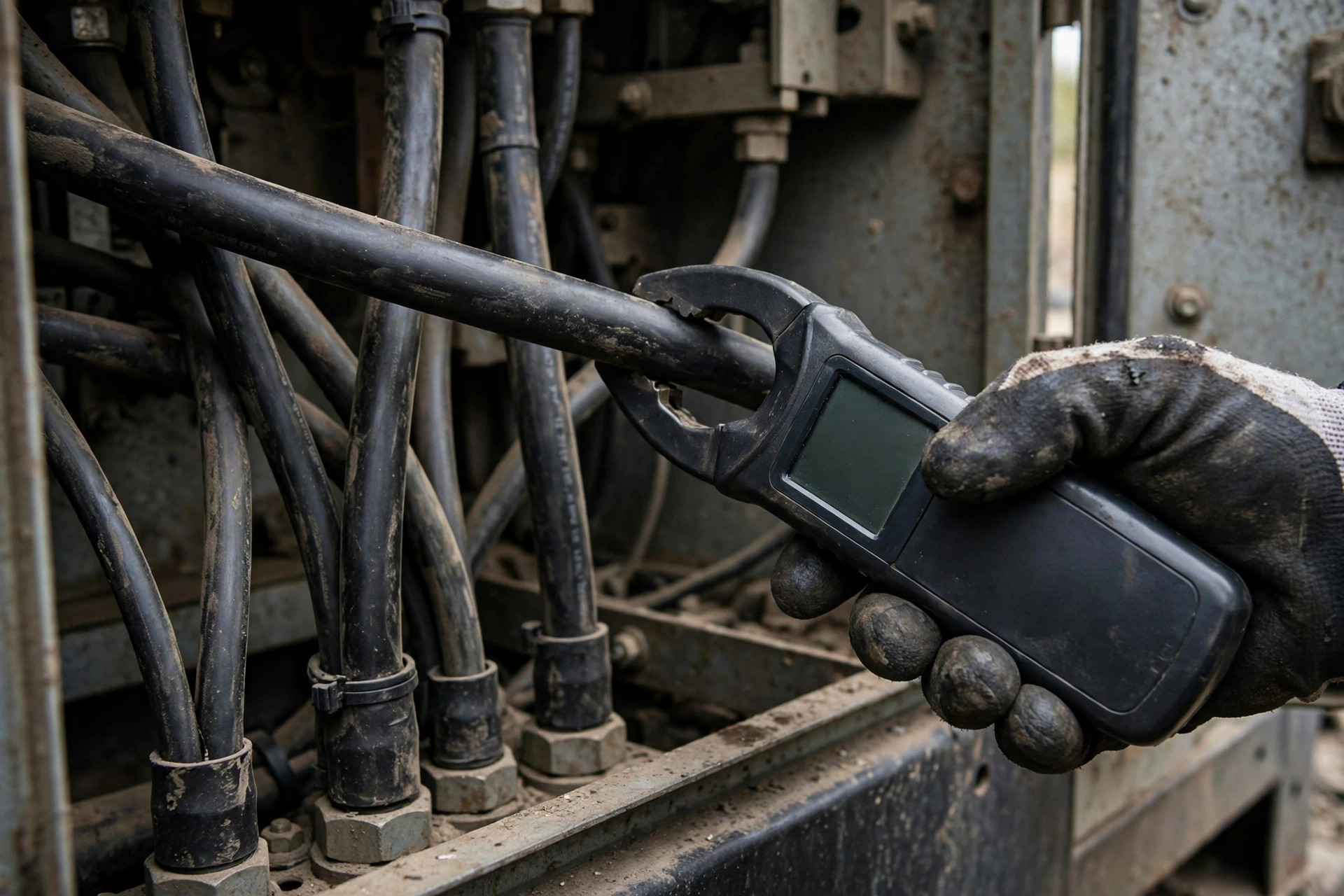

An old-timer I know balances panels by feel — “I’ve been doing this thirty years, I can hear an unbalanced panel.” I believe he can hear it. I still put a clamp meter on each phase, because the meter doesn’t have a bad day. Last time we disagreed, his “balanced by ear” panel was running about 60 amps apart between phases.

The fix is boring and it works: map every single-phase load to its phase, then move breakers until the three phases sit within roughly 10–20% of each other. An hour with a clamp meter. That’s the whole repair.

Mistake two: feeding 230-volt loads from the wrong pair of wires

On a 400-volt three-phase set, your single-phase outlets give 230 volts — measured line-to-neutral. Measure between any two phase wires and you get 400. Both are “single-phase” in the loosest sense. One of them will run your 230-volt gear. The other will kill it.

I watched a plasma cutter get landed across two phases once. It ran loud and angry for maybe eleven seconds, then smoked. The guy who wired it swore the plug fit. The plug fit because 400 volts doesn’t check your work.

Before you land any single-phase load on a three-phase set, meter it: one phase wire to neutral should read roughly 230. Phase to phase reads roughly 400. If you see 400 where a 230-volt machine wants to eat, walk away and rewire.

Nobody thinks about the neutral until it smells hot

Here’s the part nobody teaches. In a balanced three-phase system, the phase currents nearly cancel in the neutral wire. The neutral carries almost nothing. Lovely.

Now load the whole site with single-phase gear, all returning through the same neutral. Those currents don’t cancel anymore. They add. Your neutral can end up carrying as much as — or more than — the hottest phase.

Cheap site cable often has a skinny neutral. Undersized neutrals run hot, lugs loosen from thermal cycling, resistance climbs, and one day you’re smelling insulation at the terminal box. I once put an infrared gun on a site distribution board and found the neutral lug running over 30 degrees hotter than any phase lug. The phases were “fine.” The neutral was dying.

It gets worse with the loads everyone brings to site now — LED towers, chargers, laptops. Their harmonic distortion keeps the neutral busy even when the phases look balanced. Dirty power and hot neutrals travel together.

Full-size neutral conductor. Tight lugs. Check it with a thermal camera during the monthly walkaround — carefully, with the covers handled like they’re live, because they are. It belongs on the same checklist as the oil and the filters.

Mistake three: forgetting the machine has opinions

Modern controllers watch phase imbalance and they will act on it — alarm first, then derate, then trip. That’s not a nuisance. That’s the alternator protecting itself from you.

There is one legitimate escape hatch: the zig-zag connection. On a 12-lead reconnectable alternator, a technician can rewire the windings into a double-delta arrangement that gives you roughly 58% of the nameplate as single-phase capacity instead of a third. Real option. Real machines ship with the diagram inside the terminal box lid.

But — and this matters — it’s a hardware reconnection, not a setting. It needs a qualified tech, a torque wrench, and an insulation test afterward. It changes what the nameplate means, so the next electrician needs to know. Don’t treat it as a weekend project with a video tutorial.

And don’t confuse zig-zag with “single-phase mode” on the controller. I’ve seen that confusion cost a rental company a weekend: the controller display said single-phase, the windings were still star-connected, and L1 still took the whole beating.

What I’d do on a Monday morning

If your site is mostly single-phase loads on a three-phase set, here’s the order I’d work in:

• Write down every single-phase load and which phase it’s actually on — no guessing.
• Clamp each phase and the neutral under real working load, not at lunch break.
• Move breakers until the phases sit within roughly 10–20% of each other.
• Check the neutral conductor size and lug temperature while you’re in there.
• If one phase still dominates everything, ask a tech whether zig-zag reconnection fits — or whether a small dedicated single-phase set for the light loads is the honest answer.

That last point deserves a second. Sometimes the right answer isn’t rewiring the big machine — it’s not asking it to run the site office at all. A small single-phase set sipping fuel for the containers, the big three-phase set for the heavy three-phase loads. Two machines, each doing what it was wound for. Sizing the machine for the actual load beats oversizing and hoping.

If you’re still choosing the machine rather than fixing one, the single-phase versus three-phase decision deserves its own honest look — and the kVA number on the plate is not the kW number in your head.

Back to that Friday site. We moved six breakers and the fault never came back. Forty minutes, one clamp meter, zero parts. The manager still thinks the generator was broken.

It wasn’t. It was being asked to do one phase’s job three times over. The machine knew. It just took us a while to listen.
