Tuesday, 7:15 in the morning. My phone lights up — site foreman, 400 kVA set at a quarry. “The coolant tank looks like chocolate milk,” he says. “I’ve ordered a head gasket set and booked the crane for Thursday.”
I told him to cancel the crane.
Not because I knew his engine. Because I’ve taken this call maybe thirty times in twelve years, and the head gasket has been guilty maybe twice. The rest of the time it was the lube oil cooler — a part most owners have never heard of, sitting right next to the oil filter, quietly mixing two fluids that should never meet.
That call always turns into the same three questions.
Probably not. Here’s why.
On most generator engines — the mid-size ones, say 100 to 800 kVA — the oil cooler is a stack of thin plates bolted to the side of the block. Engine oil flows through one set of passages, coolant through the next, separated by plates thinner than a credit card. The big frame engines use a tube bundle instead, but the idea is identical: oil and coolant trading heat across a very thin wall.
Now the numbers that matter. Hot oil runs at four, five, sometimes six bar. Coolant runs at about one. Pressure always wins an argument.

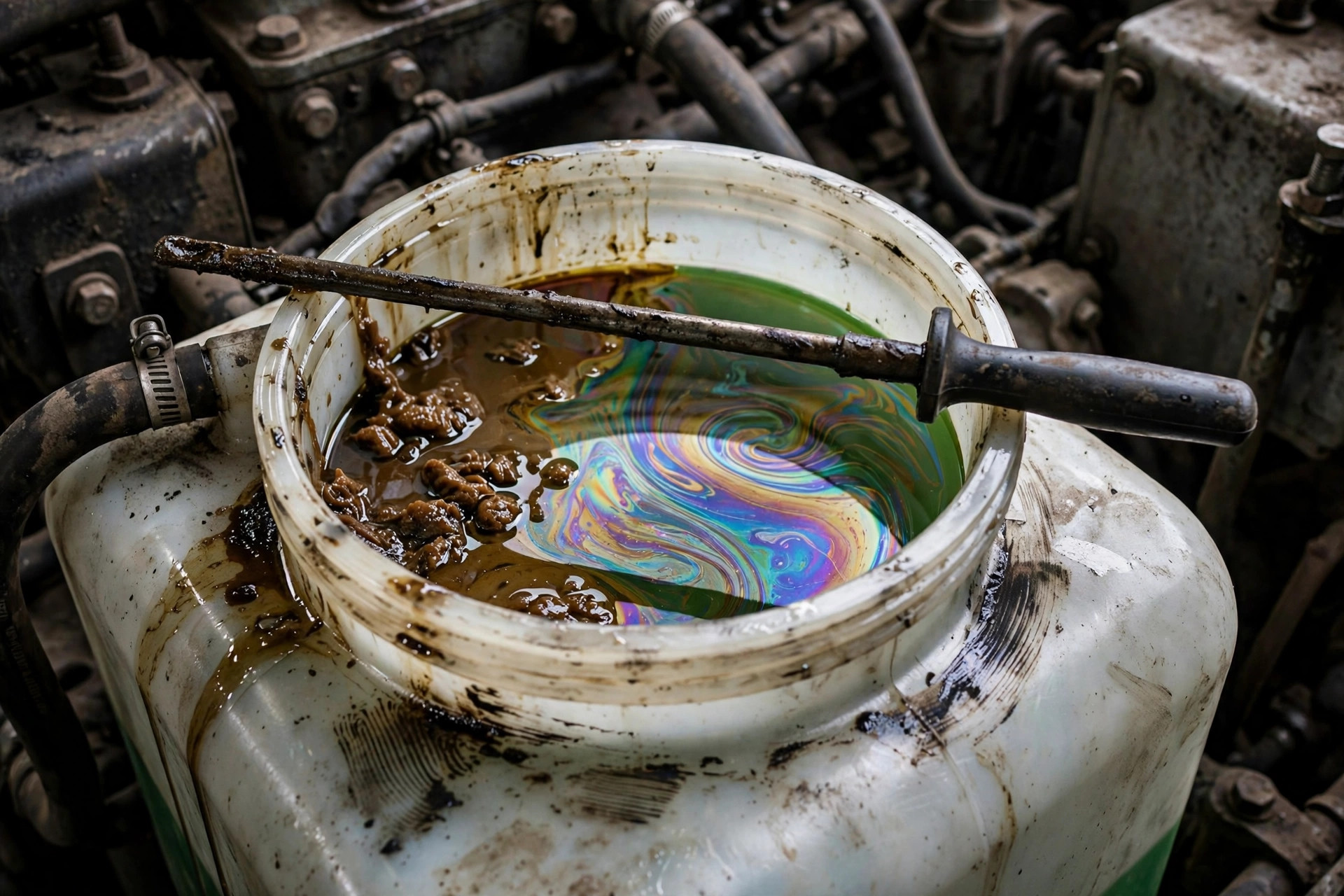

So while the engine runs, oil forces its way through any crack or failed seal into the coolant. That’s the brown sludge in your expansion tank. Then you shut down. The oil drains back to the sump, oil pressure falls to zero — but the cooling system holds residual pressure for a while, and now the push goes the other way: coolant seeps into the oil galleries. That’s the milky film on your dipstick the next morning.
Two directions, one failed part. A head gasket can do this too, sure. But a head gasket usually announces itself — combustion gas in the coolant, pressure spikes, white smoke, a rock-hard upper hose. A dying oil cooler is quieter. It just trades fluids, a little more each week, until somebody opens the expansion tank cap and gets a surprise.
That quarry foreman? I drove out Wednesday. Cracked plate in the cooler, third plate from the end — you could see the hairline with a flashlight once it was on the bench. The head gasket kit sat unopened on my truck seat for a week before I returned it.
Pulling a cooler is half a day’s work on some engines, and nobody wants to do it on a hunch. Work the evidence in this order — cheapest test first:
That sequence matters because it also protects you from the expensive mistake: a head gasket job on a mid-size engine is two days and a crane. A cooler is an afternoon. Diagnose cheap, wrench once.
This is where the old-timers and I part ways.
The old-timer at my first shop — forty years on engines, hands like sandpaper — his answer was always the same: flush the coolant, top up the oil, run it light, the cooler arrives Friday. “It’s just a little mixing,” he’d say. “Engines are tougher than you think.”
He’s right that engines are tough. He’s wrong about this one.
Coolant in the oil is not “a little mixing.” Glycol strips the oil film off plain bearings — mains, rods, the turbo — and those surfaces do not forgive. I’ve seen the aftermath exactly once, and once was enough: a 300 kVA set where the customer talked me into “just two more days, Friday to Monday.” Monday morning the rod bearings were copper-colored and the crank needed grinding. The cooler would have cost a few hundred dollars and four hours. The crankshaft bill had five figures in it.
Oil in the coolant is the less evil direction, but don’t get comfortable. It coats the inside of the radiator and the block with an oily film that kills heat transfer — which is how a cooler leak turns into an overheating problem two months later — and the leak only grows. Plates don’t heal.
So my honest answer: park it. If the load matters — and on a generator, it always matters — rent a set for the week. That’s what the maintenance checklist is for, really: catching this on a scheduled day instead of discovering it at 2 a.m. And if your coolant already looks like a milkshake, flush it properly after the repair — twice — because the residue keeps fouling everything it touches.
One more thing the old-timer got right, to be fair: when you do change the cooler, change the O-rings and seals with it, even if they look fine. Half the “new cooler leaking” comebacks I’ve seen were the old O-ring, reused, giving up a month later. The seal kit costs less than your lunch. Don’t get clever about it.

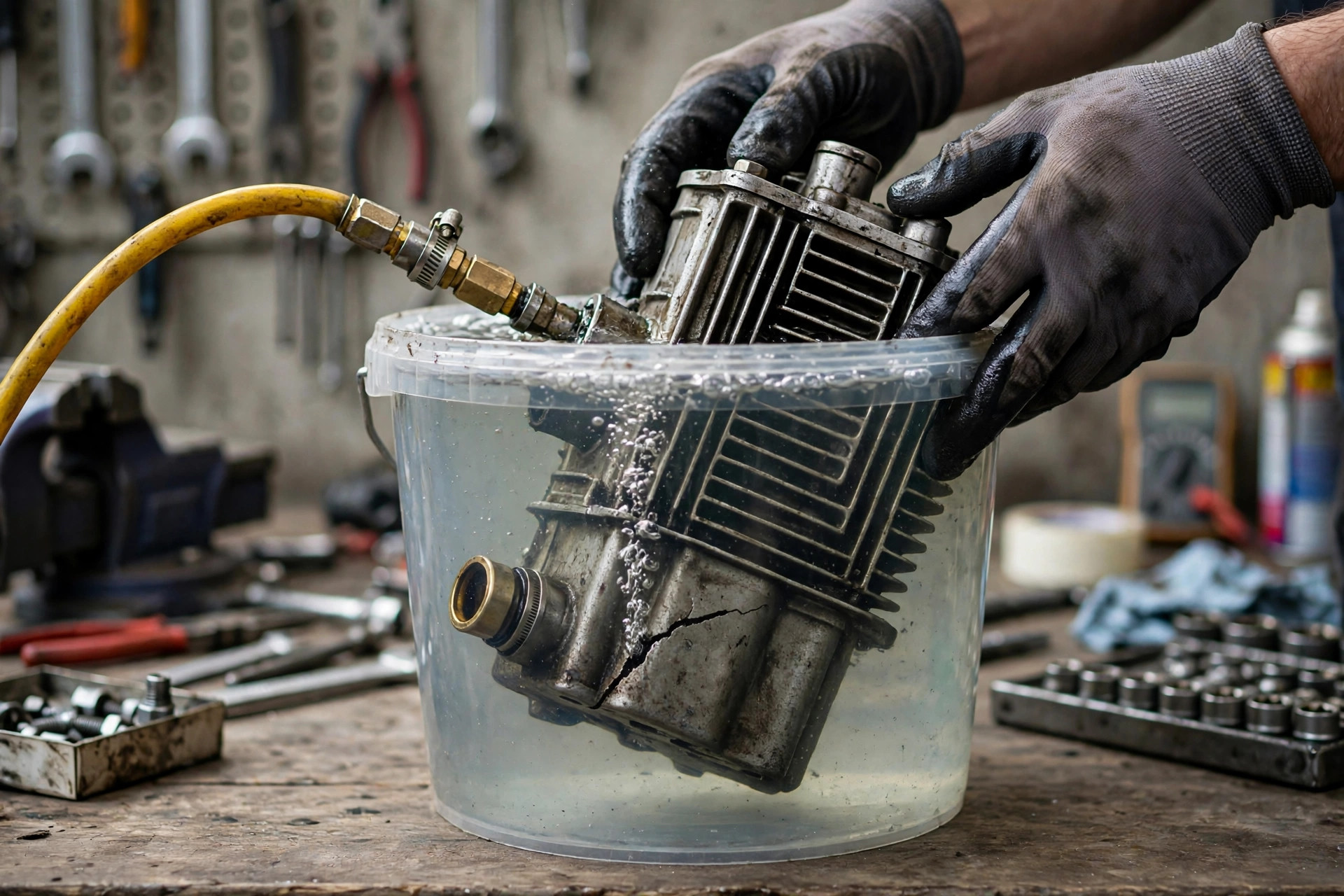

Look — the expansion tank is the cheapest diagnostic window on the whole engine. It costs nothing to open the cap and look. Next time it looks like chocolate milk, don’t order the head gasket kit first. Pull the cooler, dunk it in a bucket, and watch. It’s the cheaper suspect, and in my experience it’s guilty far more often than the gasket.
And if your dipstick looks like mayonnaise? Stop. Don’t start it “just to move it.” That’s the oil telling you the water already won that round.
Questions about a specific engine or a weird sample result — talk to us. We’ve seen most of the creative ways these things fail.
