It was a Tuesday morning, and the 400 kVA set on the roof of a logistics park was doing its weekly exercise. I was up there for the ATS check, nothing dramatic. The engine caught, settled into its rattle, and I heard it — a faint, fast ticking, like a playing card clipped to bicycle spokes. Thirty seconds later, hot, it was gone.
I wrote “cold-start exhaust tick — watch” in my notebook and moved on. Big mistake. Two weeks later the site manager called. The turbo was making a new noise, the controller had logged a boost fault, and the set sounded wrong under load. When we pulled the heat shield off, the manifold had a crack running between two runners, with black soot fanned out around it like a bruise.
The ticking had been the crack talking. I’d heard it and filed it away. Never again.
Here’s what happens. The exhaust manifold bolts straight to the cylinder head. Every start, it goes from ambient temperature to several hundred degrees in minutes — exhaust gas temperature on a loaded set runs roughly 450 to 550°C before the turbo, hotter than most people picture.
Cast iron expands when hot. A hairline crack that leaks exhaust pulses when the manifold is cold gets squeezed nearly shut as the metal grows. The tick — that’s individual exhaust pulses escaping through the crack, one per firing stroke — fades out as everything heats up.
So the first symptom of a cracked manifold is a noise that stops. Which is exactly why nobody acts on it. By the time the crack is big enough to tick when hot, you’ve been losing exhaust energy for weeks and cooking everything around the leak.
People treat the manifold like it’s a dumb piece of plumbing. It isn’t. It’s the hottest part on the engine, bolted between the vibrating cylinder head and the turbocharger, and it lives through brutal thermal cycling — stone cold, screaming hot, stone cold again — every time the set runs.
Standby sets have it worst, honestly. A prime-power set warms up and stays warm; the metal finds its happy place. A standby set does a cold start, runs hard for an hour, cools down, and sits for a week. Then does it all over again. Every cycle is a tiny expansion-contraction workout for the casting, and cast iron doesn’t forgive that forever. The crack almost always starts at a stress riser — the edge of a flange, the root of a runner, a spot where the casting is thin — and walks a little further each cycle.
Diesel techs call this thermal fatigue. Fancy name. Simple idea: heat it up, cool it down, repeat until it gives up.
If you only take one habit from this article, take this one: read the soot.

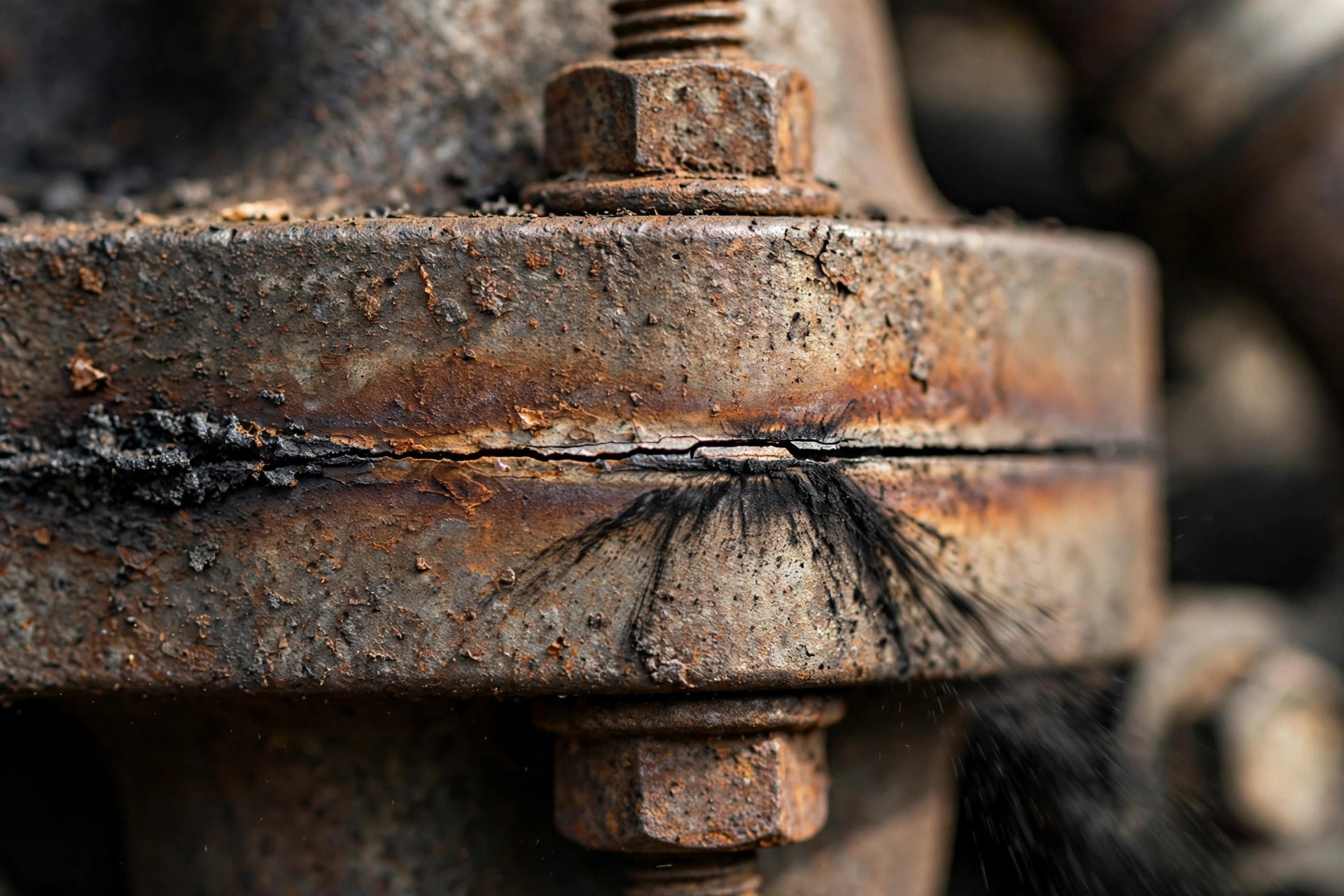

Exhaust gas leaves a trail. When a manifold cracks or a flange gasket starts blowing by, the gas carries fine black carbon with it, and it paints the metal around the leak. A fresh leak leaves a faint gray smudge. An old one leaves a thick black fan with sharp edges, pointing away from the crack like an arrow.
I found that crack on the rooftop set because of the soot, not because I heard the tick. The tick was long gone by then — the crack had grown past the point of sealing shut. But the soot pattern told the whole story: it started at the flange between runners two and three and fanned outward, which meant it had been leaking there for a while before I ever climbed up that ladder.
Run your eyes along every flange and every runner junction on your next inspection. Soot where soot shouldn’t be is never “just dirt.” It’s the manifold confessing.
They arrive in a sequence, and knowing the sequence is what separates a cheap fix from an expensive one.
First comes the cold-start tick that vanishes when hot. Then the soot tracking around a flange or a runner root. Then — this is the one people always miss — broken or loose manifold bolts. The crack changes how the manifold moves as it heats, and the movement works the bolts. I’ve pulled shields off to find a bolt head sitting loose in the bottom of the heat shield, with the crack right above where the bolt used to clamp.
Late symptoms: the turbo starts underboosting because exhaust energy is escaping before it reaches the turbine wheel, or one cylinder’s exhaust temperature reads noticeably different from the rest. If you’ve reached this stage, read my piece on turbocharger maintenance — you’ll need it, because a leaking manifold starves the turbo and cooks its bearings unevenly.
This is where an old-timer I respect and I disagree.
He says: pull the manifold, preheat it, stitch the crack with nickel rod, peen it, cool it slow, put it back. He’s done it a dozen times. And you know what? Half of those came back within a year with the crack reopened right next to the weld. The weld is harder and stiffer than the casting around it, so the thermal stress just moves next door and starts a new crack. Cast-iron manifolds are basically designed to be replaced, not repaired.
A new manifold for a mid-size industrial engine isn’t cheap — the part plus the labor to pull the turbo, the heat shields, and half the top of the engine adds up. But a welded manifold that cracks again in six months costs you the same labor twice, plus whatever the leak damaged in between.
The one exception: a big, expensive fabricated-steel manifold on a large set, where the crack is short and reachable, welded off the engine by someone who genuinely knows cast and stainless work. Even then I’d call it a gamble with decent odds, not a repair. For the standard cast-iron manifold on anything under a megawatt? Replace it. Don’t argue with the metallurgy.
A cracked manifold isn’t just a noise and a stain. The gas escaping is around 500 degrees and under pressure, and it’s going somewhere it was never meant to go.
I’ve seen it melt the insulation off wiring harnesses routed near the manifold. I’ve seen it cook a coolant hose until it wept. On an indoor set, exhaust leaking into the generator room instead of going up the stack is a carbon monoxide problem — and a room ventilation problem, which is why the exhaust system design matters as much as the manifold itself.
And the turbo: exhaust pulses are what drive the turbine. A leak bleeds pulse energy unevenly, so the turbo spins slower than the fuel map expects. The controller pours in fuel to make power, the turbo can’t keep up, and you get black smoke under load — the kind people misread as an injector problem. (If you’re chasing smoke, my smoke color guide will save you a wrong guess or two.)
The worst case I personally saw: a 250 kVA set at a food processing plant where a cracked manifold got misdiagnosed as a bad turbocharger. They paid for a turbo rebuild first. The new turbo underboosted exactly like the old one, because the manifold was still bleeding exhaust. The crack cost them a turbo they didn’t need.
You don’t need instruments. You need a cold engine and five minutes.

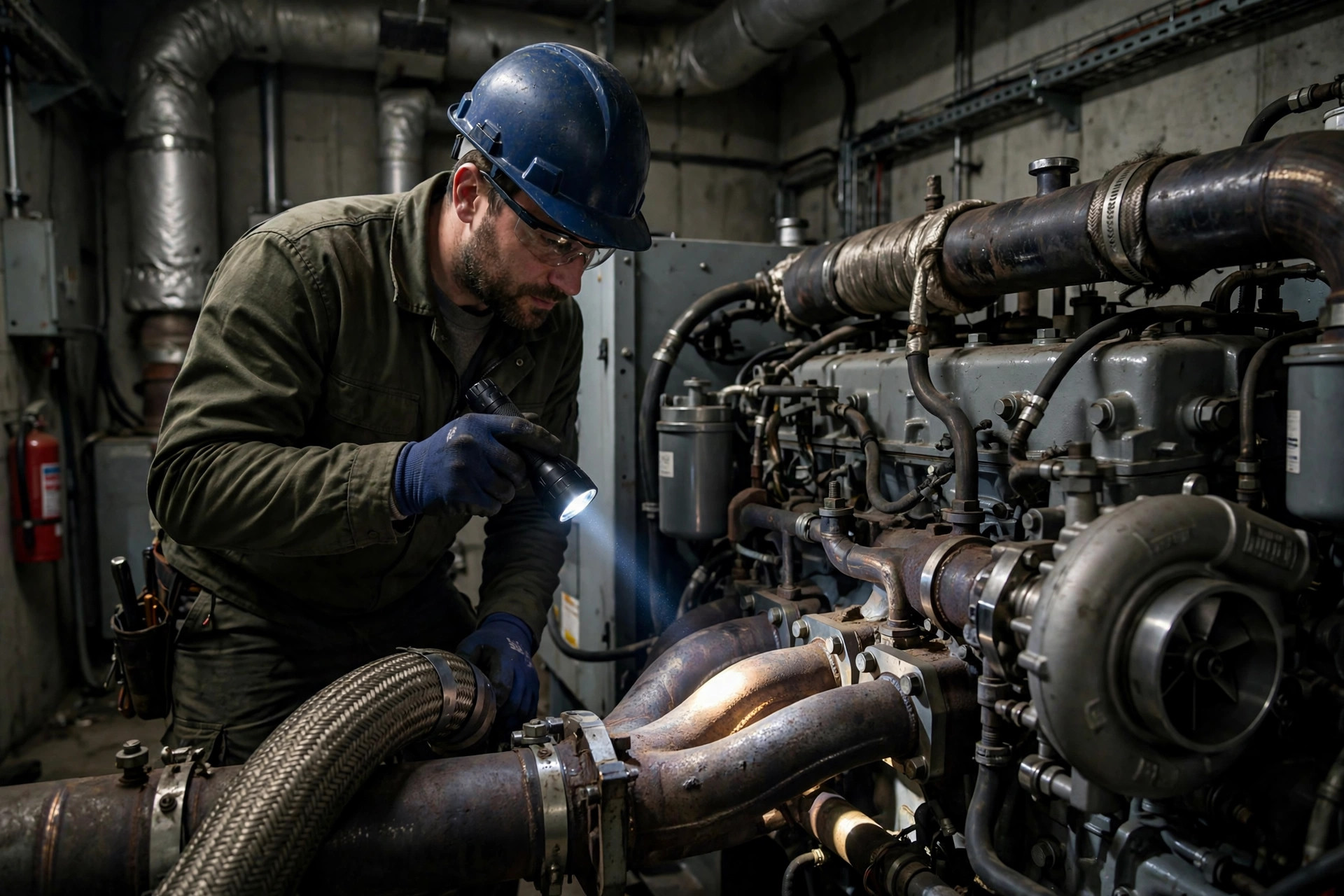

Start the set from dead cold and stand near the manifold — not touching anything, obviously — and listen for the first minute. A sharp ticking that fades as the engine warms is your early warning. Then shut it down, let it cool, and do a flashlight walk: every flange, every runner junction, looking for soot where it shouldn’t be.
Twice a year, put a wrench on the manifold bolts — not to gorilla them tighter, just to check. Overtightening is how flanges get warped and gaskets get crushed, which starts the whole cycle over. Torque them to the book value in the book’s sequence, center outward. And when the set runs, give it a real warm-up before loading and a few minutes of cool-down idle before shutdown. That cool-down is the cheapest manifold insurance there is; heat soak after a hard shutdown is when the worst thermal stress happens.
I fold this into the regular maintenance checklist walk — two extra minutes, once a month. That’s all it takes.
That rooftop set got a new manifold, new gaskets, and new bolts torqued to spec. Total downtime: one afternoon. The site manager asked what he’d have paid if we’d caught it at the ticking stage — same manifold, same gaskets, same afternoon, minus the turbo inspection we did out of paranoia. Basically nothing extra. The ticking was the cheap version of the news. The soot fan was the expensive version.
Listen for the tick. Read the soot. Replace, don’t weld. That’s the whole article, really — everything else is just me trying to sound like I earned the opinion.
If you’re staring at a manifold and can’t tell whether that soot means something, that’s what our contact page is for — send a photo and we’ll tell you straight.
