Your Diesel Generator Has a Heater. Odds Are Nobody Wired It.

The genset was a 800 kVA standby set at a coastal chemical plant. It had sat quiet for nine months — nine months of sea air drifting through the open louvers of the generator room. Before a scheduled load test, we put a megger on the alternator windings. The needle settled at 0.3 megohms.

Anything under about 1 megohm on a 500-volt test means the winding is wet. Wet enough that energizing it is a gamble. The fix turned out to be a part that costs less than a tank of diesel — and it had been sitting in the terminal box, unwired, since commissioning day.

It was the winding space heater.

What that little heater actually is

Inside the alternator end bracket of most industrial diesel generators, there’s a small resistive heating element. Strip, cartridge, or flexible band — the shape changes, the job doesn’t. It usually runs on a separate single-phase supply, 120 or 230 volts AC, and its only job is to keep the winding temperature a few degrees above the dew point of the surrounding air while the set is shut down.

That’s it. It’s not warming the engine. It’s not preheating fuel. (Different heaters do those jobs — more on that below.) It’s fighting one enemy: moisture soaking into the winding insulation during the months a standby set spends doing nothing.

Copper windings are wound on insulation that loves water. Leave a set idle in a humid room long enough and the insulation drinks moisture straight out of the air. Insulation resistance falls. Then one day the mains fail, the set starts, full voltage hits damp windings — and tracking or a phase-to-ground fault does what nine months of humidity started.

Mistake #1: it was never wired in the first place

This is the big one, and I see it more than any other. The heater ships installed in the alternator. Its terminals sit in the terminal box, clearly marked. And the commissioning electrician — rushed, under pressure, focused on the big cables — leaves them empty.

Honestly, I get how it happens. The genset starts fine without the heater. The load test passes without the heater. Nothing in the handover paperwork screams at you about it. The heater is invisible in every test that matters on day one. It only matters on day four hundred, in monsoon season, when you actually need the set.

I’ve opened terminal boxes on five-year-old sets and found the heater leads still coiled and taped off from the factory. In my experience with coastal and tropical projects, I’d guess a third of standby sets have a dead or disconnected winding heater. Nobody knows until the megger reading comes back ugly.

Mistake #2: wired backwards — heating only when it doesn’t help

Somebody wires the heater to the genset’s own auxiliary output. Think about that for a second. The heater then only gets power when the set is running — which is exactly when the windings are already hot from load current and don’t need heating at all. When the set shuts down and the windings start cooling toward dew point, the heater goes dark with everything else.

The heater must be fed from an external source that stays live while the set is idle. A normal mains-fed circuit, ideally one the building keeps powered around the clock. I once traced a “failed” heater to a breaker someone had switched off three years earlier and labeled, with admirable confidence, “spare.”

Mistake #3: nobody would know if it died

Heaters fail. Elements burn open. Thermostats stick in the open position. A humidistat gets coated in dust and never calls for heat again. And here’s the thing: on most installations, nothing tells you.

No alarm. No fault on the controller. No warning lamp in the generator room. The set starts perfectly every month on its exercise run, because a dead space heater changes nothing about starting. It only changes what the megger says — and nobody meggers until something goes wrong.

This is the cheapest fix in the whole article: put the heater on a circuit with a small indicator lamp, or check it with a clamp meter during routine visits. A typical frame-size heater draws somewhere between half an amp and a few amps. Zero amps, cold element, humid room — that’s your whole diagnosis. Two minutes, twice a year, and you’ll never be surprised by mistake #3.

Mistake #4: starting a damp set anyway

So the megger reads low. Now what? The uncomfortable answer is that plenty of operators energize the set anyway — the load test is scheduled, the customer is watching, and drying a winding takes time nobody budgeted.

Don’t. A damp winding under full voltage is how insulation tracking starts, and tracking doesn’t heal. If the reading is low, the honest procedure is to dry the winding first — and the space heater itself is one of the gentler ways to do it, run for hours or days with the set shut down, megger readings taken as it dries. Slow. Boring. Correct.

I wrote a whole piece on what insulation testing actually tells you — the megger readings, the polarization index, and what “dry enough” looks like. Read it before you argue with your maintenance crew about whether 0.8 megohms is “probably fine.” It isn’t.

Mistake #5: confusing it with the engine block heater

“The heater’s on,” the site engineer told me once, pointing at the control panel. He was right — a heater was on. It was the jacket-water block heater, keeping the engine coolant warm for cold starts. A completely different device, a completely different job. The winding space heater, meanwhile, sat unwired two meters away in the alternator terminal box.

This mix-up is everywhere. Block heaters (I covered them in the winter cold-start guide) keep the engine startable. Winding heaters keep the alternator dry. Both are called “the heater.” Only one of them saves your windings, and it’s the one nobody checks.

Where a winding heater matters most — and where you can relax

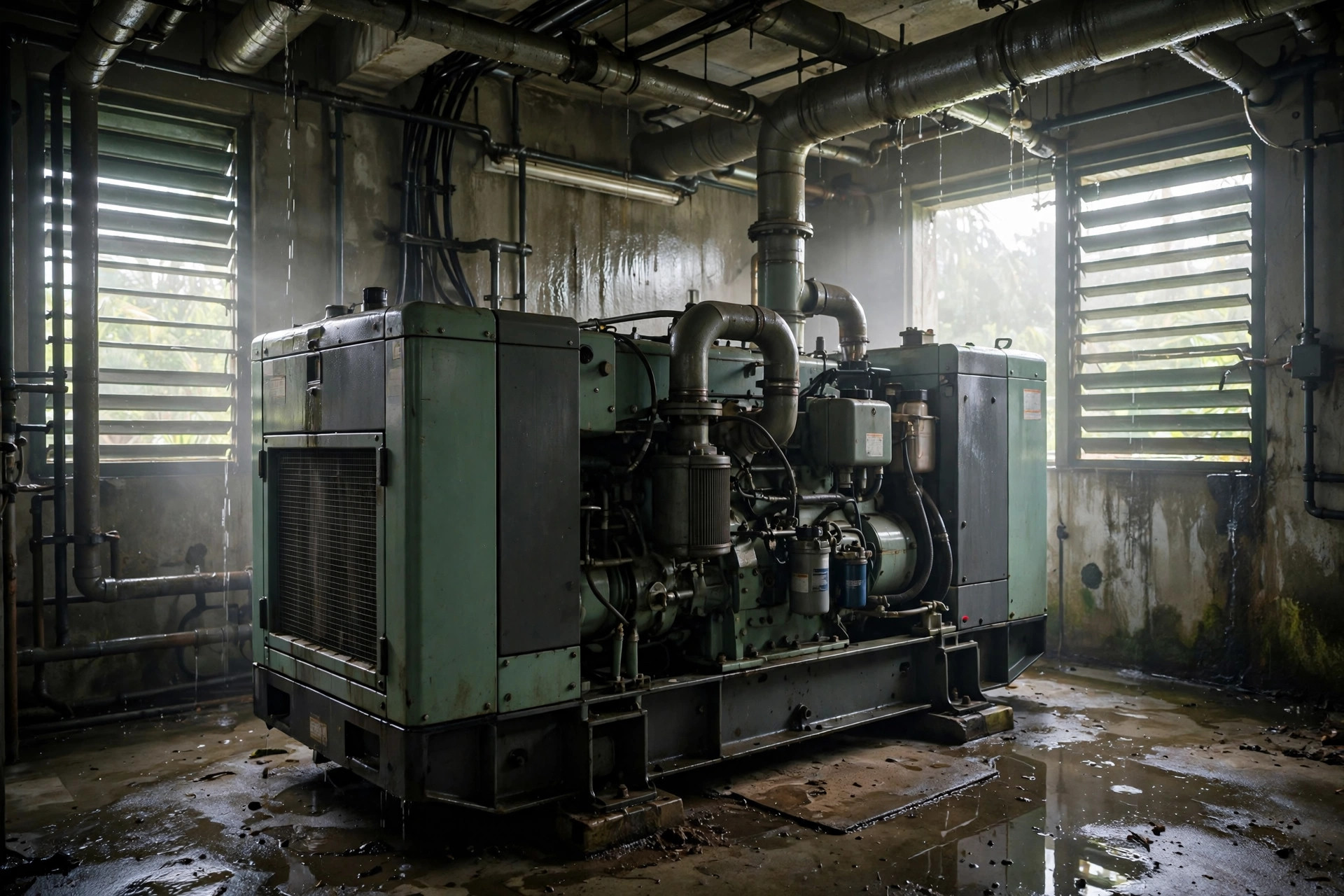

Coastal sites. Tropical sites. Basement generator rooms with poor ventilation. Any standby set that sits for months between runs in air that feels wet on your skin. That’s where the heater earns its keep, and where a disconnected one costs real money.

Dry climates and sets that run daily under real load? The windings stay warm and dry on their own, and the heater is mostly a passenger. I’m not going to tell you it’s critical everywhere. That said — a heater costs almost nothing to wire, and humidity has a way of showing up where you didn’t expect it. A basement that was dry in March can be a swamp in August.

An old-timer I worked with for years swore the monthly no-load exercise kept windings dry. He was wrong, and I told him so — respectfully, after the third damp winding. A fifteen-minute unloaded run barely warms the alternator. It takes real load current, the kind you only get from a proper load test, to drive moisture out of insulation. Or the heater, quietly doing it for free while the set sleeps.

The two-minute check that belongs on every maintenance visit

Here’s what I’d put on the maintenance checklist, and it takes less time than checking the oil:

• Heater wired? Terminals in the alternator box actually connected to a live external circuit.
• Heater drawing current? Clamp meter, expect a small steady draw. Zero means dead or disconnected.
• Thermostat or humidistat functional? If the room is cool and damp and the element is cold, something’s wrong.
• Indicator visible? A lamp on the circuit beats a surprise every time.
• Megger once a year, minimum, on any set that sits idle in a humid environment. Trend the readings. A falling number is the heater telling you it needs attention.

Next time you’re standing in front of your generator, open the alternator terminal box and look for the heater terminals. If there’s no wire on them — well, now you know what Saturday’s for. And if you’re specifying a new set for a humid site, write the heater wiring and its indicator into the commissioning checklist. It’s the cheapest insurance on the whole machine, and it’s the one part of the generator that works hardest while doing absolutely nothing.
