Your Generator Passed the Test. The Inspector Still Failed It.

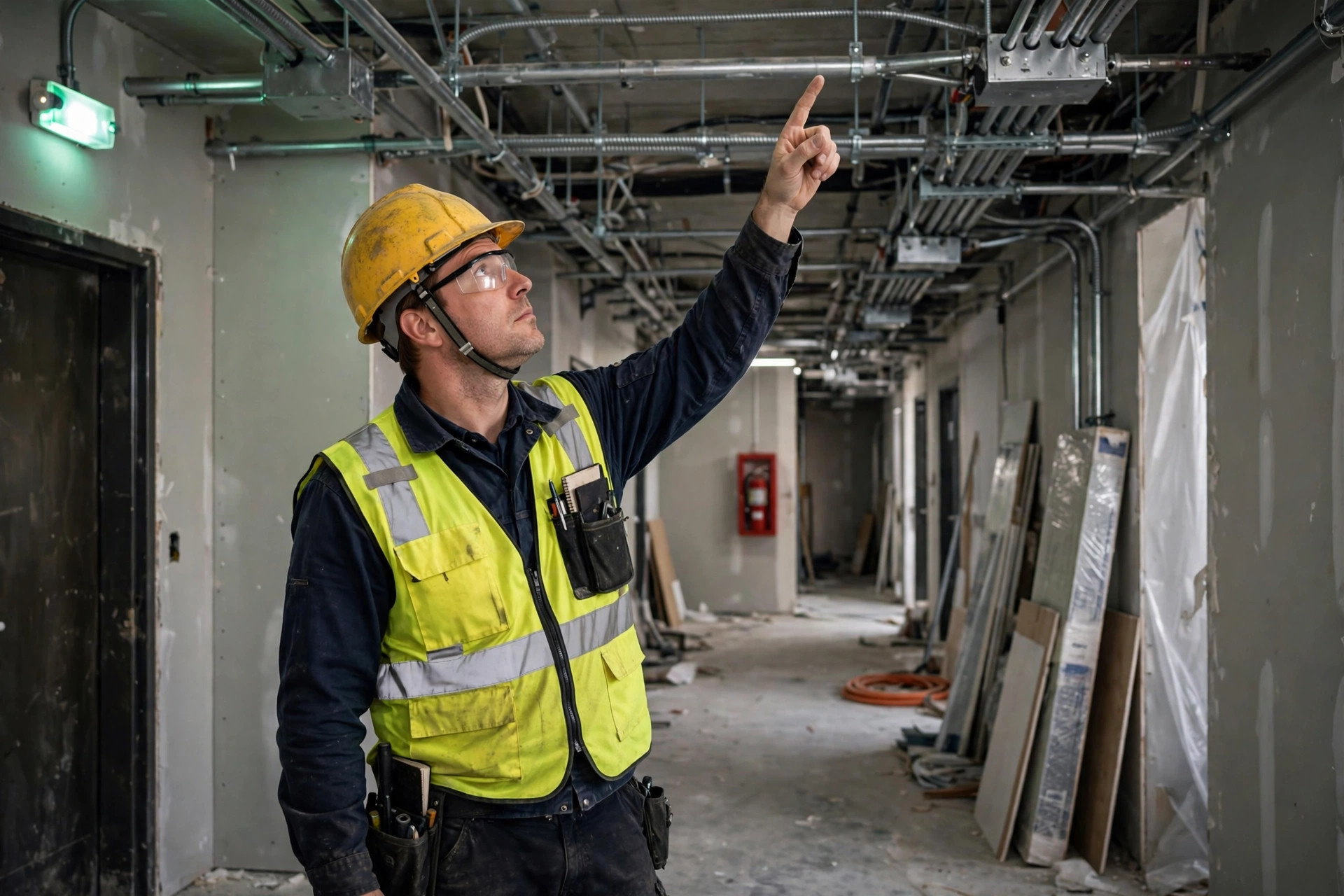

The inspector failed the job in nine words. “This switch can’t feed that circuit.”

The generator started fine. Ten seconds flat, clean transfer, not a hiccup. Didn’t matter. The automatic transfer switch was an optional-standby panel, and it was sitting on an emergency branch — the branch feeding the exit signs and the stairwell lights of a six-story office block. The moment the inspector saw it, six weeks of installation work got a red tag. Fix it, or no certificate of occupancy.

Here’s the thing that stung. The generator itself was perfect. The crime was labels and wire. Nobody on that job had asked one simple question before the concrete was poured: which article of the National Electrical Code is this branch?

Because the NEC doesn’t have one “emergency power” rule. It has three — Articles 700, 701, and 702 — and they describe three very different generators hiding inside the same machine. Get the article wrong and you’ll pass every functional test while failing the only one that counts.

One machine, three articles, three different jobs

Article 700 is Emergency Systems. These are the circuits that keep people alive while they get out — exit signs, egress lighting, fire alarms in some occupancies. The rule that defines them is brutal in its simplicity: power back within 10 seconds of the outage. And the wiring has to be kept entirely independent of every other wire in the building. Separate raceways. No sharing conduit with normal power.

Article 701 is Legally Required Standby Systems. These serve the people running toward the emergency instead of away from it — fire pumps in some jurisdictions, smoke control, lighting for the areas where firefighters and rescue crews work. Same spirit as 700, but with a looser stopwatch: 60 seconds. And here’s the part that surprises people — 701 wiring is allowed to share raceways, boxes, and cabinets with general wiring. Not the strict separation 700 demands.

Article 702 is Optional Standby Systems. This is your business continuity branch. Server rooms that aren’t life-safety, refrigerated warehouses, the production line you really don’t want to stop. Failure hurts the wallet, not people. The Code puts no transfer-time requirement on it at all — you can take five minutes if your process can. No selective-coordination mandate either.

An old engineer I know — thirty years of switchgear rooms — puts it this way, and he’s right: “It’s not an emergency generator. It’s a backup generator that can serve 700, 701, or 702.” The word “emergency” isn’t the sales guy’s word to use. It belongs to the Code, and it picks the article.

The 10-second problem nobody prices into the quote

I’ve commissioned gensets that started at 25 seconds on a cold morning. Good machine. Healthy batteries. For a 701 branch or a 702 load, that’s completely fine — well inside the 60 seconds, no inspector blinks. Put that same machine on a 700 emergency branch and it’s a failed system. Same generator. Same ATS. Wrong article.

Hitting 10 seconds in January takes deliberate work. Block heaters that actually get powered. Start batteries on independent chargers — the Code specifically calls for that on the emergency side. Pre-lube pumps on bigger engines. Cranking time settings the salesman never mentioned. None of this shows up in a brochure’s “10-second start” footnote, because the brochure was written in a warm factory in June.

Look, most standby quotes I see are priced for a 702 job. Cheapest ATS in the catalog. Minimal battery. And honestly? For a warehouse protecting frozen stock, that’s the right buy — 702 doesn’t ask for more. The disaster is when that same quote gets installed under a 700 scope because nobody on the project knew the difference. You don’t find out at commissioning. You find out at inspection. The inspector in my story found out.

Can one generator feed all three?

Yes. And this is where the old-timers and I argue.

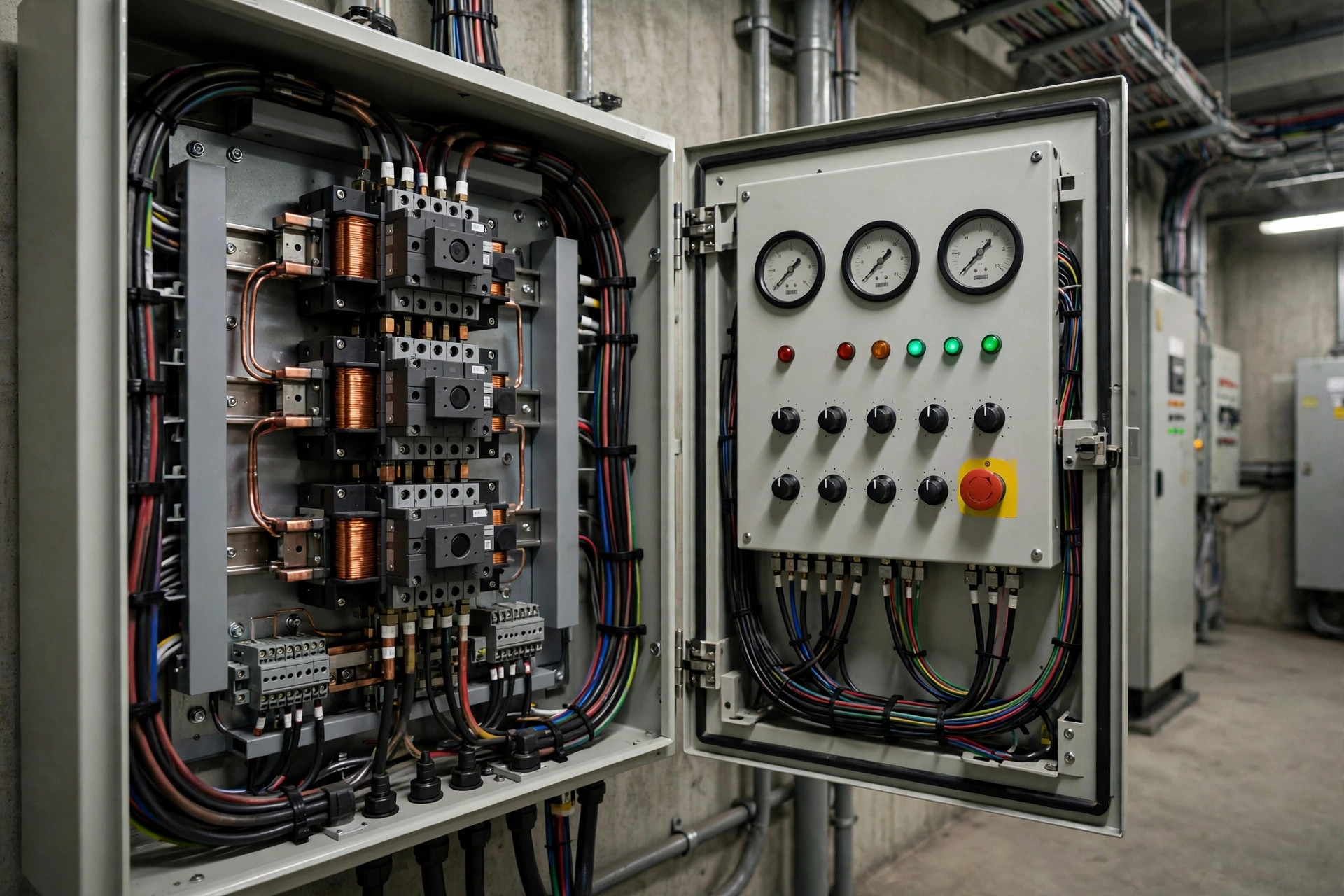

One generator set can serve emergency, legally required, and optional loads at the same time — but through separate transfer switches and separate branches. The emergency ATS is allowed to feed emergency loads only. That rule exists for a cold, practical reason: a failure in the less-important branch must never be able to take down the emergency one. A fried contactor on the optional-standby side shouldn’t darken the stairwell.

The old-timer I learned from — forty years, never had a system fail — swears by single-ATS jobs for small buildings. “Fewer switches, fewer things to break,” he says. He’s not stupid, and on a tiny retail building he’s probably right in practice. But the Code says otherwise for 700, and the inspector doesn’t grade on practice. Separate switches cost a few thousand dollars. A failed inspection costs weeks, re-pulling wire, and a client who stops answering your calls.

The wiring rule that costs real money

This is the one that ruins budgets. Article 700 wiring must be kept entirely independent of all other wiring and equipment. If your contractor — rushing, or just uninformed — pulled the emergency lighting conductors in the same conduit as the normal branch circuits, there is no fix except ripping it out and starting over. I’ve seen it. A finished ceiling, open, conduit rerouted, three days burned. The 701 branch next door, pulled in shared raceways, sailed through.

There’s a clean way to remember the split that a code writer once used, and I steal it for every client meeting: Article 700 lights the exit path — the people getting out. Article 701 lights the fire hydrant and the switchgear room — the people doing the rescuing. Article 702 lights whatever your business can’t afford to lose. Three lights. Three rules. Three different generators, all wearing the same paint.

And if you ever catch your electrician saying “it’s all just emergency power, don’t worry about it” — worry. That’s the sentence that ends with a red tag. Ask him which article the branch falls under, get the answer in writing, and check it against the transfer switch you’re buying. The switch knows which article it was built for. The inspector certainly will.

That office block I opened with? We split the branches, put in a proper 700-rated emergency ATS with its own independent wiring, kept the original generator — it was fine all along. The job passed the second time. Cost us three weeks and about what the right design would have cost in the first place. The generator never changed. Only the article did.
