I once walked into a generator room where the genset was running at full load and the radiator fan was screaming — because the room was so tight the hot air off the radiator was being sucked right back into the engine intake. The unit was cooking itself. The fix wasn’t a bigger fan. The fix was moving the radiator out of the room entirely.
Most diesel generators ship with the radiator bolted right on the skid, engine-driven fan and all. It works great — until the room is too small, too hot, or doesn’t exist. Then somebody suggests a remote radiator, and the conversation usually goes wrong in one of two ways: people treat it as a free upgrade, or they treat it as black magic.
It’s neither. Here’s the honest comparison.

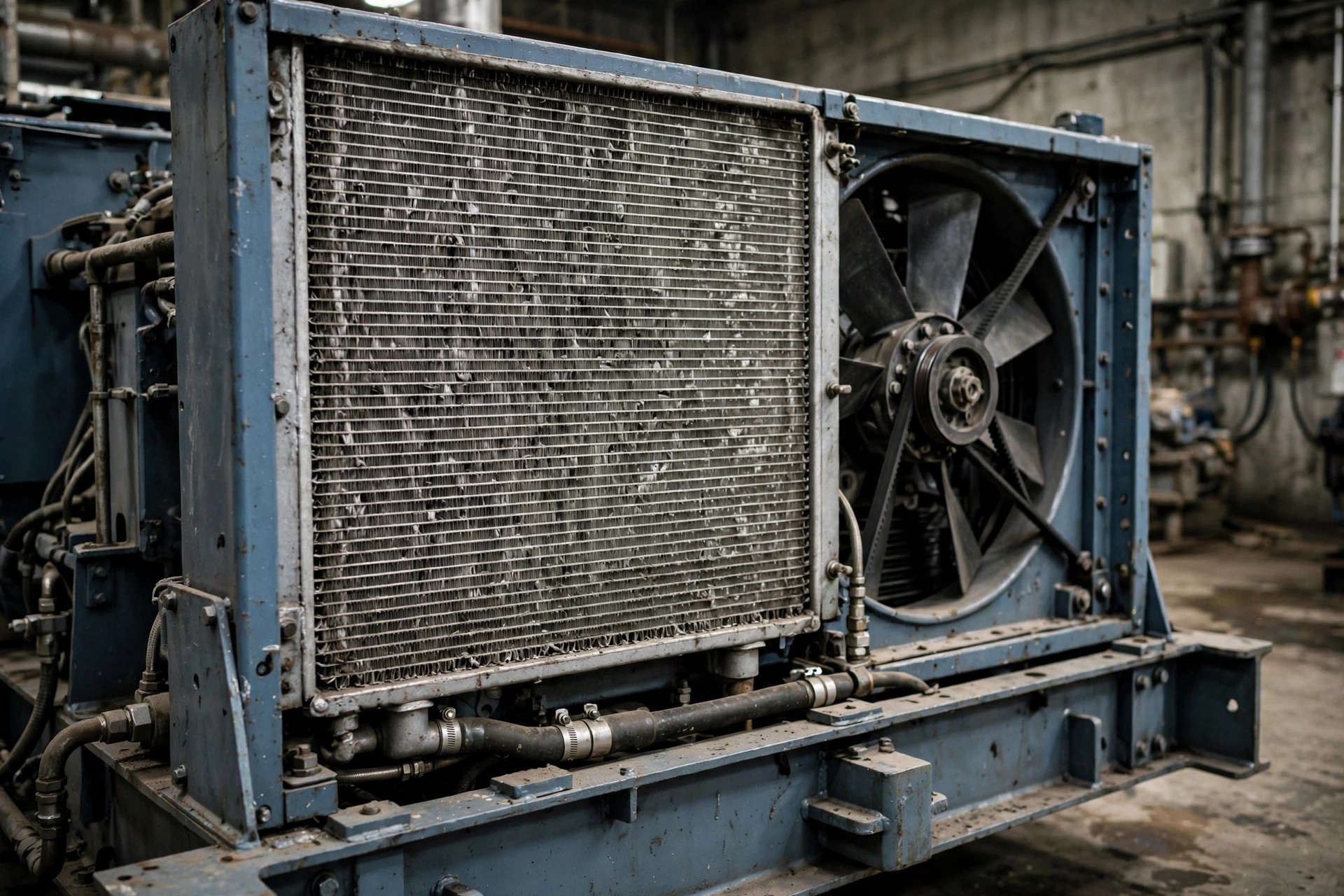

The standard package — radiator mounted on the base frame, driven off the engine — is one self-contained machine. Coolant loop is short. The fan is sized for the radiator. The whole thing got tested at the factory as one unit. You set it down, connect fuel, exhaust, and electrics, and walk away.
That simplicity is worth real money. There’s no external piping to design, no second circulating pump, no rooftop steel, no crane day just for a radiator. If your plant room has the airflow the radiator needs — fresh air in, hot air out, no short-circuiting — the skid-mounted radiator is the answer, and you should stop reading here. Honestly.
But here’s the thing: that “if” carries most of the failures I’ve seen. Radiator needs enormous volumes of air. Stuff the genset in a basement with a single louver, and you’ll derate the engine on a hot afternoon and wonder why the warranty claim goes nowhere.

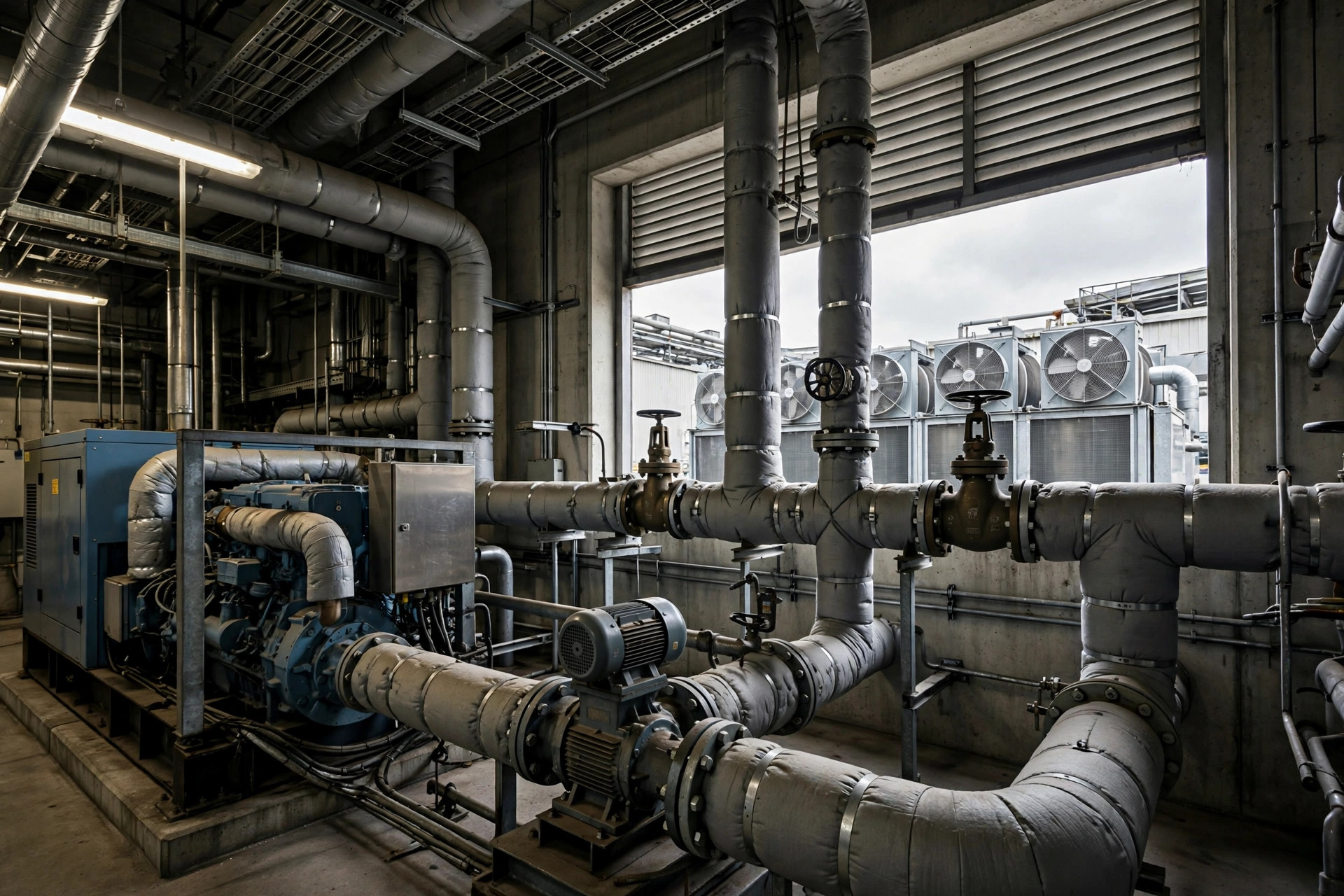

A remote radiator is exactly what it sounds like: the heat exchanger moves somewhere sensible — the roof, the side of the building, a ground pad 30 meters away — and coolant travels there through piping, pushed by an engine-driven or electric pump.
What you’re buying is freedom. Freedom from the plant room’s airflow limits. Freedom to shrink the room itself, because it no longer has to swallow radiator airflow. And in some layouts, freedom to keep the noise outside — a rooftop radiator with an electric fan can be quieter at the property line than a skid fan hammering inside a thin-walled room.
Data centers do this constantly. The generator room is deep inside the building for security; the radiators sit on the roof where the air is. Hospitals, high-rises, dense urban sites — same story. When the architecture can’t give the radiator air, the radiator goes looking for it.
The radiator itself isn’t the expensive part. The plumbing is.
Longer coolant runs mean more pipe, bigger pipe, and a pump that has to fight the friction of all of it. Every elbow, every vertical meter up to the roof adds resistance. Get the pipe sizing or the pump head wrong and the engine gets less coolant flow than the factory assumed — which is the slow-motion version of the basement problem we started with.
Then there’s fill and protection. A rooftop radiator in a cold climate is a freeze risk, so now you’re running proper glycol concentration and checking it, not just “topping up with water.” I’ve walked into more than one engine room where someone diluted the coolant during a routine top-up and the rooftop coil paid for it in January. Expansion tanks, air vents at the high points, isolation valves so you can service the thing without draining the building — the list grows fast.
And commissioning gets more interesting. The factory tested the genset with its skid radiator, remember? With a remote radiator, the system gets proven on site — pump curves, flow rates, temperature rise under real load. This is exactly why a proper commissioning checklist matters more, not less, when the cooling moved off the skid.
After twelve years of watching both setups, I’d say the remote radiator earns its keep in three situations:
One: the room physically can’t move the air. Basements, interior rooms, tight retrofits. If the ventilation math doesn’t close — and a serious ventilation design will tell you — don’t argue with physics. Move the heat rejection outside.
Two: the generator sits inside and the exhaust path is already complicated. High-rises and hospitals often route a long exhaust run; adding a remote radiator to the same rooftop keeps all the hot, noisy equipment in one serviceable place instead of two.
Three: you need the room smaller or quieter than a skid radiator allows. Some urban noise ordinances are written so tightly that the only compliant layout is the engine inside, the cooling on the roof.
Biggest one: undersized piping. Someone runs the coolant lines in whatever diameter was lying around, the flow drops, the engine runs ten degrees hotter than it should, and everyone blames the radiator. The radiator was fine. It was starving.
Second: forgetting that a remote radiator still needs its own airflow and its own service access. I’ve seen rooftop units jammed against parapet walls where the fan recirculated its own hot air — the same short-circuit mistake as the basement, just with a better view.
Third: no isolation. When the radiator needs cleaning or a fan motor dies, you want valves that let you work on it without draining the entire engine. Skimp on those and a two-hour service job becomes a full-system drain, refill, and re-bleed. On a standby set that guards a hospital or a data center, that downtime has a price nobody budgeted.
If the room has the air and the space, take the skid-mounted radiator and spend the money you saved on getting the exhaust right instead. Simple wins.
If the room doesn’t have the air — or doesn’t exist in a form that can host a radiator — go remote, but budget the whole system: piping, pump, glycol, valves, rooftop steel, and a real commissioning run under load. A remote radiator done properly will outlive the building’s patience with it. A remote radiator done cheaply will teach you, slowly and expensively, that heat rejection is the one part of the generator you never get to ignore.
Either way, remember what the radiator is: the engine’s only way out for roughly a third of the fuel’s energy. Overheating doesn’t start at the radiator, but it always ends there.
