The tachometer was already past 1,900 rpm on a set rated for 1,500, and the noise had gone from loud to wrong — a rising scream that made everyone in the generator room step back without being told. The operator had hit the emergency stop thirty seconds earlier. It did nothing. Fuel was cut. The engine didn’t care, because it wasn’t running on fuel anymore. It was running on its own lube oil, past a blown turbo seal, and there was exactly one thing left that could stop it: a flap of steel in the intake pipe that closes off the air. That flap has a name. Almost nobody orders one until they’ve heard that scream.
An air intake shutoff valve — air shutdown valve, emergency air intake valve, whatever your vendor calls it — is a butterfly or flapper valve mounted in the intake piping. Open, it does nothing at all, which is the whole point. Closed, it suffocates the engine. On a normal diesel this valve is decoration; you will go years without thinking about it. It exists for one scenario: the day the engine finds fuel that isn’t in the fuel system, and the governor, the fuel rack, and the E-stop all become bystanders.
Every diesel operator learns the same reflex: engine misbehaves, kill the fuel. It works for almost everything. It fails in exactly the situation where you need it most — a runaway, where the engine starts burning its own crankcase oil. Oil mist gets past worn rings or a failed turbocharger seal, the combustion chamber treats it like diesel, rpm climbs, the turbo spins faster and pushes more air in, which burns more oil, which spins the turbo faster. It’s a feedback loop with no governor in it, because the governor only controls the fuel rack. I’ve watched a mechanic stand there pressing the stop button harder, as if pressure helped. It doesn’t.
Air is the one input you can still take away. Close a steel flap across the intake and the loop has nothing to burn. Simple. Mechanical. No software between you and the outcome. That’s the entire pitch for the valve, and honestly, it’s a good pitch.
An automatic air shutoff valve closes on its own when something — usually an overspeed signal from the controller or a dedicated speed switch — tells it the engine has passed a set rpm, often around 110–115% of rated speed. Solenoid releases a spring-loaded flap, or a pneumatic actuator slams it shut. Response time is under a second. Nobody has to be in the room. For an unattended standby set — which is most of the sets that matter, sitting in locked rooms waiting for a blackout — this is the only version that makes sense, because a valve nobody pulls is not a safety device, it’s a sculpture.
The price is real but small: roughly a few hundred dollars for the valve and actuator, plus installation. Compare that to an engine rebuild after a runaway, which starts in the five figures and goes up. I’ve written that sentence in quotes more than once. Most buyers delete the line item anyway. They’ll spend more on the canopy paint color.

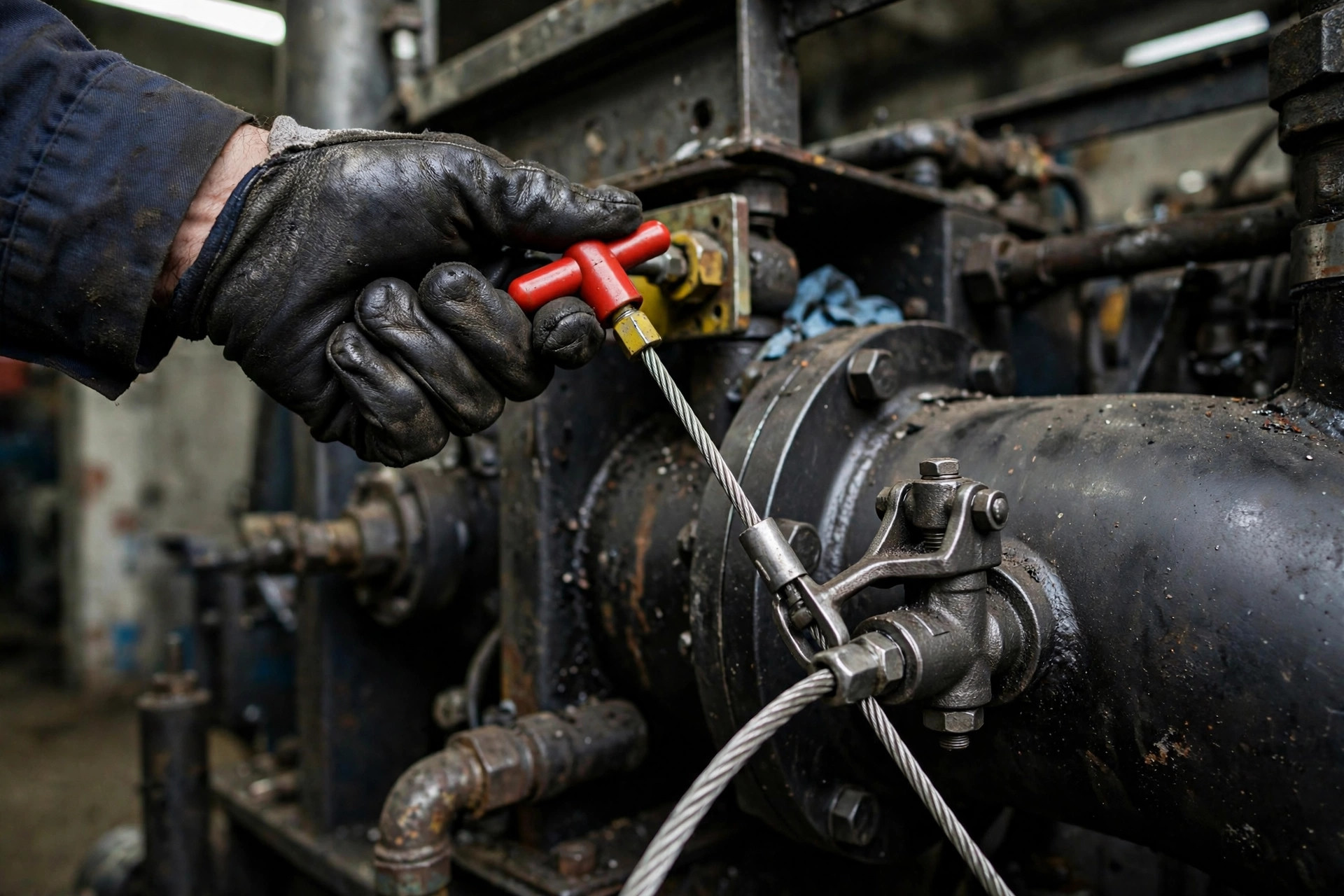

The manual version is a cable-pull or lever-operated flap. Yank the red knob, the flap closes. No solenoid, no speed switch, no controller in the chain — which is exactly why some old hands swear by it. Fewer parts to fail, nothing to false-trip, and you can see with your own eyes whether it’s open or closed. In the projects I’ve been on, the manual valve shows up most on portable and rental sets, the kind where an operator is always within shouting distance.
And here’s where my old-timer colleague and I stop agreeing. He’s been around these machines longer than I’ve been alive, and he doesn’t trust the automatic valve one bit. His argument: a solenoid can stick, a speed switch can lie, and a false trip in the middle of a real outage is its own kind of disaster. He’s not wrong about the failure modes — I’ve seen a corroded linkage on an automatic valve that would have done nothing if called on. But his conclusion is that the manual valve plus a trained man standing by is enough, and that’s where I get off the train. A standby set exists precisely for the moments when nobody is standing by. The 2 a.m. outage, the unmanned site, the weekend. A manual valve on an unmanned set is a seatbelt you have to mail in from another city.
If you’re choosing between the two, here’s how they actually compare in the field — not the brochure, the field:
There’s also the third option, the one most buyers pick: no valve at all. Runaways are rare. Most engines die of boring causes — dead turbochargers, neglected oil, dead batteries — long before they ever run away. Skipping the valve is a calculated bet, and I’d be lying if I said the odds were bad. But the payout side of the bet is a destroyed engine and a shrapnel hazard in the room, so “rare” is doing a lot of work in that sentence. On anything above a few hundred kVA, or anything that runs unattended, I spec the automatic valve and I don’t apologize for the line item.
The valve belongs between the air filter and the turbocharger inlet — upstream of the turbo, in normal-pressure intake air. I’ve seen two installation mistakes repeat themselves. The first: mounting it after the turbo, in boosted air, where the pressure works against the flap and the sizing math from the catalog no longer applies. The second: mounting it so far upstream, at the end of a long intake run, that the volume of air already in the duct keeps the engine alive for several extra seconds after the flap closes. Seconds matter when the tach is climbing past redline. Close to the turbo inlet, flapper sized for the engine’s actual airflow, linkage free to move. It’s not complicated work, but it has to be deliberate.
One more detail that gets skipped: the valve adds a small restriction to the intake even when open. On a correctly sized valve it’s negligible. On an undersized one — and people do undersize them, usually to save a little money on the bigger flange — it costs you power and runs the turbo hotter, every hour, forever. Size it for the engine’s rated airflow with margin, not for the price.

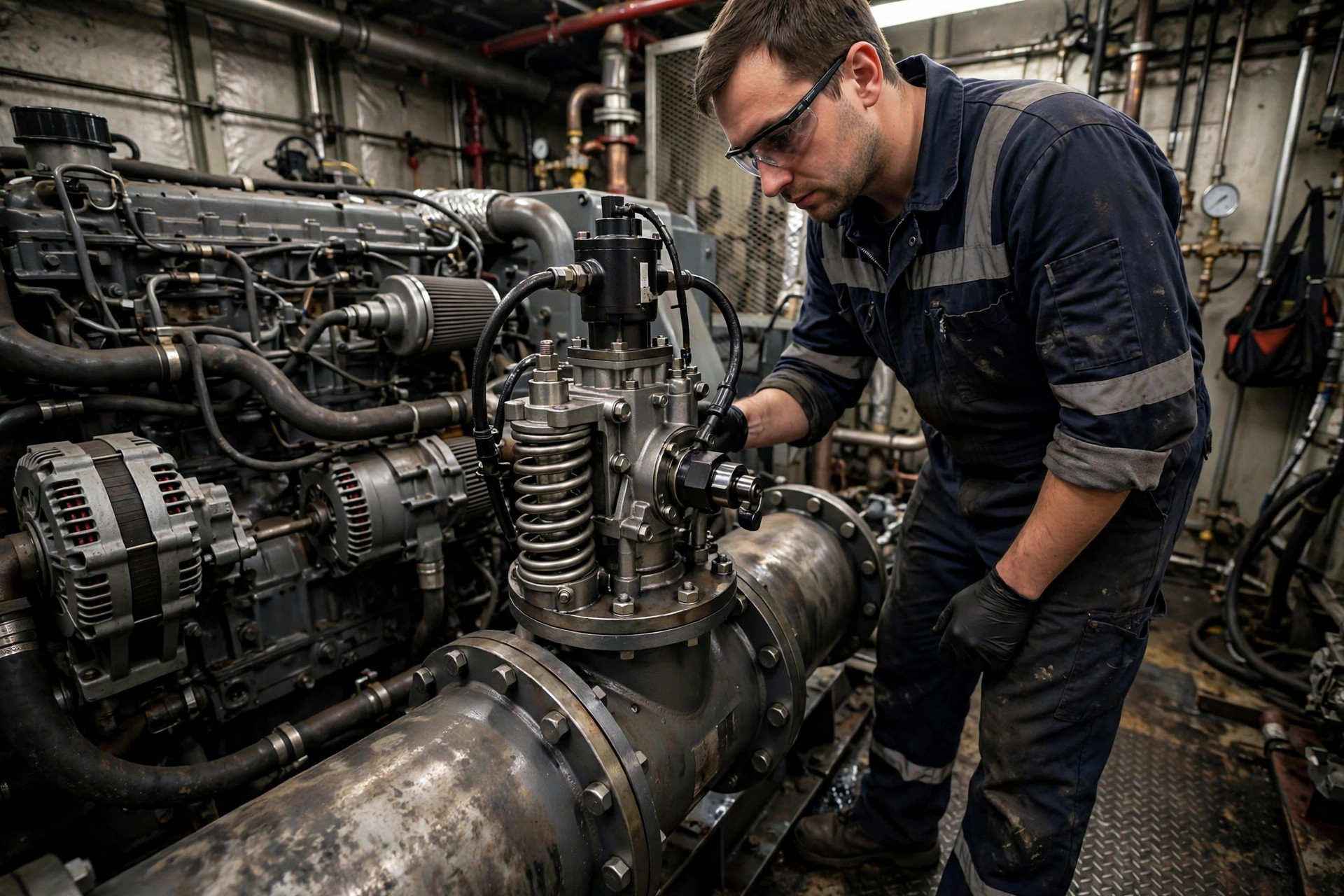

Here’s the part of the maintenance routine that gets skipped: the valve has to be tripped, for real, on a schedule. Pull the cable on the manual one and feel the flap move — then reset it and confirm it actually reopened, because a valve left half-closed is its own problem. Trip the automatic one through its test circuit and watch the flap, not just the indicator light. Twice now I’ve found linkages that moved the lamp and nothing else. A valve that hasn’t moved in three years is a rumor, not a safety device. Put it on the same monthly walkdown as the battery and the fuel level, and it stops being a project.
Unattended standby set, anything you depend on: automatic, wired to a real overspeed signal, tested monthly. Manned portable or rental fleet where an operator is always close: manual is honest and cheap and fine. And if your vendor’s quote doesn’t list either one, ask for the line item before you sign — it’s the cheapest insurance on the whole machine, and it’s the only device on the set whose entire job is to act on the worst day of the engine’s life. The generator room I started this story in? The set survived, barely — the mechanic who finally thought to throw a rag into the intake doesn’t work there anymore, and nobody pretends that was a procedure. Now there’s a steel flap in that intake pipe. It cost less than the carpet in the site office.
