I was standing in a hospital basement once, watching a six-month-old generator rock on its frame like a boat in a swell. The engine was fine. The alternator was fine. The concrete underneath it was the problem — cracked straight through, both rails, like someone had taken a chisel to it.
Nobody had. Physics had.
Here’s the thing nobody tells you when you’re shopping for a genset: everyone obsesses over the engine brand, the kVA rating, the controller screen. Nobody prices the pad. The pad is the cheapest line item on the quote, and it’s the most expensive one to fix later. Because once a 3-ton machine is bolted to bad concrete, you don’t “adjust” it. You crane it off, chip the pad out, and start over — with the site down the whole time.
Twelve years in this business, and I keep seeing the same four foundation mistakes. Every one of them was avoidable. Every one of them cost somebody real money.
The pad isn’t a parking spot. It’s part of the machine — an inertia base that the engine pushes against thousands of times a minute.
The rough rule of thumb I was taught: the foundation should weigh about one and a half to two times what the genset weighs. Engineers will argue the exact ratio, and soil conditions change it, but the principle is simple — mass absorbs vibration. A pad that’s too light doesn’t damp anything. It just transmits every shake straight down, and eventually the concrete fatigues and cracks.
Two practical details I watch for. First, the pad should extend past the skid on every side — roughly 150 to 300 millimeters of margin, so the anchor bolts aren’t sitting at the edge of the pour. Second, don’t let anyone pour it thin to save a truckload of concrete. A mid-size set wants a serious slab, not a sidewalk panel.
I’ve watched a crew spend two days chipping out a cracked pad with jackhammers, the new generator sitting on blocks in the corner like furniture in a renovation. The original pad had looked fine on day one. It always looks fine on day one.
An engine vibrates. That’s not a defect, that’s physics — controlled explosions, remember? If you bolt the skid rigidly to the concrete, all of that energy goes into the building. Every pipe, every wall, every floor slab within range gets to join the party.

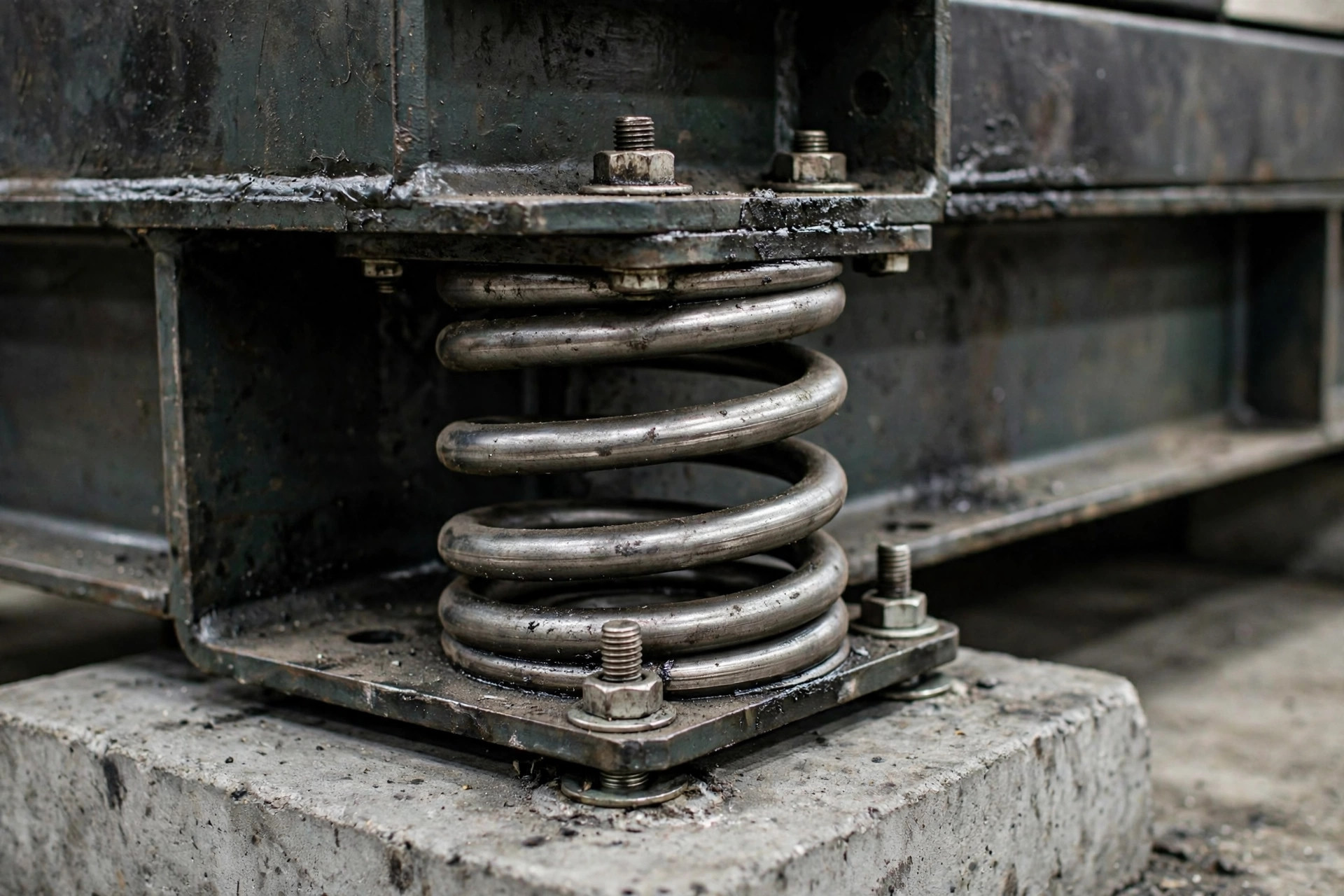

This is what vibration isolators are for. Spring mounts for the big sets, rubber-in-shear pads for smaller ones. The number that matters is deflection — how much the mount compresses under load. A mount with real deflection lets the engine move a little so the building doesn’t have to. A cheap mount that bottoms out under the skid’s weight is just an expensive spacer.
On one job I walked into an office where the ceiling lights buzzed every time the standby set ran its weekly exercise. The generator was on the mezzanine, bolted down tight, no isolators. The client had “saved” a few hundred bucks on mounts. Honestly? Skipping isolators to save a few hundred dollars is the dumbest economy in this business. The mounts cost less than one service call for the problems they prevent.
One caveat, because I don’t want to oversell it: a small portable set sitting on a pad outside the building doesn’t need spring mounts. Gravity and open air do the work. But anything bolted down inside a structure — or on a roof, which we’ll get to — without isolators is a complaint letter waiting to happen.
Can it? Or did someone just assume it can?
A generator’s weight on paper is a static number. In reality it’s a dynamic load — the thing shakes, and the structure feels a load that’s bigger than what the spec sheet says. And then there’s resonance. Every structure has a natural frequency. An engine running at 1500 or 1800 rpm shakes at its own frequency. If those two frequencies line up, the vibration doesn’t just transmit — it amplifies, and that’s how a rooftop set turns the top floor into a drum.
I’ve never installed a set on a roof or a mezzanine without a structural engineer signing off on it first. Not the landlord’s nod. Not “it held the old air handlers.” An actual calculation. The old-timers I work with sometimes roll their eyes at me for this. Then I remind them about the hospital job, and they stop rolling their eyes.
Same thinking applies to everything connected to the set. Exhaust stacks, fuel lines, electrical conduit — if they’re rigidly connected to a vibrating machine, they’ll crack at the joint. Use flexible bellows on the exhaust, flexible fuel hose sections, flexible conduit. I once saw an exhaust connection shear clean through because the stack was hard-piped to a genset that moved and a wall that didn’t. The soot stain on the ceiling told the whole story.
Where you put the set matters as much as what’s under it, by the way — I’ve written about the containerized vs. open-type decision before, and the foundation conversation starts there.

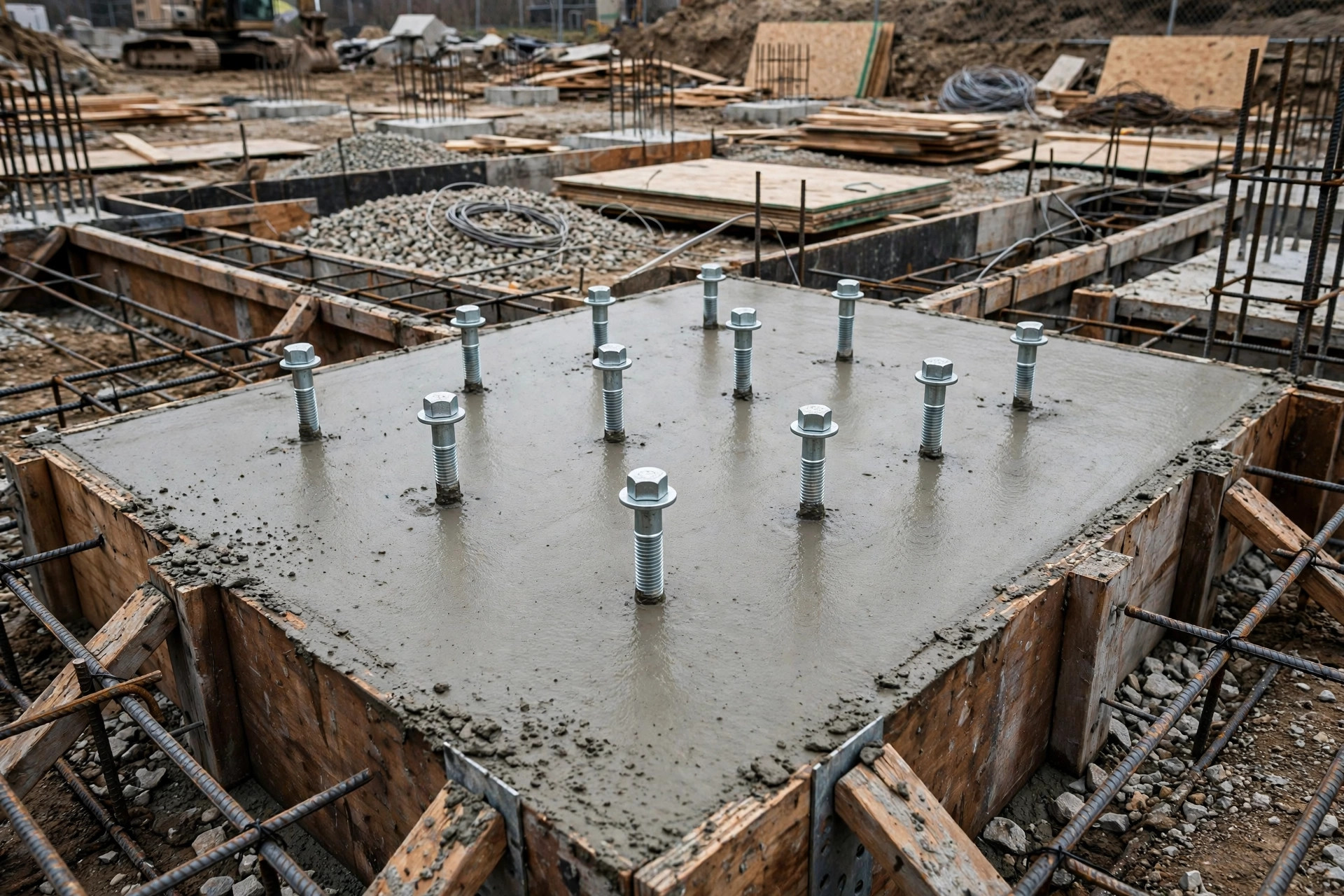

Anchor bolts are the last line of defense, and they get the least respect. Cast-in bolts set during the pour are the gold standard — positioned with a template, held plumb, surrounded by solid concrete. Drilling and epoxy-setting anchors after the pour works too, when it’s done right. “Done right” is doing a lot of heavy lifting in that sentence.
Then there’s the grout. The gap between the skid and the pad gets filled with grout — non-shrink grout, ideally epoxy — so the full rail bears evenly instead of rocking on high spots. Skip the grout, or use the wrong mix, and the skid bridges across uneven concrete. Now the frame flexes with every firing pulse. Frames don’t like flexing. Alignment drifts, couplings wear, and one day you’re troubleshooting a vibration problem that turns out to be a grout problem.
Worst case I personally witnessed: a set that had “walked” — just a few millimeters over a year or two, enough to throw the shaft alignment off and let the coupling eat itself. The anchors had been drilled shallow into a thin pad, and vibration did the rest. The fix meant re-pouring, re-anchoring, and re-aligning — all to make up for the half day the original installer had skipped.
So next time you’re comparing quotes, find the foundation line. It’s usually the smallest number on the page — a few hundred bucks of concrete, some mounts, some bolts. That’s exactly why it’s the one that bites. Everything else on a generator can be serviced, adjusted, or replaced. The concrete can’t, unless you want to pay for the whole job twice.
Get the pad right, isolate the vibration, check the structure, anchor it like you mean it. Do those four things and your foundation disappears from your life — which is exactly what a good foundation is supposed to do. And if you’re still sizing the set itself, start with how to actually size a diesel generator before you pour anything. The pad only works when it’s built for the machine that’s going on it — and a machine room that breathes matters too, as I covered in the ventilation guide.
