Last February, at a logistics park outside Suzhou, I stood next to a 500 kVA set that had been running forty minutes at half load. The coolant gauge read 62 degrees. The operator shrugged. “Runs cool. That’s good, right?”
I pulled the dipstick. The oil looked like coffee with too much milk.
That “cool-running” generator had been chewing itself up for months. The part responsible costs less than a tank of diesel. And nobody had ever thought about it.
A diesel engine wants to live around 80 to 85 degrees coolant temperature, roughly. Below that, bad things happen slowly: fuel doesn’t burn clean, unburned fuel washes past the rings into the oil, condensation never evaporates out of the crankcase. Milky dipstick. That’s what I found at that logistics park — and a cold February morning makes a stuck thermostat worse, as I learned writing about what winter does to a generator that can’t warm up.
The thermostat — original, installed 2013, never touched — was stuck open. Coolant flowed through the radiator from the first crank, and the engine never got warm. Not once, in eleven years of weekly test runs.
Inside that little brass housing sits a wax pellet. Cold wax, spring holds the valve shut; coolant circulates inside the block only, through a bypass circuit, so the engine warms up evenly. Hot wax expands, pushes the valve open, shuts the bypass, and sends full flow through the radiator.
That’s the whole job. Open late, open early, stuck either way — your engine lives at the wrong temperature from then on. Everything downstream — oil life, fuel burn, the DPF’s ability to regenerate — is hostage to a part the size of a coffee cup lid.
Show me a generator PM checklist and I’ll show you oil, filters, coolant level, battery, belts. Thermostat? Almost never on the list. I ask site managers when the thermostat was last changed, and the answer is usually a laugh. “It’s original.” The machine is a 2013 install.
Wax ages. The spring loses tension. Scale builds up on the seat. A thermostat is a wear part that everyone treats as a lifetime part, and after eight or ten years, “original” just means “we got lucky so far.”
A stuck-open thermostat doesn’t throw an alarm. The engine runs cool, the gauge looks reassuring, and meanwhile fuel consumption creeps up a few percent, the oil thins out with fuel dilution, and on a lightly loaded standby set you get the slow-motion damage of wet stacking — all because the engine never reached the temperature it was designed to clean itself at.
This one makes me grind my teeth. Summer overheating, somebody pulls the thermostat out entirely, the gauge drops ten degrees, everyone declares victory.
Here’s what actually happens. With no thermostat, the bypass circuit stays wide open forever. A chunk of your coolant takes the shortcut — straight back to the pump, skipping the radiator entirely. The rest moves so fast through the radiator it barely sheds heat. Dwell time matters; heat transfer needs the coolant to sit still long enough to give the heat up.
Last August, a 400 kVA on a construction site kept tripping on high coolant temperature at 40 degrees ambient. The previous service crew had “deleted” the thermostat the summer before. The gauge had been reading a calm 85 all along — because the gauge reads the mixed outlet stream, not the hot spots cooking around the exhaust valve seats. The head gasket let go on a Tuesday afternoon. The repair bill was roughly a hundred times the cost of the part they’d thrown in a dumpster.
The old-timer on that crew told me, straight-faced, that every machine he ever ran went better without a thermostat. I walked him around the block with my infrared gun and showed him the temperature spread across the head. He went quiet. Then he said, “Huh.” I’ll take that.
Here’s a subtler way to get it wrong. The cross-reference catalog says “fits” half a dozen engine models, so the purchasing guy buys one part number for the whole fleet. It fits the housing perfectly. It opens at 71 degrees. Your engine was specced for 82.
Now the machine runs “cool” forever, by design, and nobody can find anything wrong because the part is brand new. Oil never gets hot enough to boil off condensation or fuel. And on a machine with a DPF, exhaust temperature is everything — a cold-running engine regenerates badly, regenerates often, and loads up ash. I once watched a fleet chase “DPF problems” across three machines for two months. The DPFs were fine. All three had 71-degree thermostats in 82-degree engines.
Match the temperature rating to the engine’s spec sheet, not just the flange diameter. The number is stamped on the stat for a reason.
Stuck-open symptoms get misdiagnosed constantly: “the coolant’s weak, flush it,” “the fan belt’s slipping,” “the radiator’s clogged.” Hours of labor, and the thermostat sits there grinning.

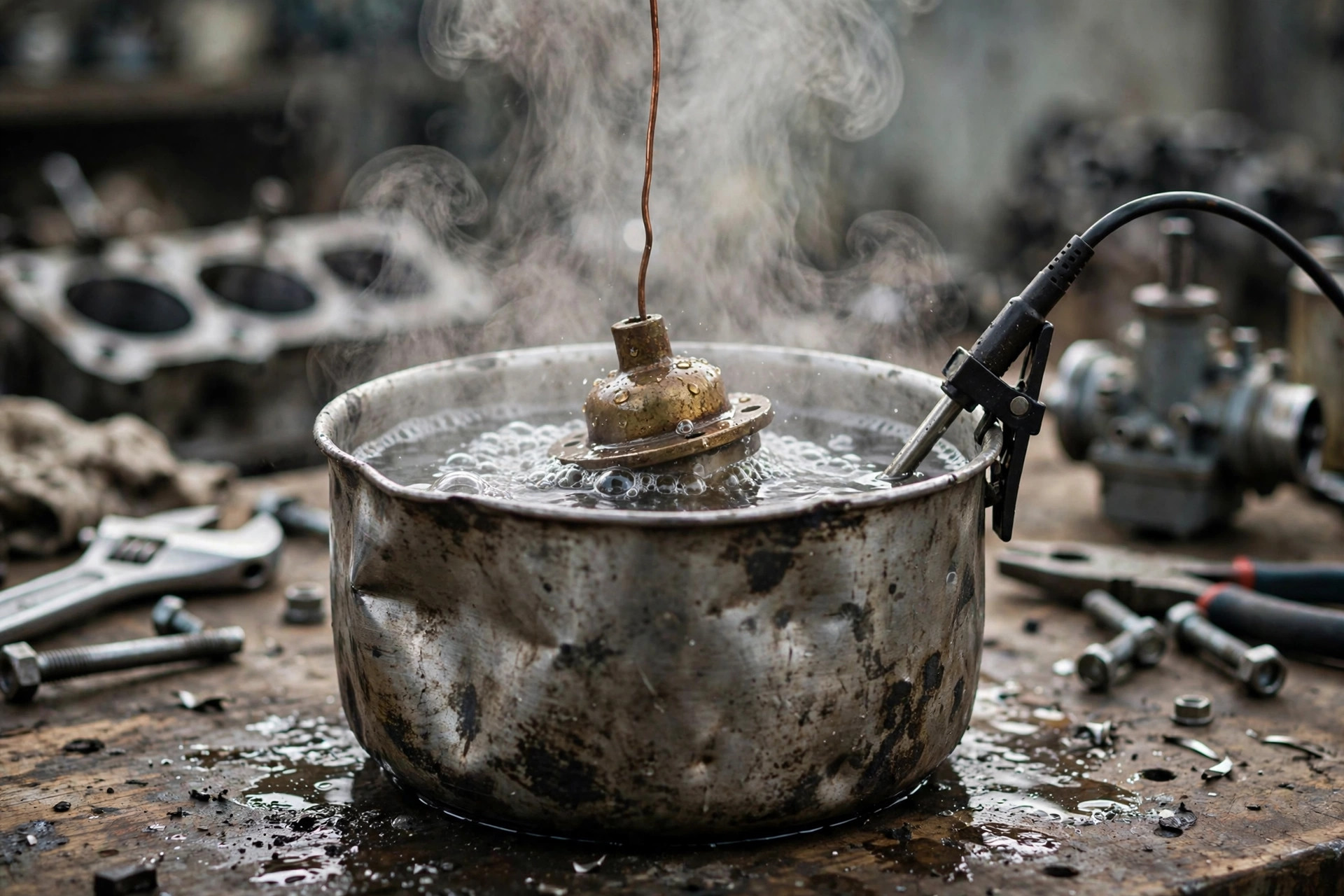

There’s a test so simple it feels like cheating. I keep a dented saucepan in the service truck just for this:
A stat that opens late, opens halfway, or never closes is scrap. Ten minutes, one pot, no guessing. The saucepan in my truck has a burn mark in the shape of a thermostat flange. I’m weirdly proud of that.

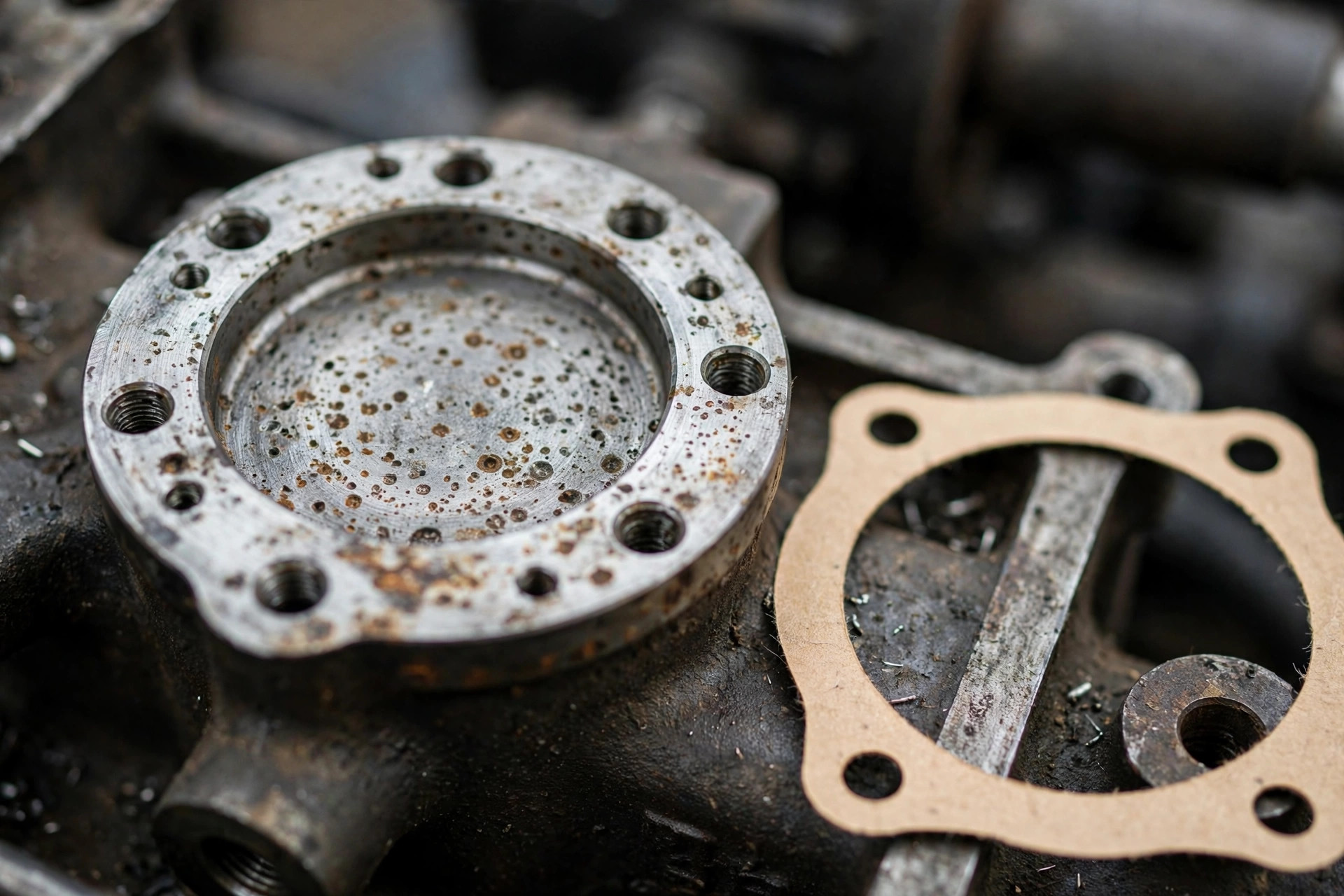

The last mistake happens during the repair itself. New thermostat goes in, but the paper gasket gets reused, the housing seat is pitted with corrosion and nobody dresses it flat, and the little bleed hole — the jiggle pin that lets trapped air escape — ends up facing down.
Then they refill the system without bleeding the air out. An air pocket parks itself right behind the thermostat, and air doesn’t conduct heat to the wax pellet, so the stat stays shut while the block heats up. I’ve watched a “fixed” machine overheat twenty minutes after a thermostat swap, with a brand-new part, because nobody cracked the bleed screw.
New stat, new seal, clean flat seat, bleed hole up, bleed the system. Five things, five minutes. Skip one and you’ll be doing the job twice.
Next time you’re in the parts room ordering filters, add a thermostat to the shelf. Date it with a paint pen. It’s a two-hour job, it costs about what lunch costs for the crew, and it’s the only part on the whole skid where getting it wrong costs you an engine and getting it right costs you almost nothing.
Honestly? That 500 kVA in Suzhou is still running today, on its second thermostat. The operator checks the dipstick now. He says the oil stays black and the gauge sits where it should. It took eleven years and one $30 part to get there. If your temperature gauge has been reading low for months, get in touch before the dipstick tells the story.
